Front Severity Crash Sensor

SPECIAL TOOL(S)

REMOVAL

WARNING: VEHICLE SENSOR ORIENTATION IS CRITICAL FOR PROPER SYSTEM OPERATION. IF A VEHICLE EQUIPPED WITH AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) IS INVOLVED IN A COLLISION, INSPECT THE SENSOR MOUNTING BRACKET AND WIRING PIGTAIL FOR DEFORMATION. REPLACE AND PROPERLY POSITION THE SENSOR OR ANY OTHER DAMAGED SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS WHETHER OR NOT THE AIR BAG IS DEPLOYED.

NOTE: Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and perform the diagnostic procedure again.

1. Disconnect the battery ground cable and wait at least one minute.

WARNING:
^ TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE BACKUP POWER SUPPLY MUST BE DEPLETED BEFORE REPAIRING OR REPLACING ANY FRONT OR SIDE AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS AND BEFORE SERVICING, REPLACING, ADJUSTING OR STRIKING COMPONENTS NEAR THE FRONT OR SIDE AIR BAG SENSORS, SUCH AS DOORS, INSTRUMENT PANEL, CONSOLE, DOOR LATCHES, STRIKERS, SEATS AND HOOD LATCHES.
^ PLEASE REFER TO THE APPROPRIATE COMPONENT OR SYSTEM TO DETERMINE LOCATION OF THE FRONT AIR BAG SENSORS.
^ THE SIDE AIR BAG SENSORS ARE LOCATED AT OR NEAR THE BASE OF THE B-PILLAR.
^ TO DEPLETE THE BACKUP POWER SUPPLY ENERGY, DISCONNECT THE BATTERY GROUND CABLE AND WAIT AT LEAST ONE MINUTE. BE SURE TO DISCONNECT AUXILIARY BATTERIES AND POWER SUPPLIES (IF EQUIPPED).

2. Deactivate the Supplemental Restraint System (SRS).

WARNING: TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY, READ AND FOLLOW ALL WARNINGS, CAUTIONS, NOTES, AND INSTRUCTIONS IN THE SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION/REACTIVATION PROCEDURE.

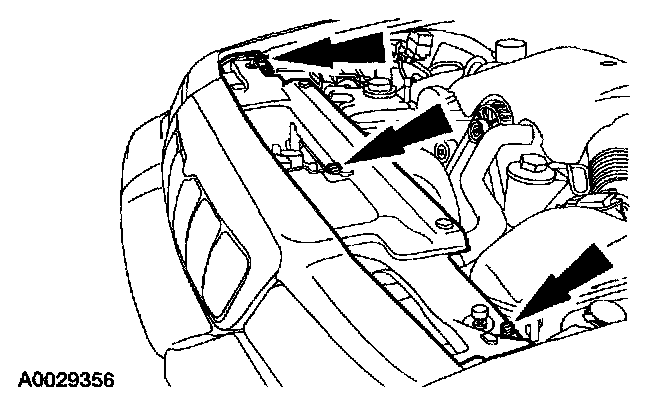

3. With the hood open, remove the pin-type retainers and the header opening panel.

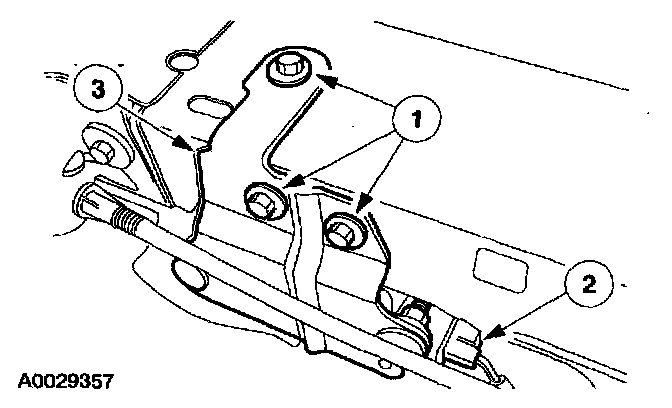

4. Remove the front severity crash impact sensor.
1 Remove the bolts.
2 Disconnect the electrical connector.
3 Remove the front severity crash impact sensor with bracket.

NOTE: The front severity crash impact sensor is located on the radiator core support next to the hood latch.

INSTALLATION

WARNING: TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY, READ AND FOLLOW ALL WARNINGS, CAUTIONS AND NOTES AT THE BEGINNING OF THE REMOVAL PROCEDURE.

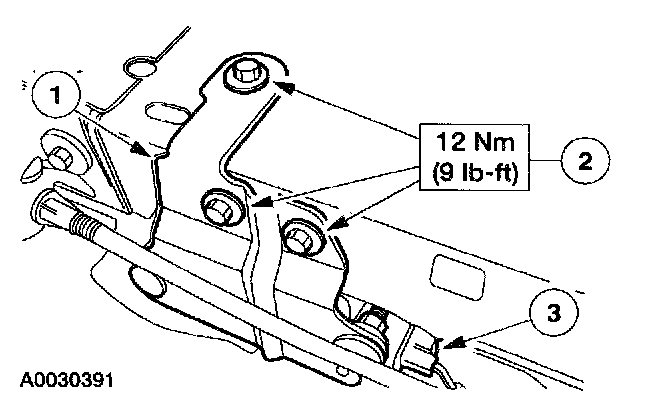

1. Install the front severity crash impact sensor.
1 Position the front severity crash impact sensor with bracket.
2 Install the bolts.
3 Connect the front severity crash impact sensor.

2. Connect the battery ground cable.
3. With the restraint system diagnostic tools installed at all deployable devices, prove out the Supplemental Restraint System (SRS).
4. Disconnect the battery ground cable and wait at least one minute.







5. Position the header opening panel. Install the pin-type retainers.
6. Restore the vehicle to operating condition.
1 Reactivate the supplemental restraint system (SRS).

WARNING: TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY, READ AND FOLLOW ALL WARNINGS, CAUTIONS, NOTES, AND INSTRUCTIONS IN THE SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION/REACTIVATION PROCEDURE.

2 With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS).

WARNING: THE RESTRAINT SYSTEM DIAGNOSTIC TOOL IS FOR RESTRAINT SYSTEM SERVICE ONLY. REMOVE FROM THE VEHICLE PRIOR TO ROAD USE. FAILURE TO REMOVE COULD RESULT IN INJURY AND POSSIBLE VIOLATION OF VEHICLE SAFETY STANDARDS.
