Air Conditioning High Pressure Switch

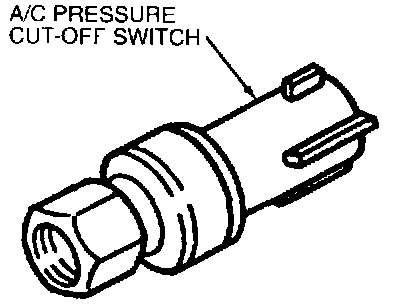

The A/C pressure cutoff switch is used to interrupt A/C compressor operation in the event of high system discharge pressures.
- The A/C pressure cutoff switch is mounted on a Schrader valve-type fitting on the A/C compressor to condenser discharge line.
- It is not necessary to perform the Refrigerant Discharging and Recovery Procedure of the refrigerant system to remove the A/C pressure cutoff switch.
- A valve depressor, located inside the threaded end of the A/C pressure cutoff switch, presses on the Schrader valve stem.
- This allows the A/C pressure cutoff switch to monitor the compressor discharge pressure.
- When the compressor discharge pressure rises, the switch contacts open, disengaging the A/C compressor. When the pressure drops, the contacts close to allow operation of the A/C compressor.
The switch contains a second set of electrical contacts used for high-speed cooling fan control.
- When the compressor discharge pressure rises, the contacts close and engage the high-speed fan control. When the pressure drops, the contacts open and the high speed fan control is disengaged.
