Ambient Temperature Sensor / Switch HVAC: Service and Repair

REMOVAL







1. Remove the radiator upper sight shield.







2. Disconnect the wire harness connector.

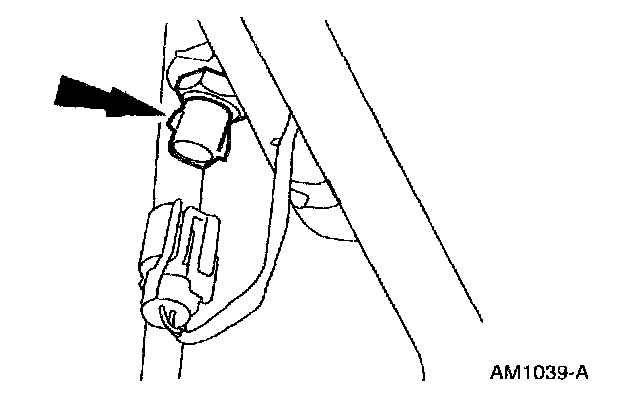

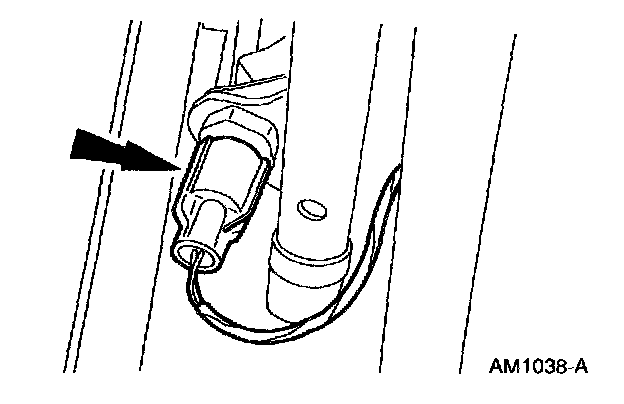

3. Remove the A/C ambient air temperature sensor.

INSTALLATION
1. To install, reverse the removal procedure.
