Power Seat Motor Position Sensor: Service and Repair

REMOVAL
1. Remove the driver seat.

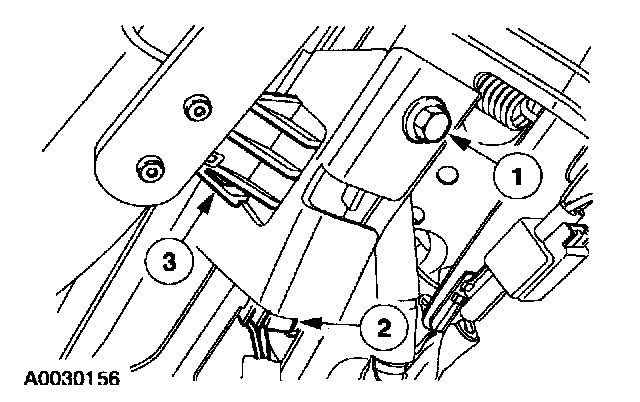

2. Remove the seat position sensor.
1 Remove the bolt.
2 Remove the connector.
3 Press the sensor tab inward to release and remove the sensor.

INSTALLATION
1. To install, reverse the removal procedure.
2. Check the active restraint system for correct operation.
