Rear Safety Belt and Retractor

Seat Belt Bolt Bit:

SPECIAL TOOL(S)

REMOVAL
1. Remove the package tray trim panel.

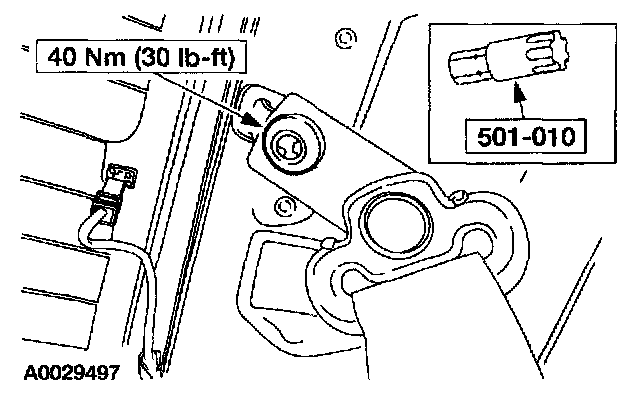

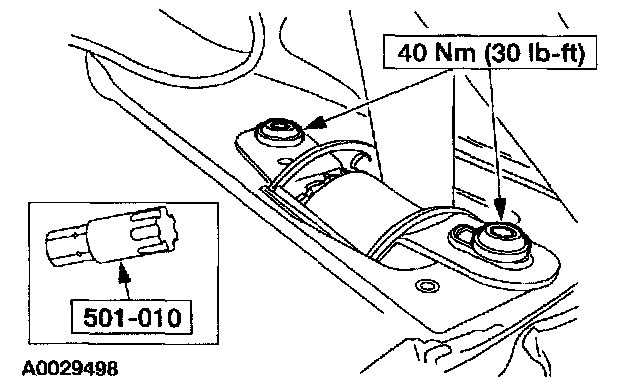

2. Using the special tool, remove the bolts. Remove the safety belt retractor.







3. Using the special tool, remove the safety belt guide.

INSTALLATION
1. To install, reverse the removal procedure.
^ Check the active restraint system for proper operation.
