Test N: LFC 51/DTC B2435 - Driver Seat Belt Buckle Switch Circuit Resistance Out of Range

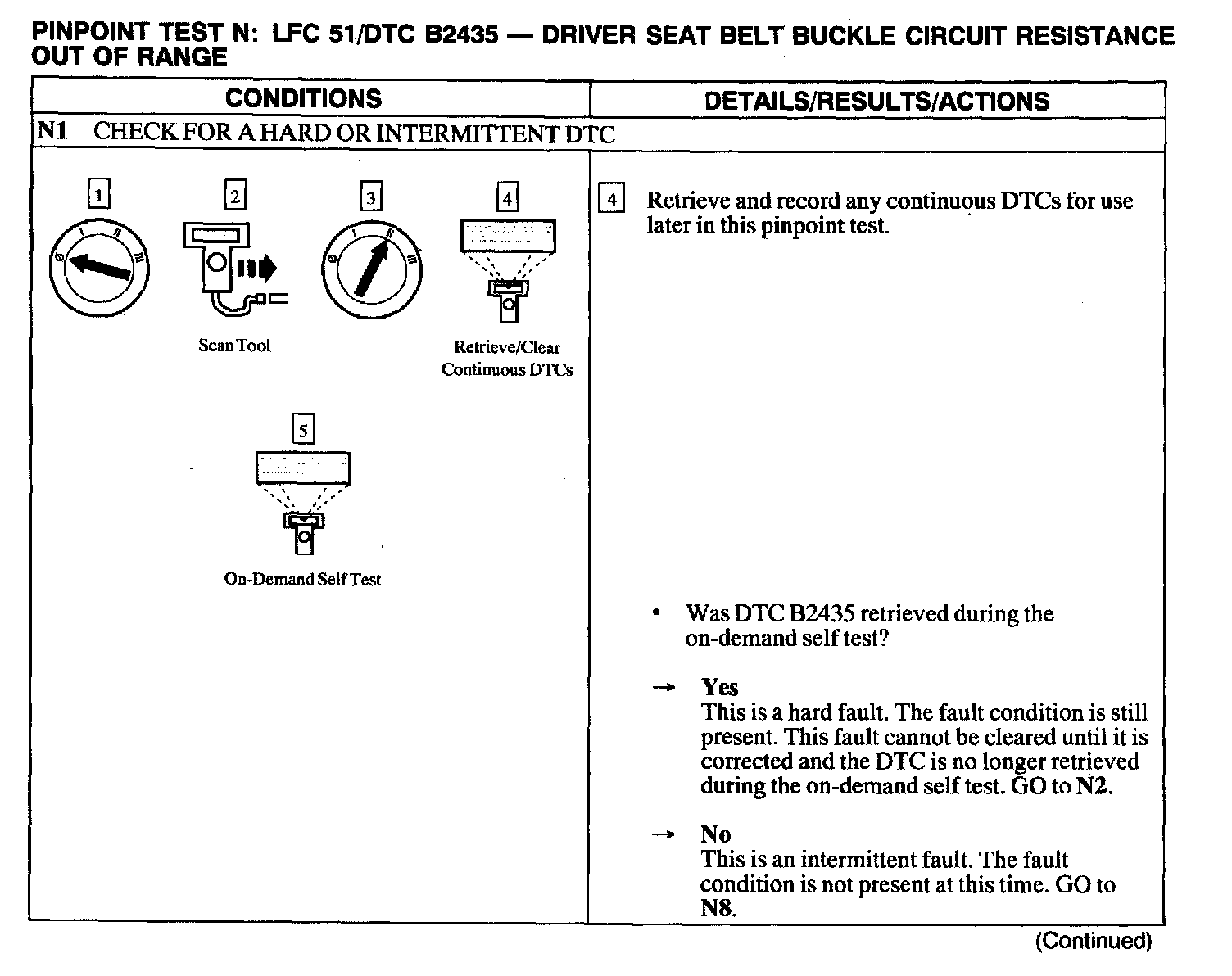

N1:

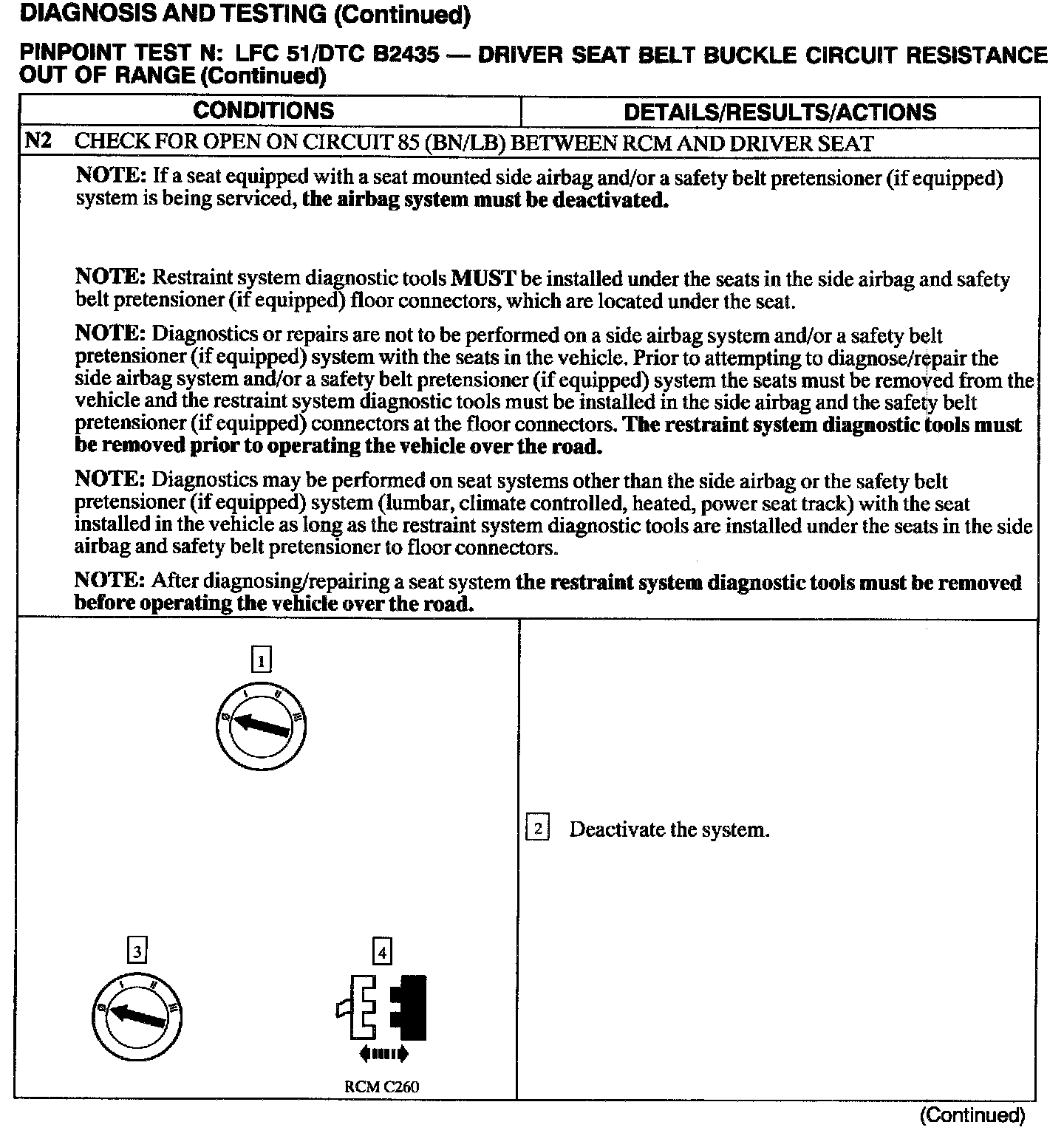

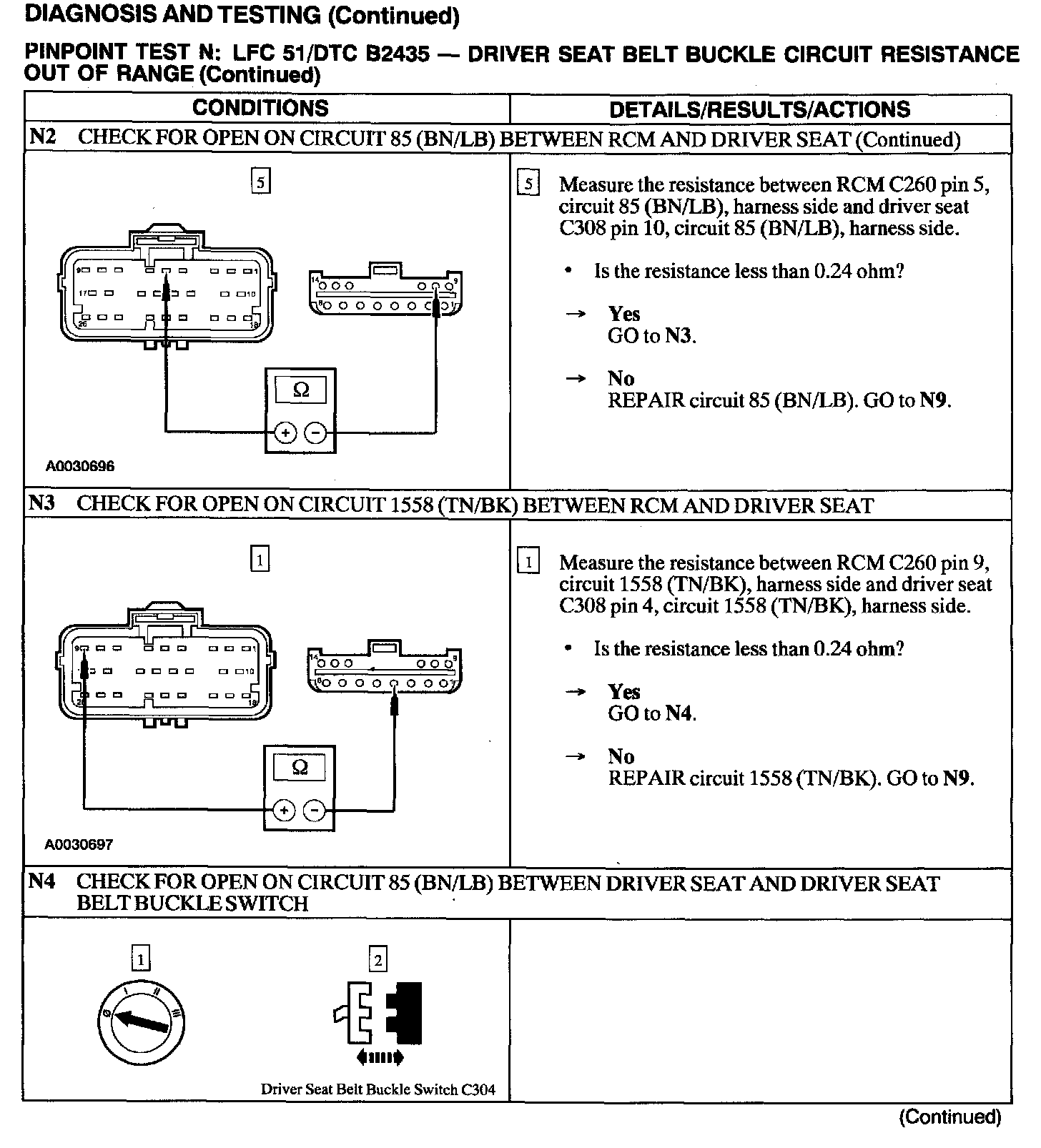

N2:

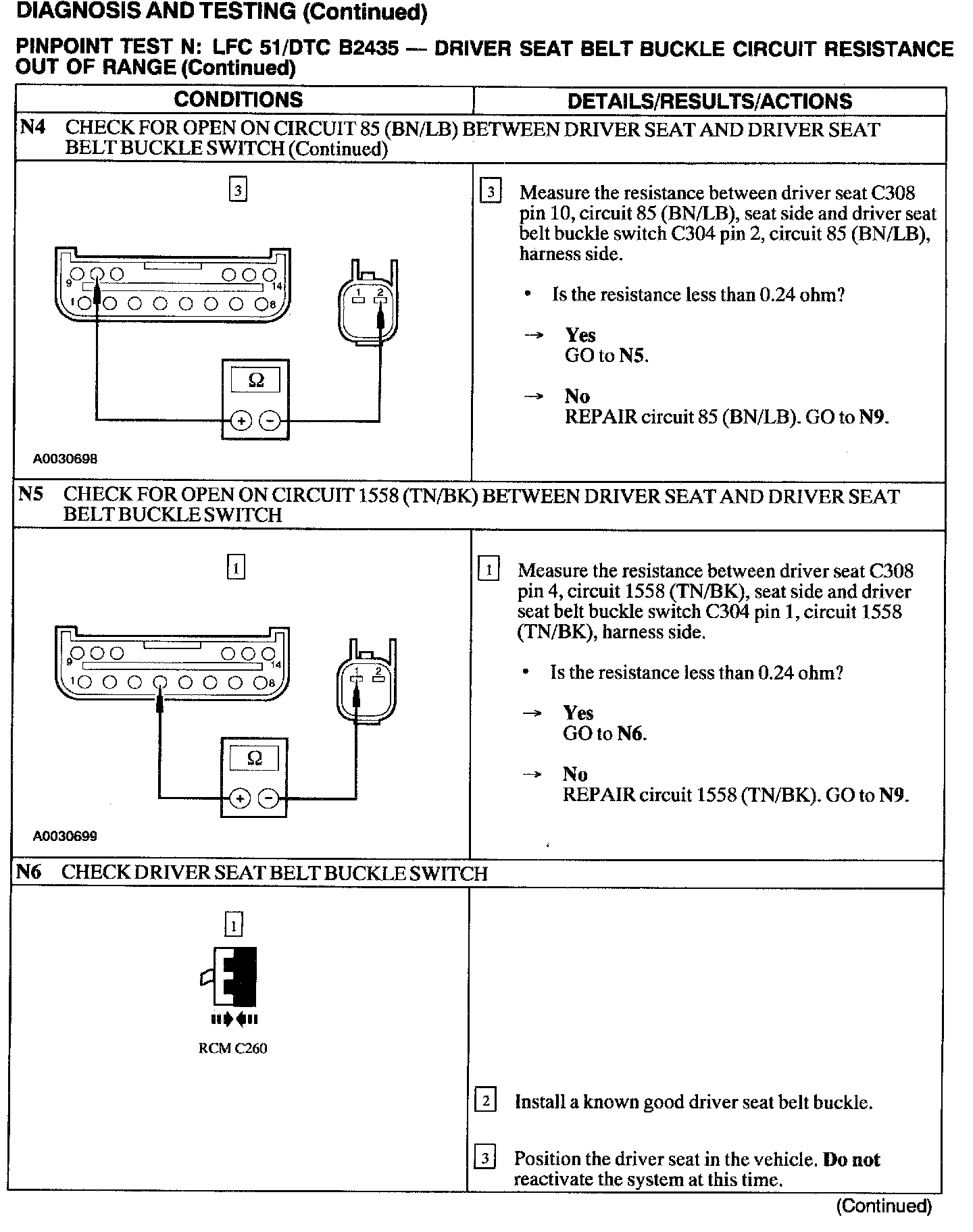

N2 - N4:

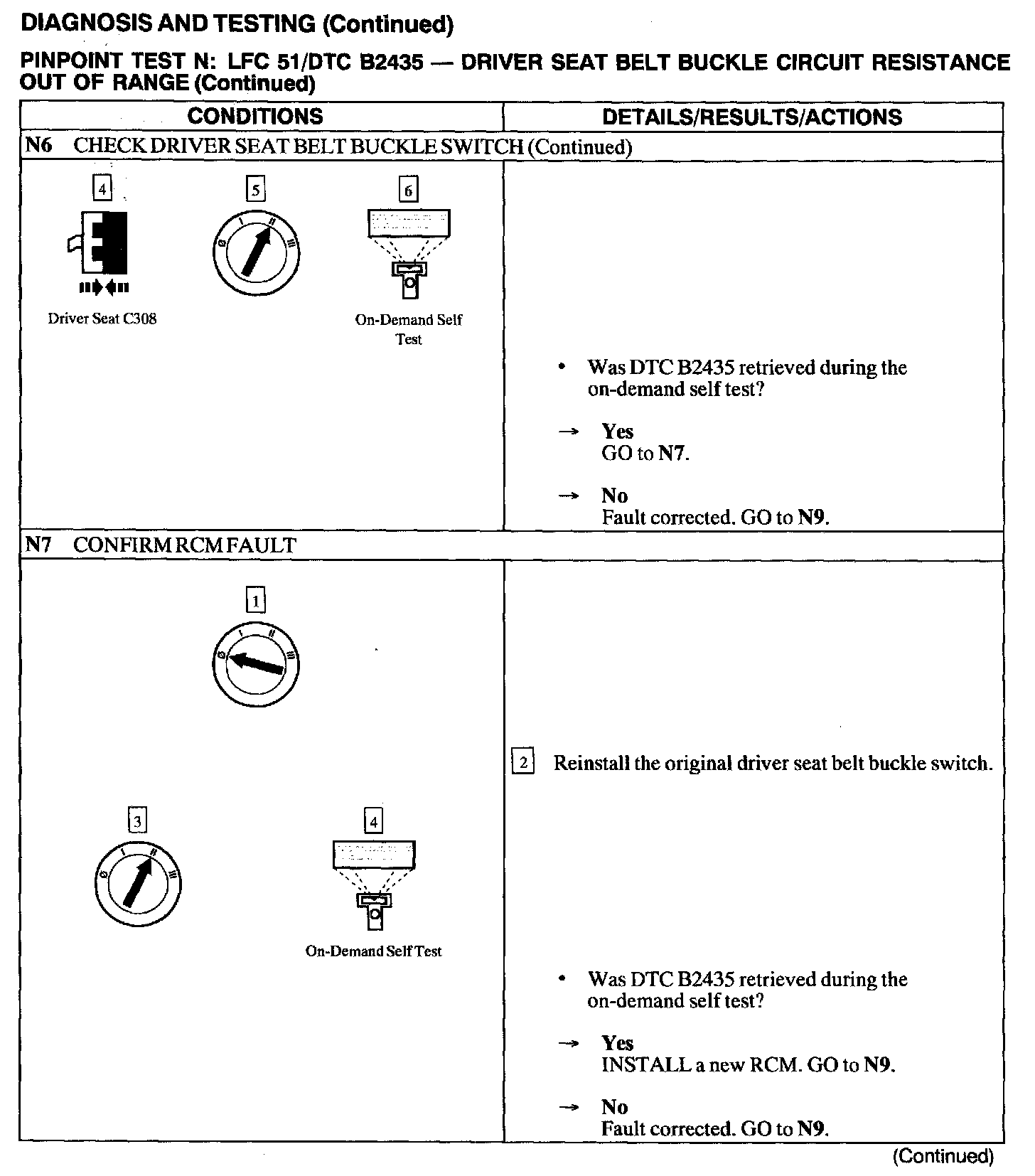

N4 - N6:

N6 - N7:

N8 - N9:

Normal Operation
The Restraints Control Module (RCM) checks the driver seat belt buckle switch circuits for faults. If The RCM detects a current out of range fault, it will store Diagnostic Trouble Code (DTC) B2435 in memory and flash Lamp Fault Code (LFC) 51 (or higher priority code if one exists) on the air bag indicator.

Possible Causes
A driver seat belt buckle switch current out of range fault can be caused by:
^ Wiring, terminals, or connectors.
^ A faulty driver seat belt buckle switch.
^ A faulty RCM.
