Diagnostic Trouble Code Tests and Associated Procedures

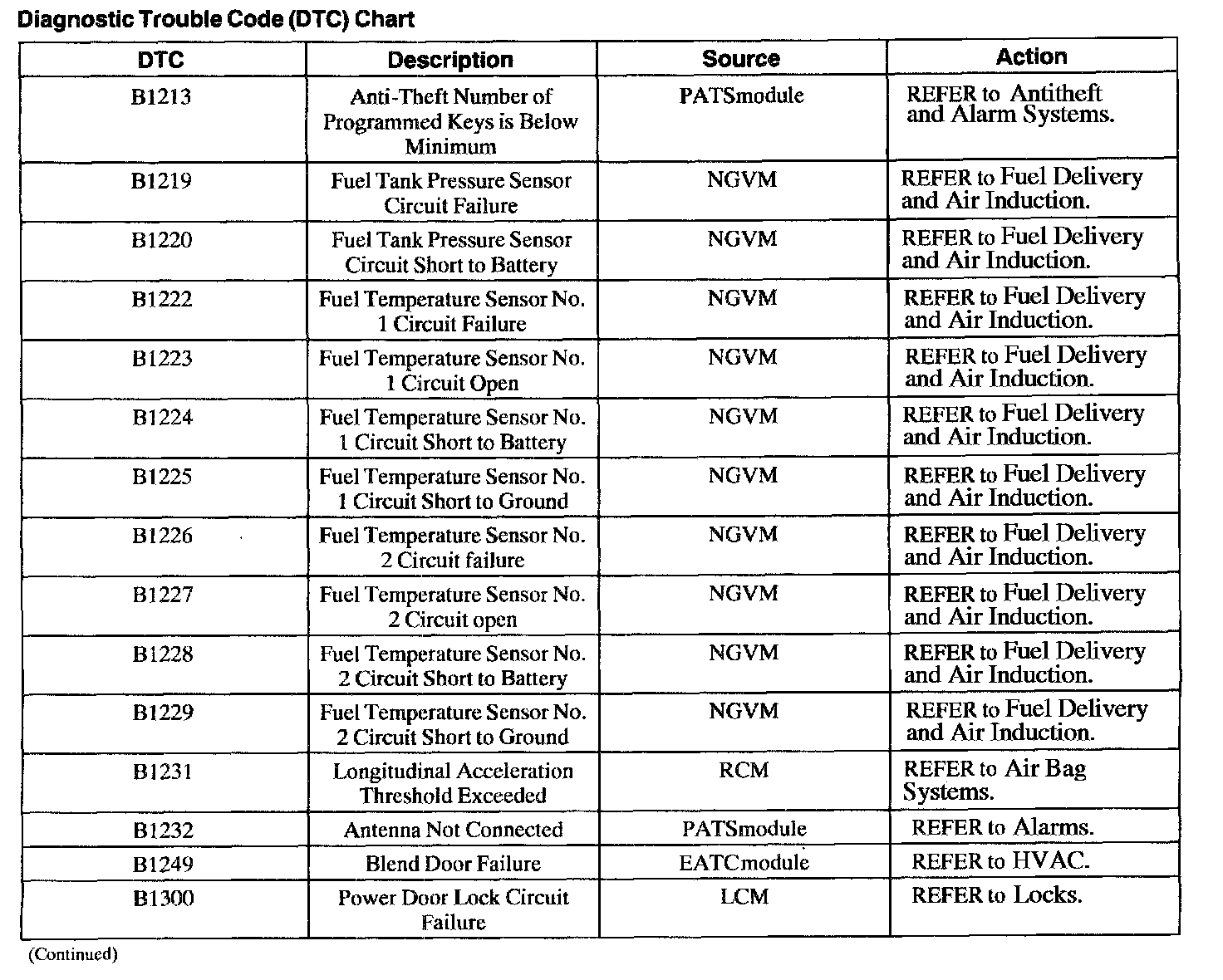

DTC Index B1213 - B1300:

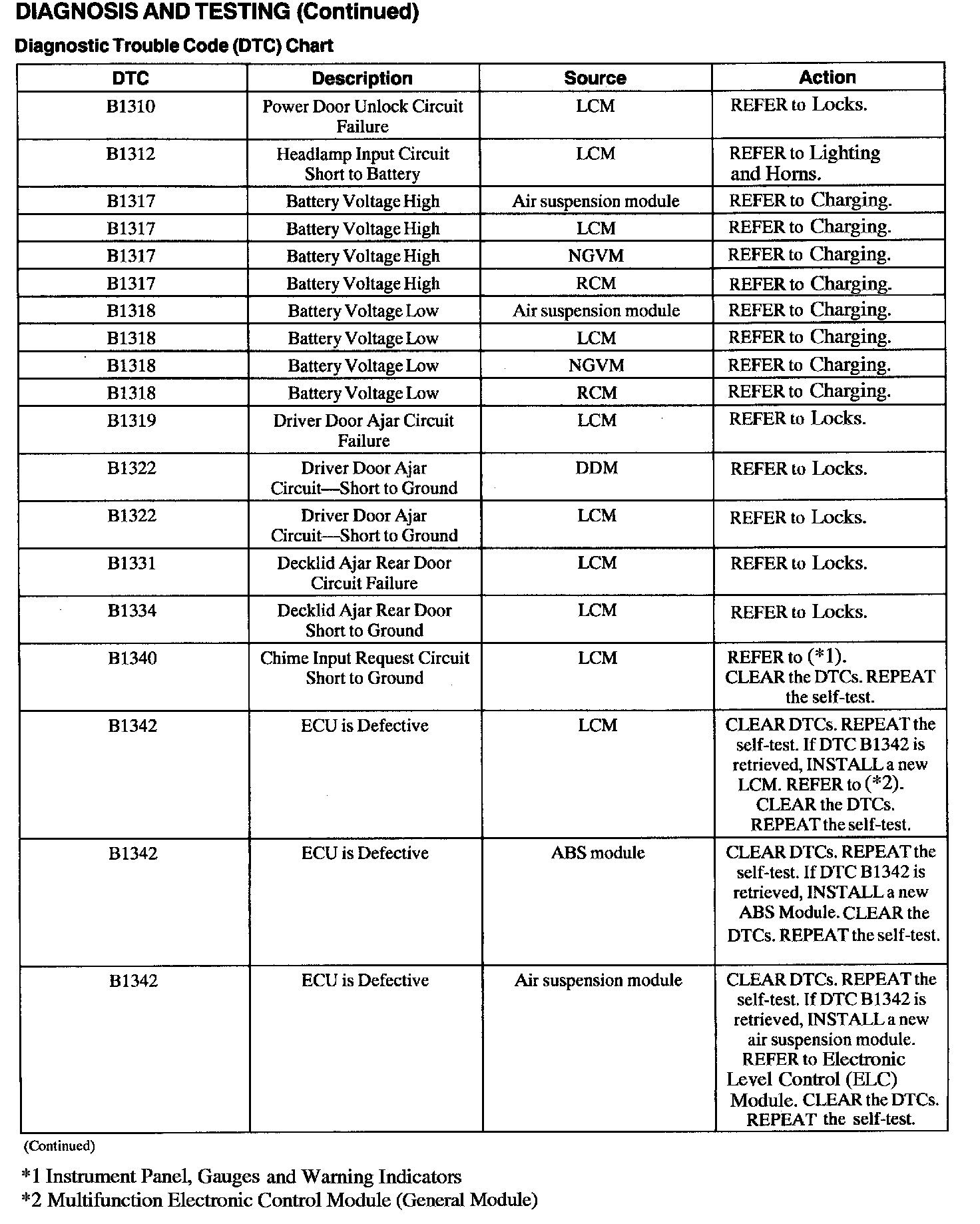

DTC Index B1310 - B1342:

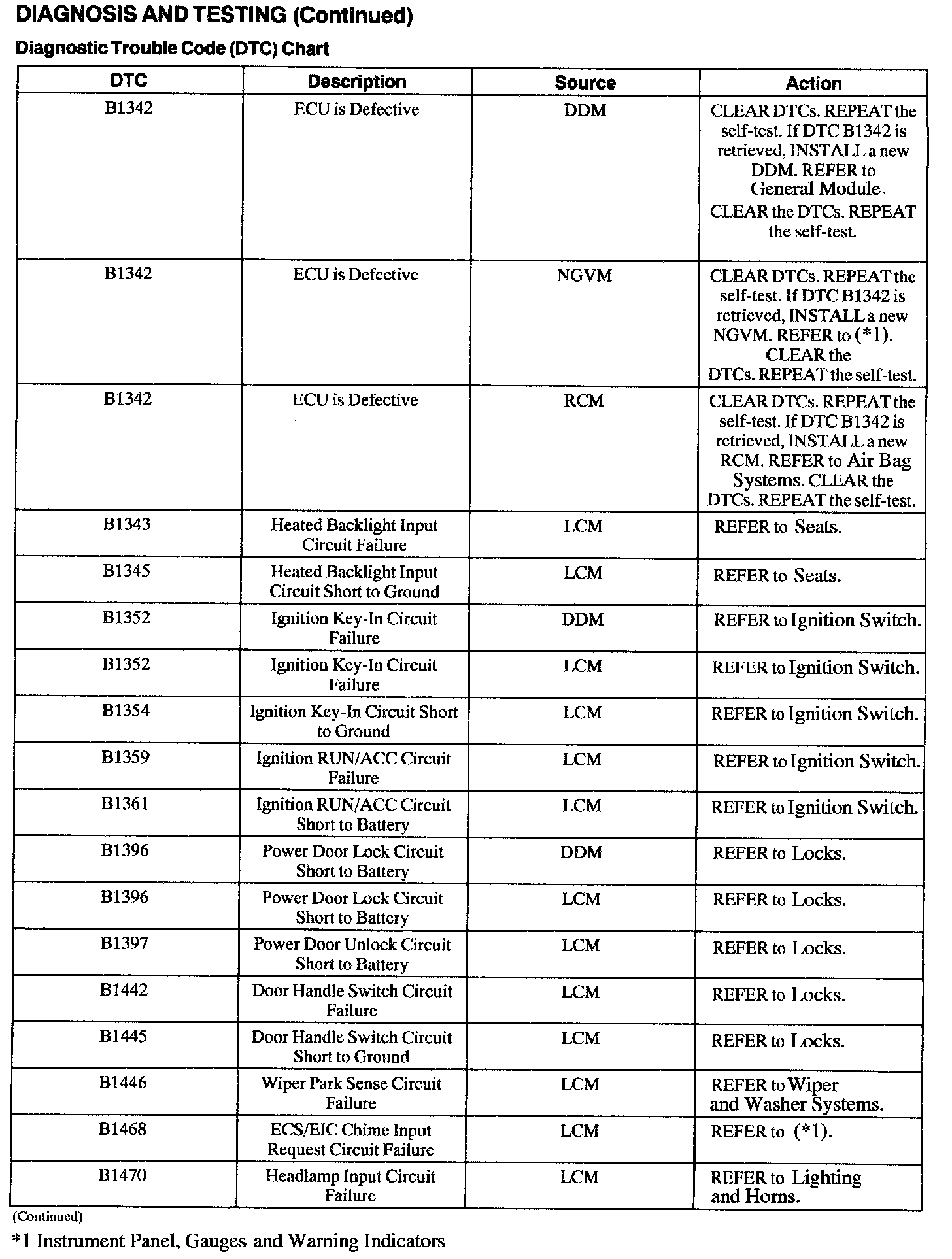

DTC B1342 - B1470:

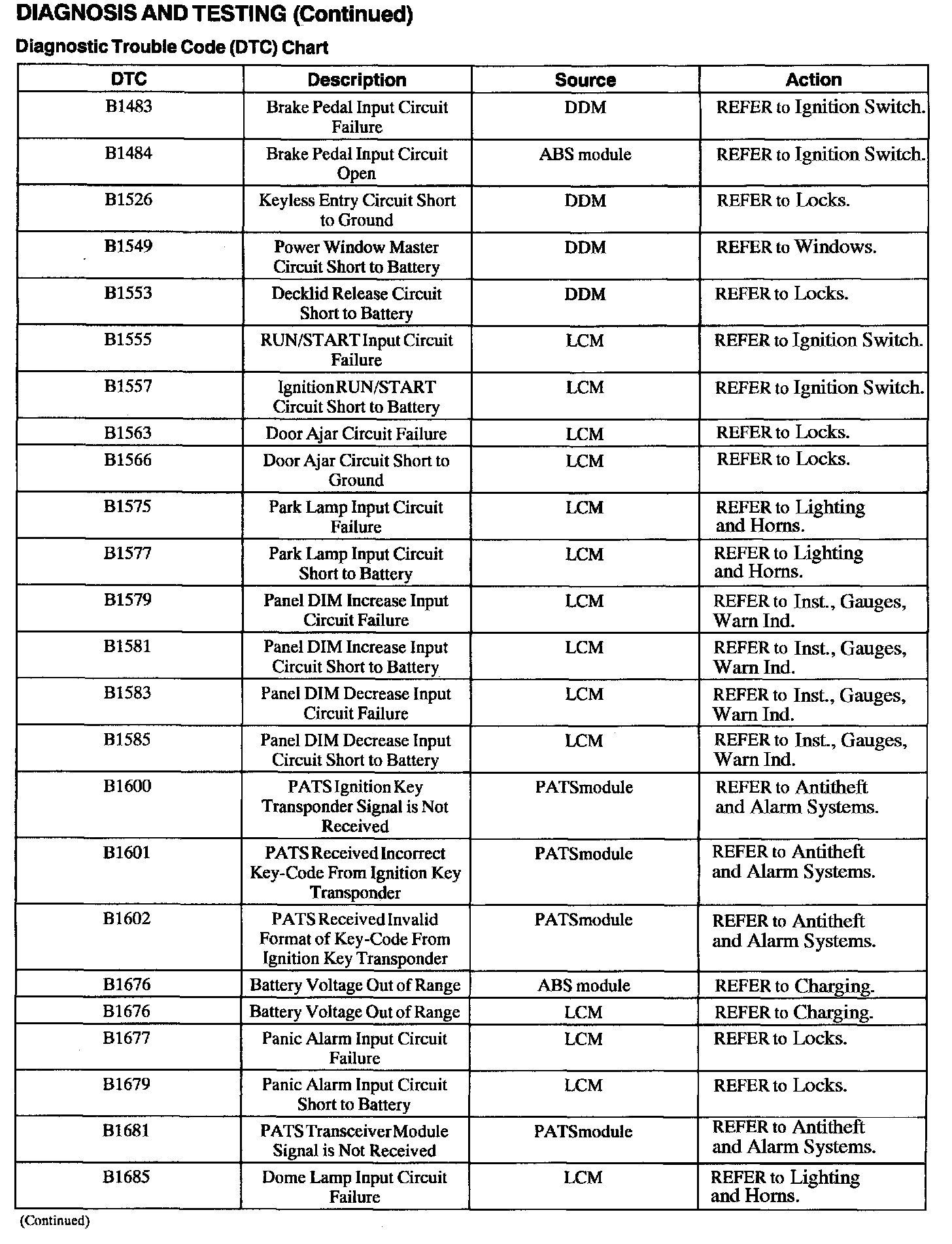

DTC Chart B1483 - B1685:

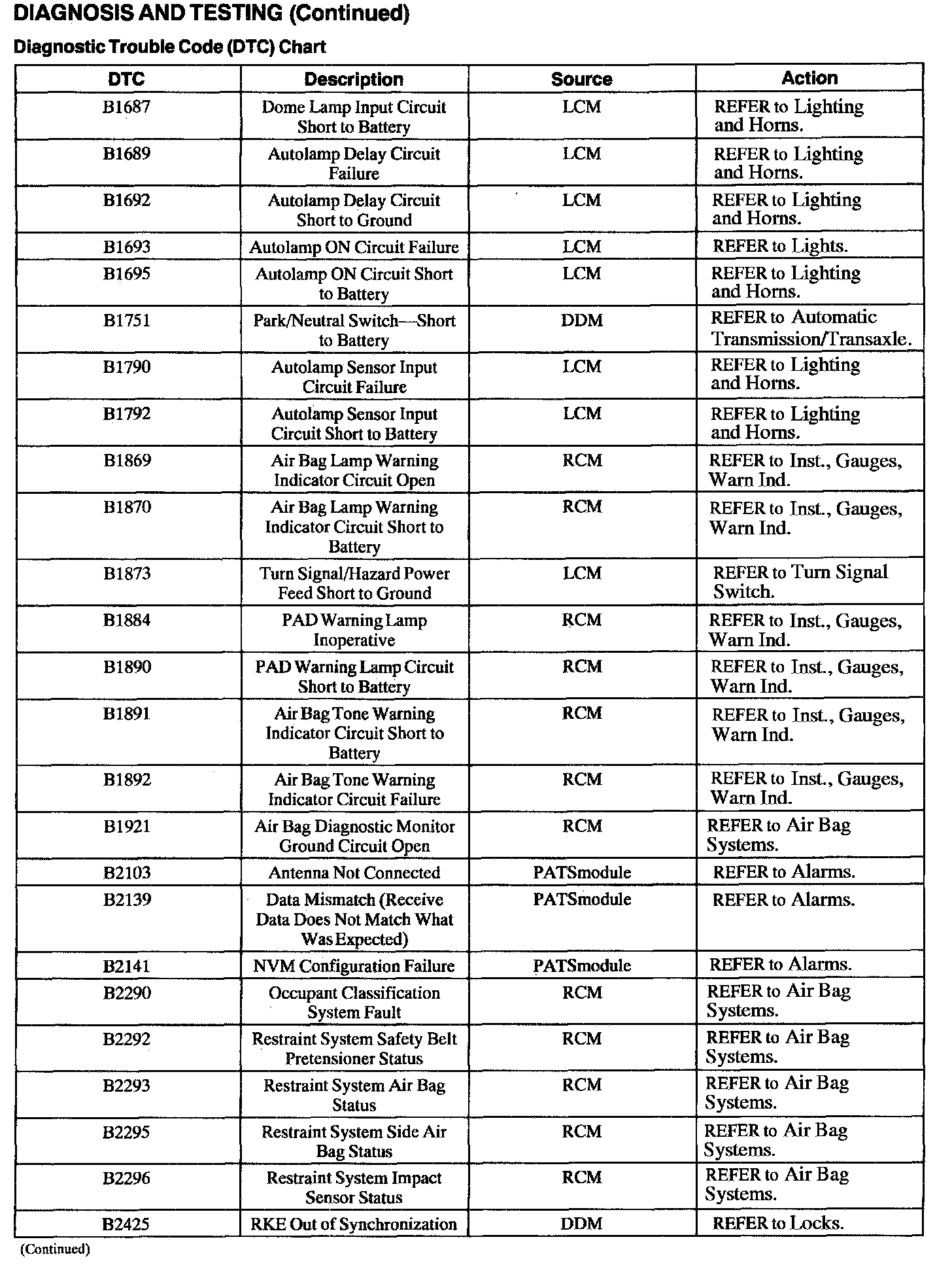

DTC Chart B1687 - B2425:

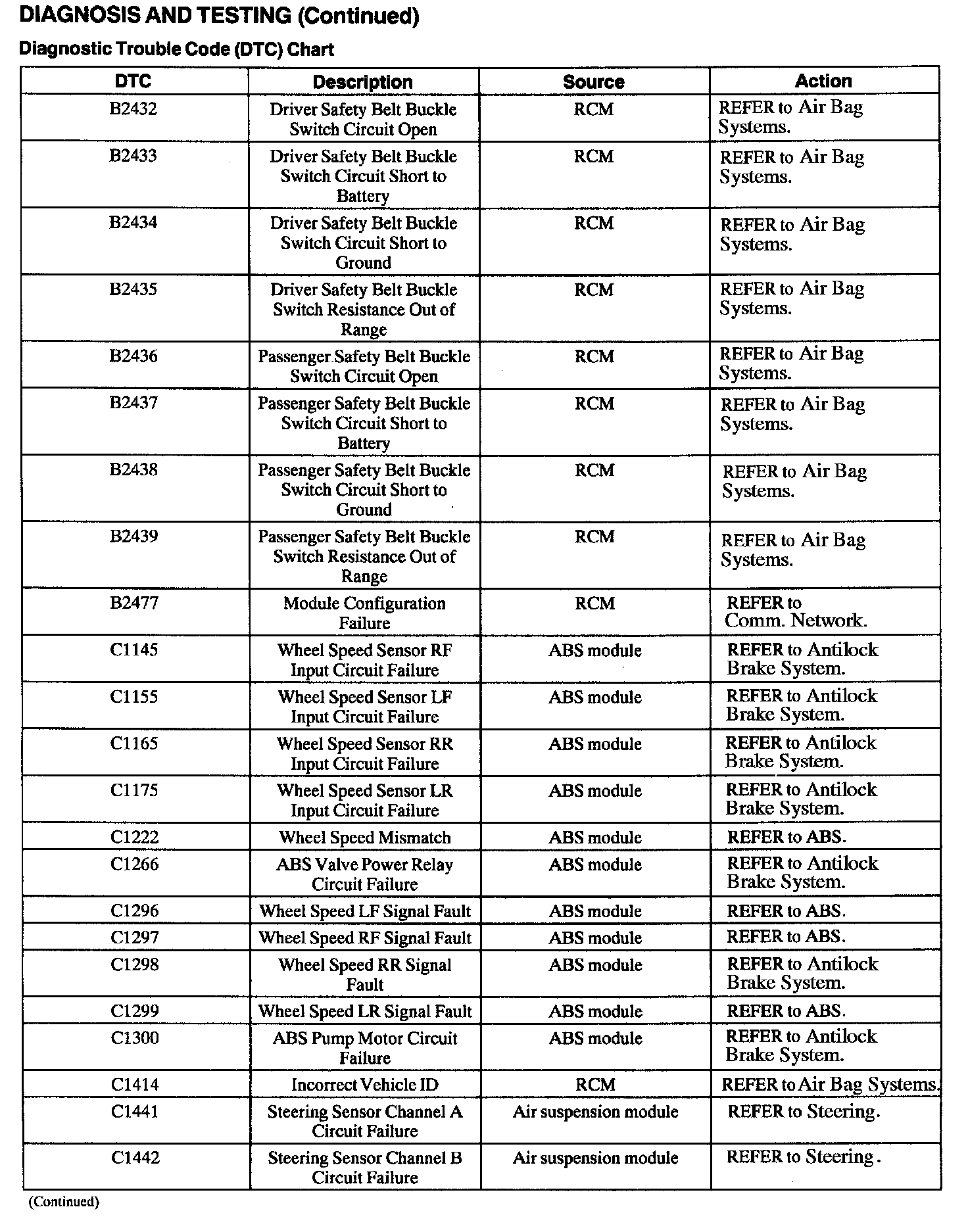

DTC Chart B2432 - C1442:






DTC Chart C1722 - C1832:

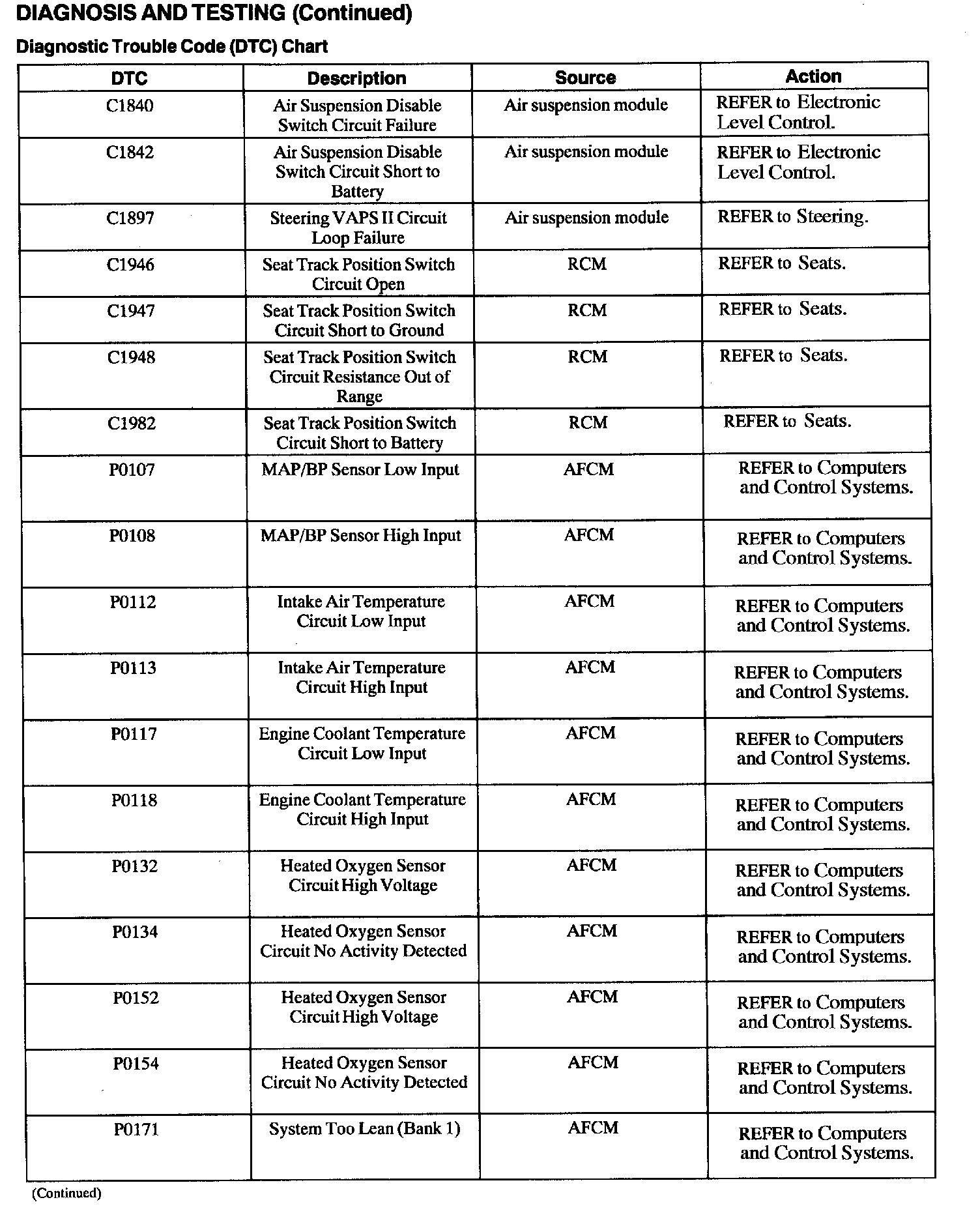

DTC Chart C1840 - P0171:

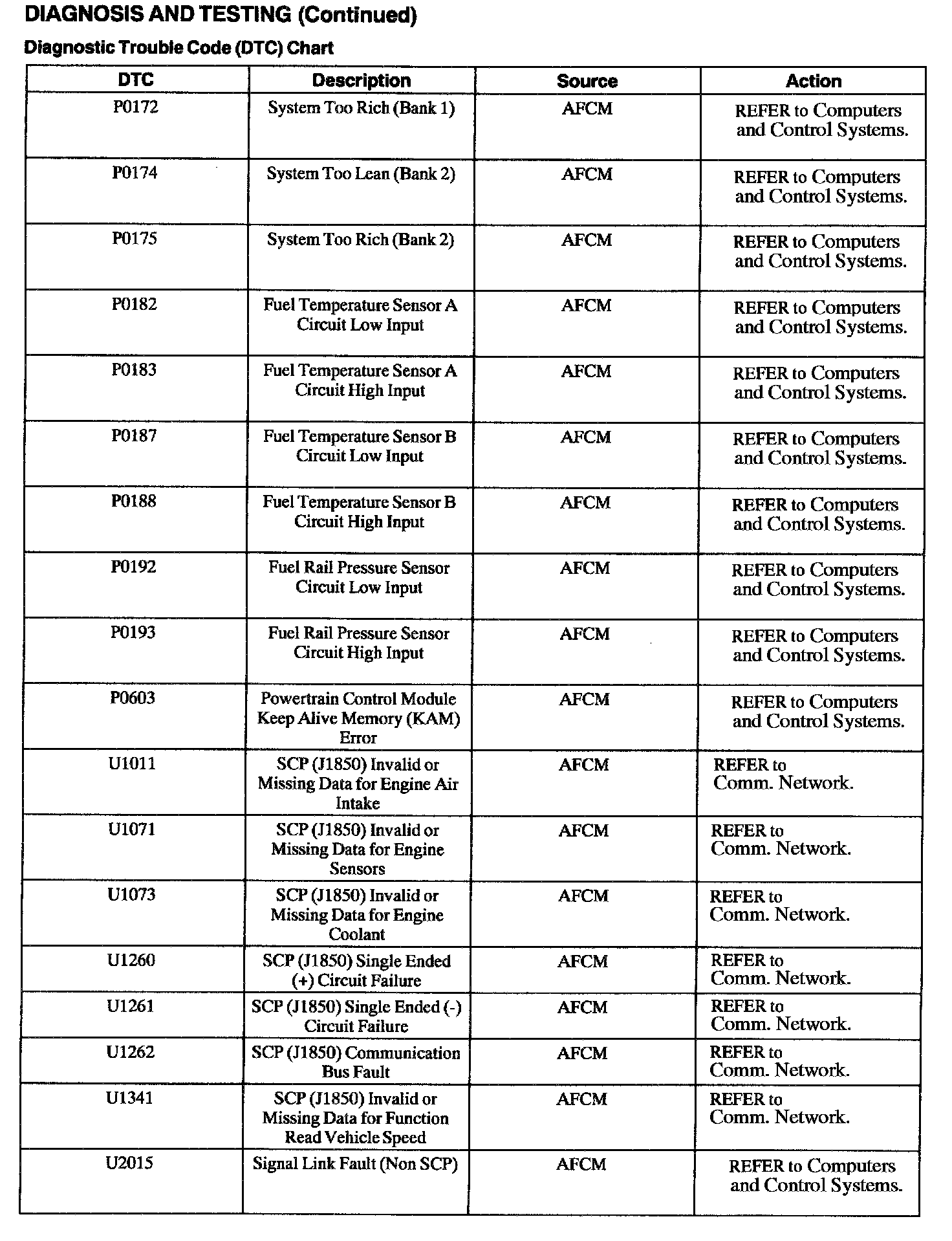

DTC Chart P0172 - U2015:





..
