Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Test F: ECS Module Does Not Respond To The Diagnostic Tool

Test F: ECS Module Does Not Respond To The Diagnostic Tool

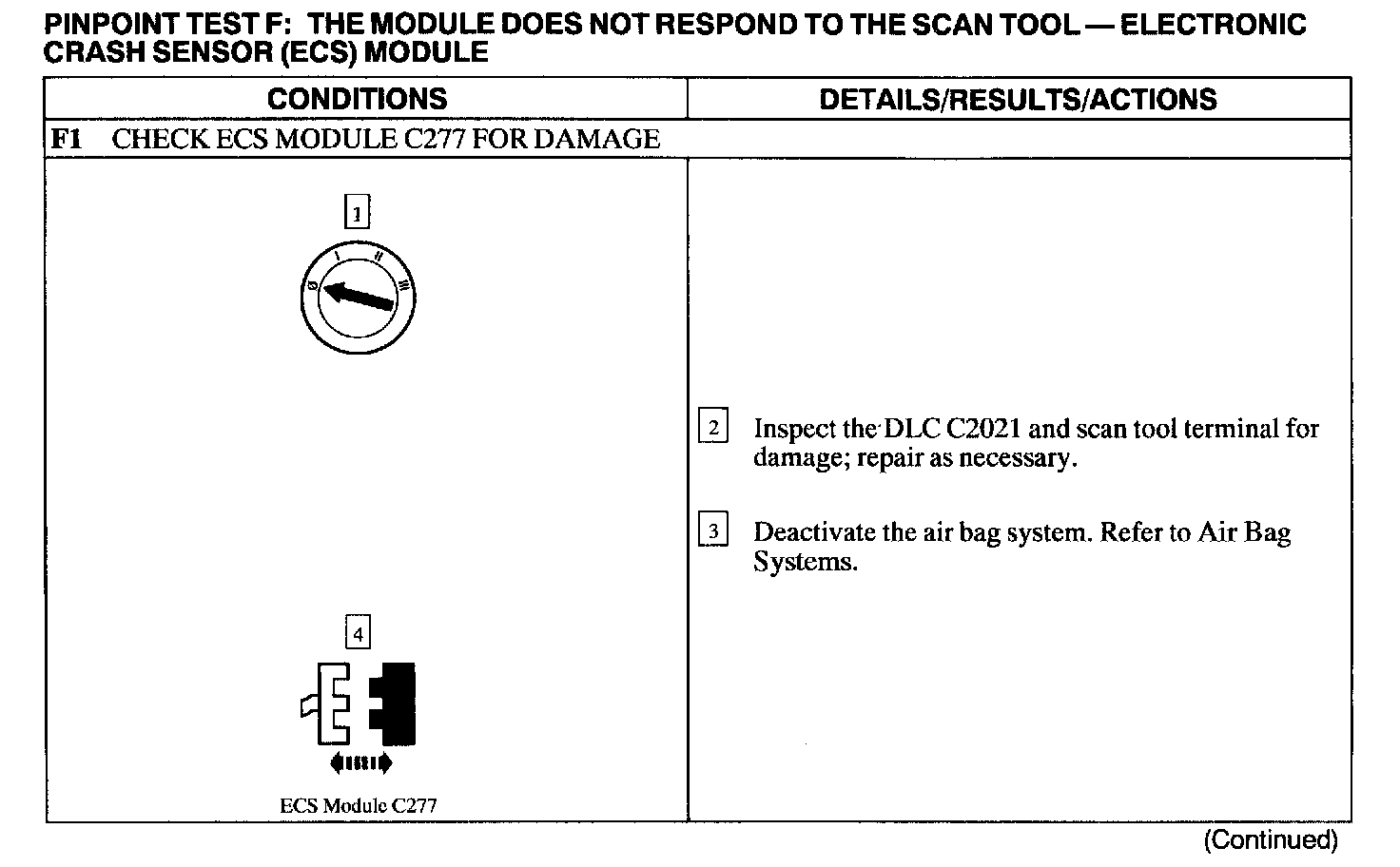

F1:

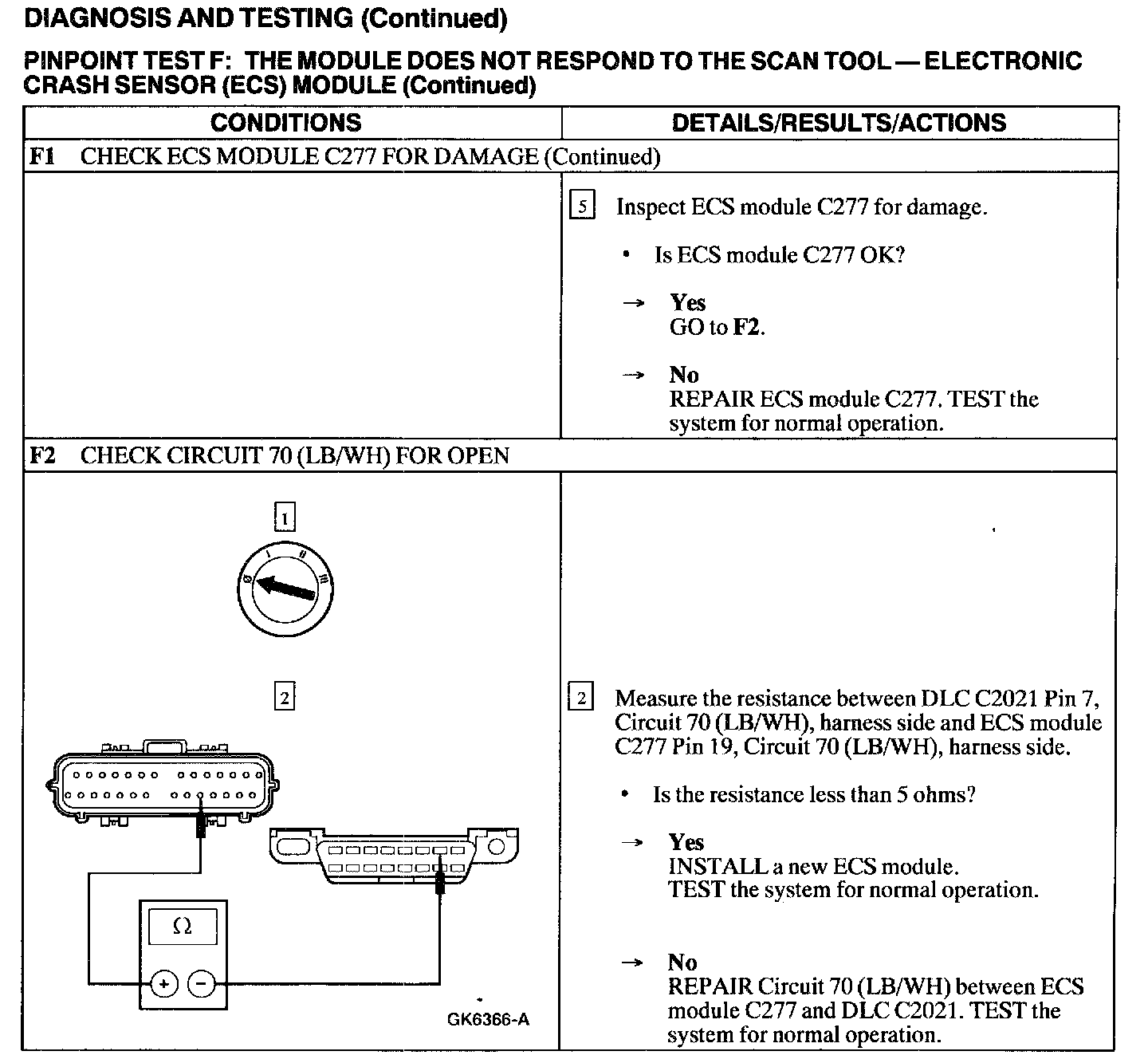

F1 - F2:
