Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Testing and Inspection >> Pinpoint Tests >> Test M: B1873: Turn Signal/Hazard Power Feed Circuit Short to Ground

Test M: B1873: Turn Signal/Hazard Power Feed Circuit Short to Ground

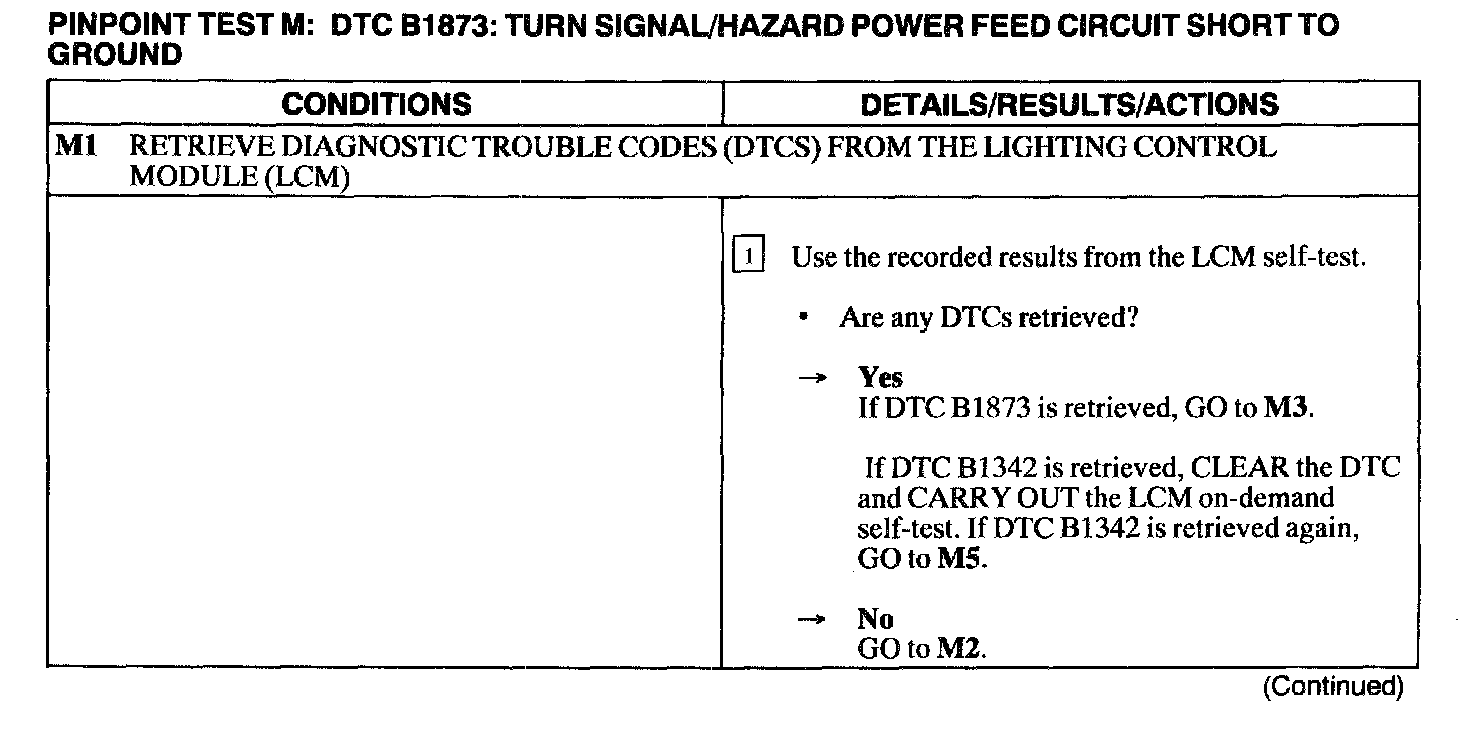

M1:

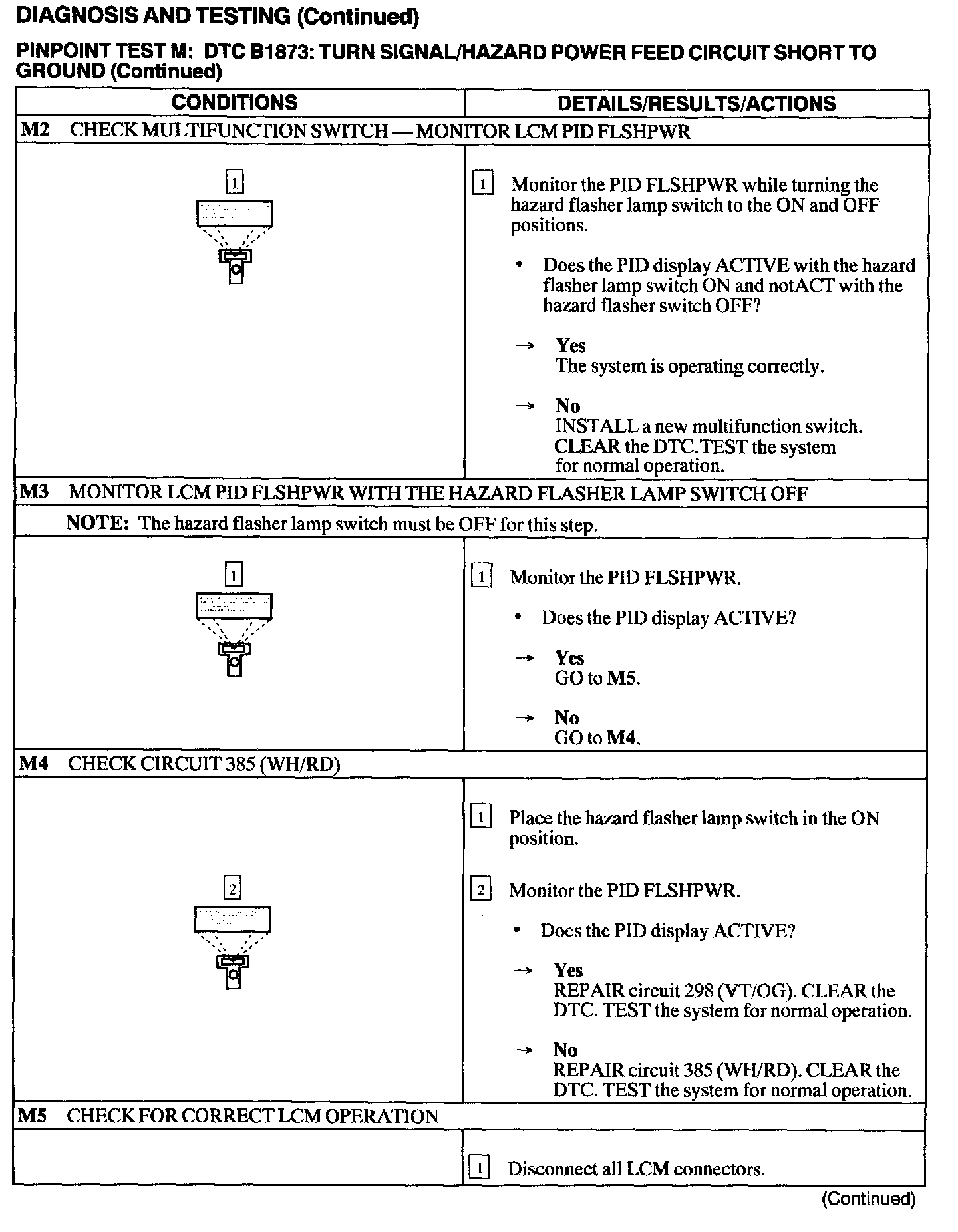

M2 - M5:

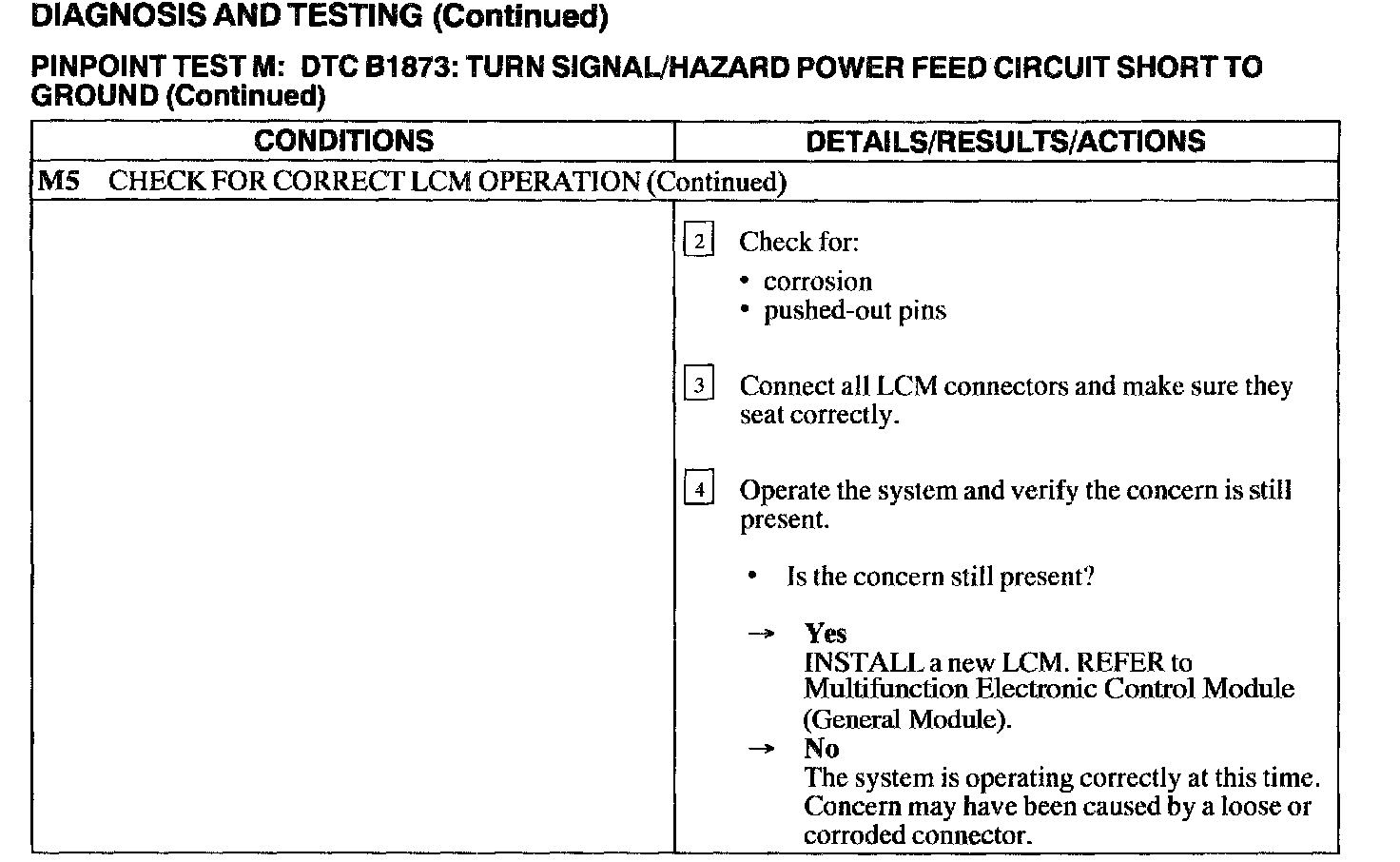

M5:
