Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Pinpoint Tests >> Tests AD: Public Safety Lighting Component Is Inoperative - LH Package Tray Lamp(S)

Tests AD: Public Safety Lighting Component Is Inoperative - LH Package Tray Lamp(S)

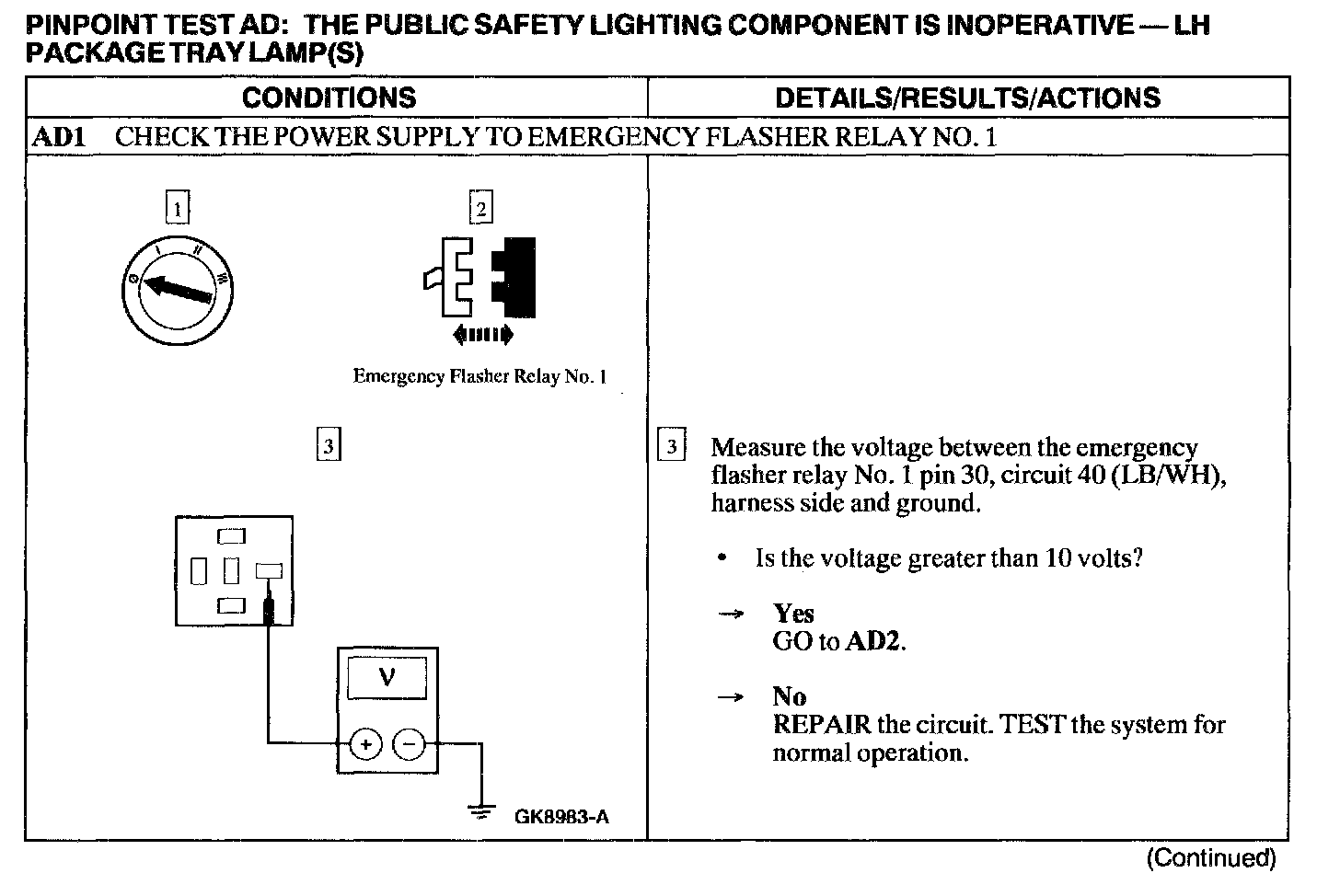

AD1:

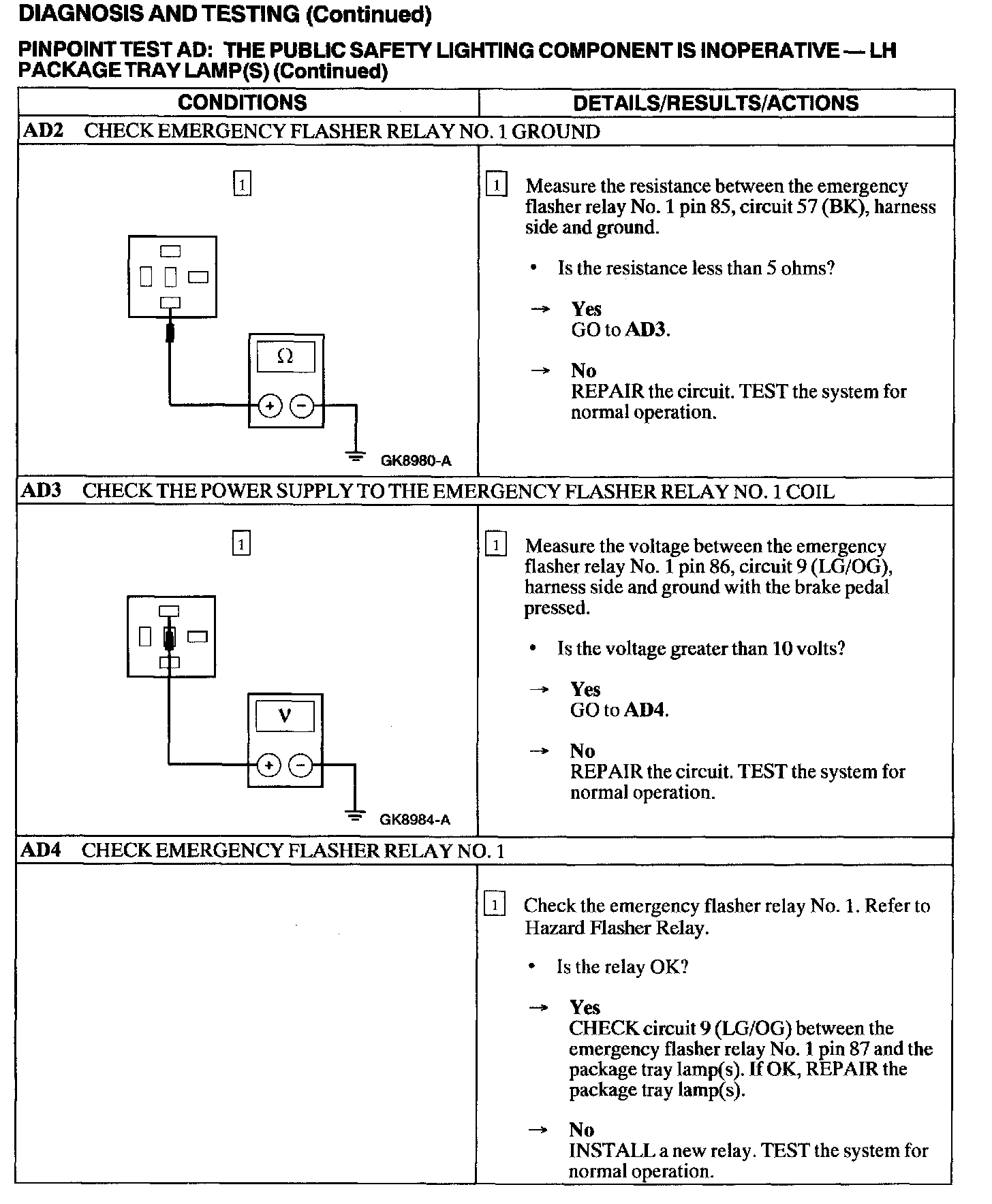

AD2 - AD4:
