Hazard Flasher Relay: Diagrams

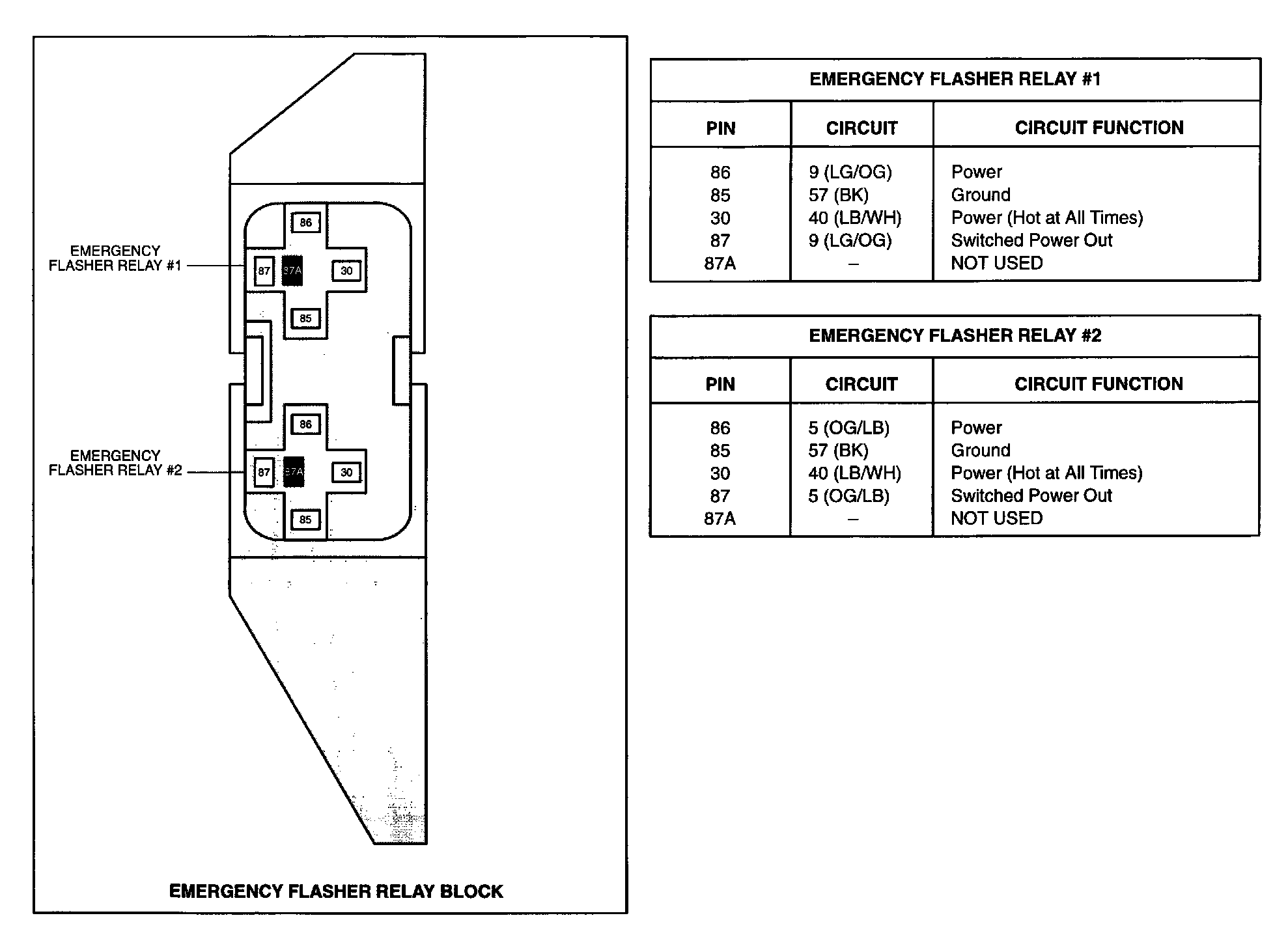

EMERGENCY FLASHER RELAYS #1 and #2 (POLICE OPTION)
Emergency Flasher Relays #1 and #2 (Police Option):
