Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Panel Illumination >> Test K: Audio System Illumination Is Inoperative

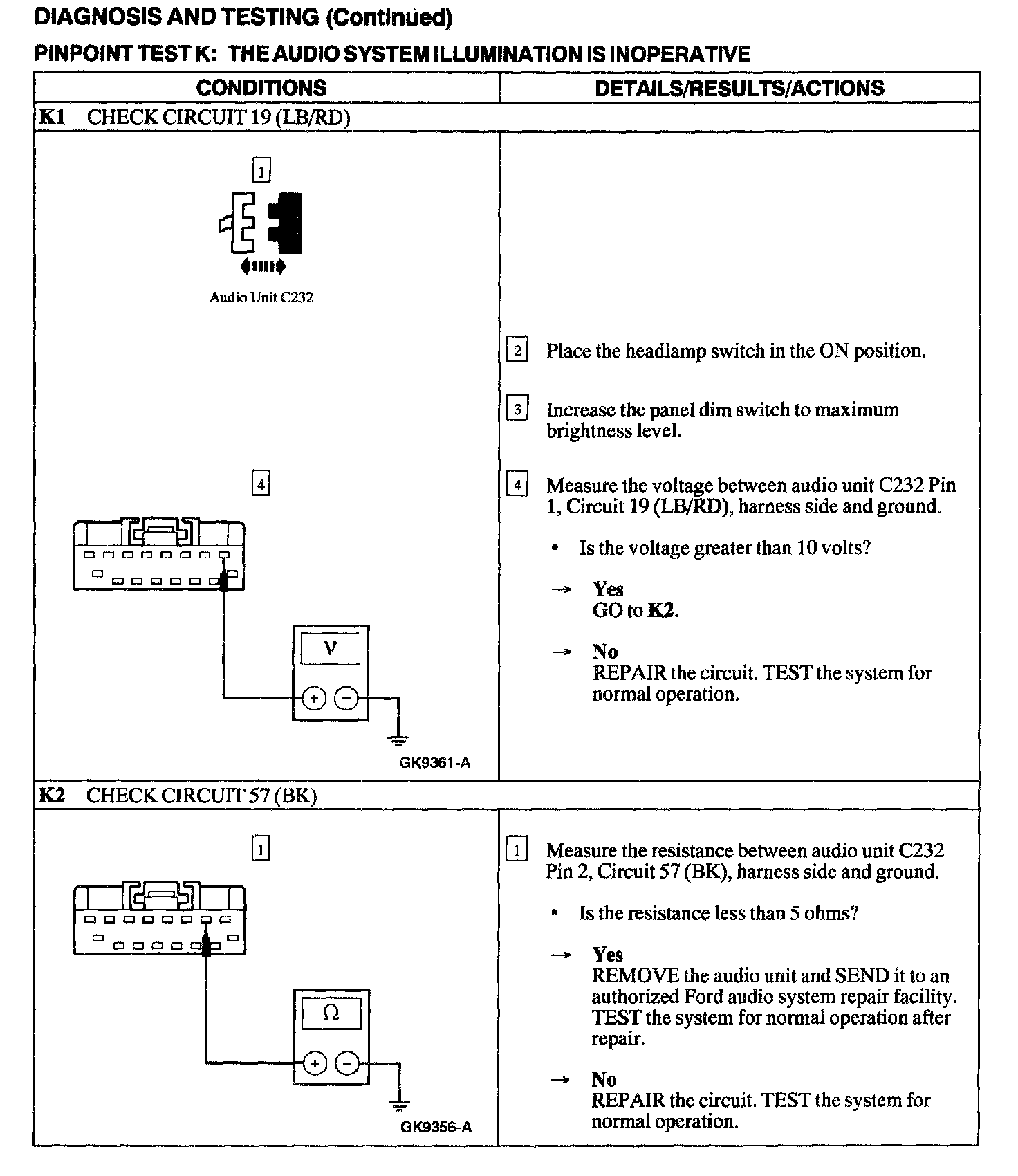

Test K: Audio System Illumination Is Inoperative

K1 - K2:
