Mercury
>>
2001
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Panel Illumination
>>

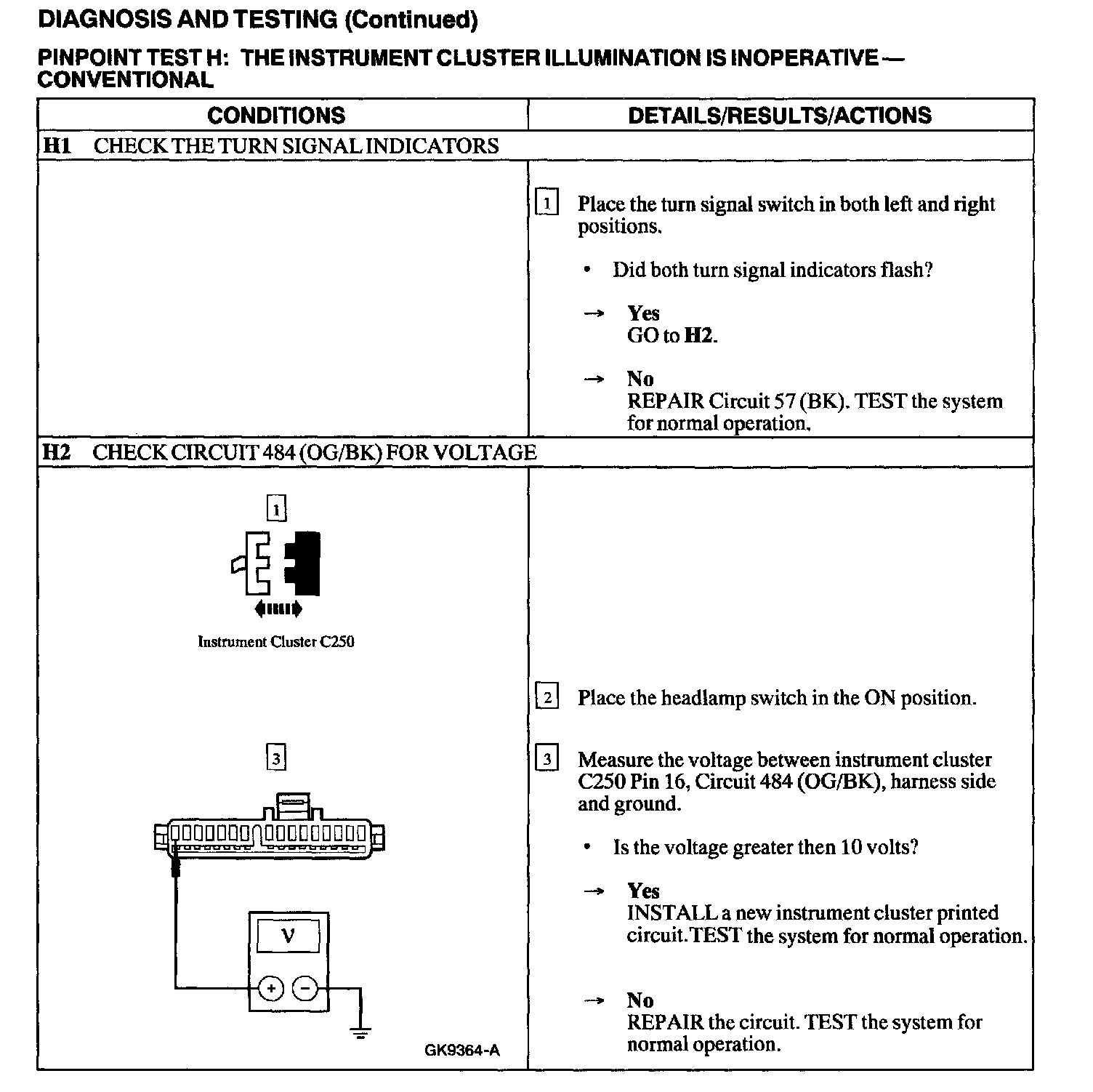

Test H: Instrument Cluster Illumination Is Inoperative - Conventional
Test H: Instrument Cluster Illumination Is Inoperative - Conventional
H1 - H2:
