Test B: No Communication With the Lighting Control Module - Unable to Enter Self-Test
Test B: No Communication With the Lighting Control Module - Unable to Enter Self-Test
B1:

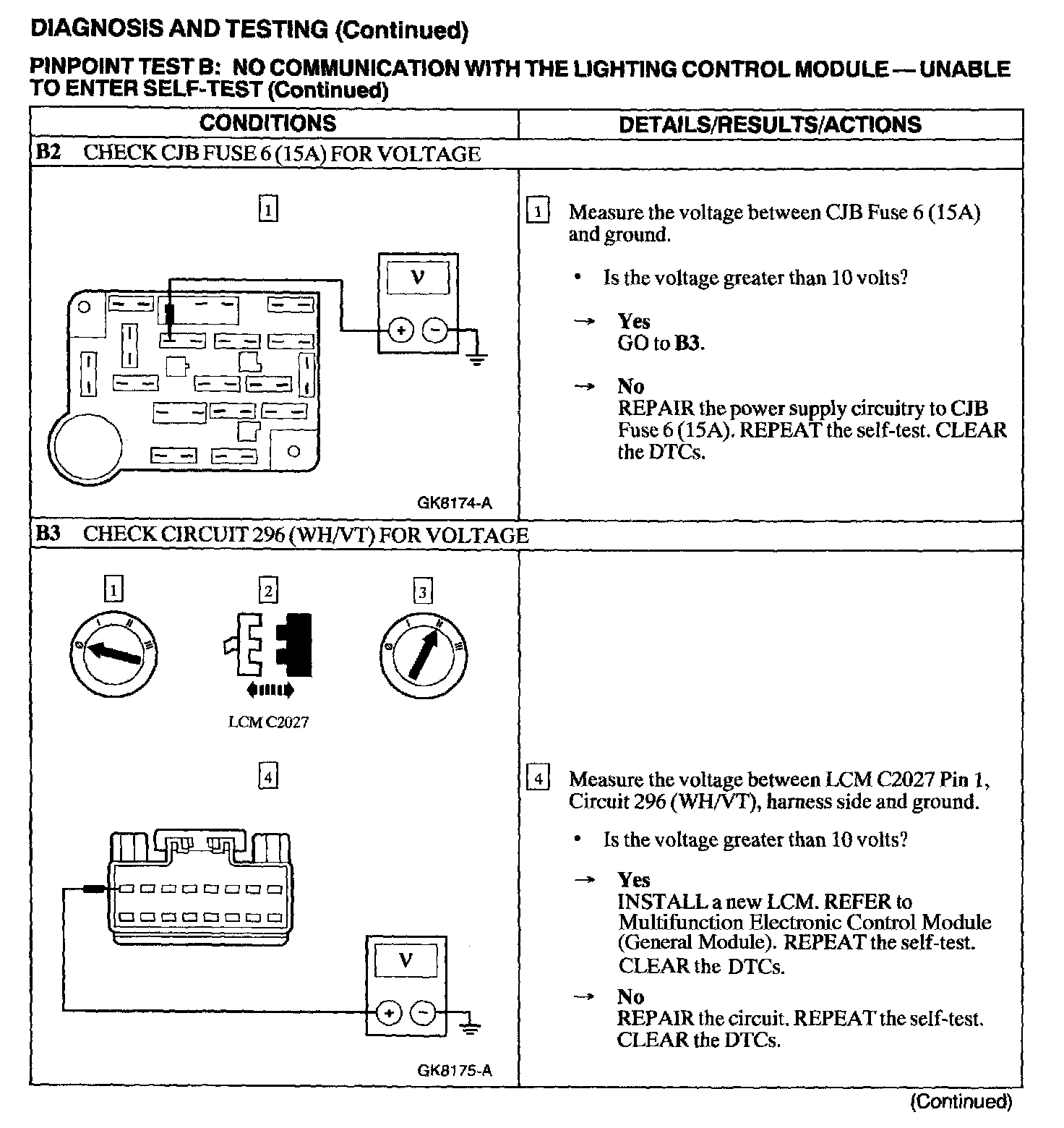

B2 - B3:

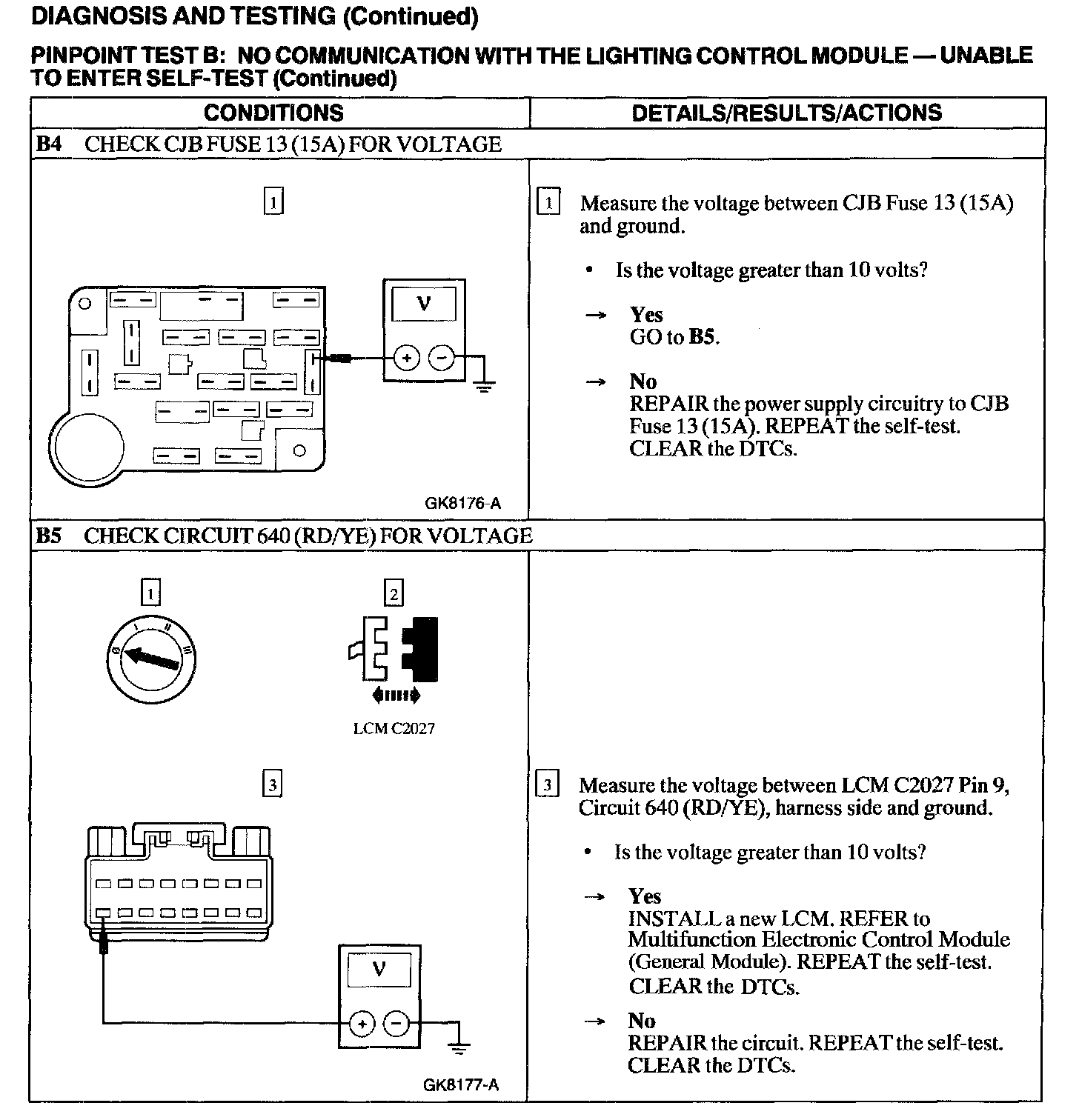

B4 - B5:
