Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Electronic Cluster >> Test T: Trunk Ajar Indicator Is Inoperative

Test T: Trunk Ajar Indicator Is Inoperative

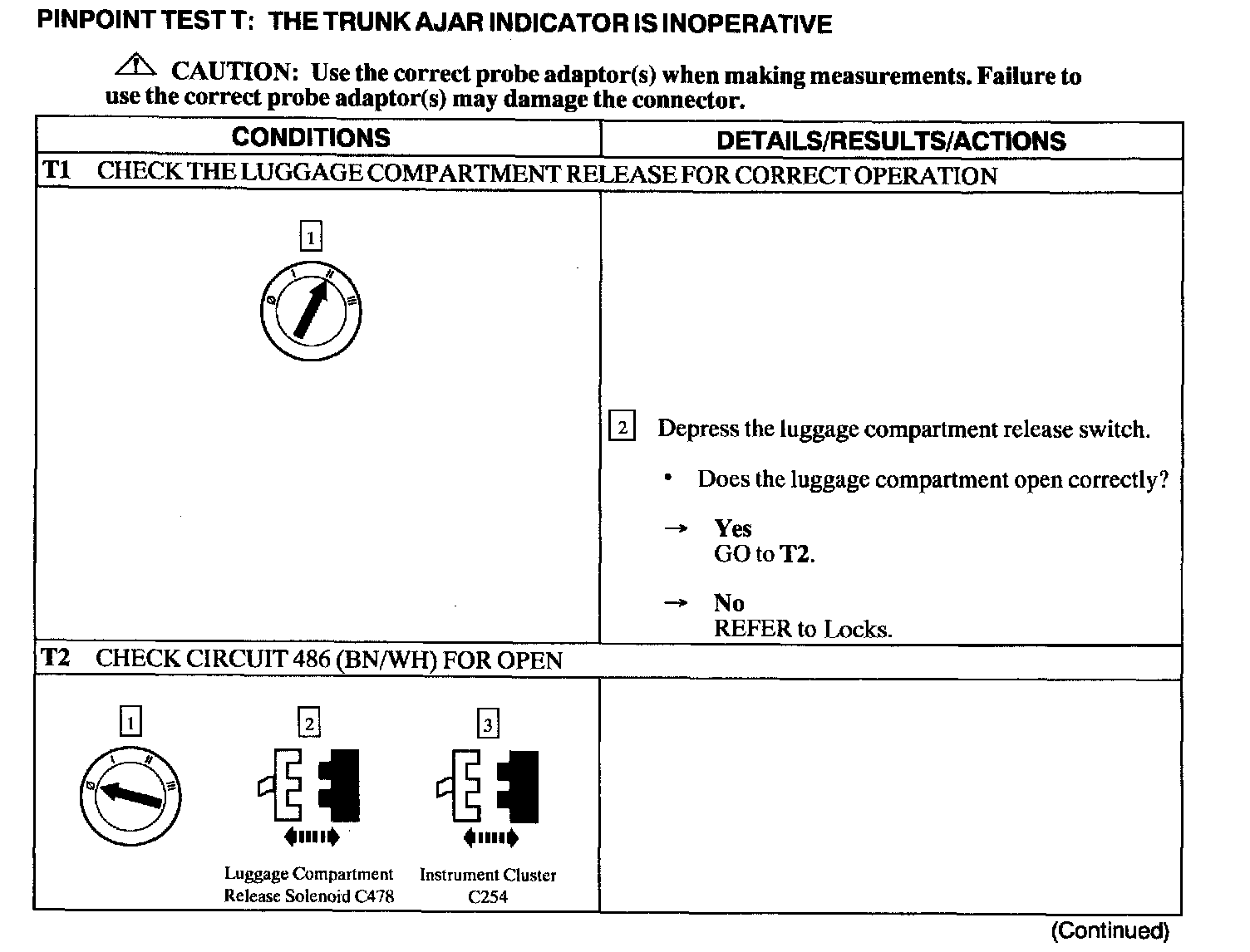

T1 - T2:

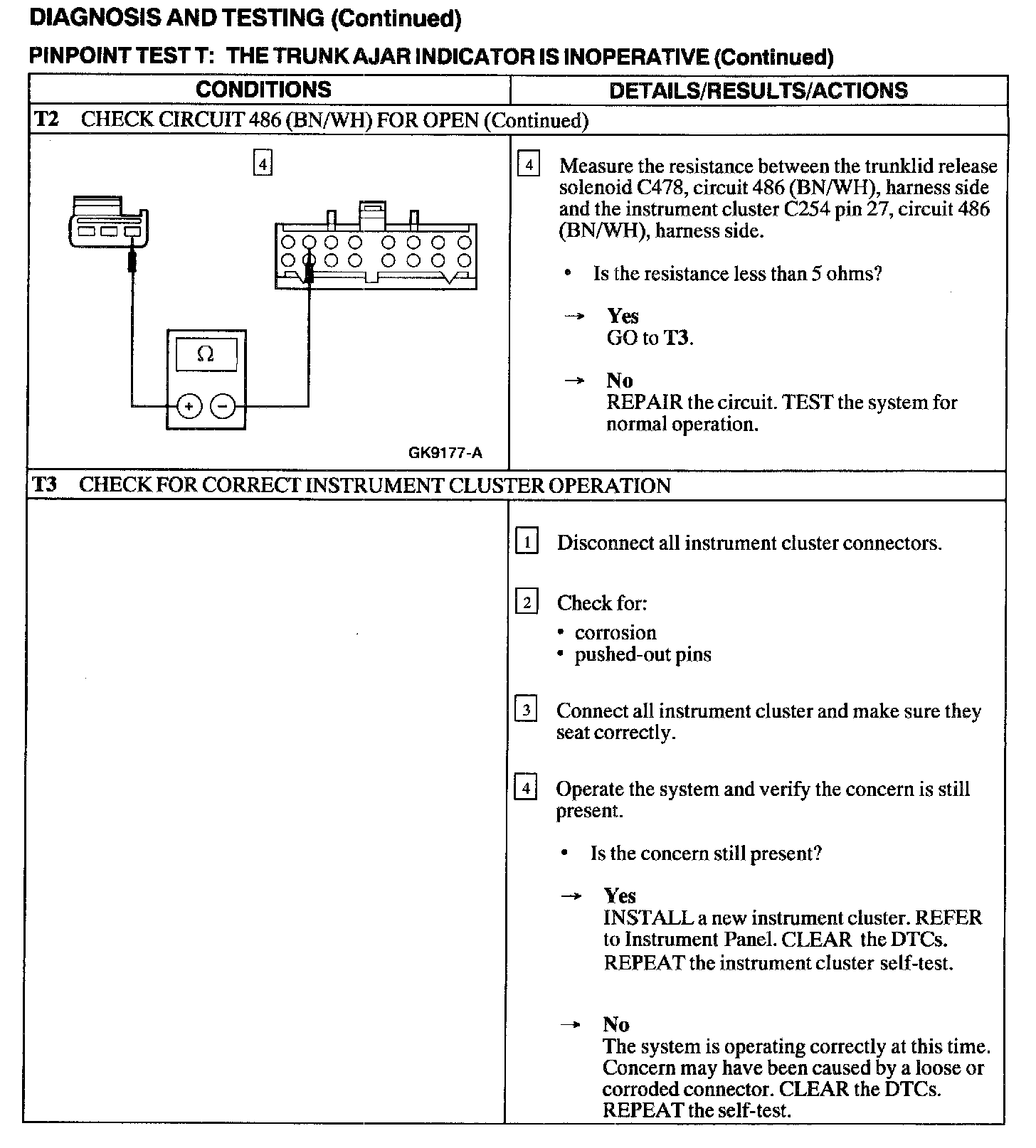

T2 - T3:
