Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Electronic Cluster >> Test S: Door Ajar Indicator Is Inoperative

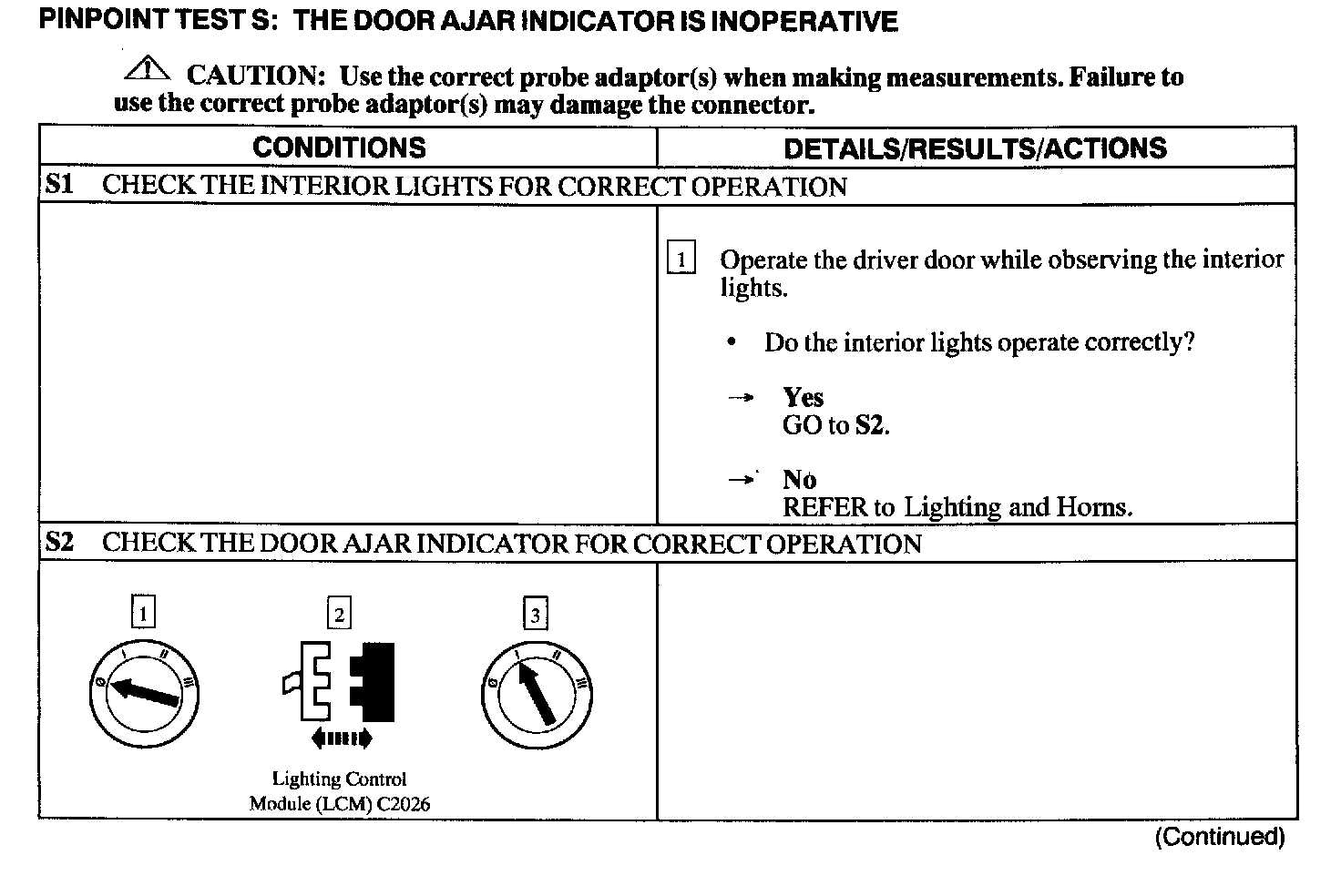

Test S: Door Ajar Indicator Is Inoperative

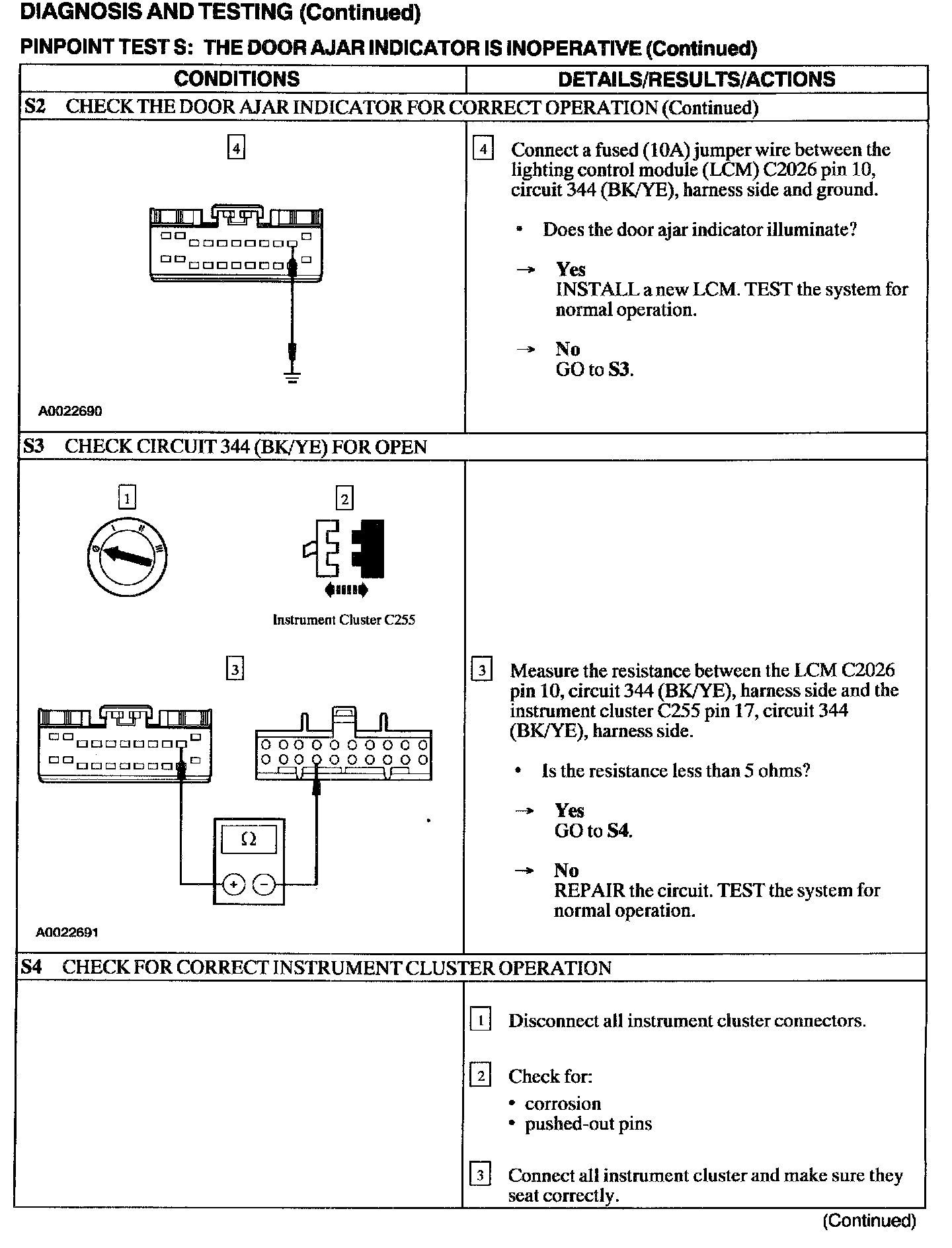

S1 - S2:






S2 - S4:

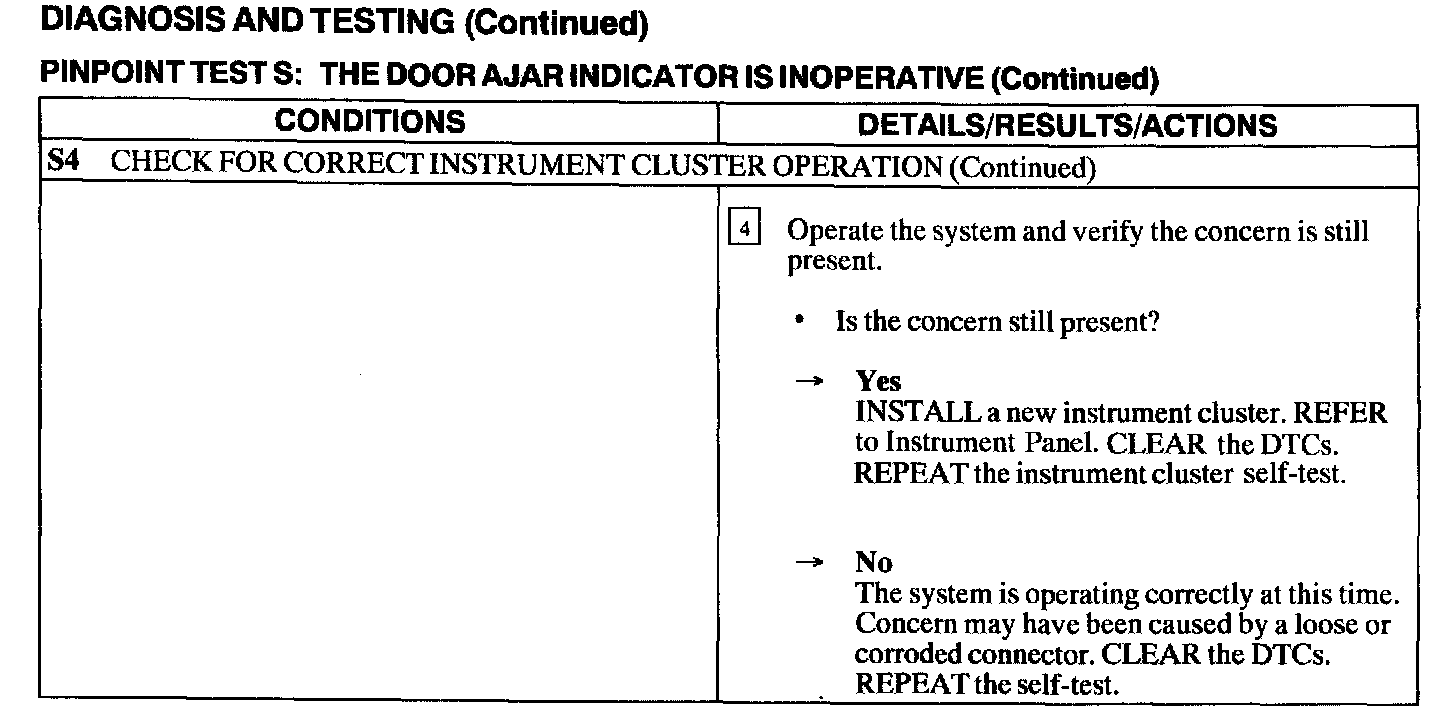

S4:
