Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Electronic Cluster >> Test K: Check Air Suspension Indicator Is Inoperative/Always on

Test K: Check Air Suspension Indicator Is Inoperative/Always on

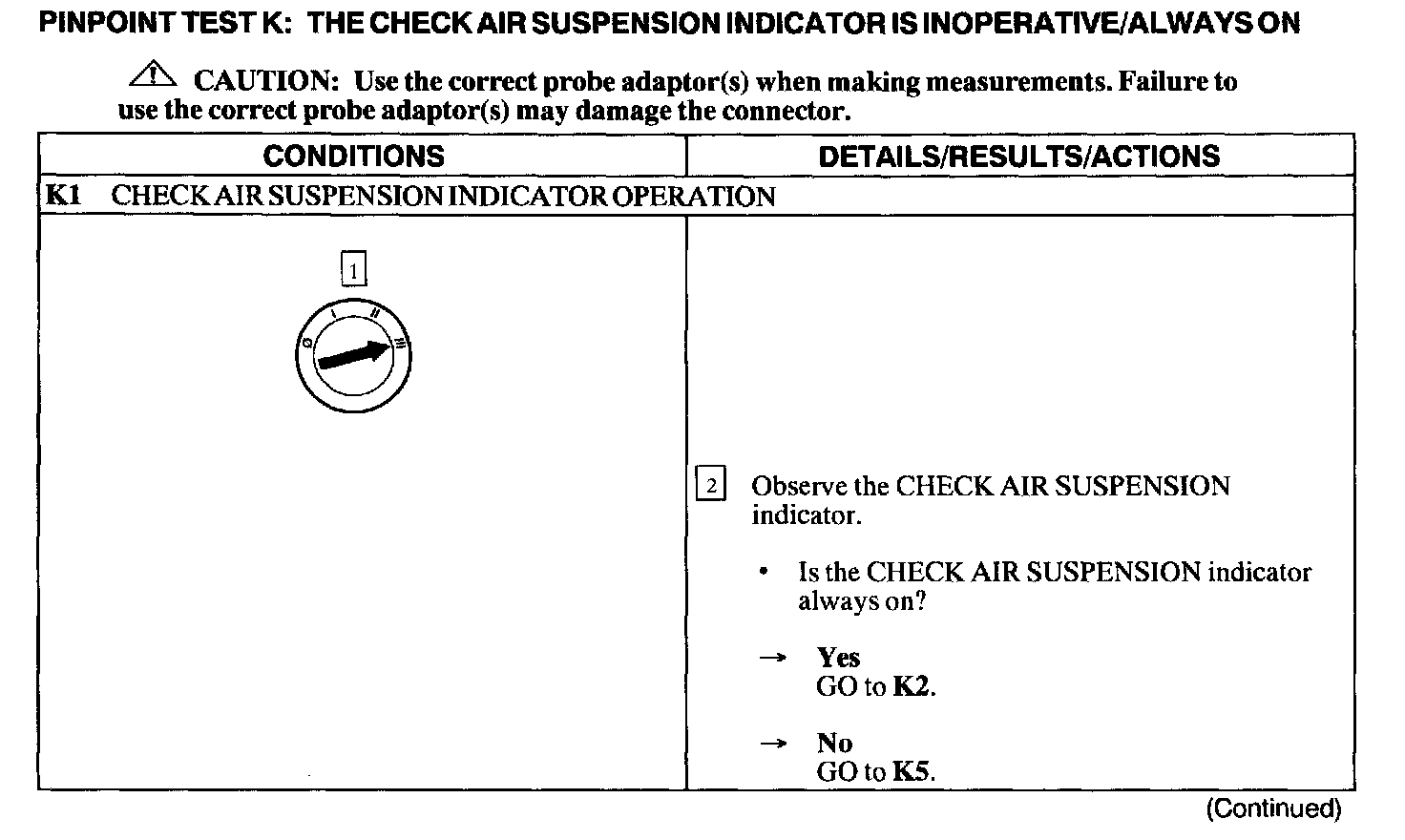

K1:

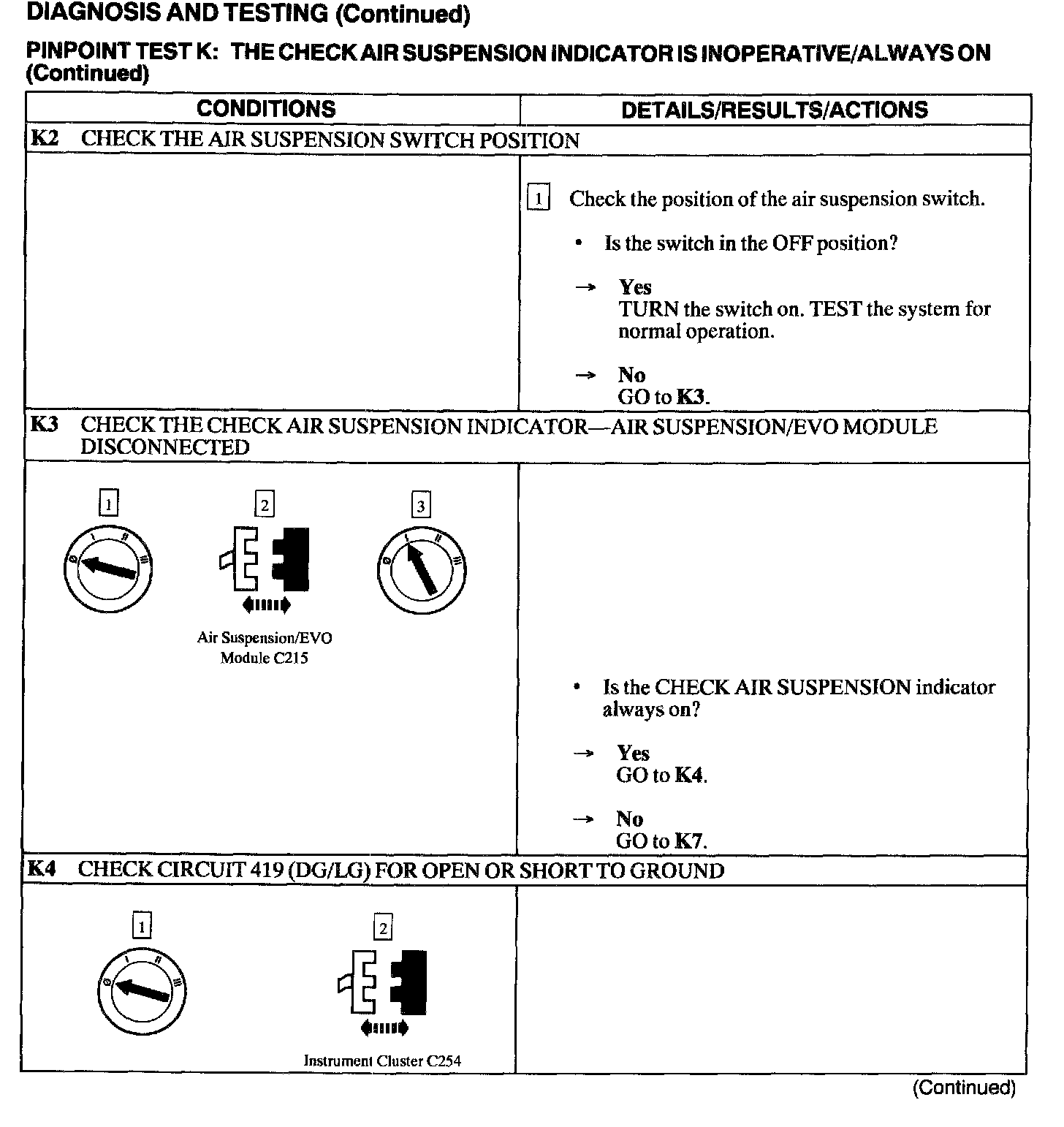

K2 - K4:

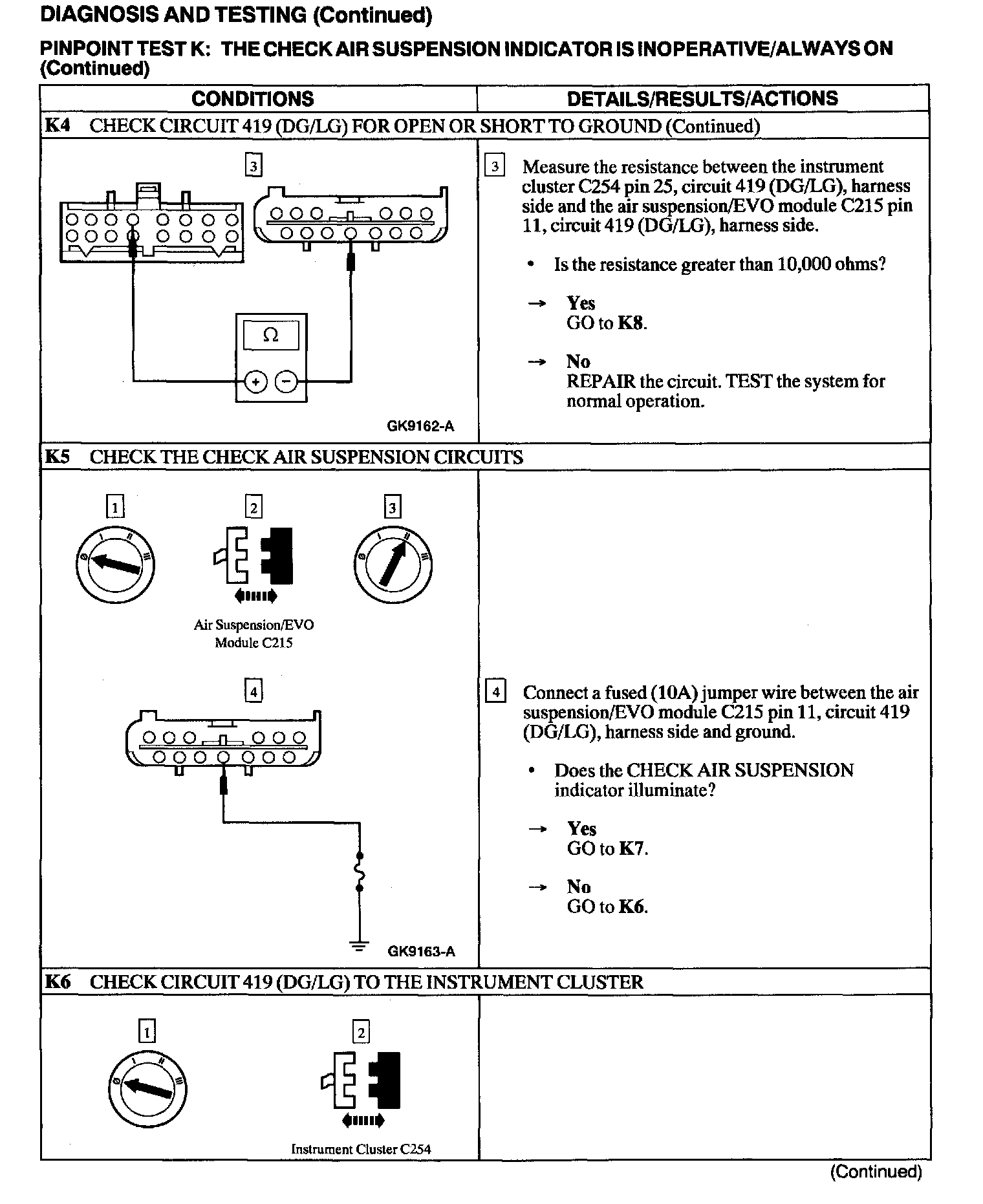

K4 - K6:

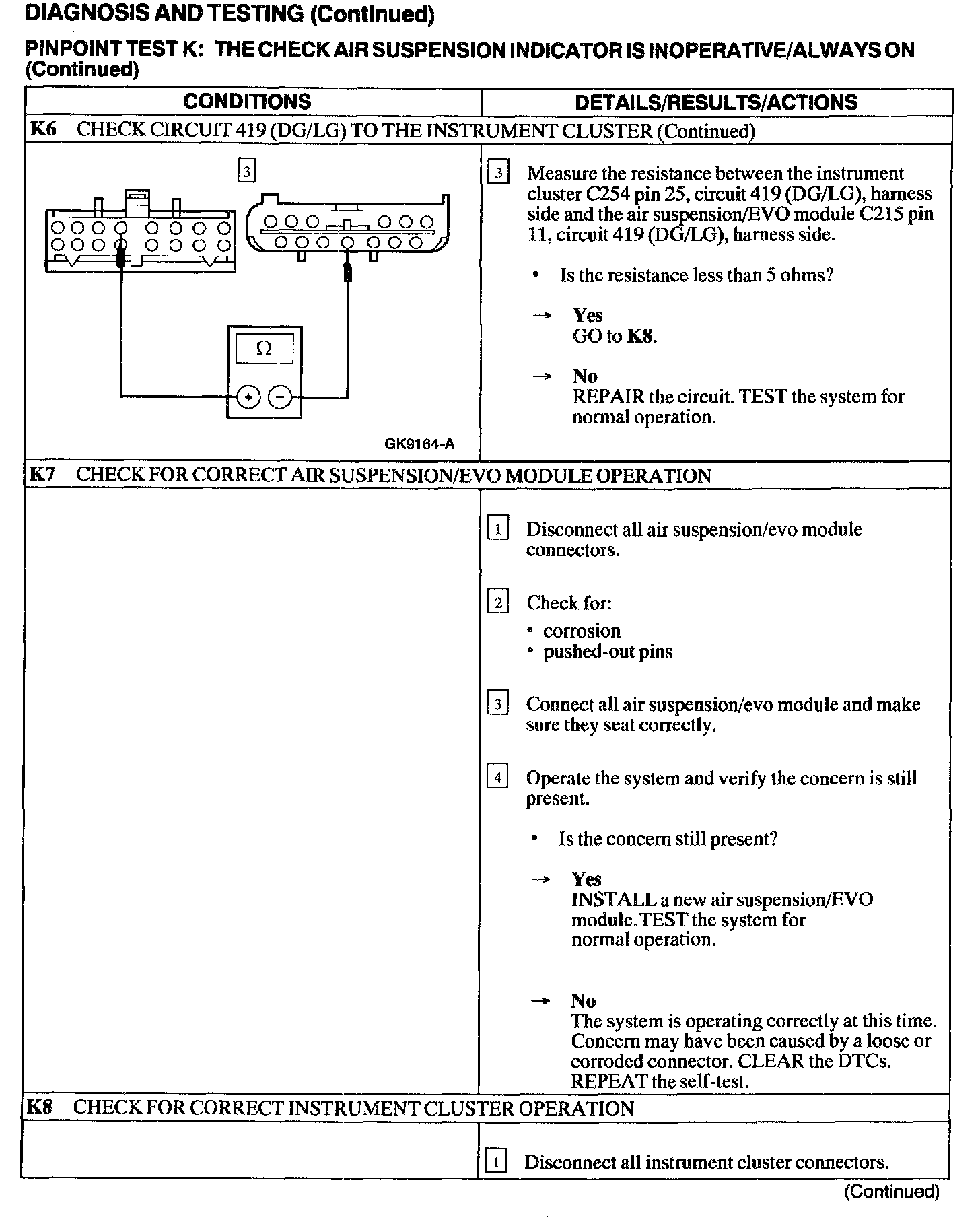

K6 - K8:

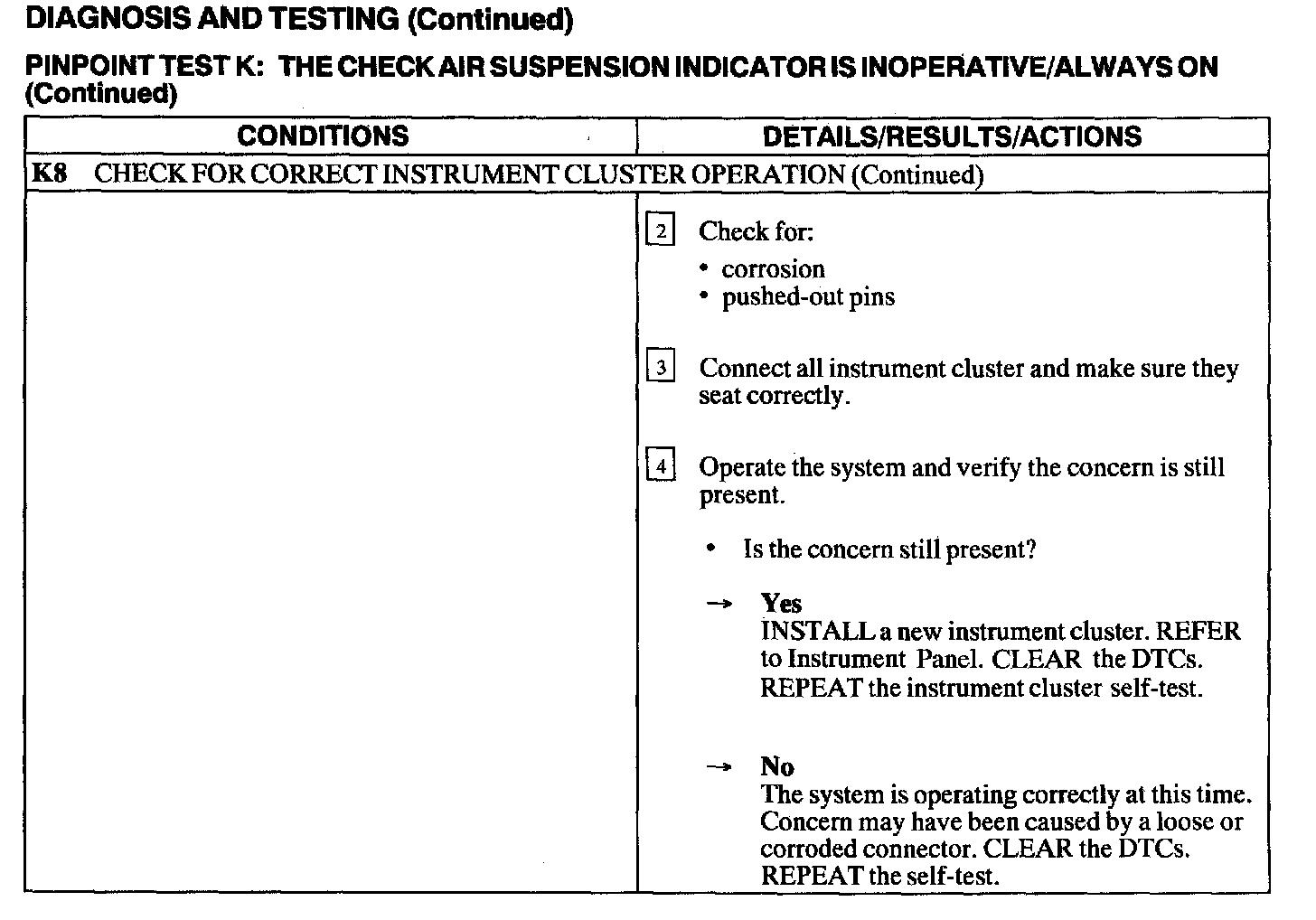

K8:
