Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Conventional Cluster - Instrument Cluster >> Test L: An Indicator Is Inoperative - LH Turn

Test L: An Indicator Is Inoperative - LH Turn

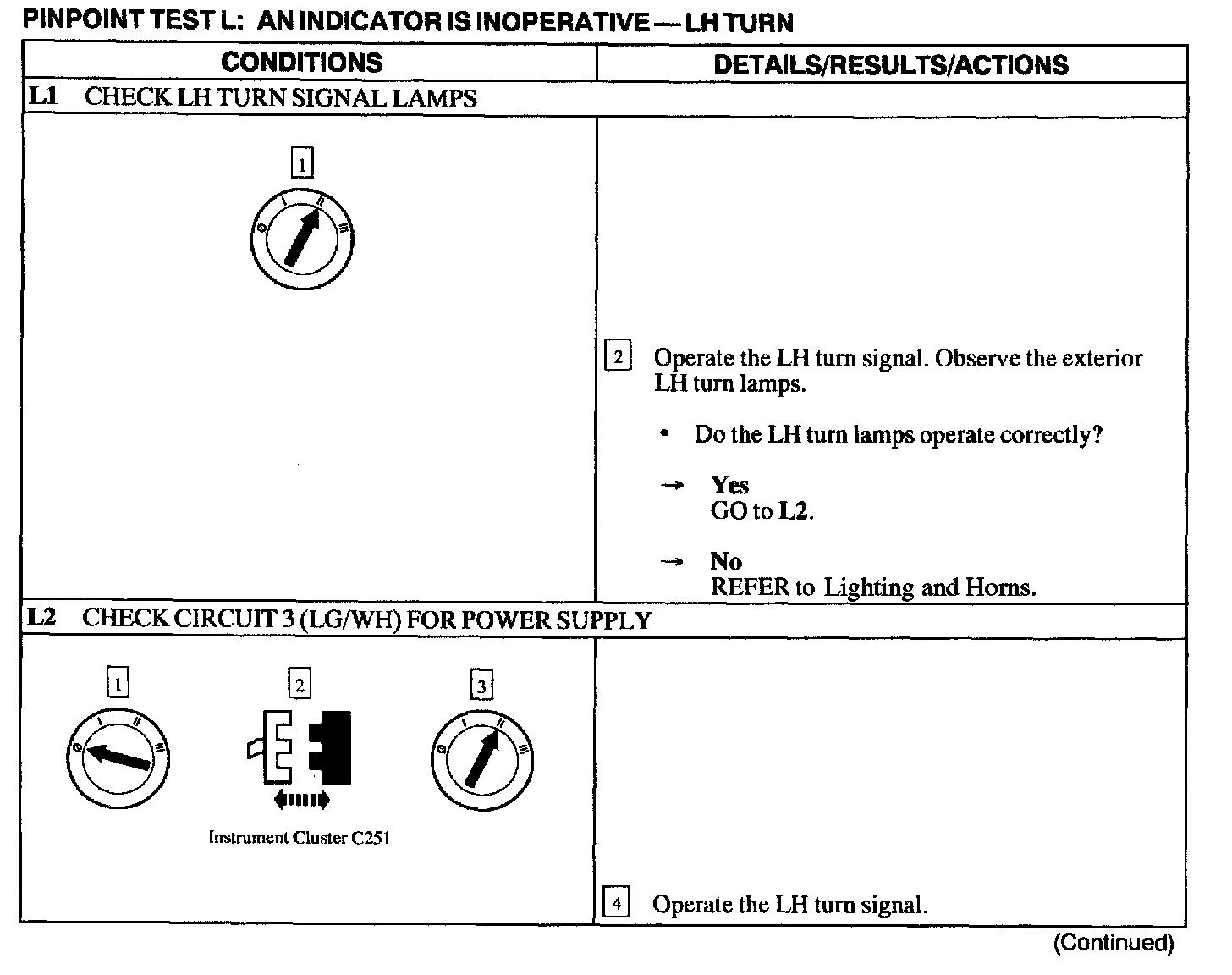

L1 - L2:

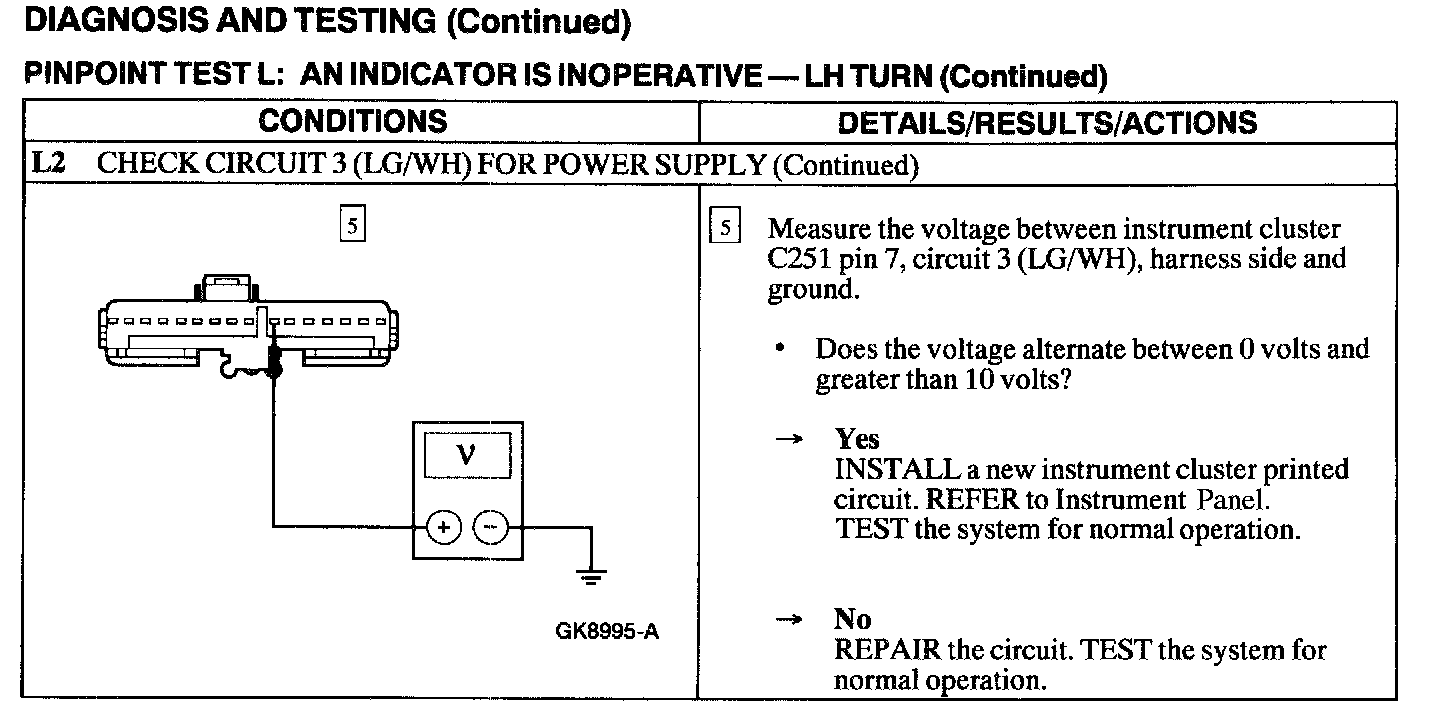

L2:
