Compass: Description and Operation

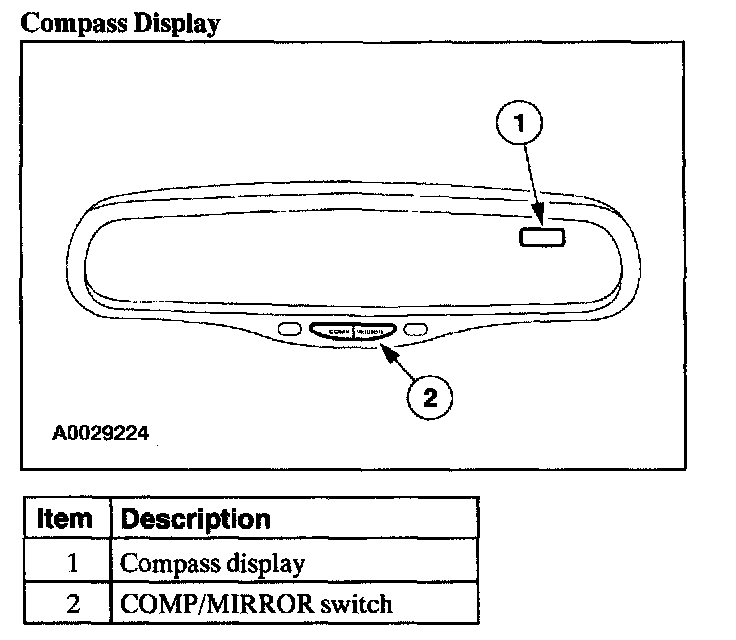

Compass Display:

NOTE: The compass display and module are integral to the inside rear view mirror and not installed separately.

The compass:
- has a two-character display in the upper RH side of the mirror, which indicates the direction in which the vehicle is pointed (N, NE, E, SE, S, SW, W, NW).
- uses an electronic compass sensor that is attached to the mirror to windshield bracket.
- has compass adjustment (calibration and zone variation) controlled by a COMP switch on the mirror.
