Test T: Insufficient Air Conditioning Cooling - EATC and Manual
Test T: Insufficient Air Conditioning Cooling - EATC and Manual

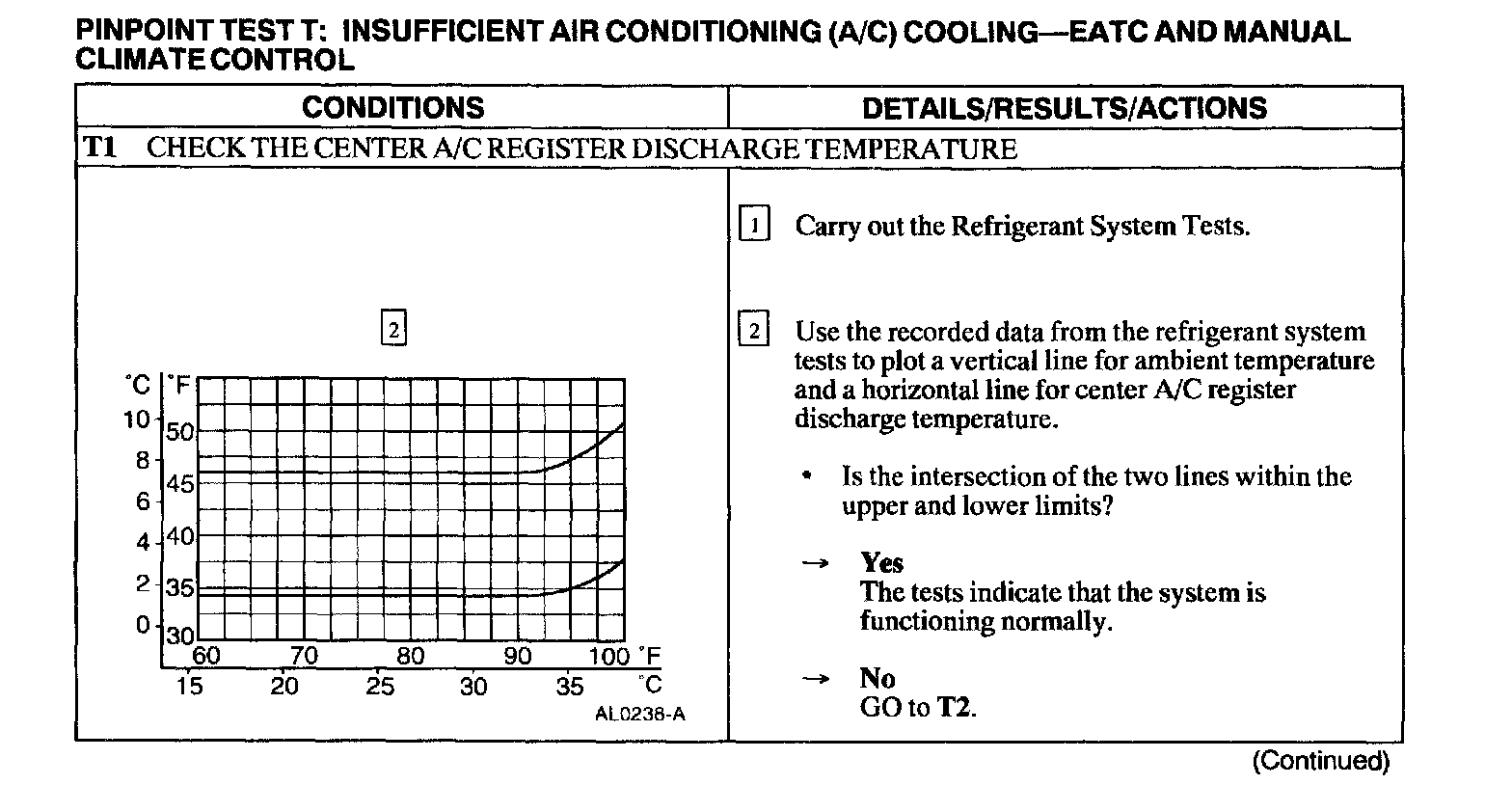

T1:

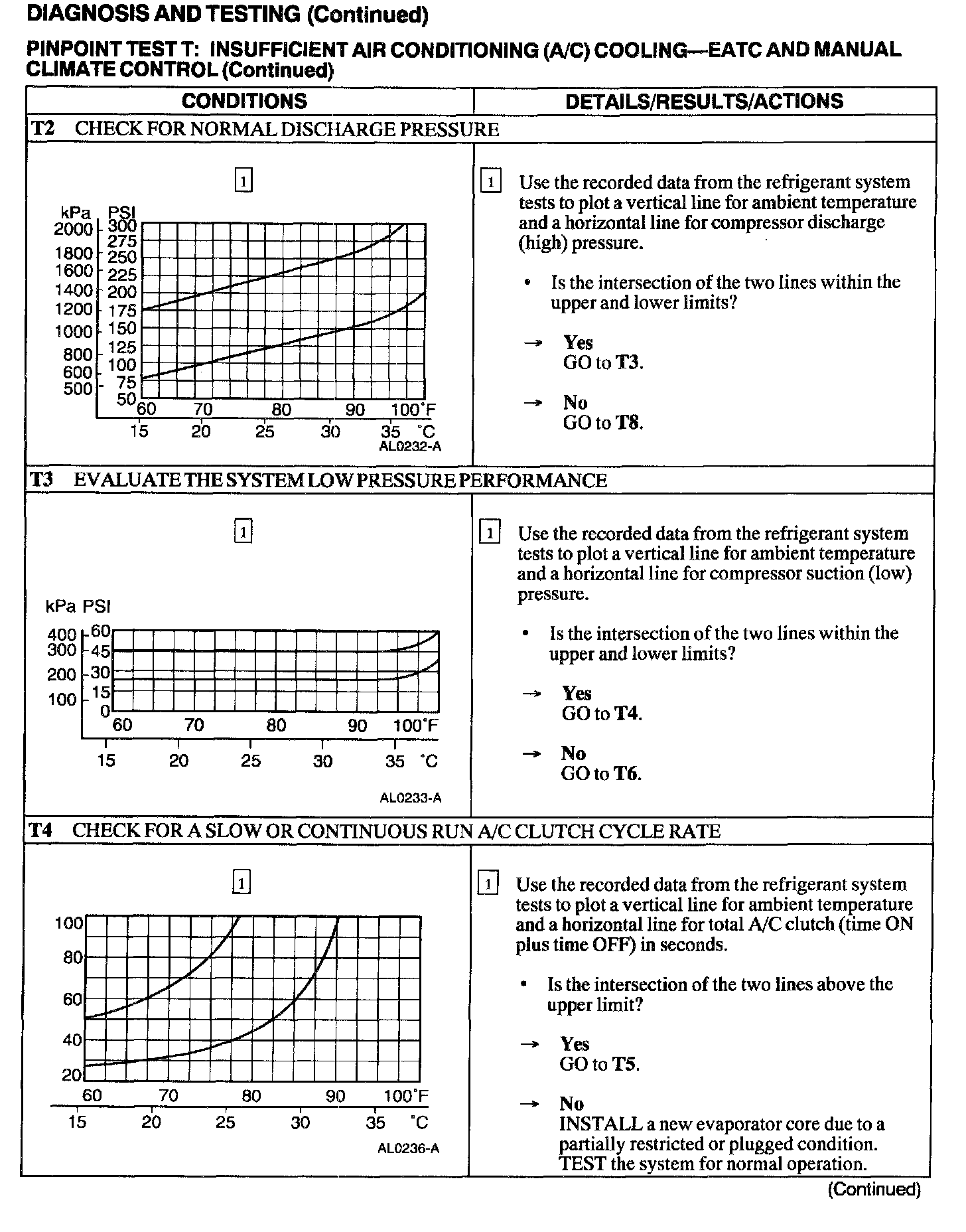

T2 - T4:

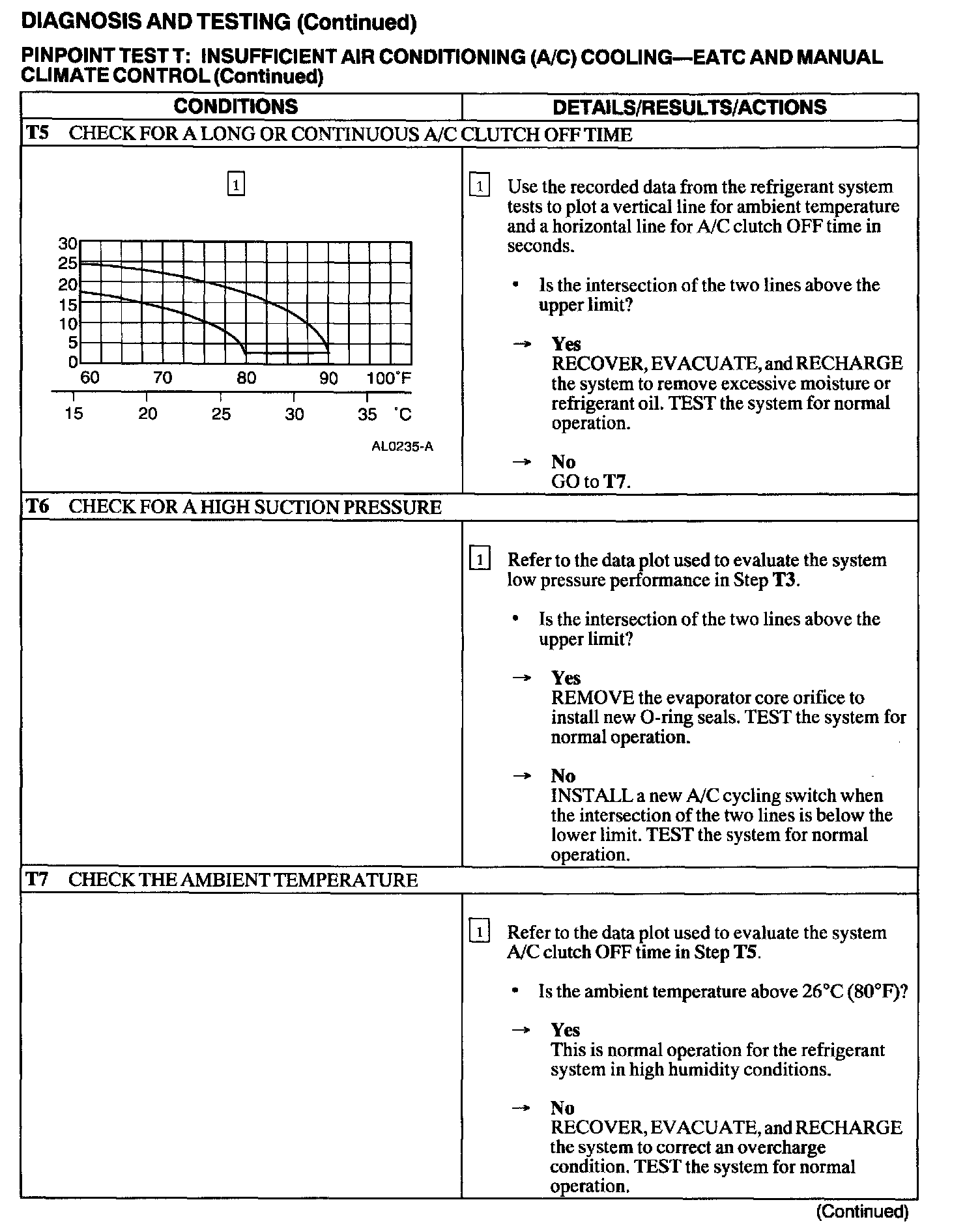

T5 - T7:
T8 - T10:
T11 - T13:
T14 - T15:
