Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test S: Air Conditioning Always on - EATC and Manual

Test S: Air Conditioning Always on - EATC and Manual

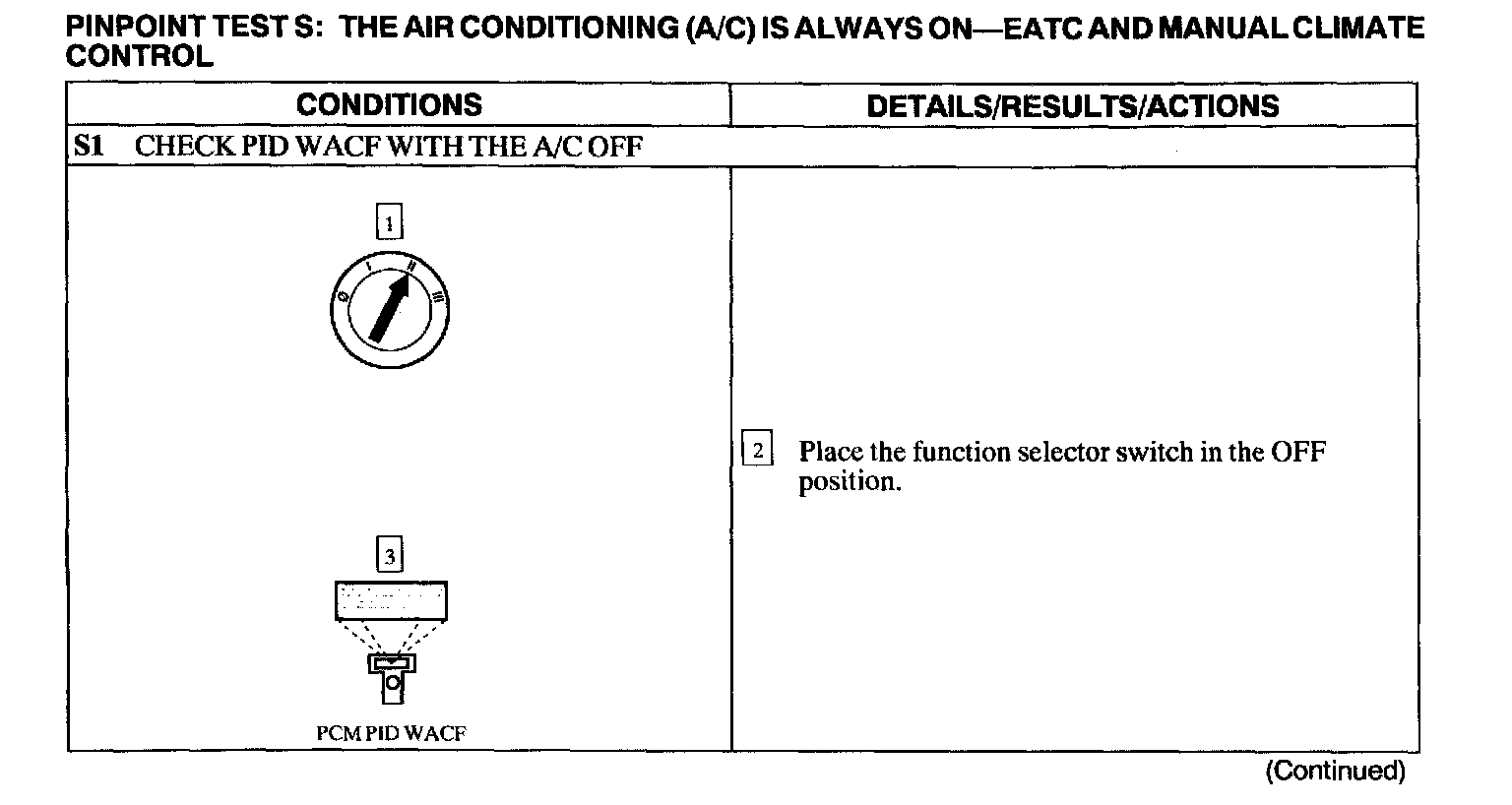

S1:

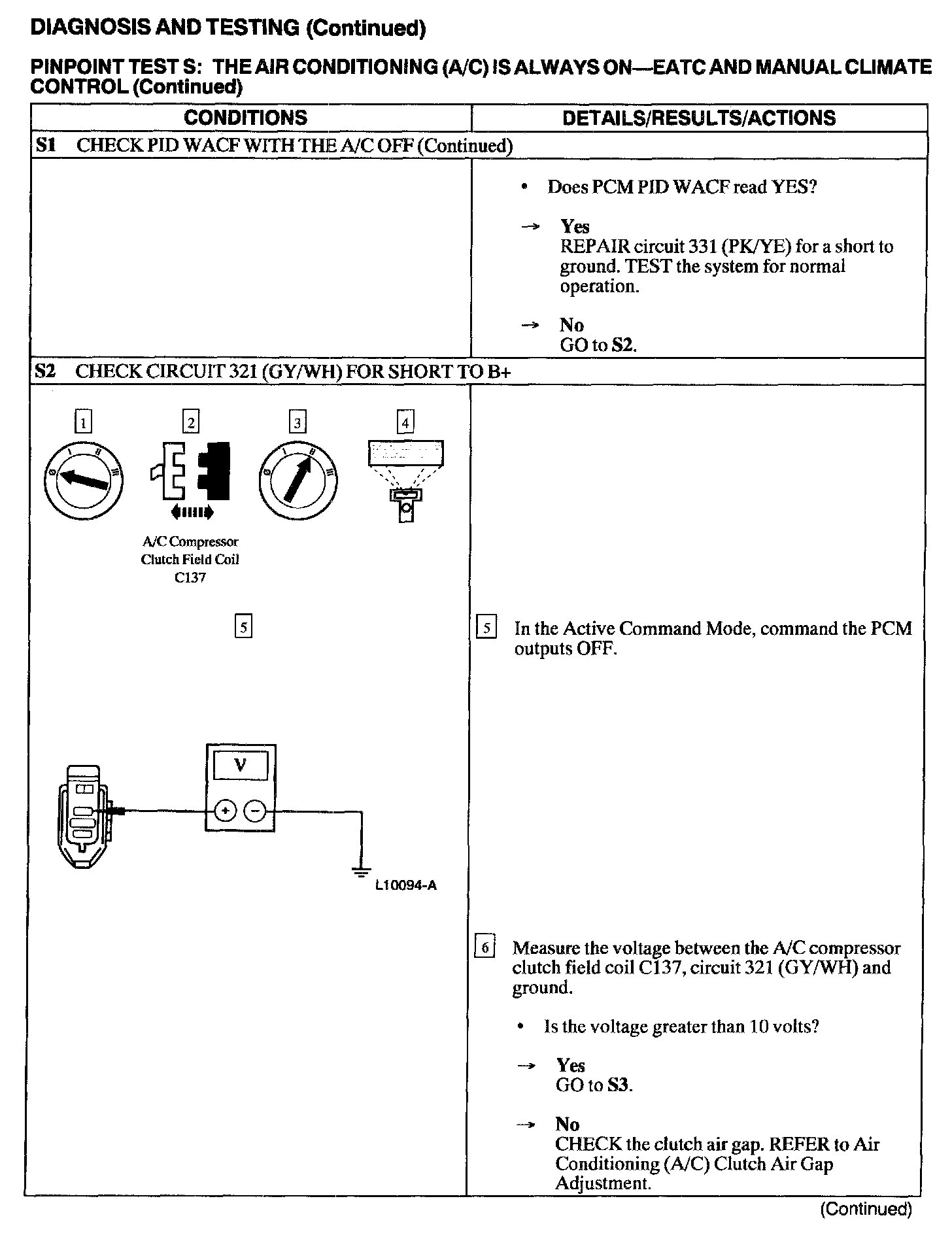

S1 - S2:

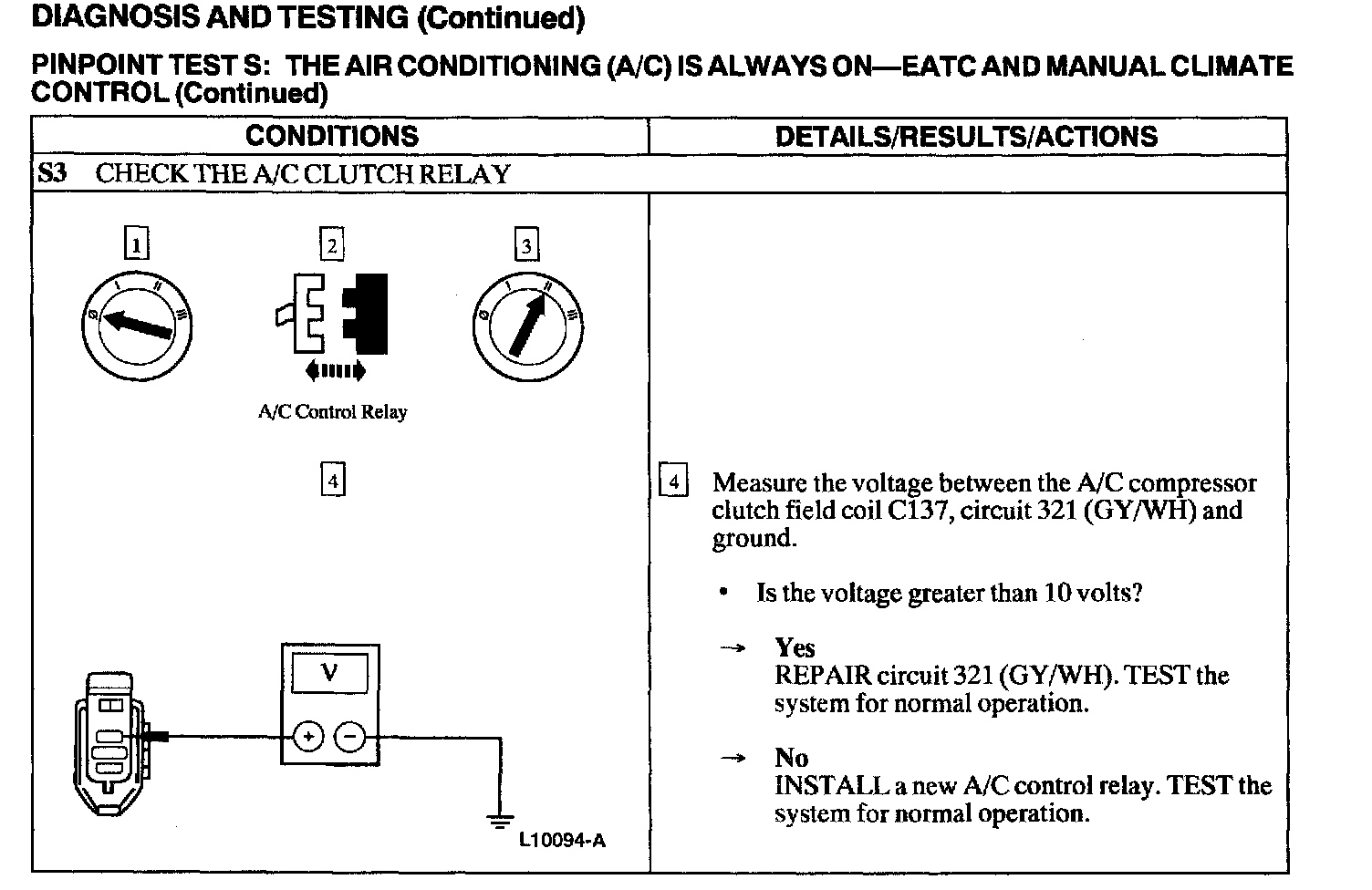

S3:
