Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test N: No Operation In All Temp Setting-Manual

Test N: No Operation In All Temp Setting-Manual

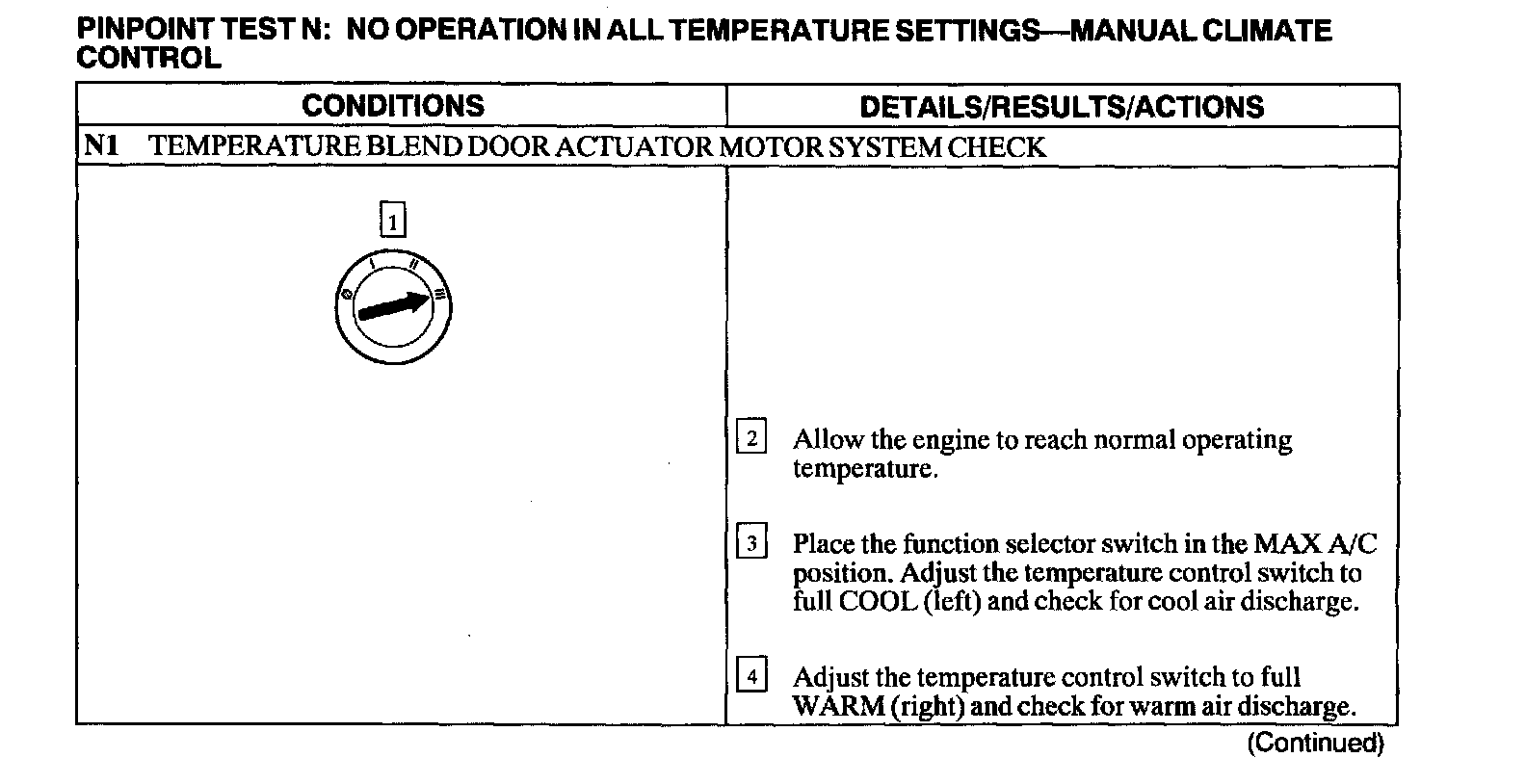

N1:

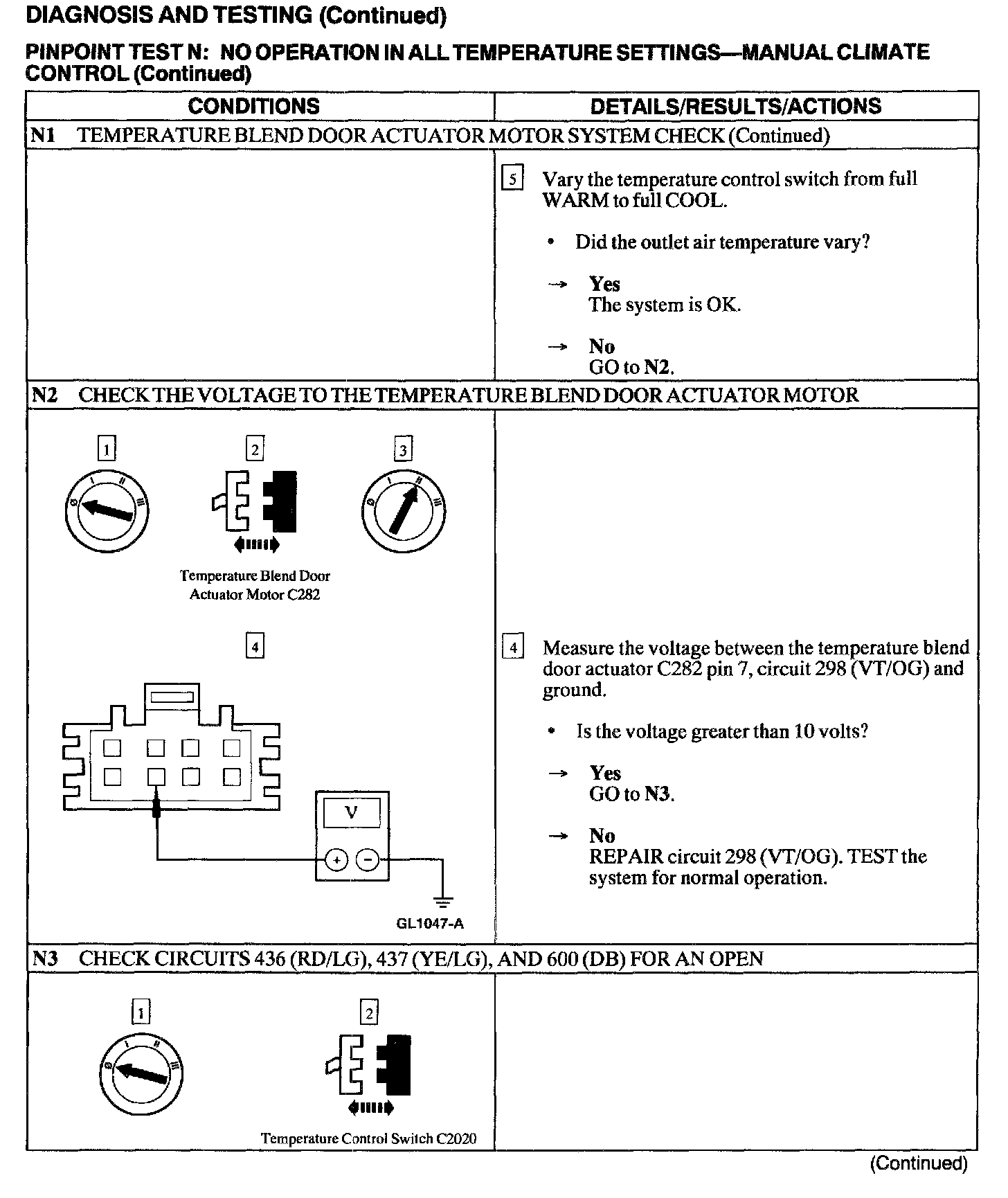

N1 - N3:

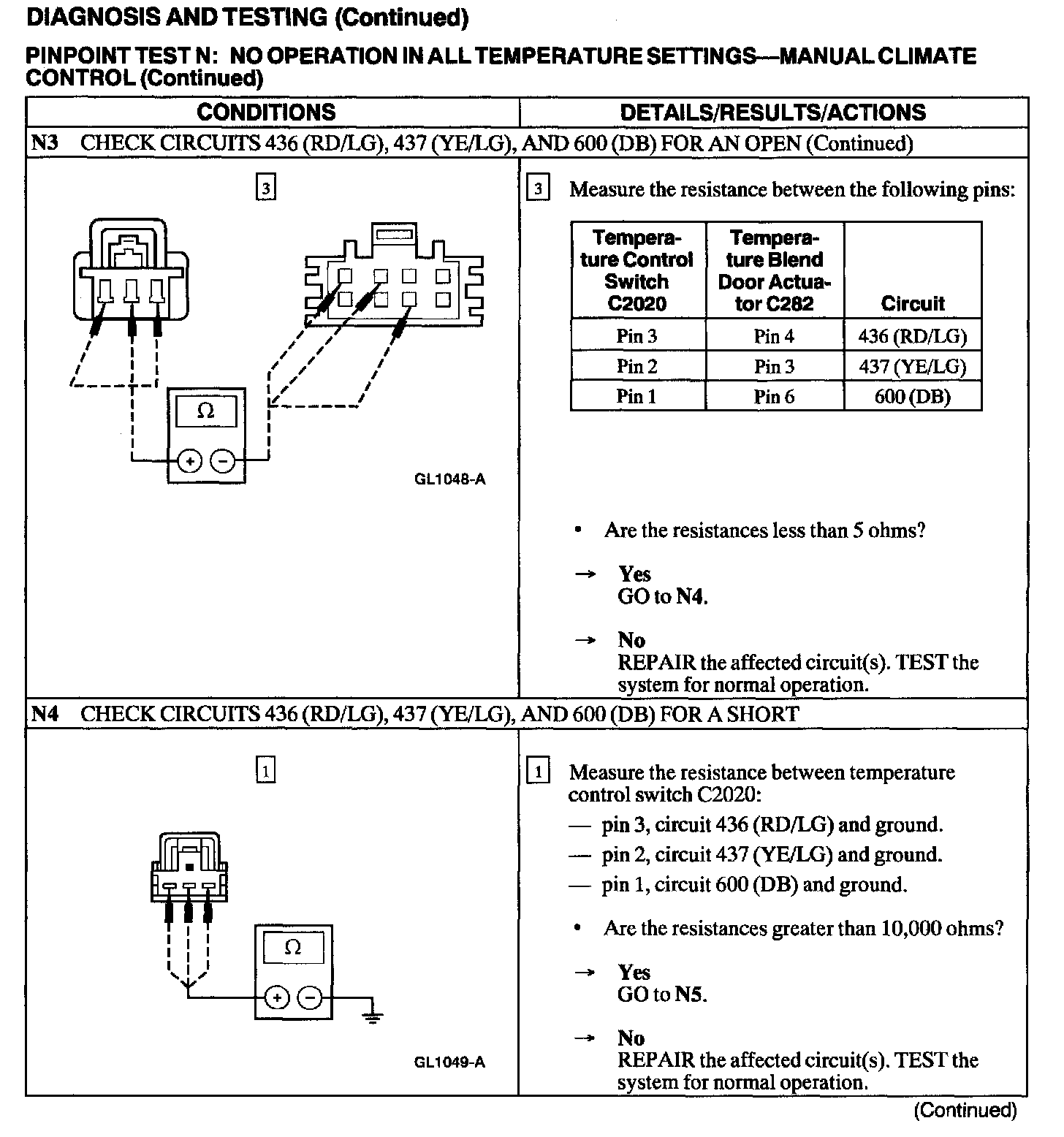

N3 - N4:






N5:
