Test M: Air Conditioning Inoperative - Manual Climate Control
Test M: Air Conditioning Inoperative - Manual Climate Control

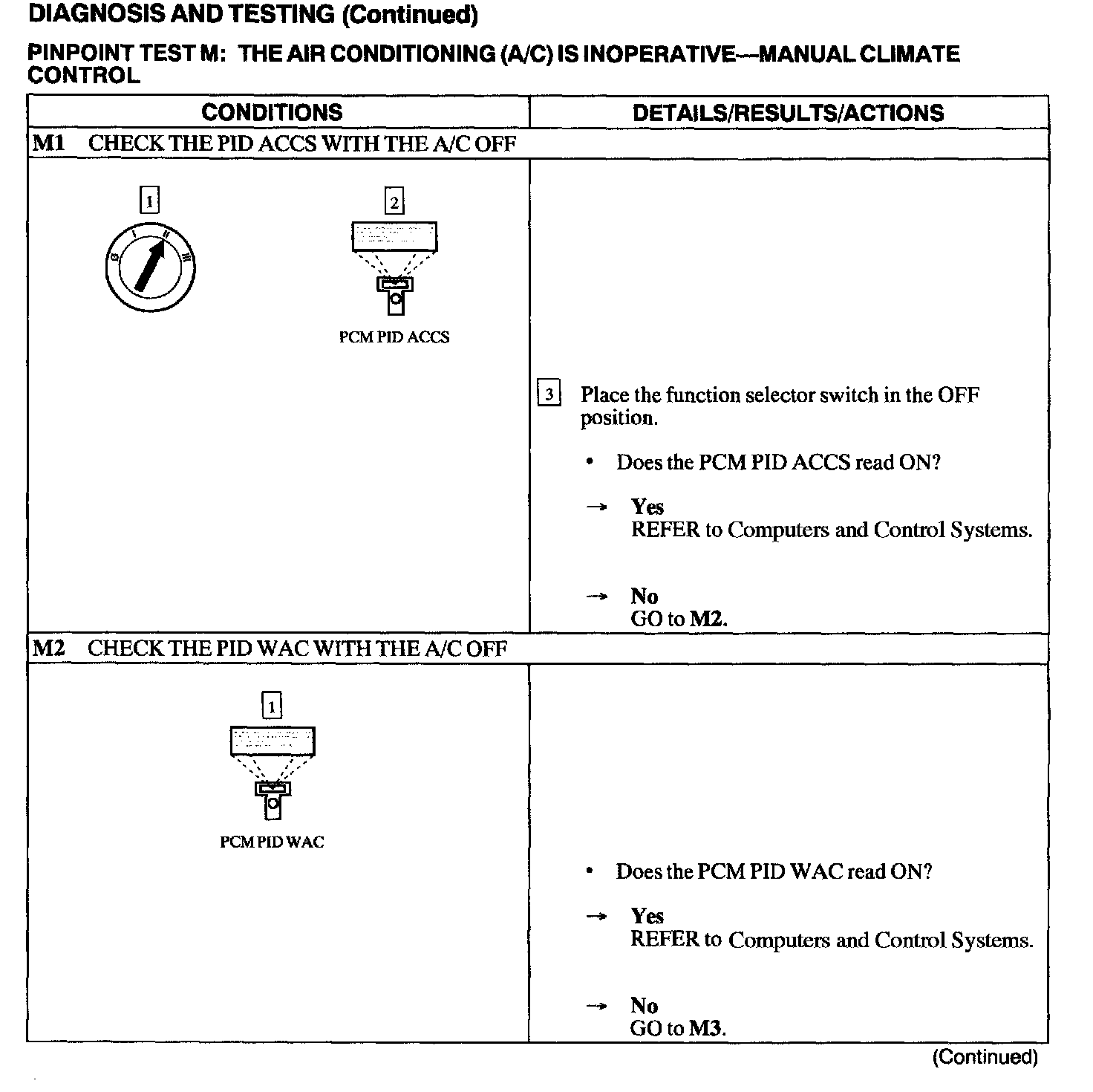

M1 - M2:

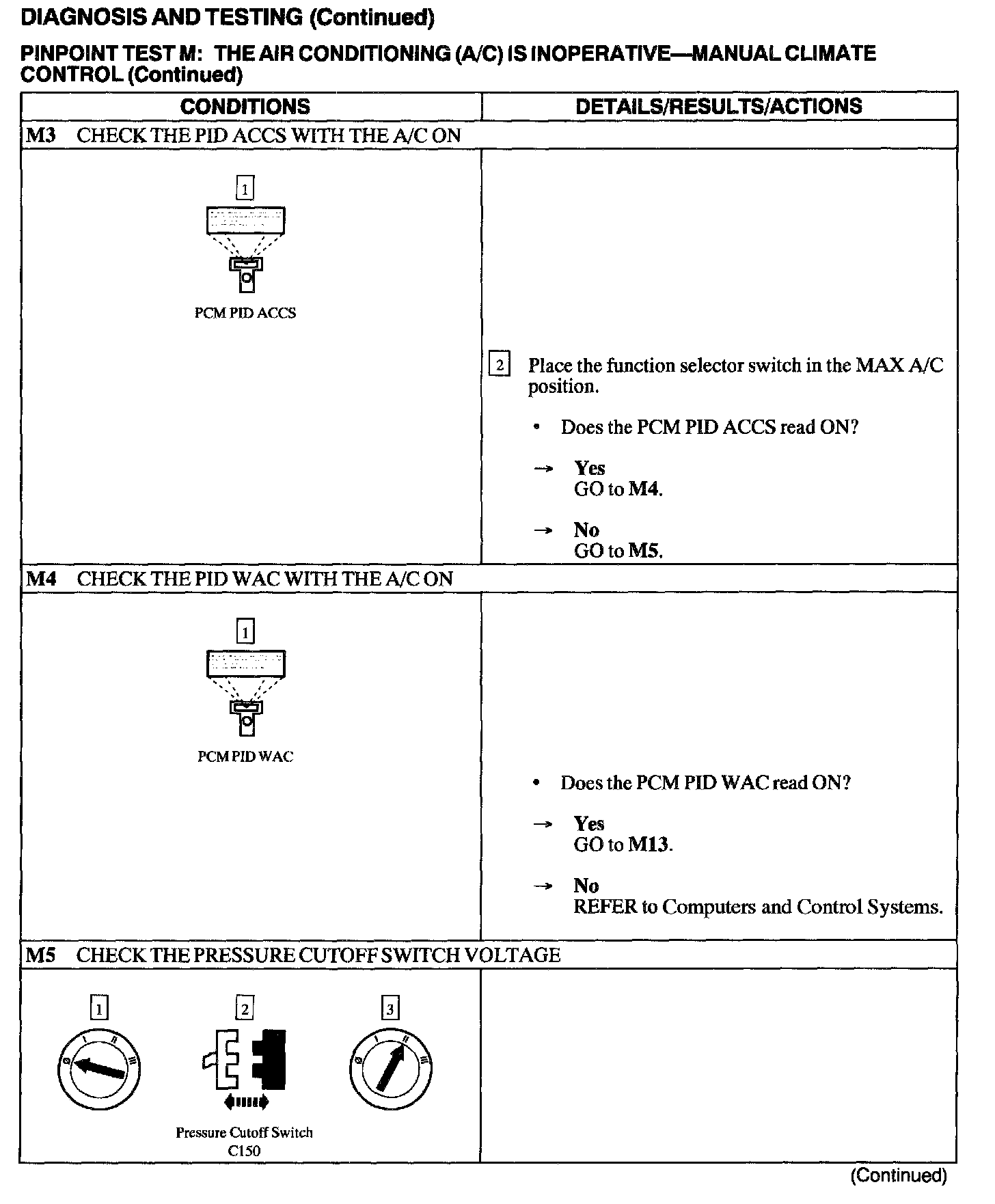

M3 - M5:

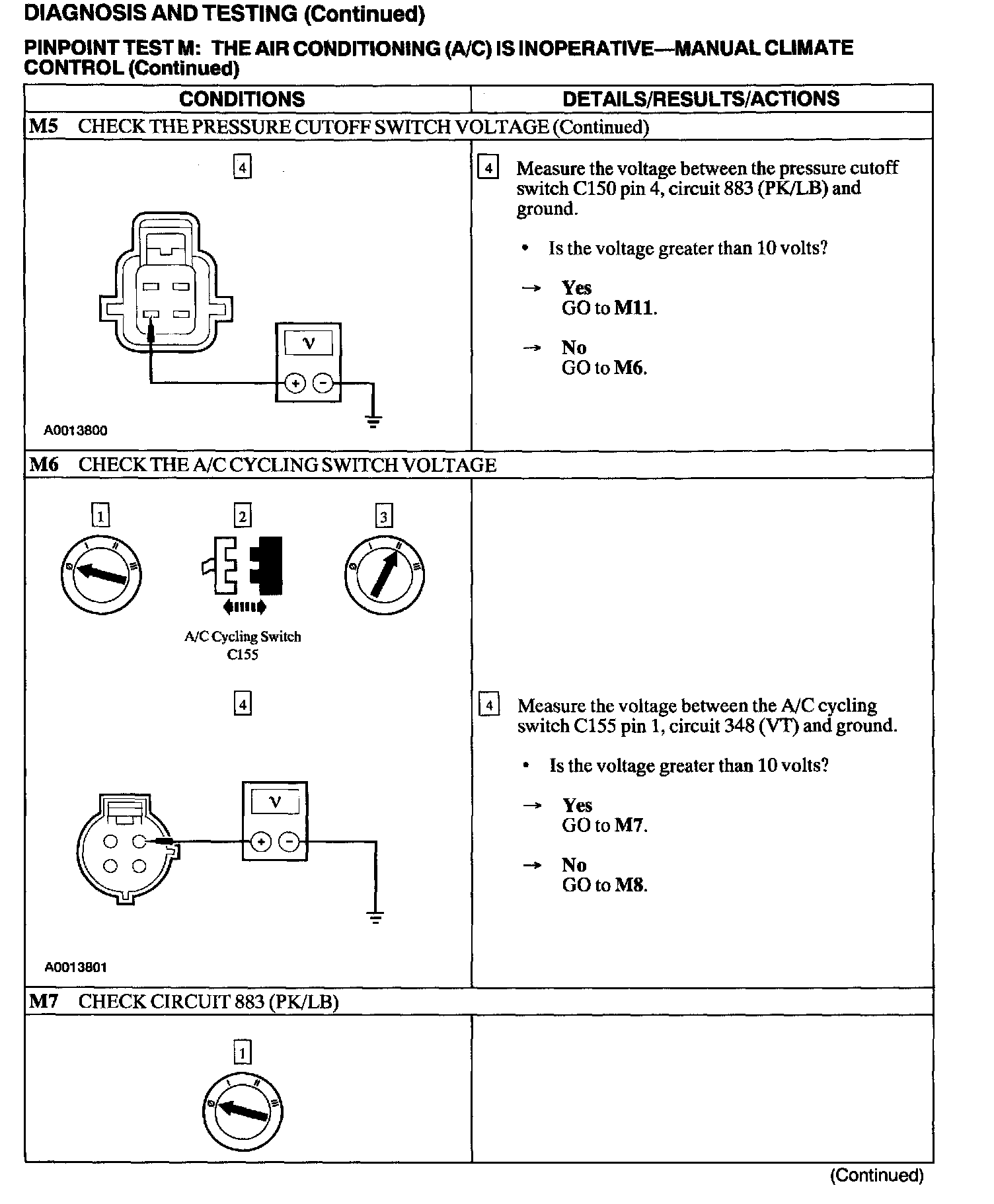

M5 - M7:

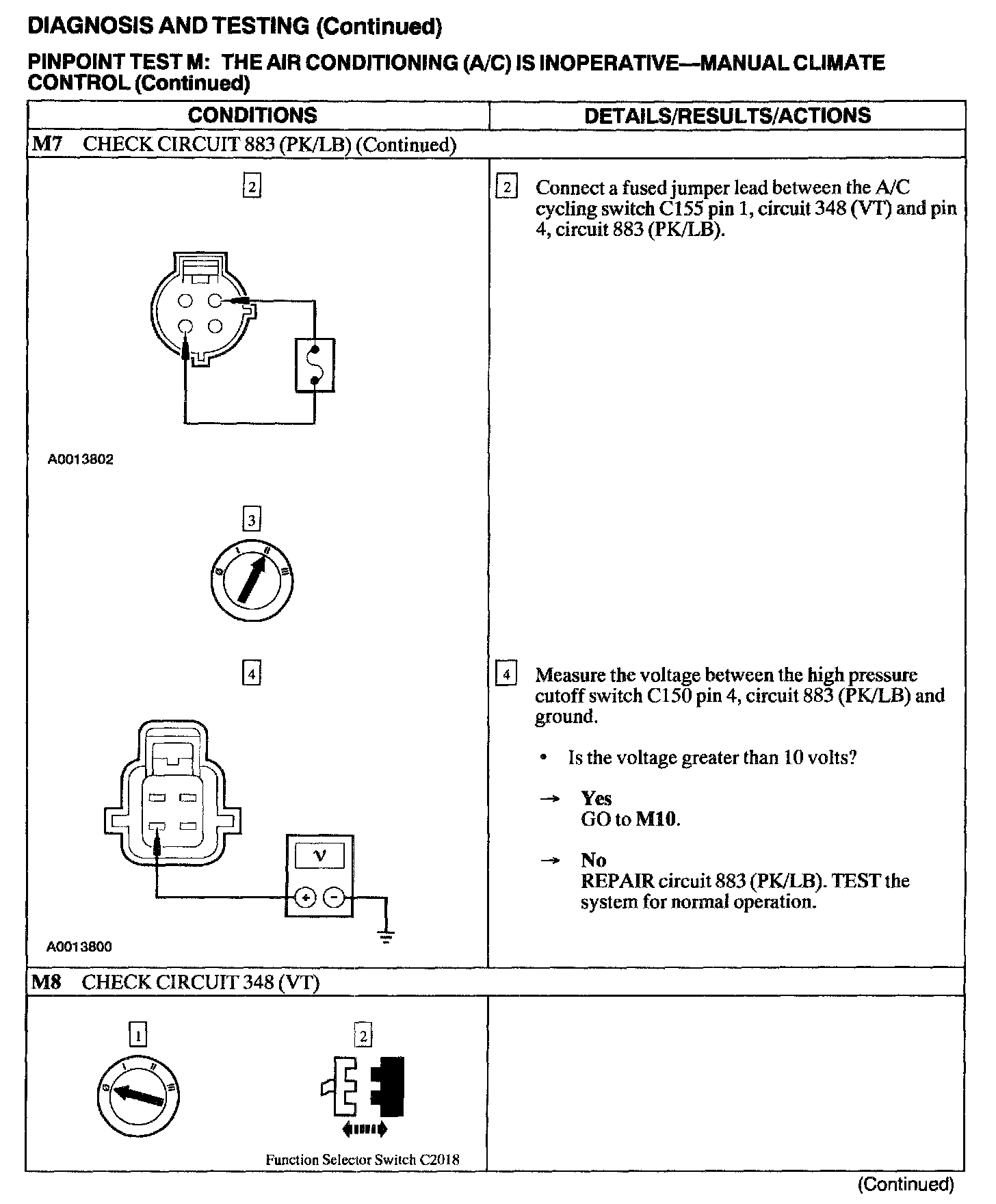

M7 - M8:

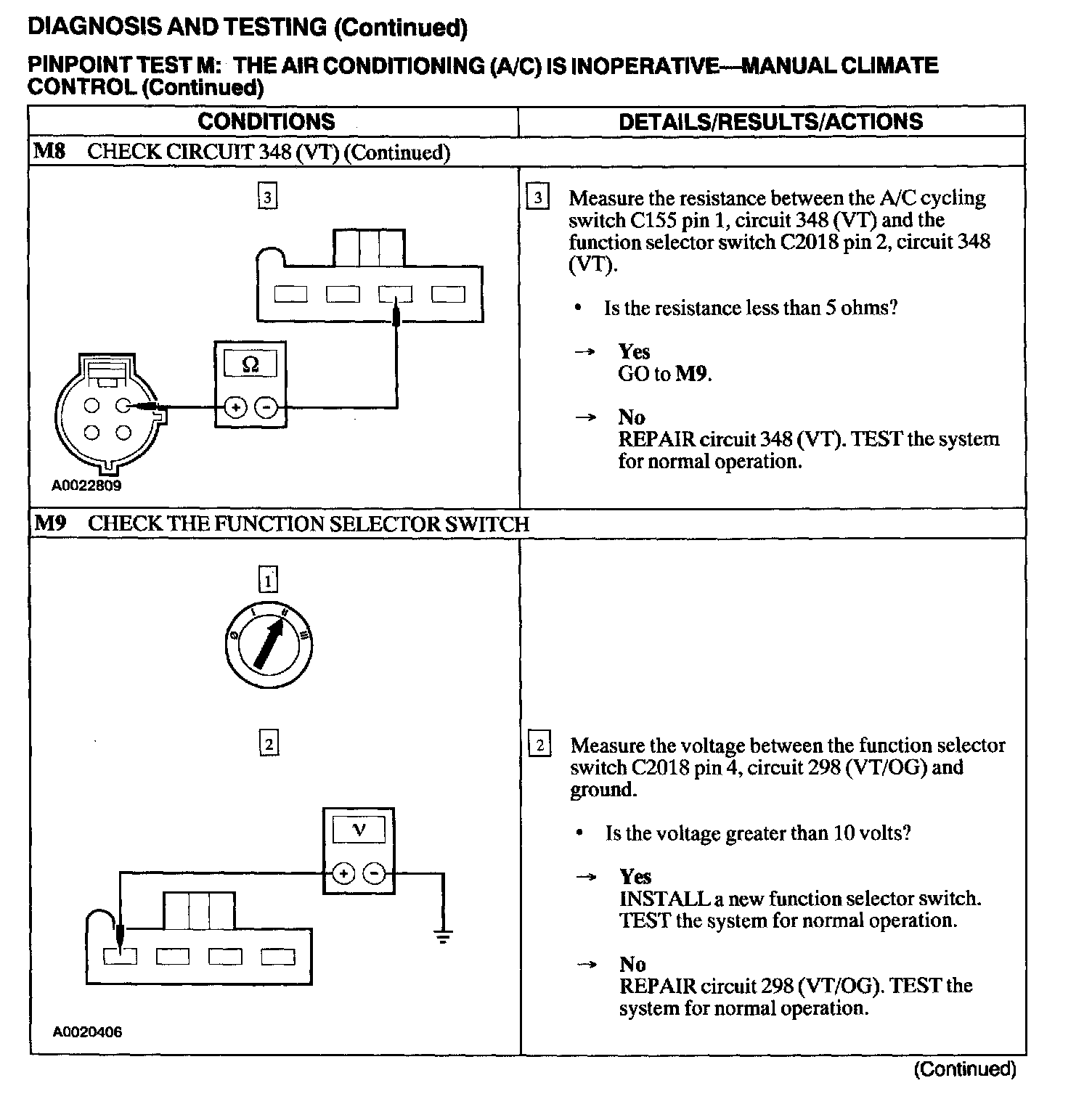

M8 - M9:

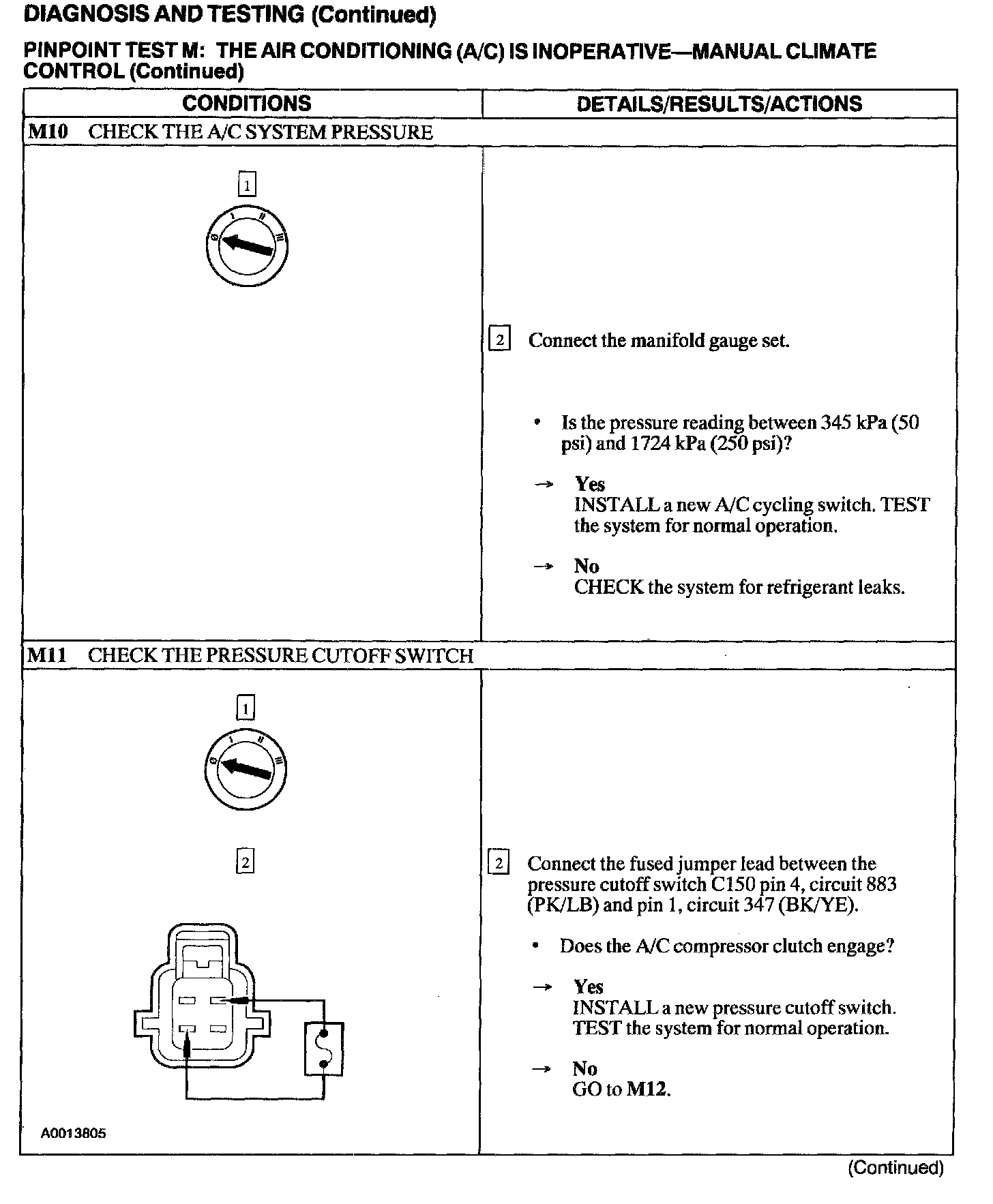

M10 - M11:

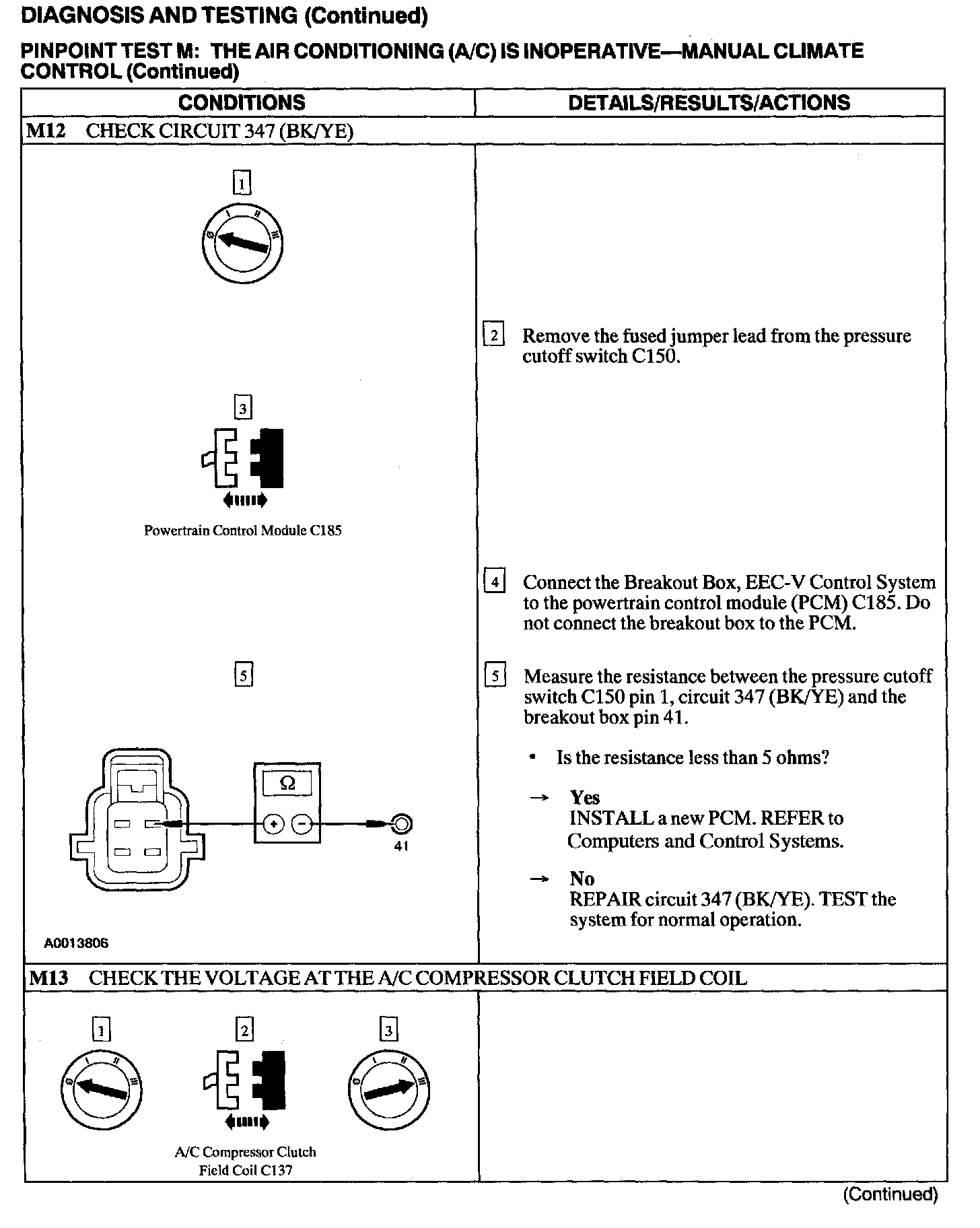

M12 - M13:

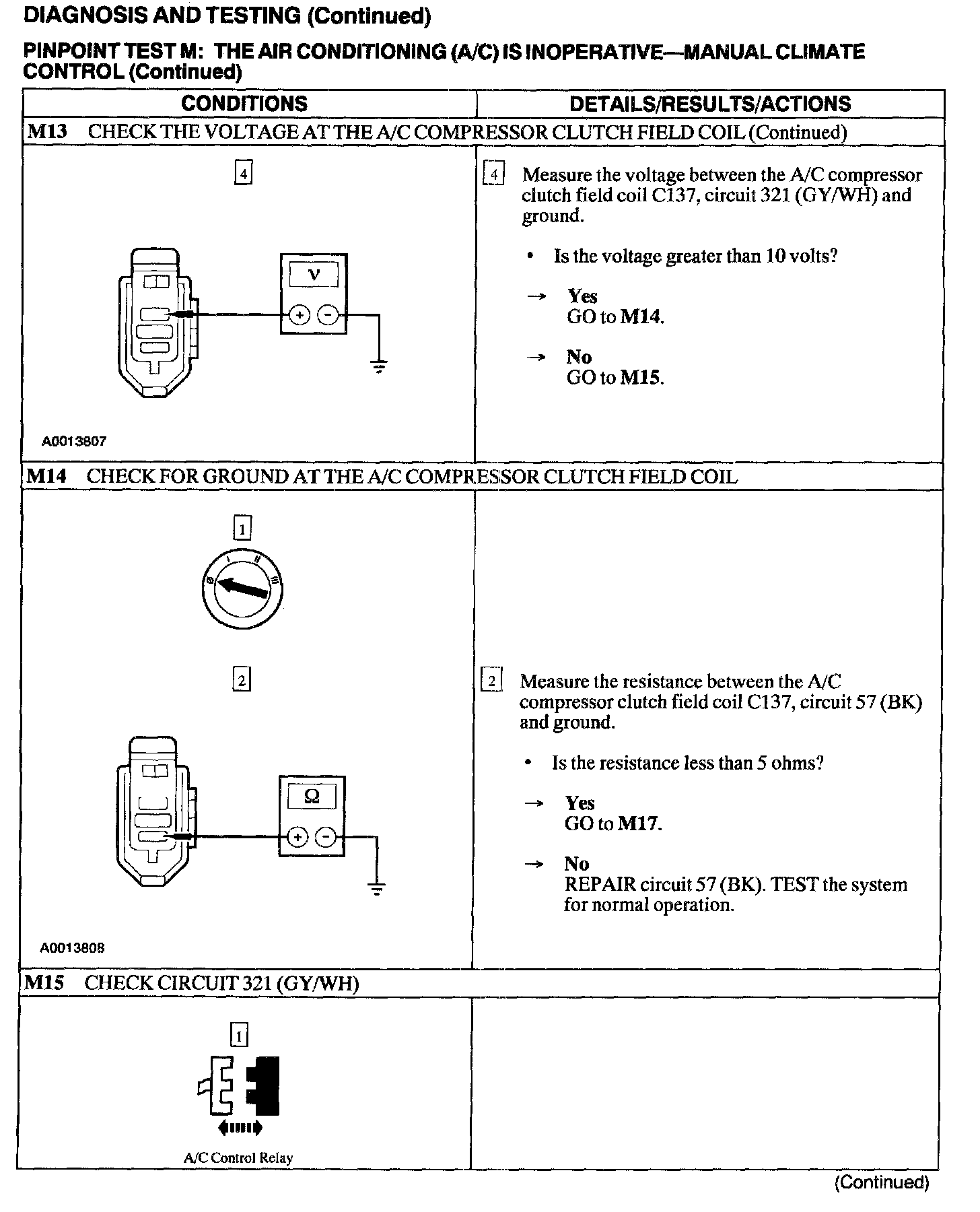

M13 - M15:

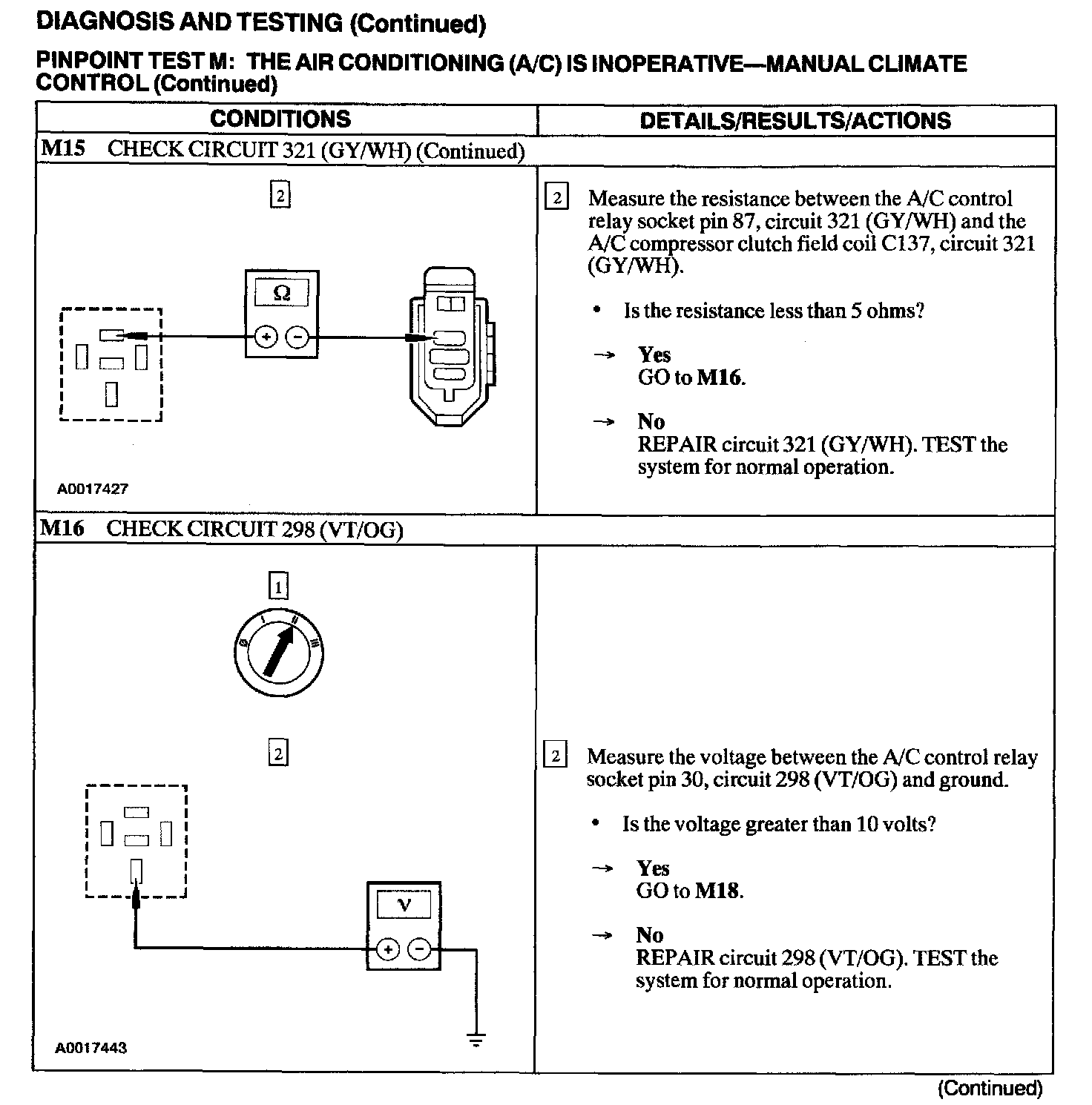

M15 - M16:

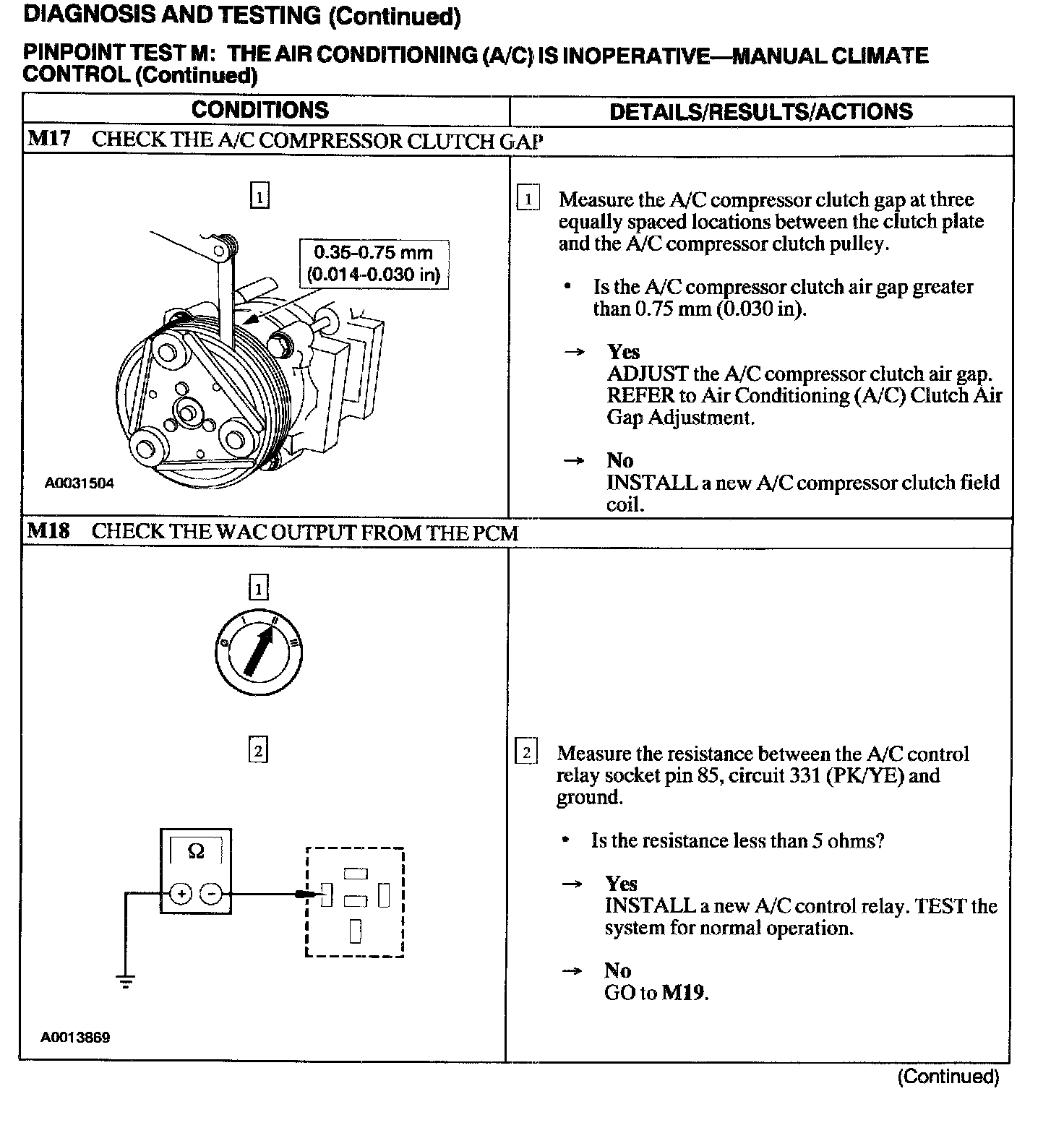

M17 - M18:

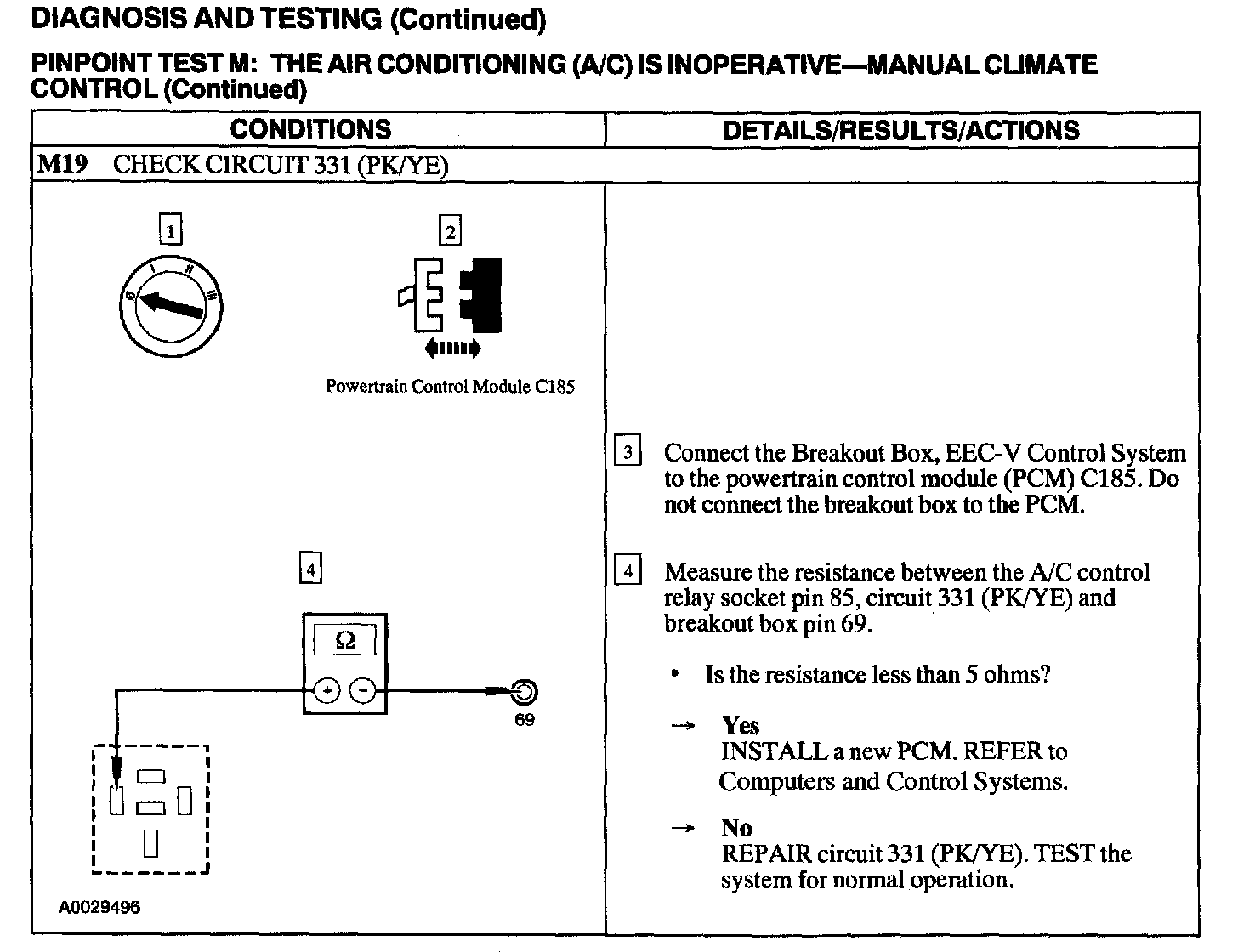

M19:
