Test L: Incorrect/Erratic Direction of Airflow From Outlet-Manual
Test L: Incorrect/Erratic Direction of Airflow From Outlet-Manual

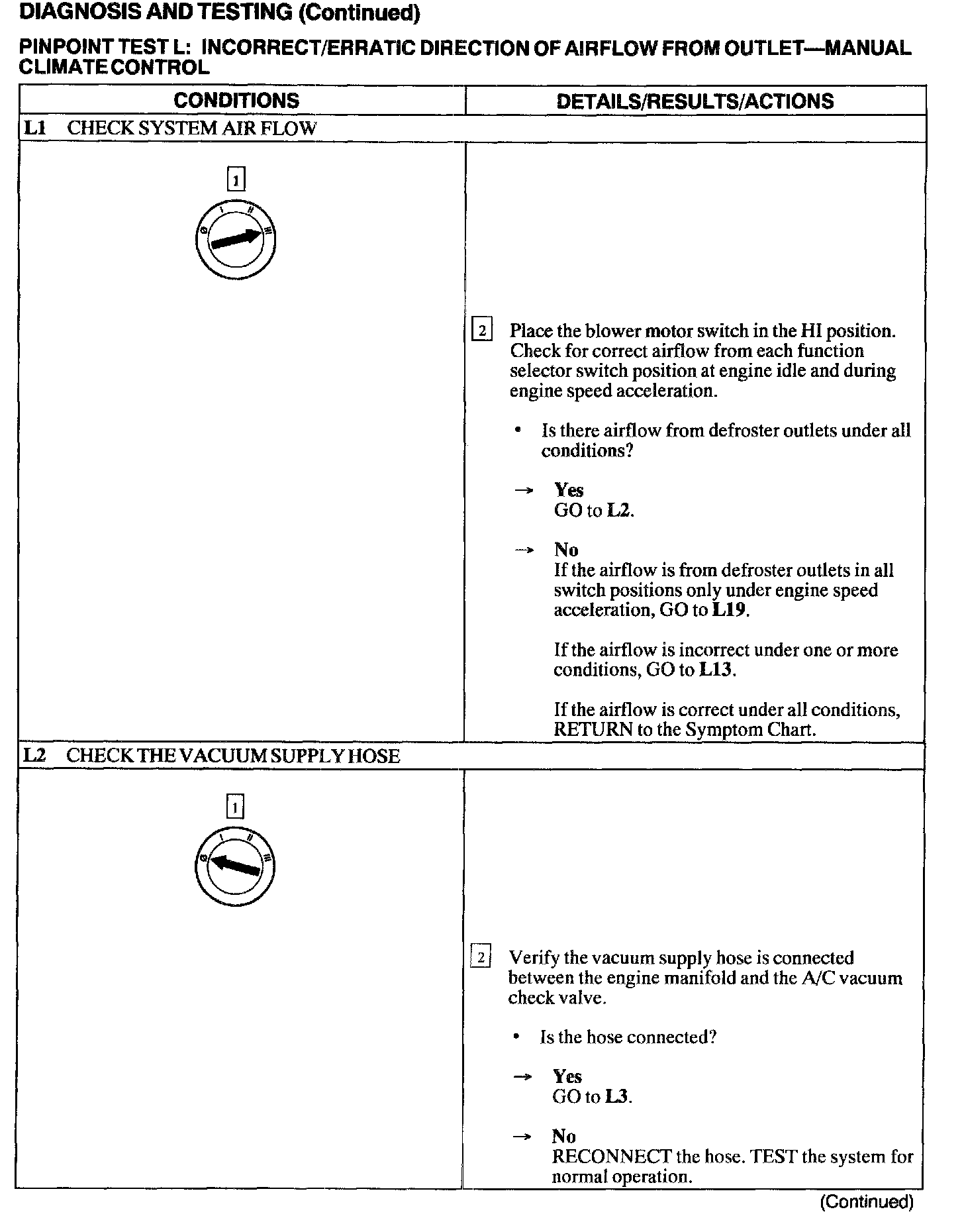

L1 - L2:

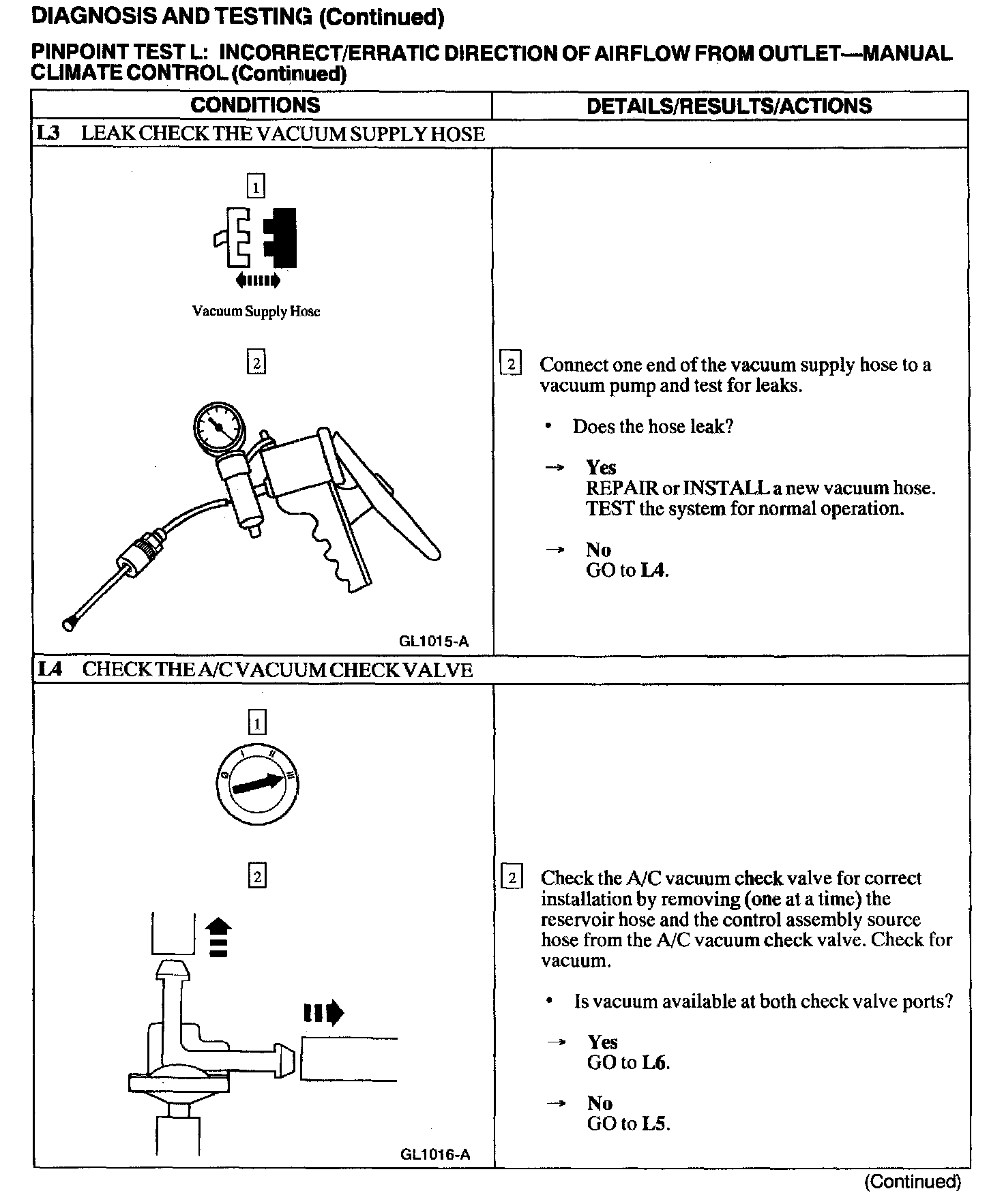

L3 - L4:

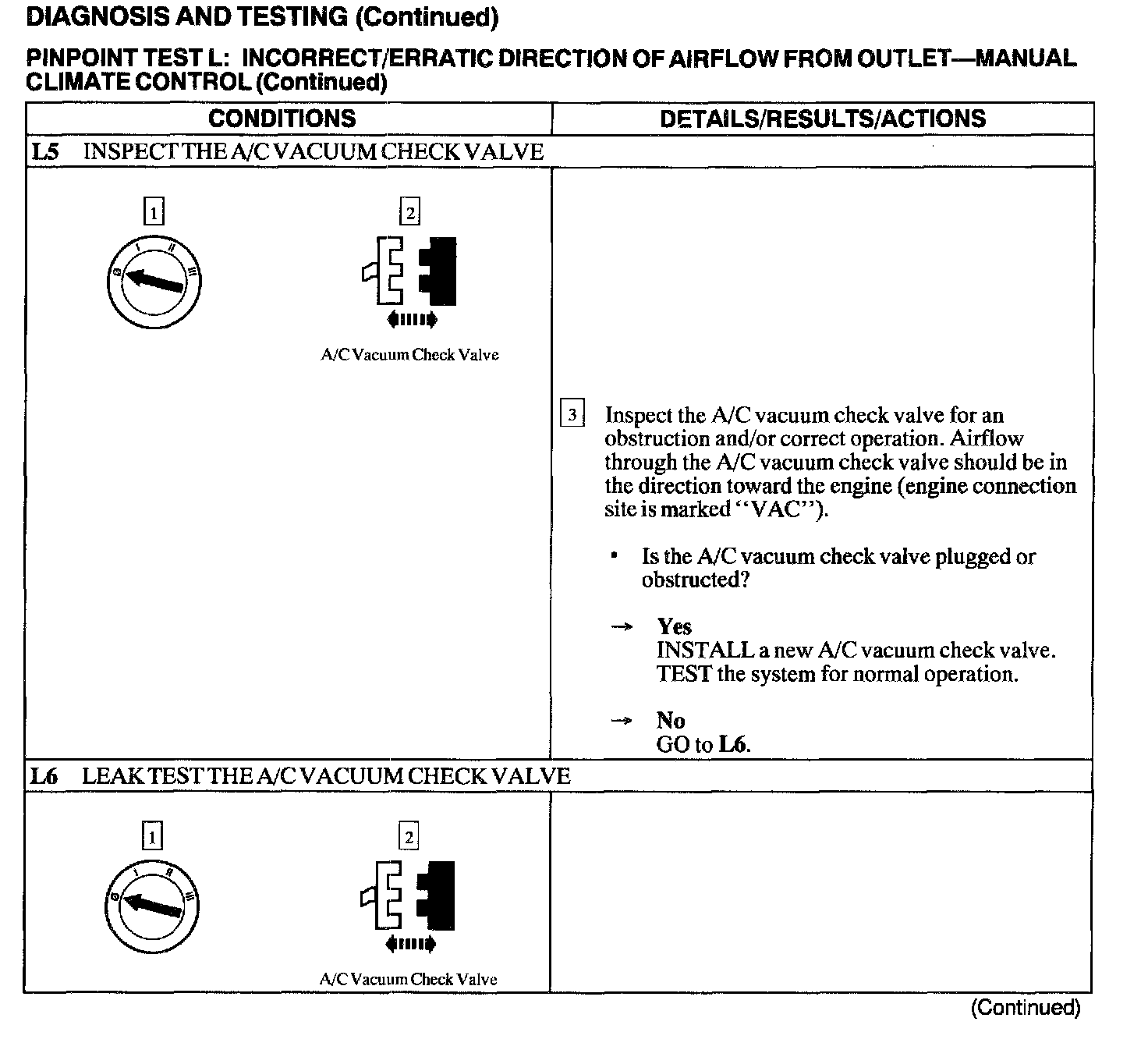

L5 - L6:

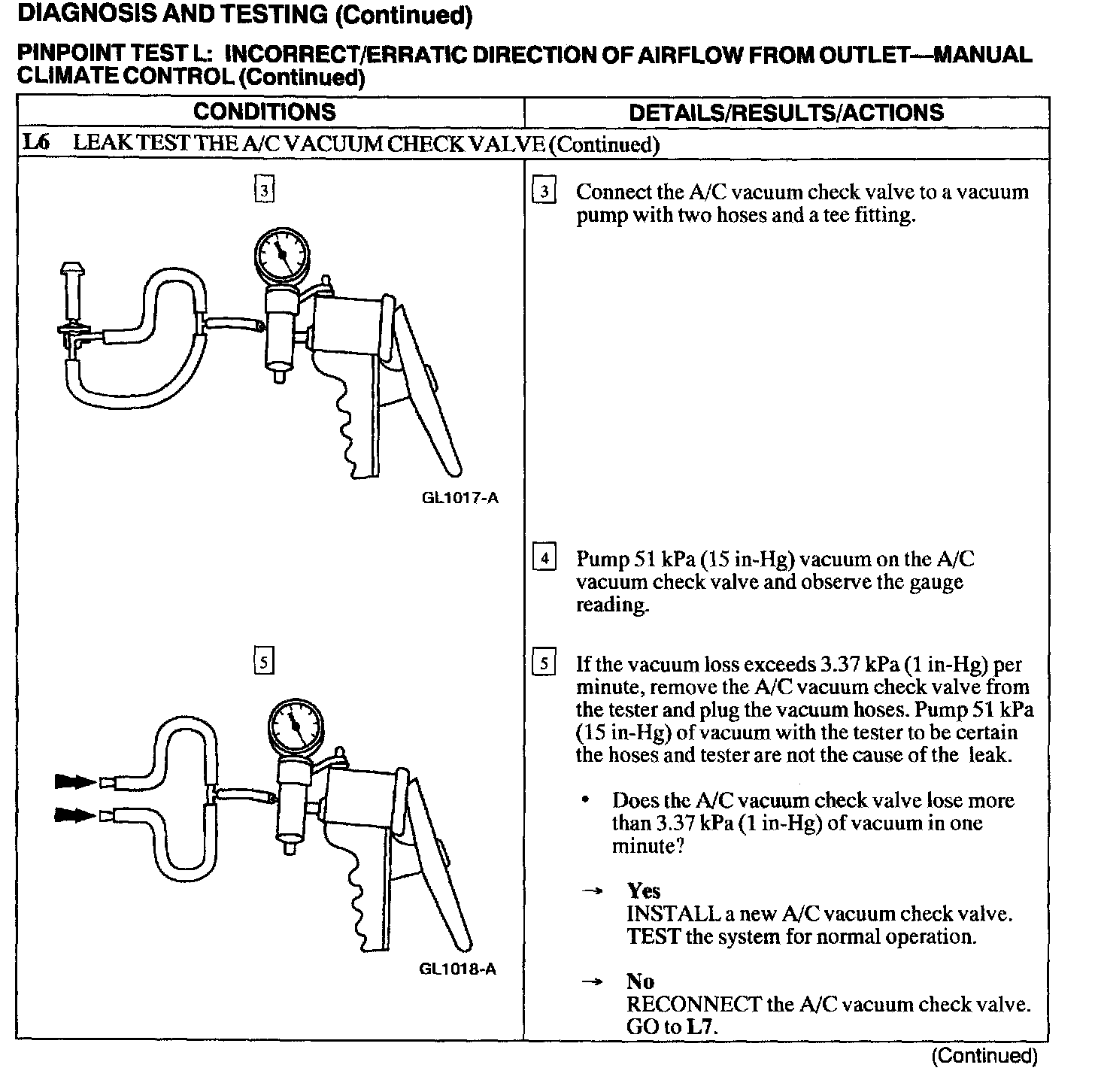

L6:
L7 - L8:

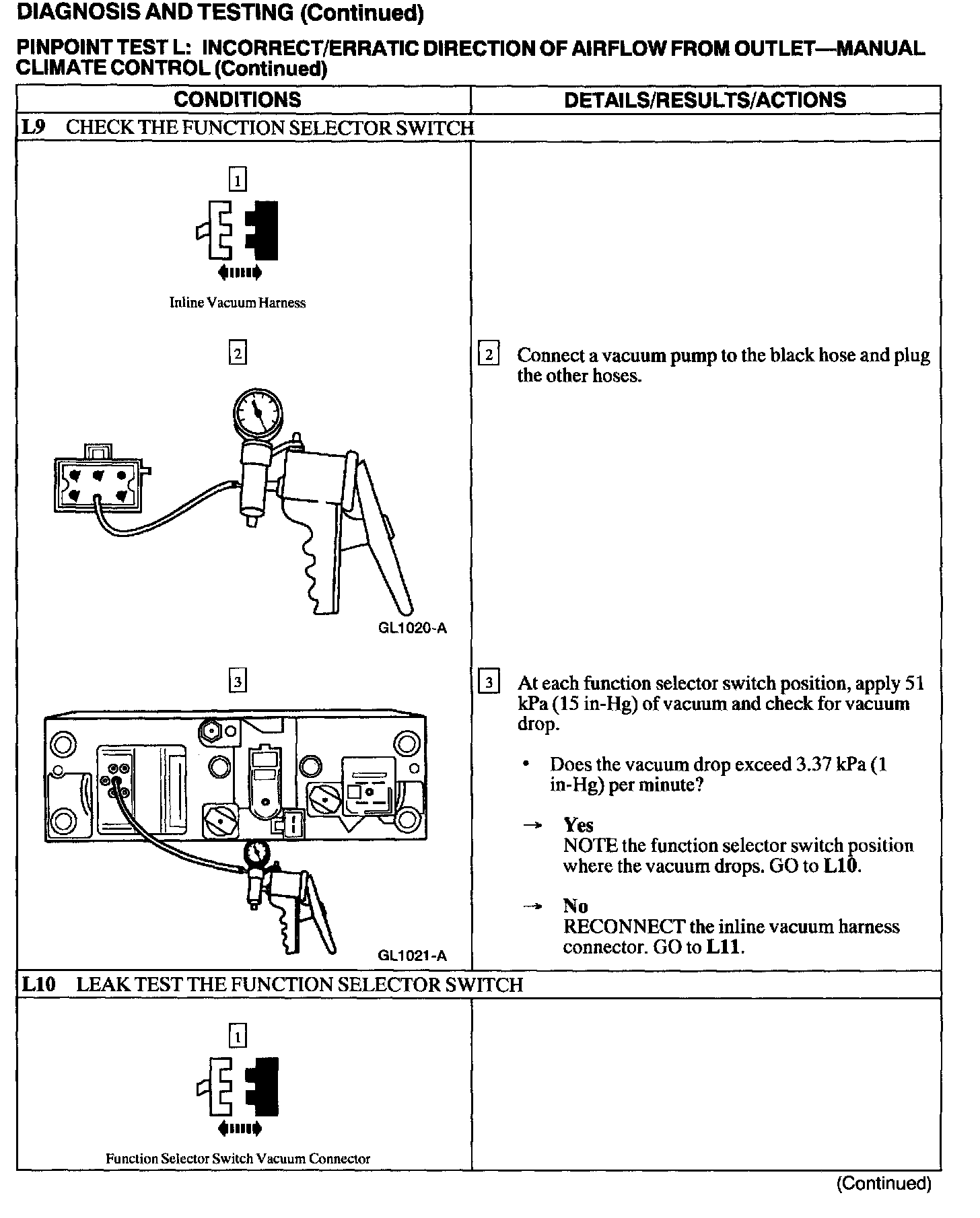

L9 - L10:

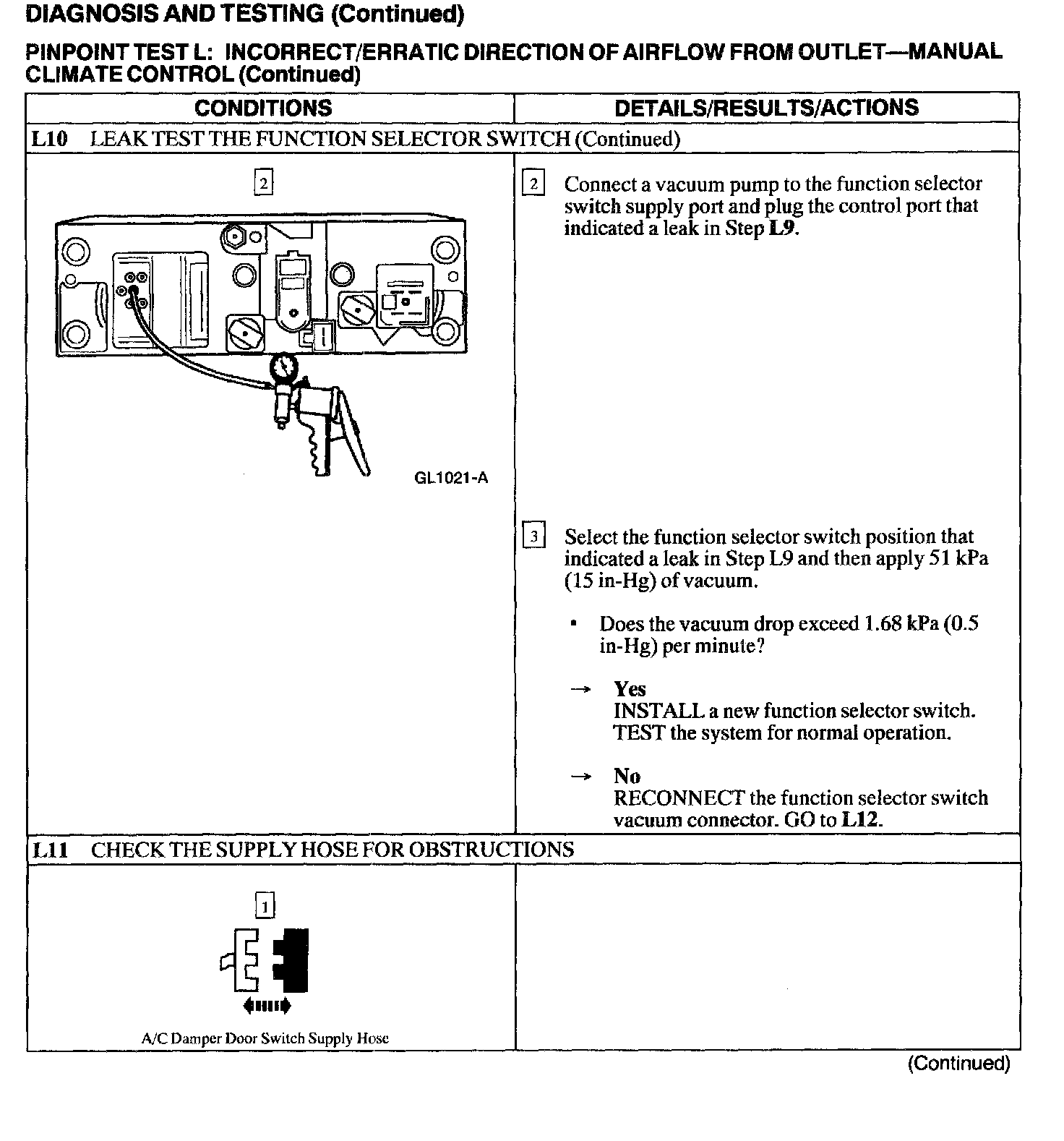

L10 - L11:

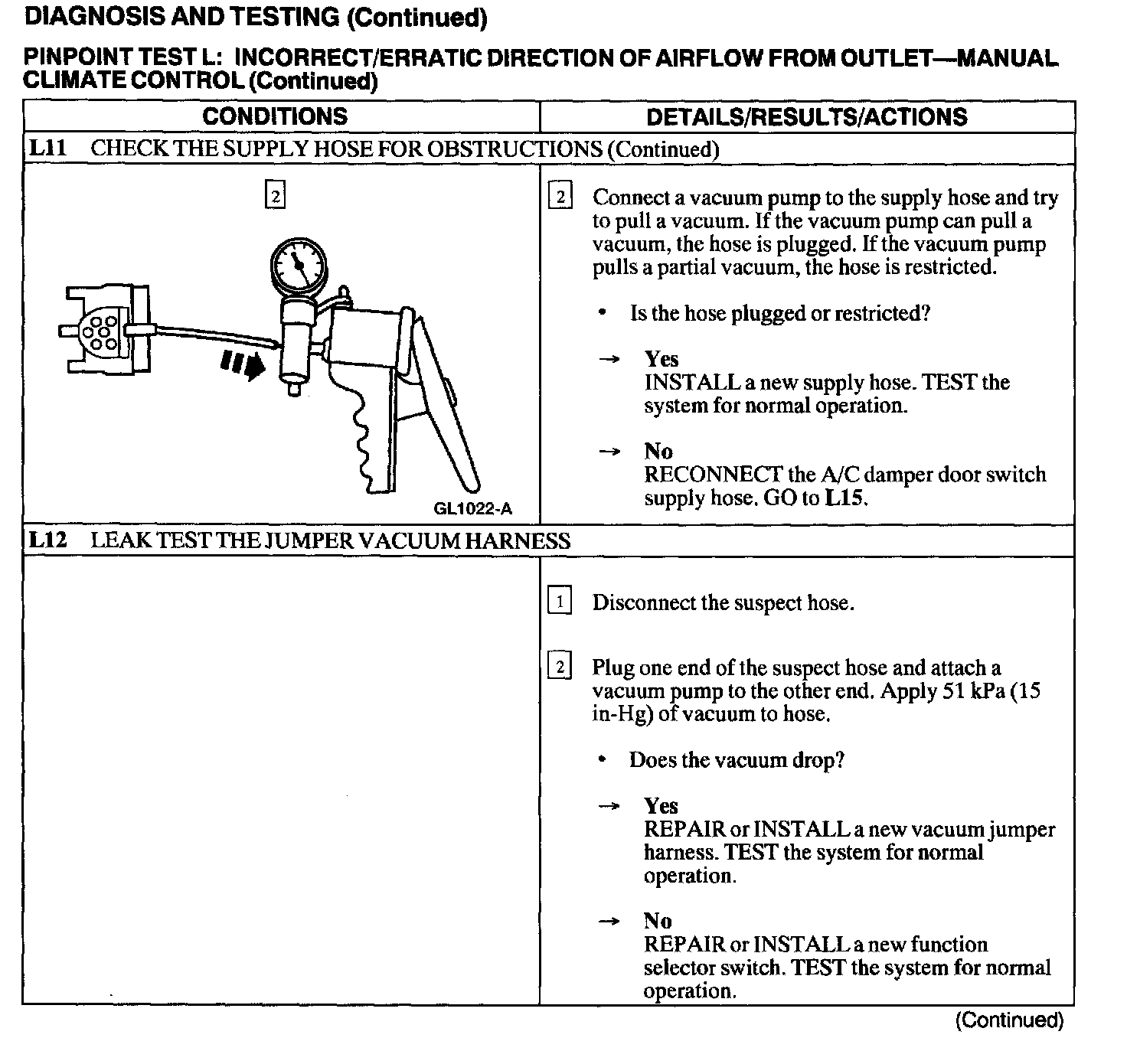

L11 - L12:

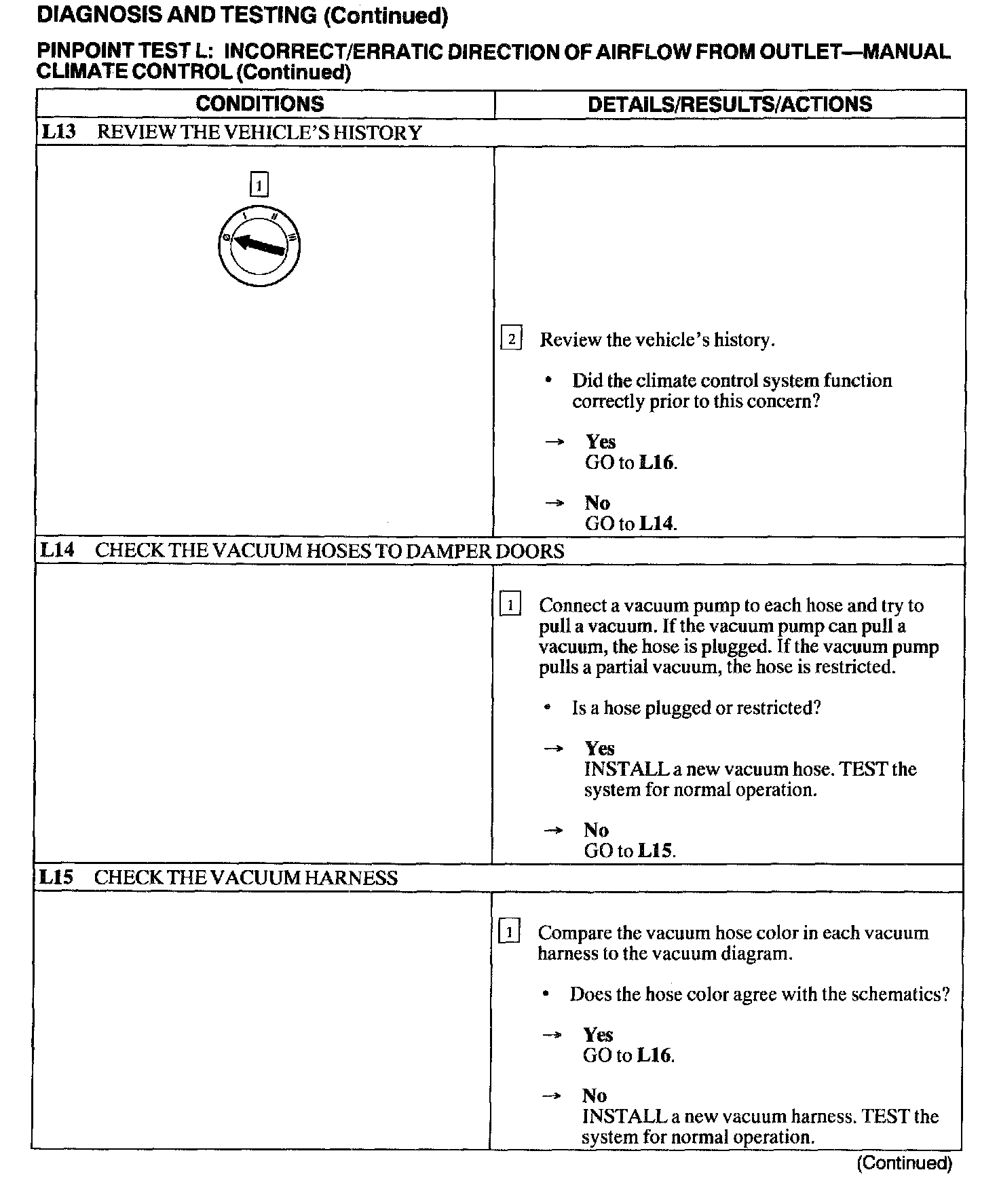

L13 - L15:
L16 - L18:

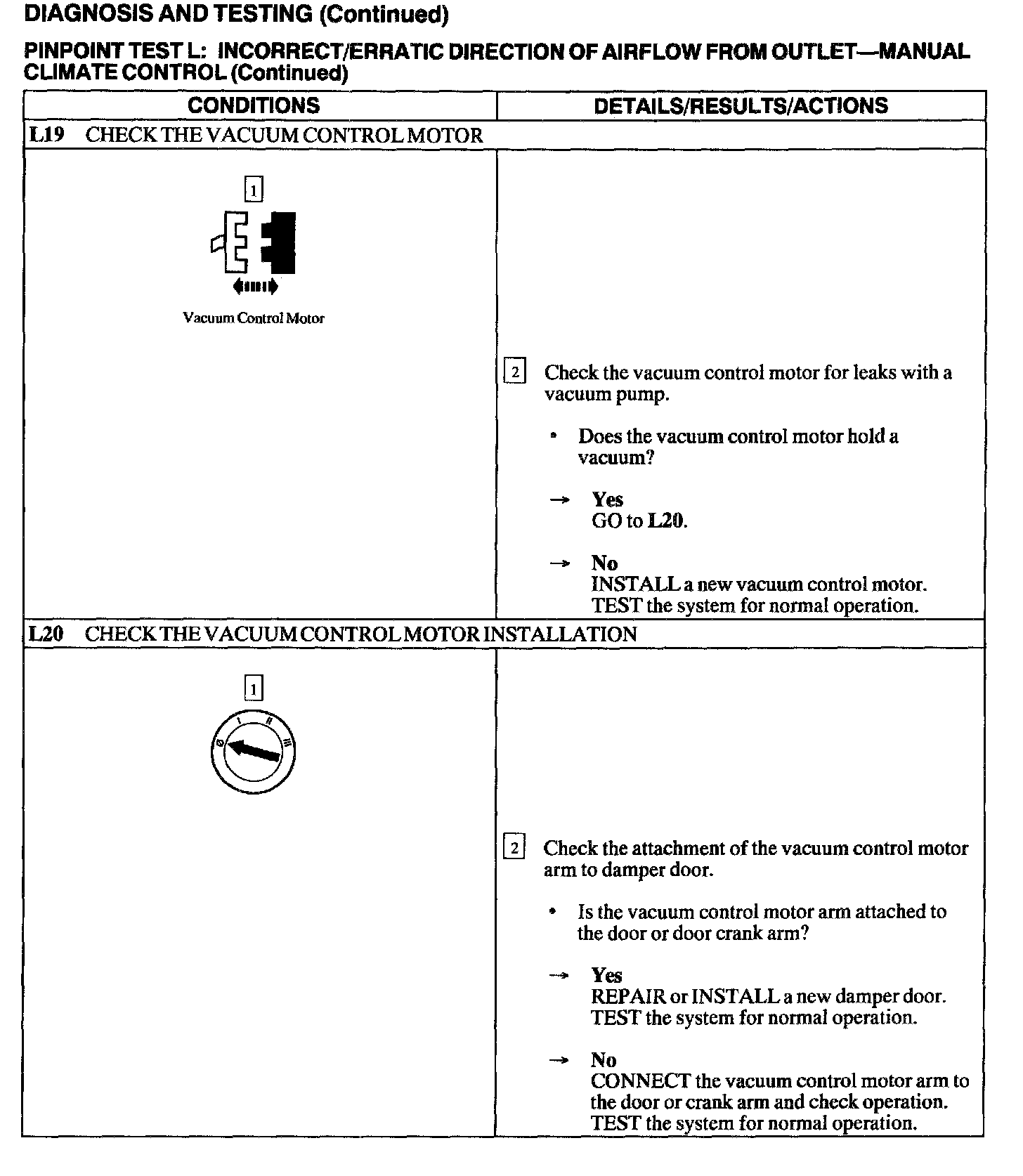

L19 - L20:
