Test H: Air Conditioning (A/C) Is Inoperative - EATC
Test H: Air Conditioning (A/C) Is Inoperative - EATC

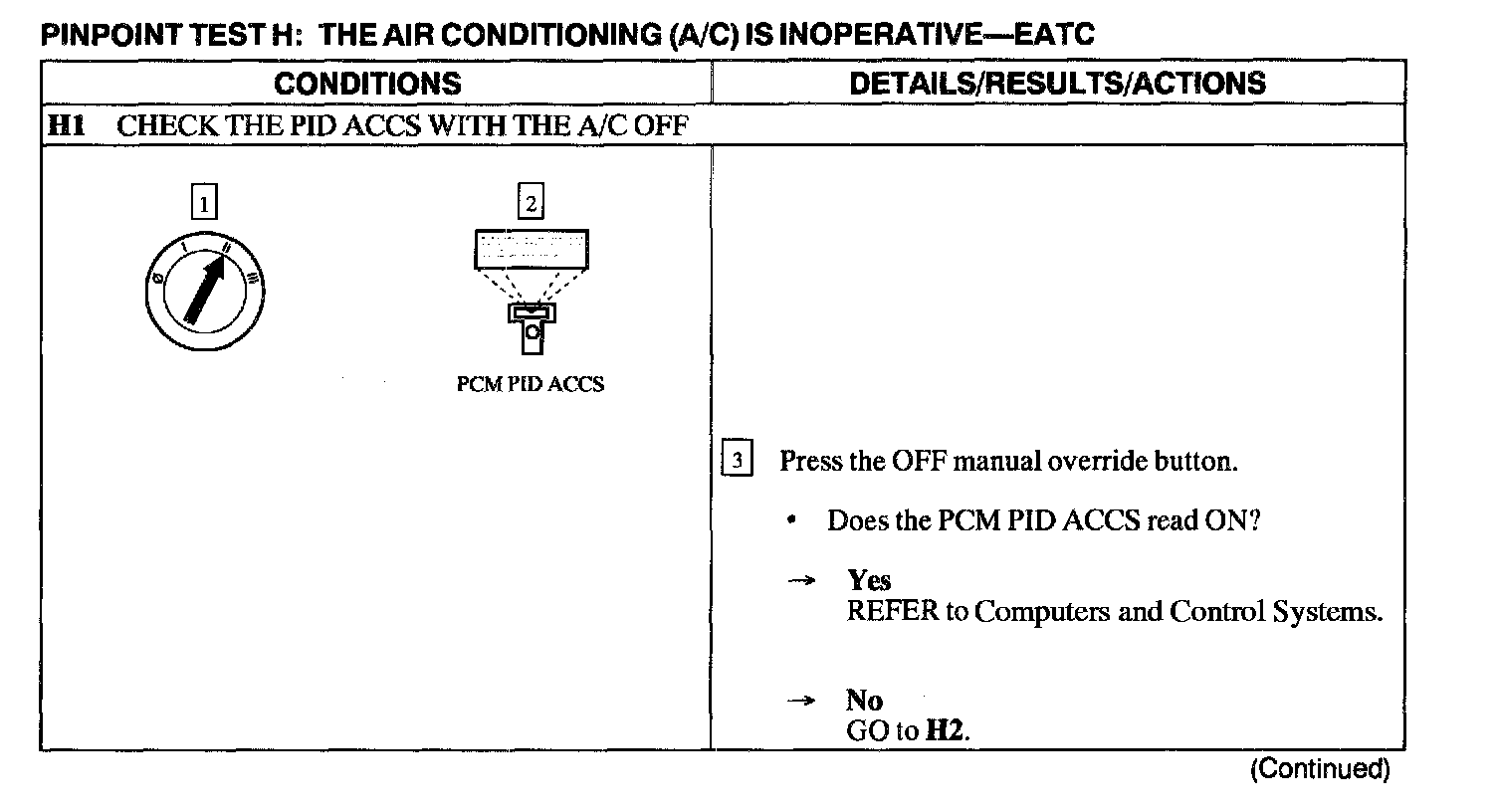

H1:

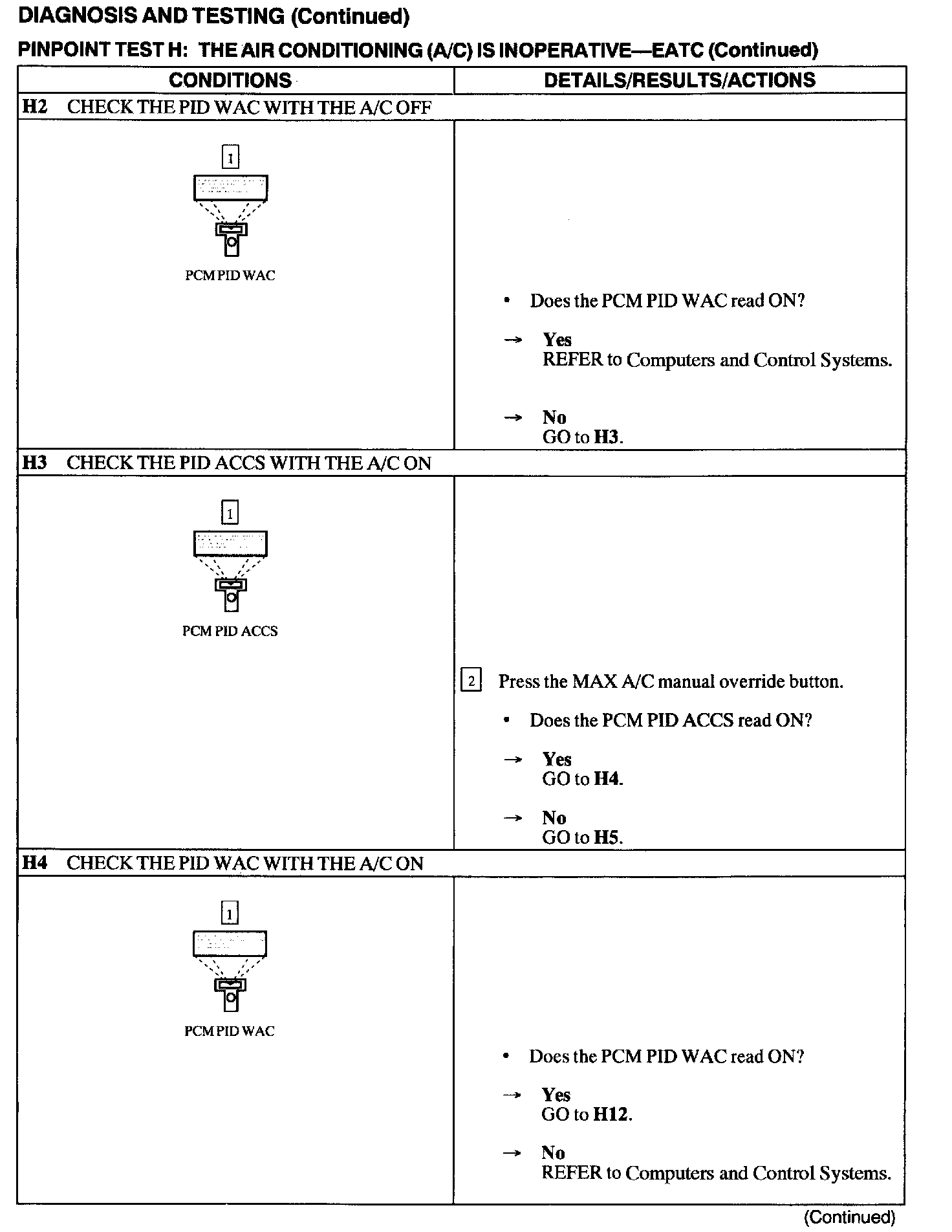

H2 - H4:

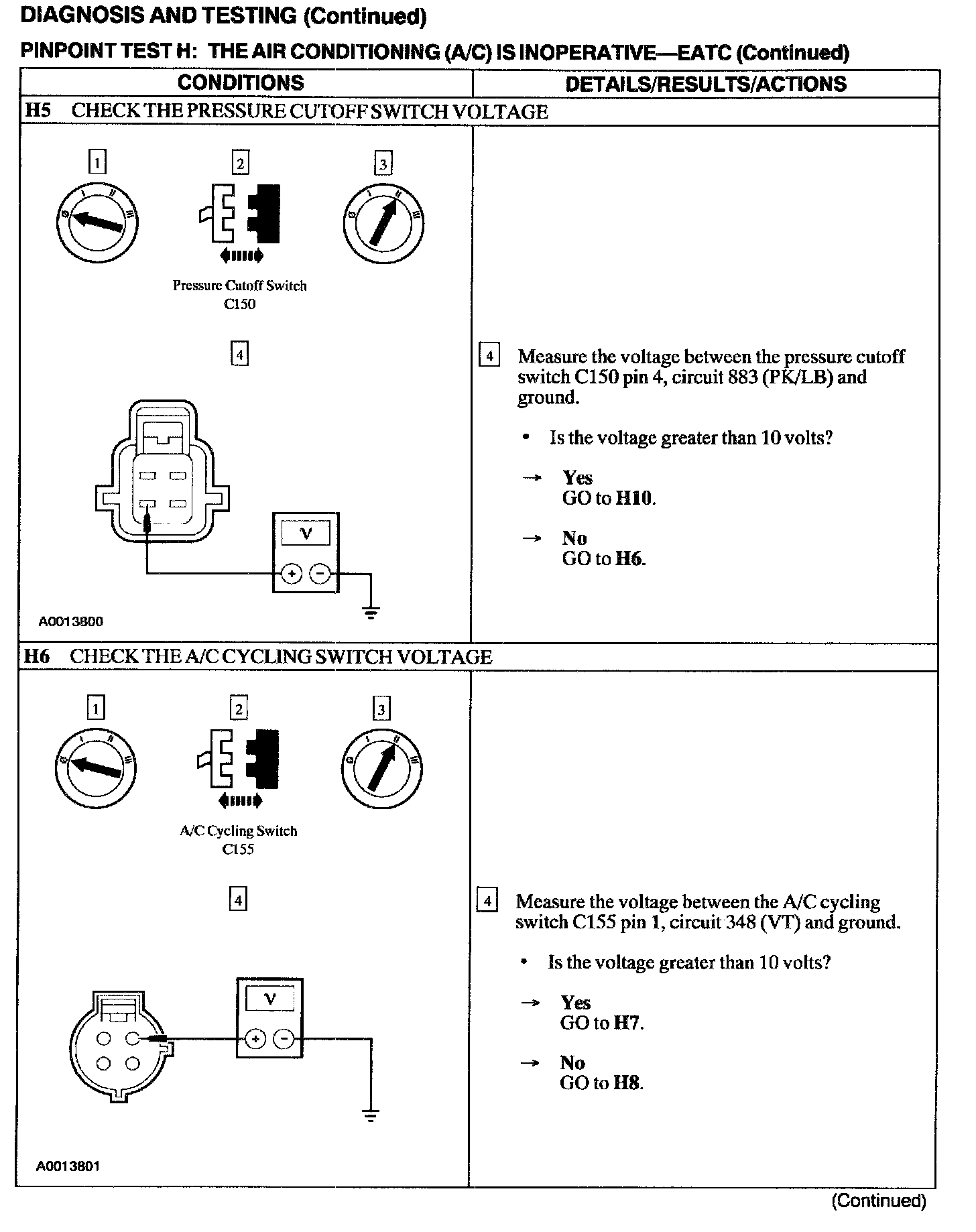

H5 - H6:

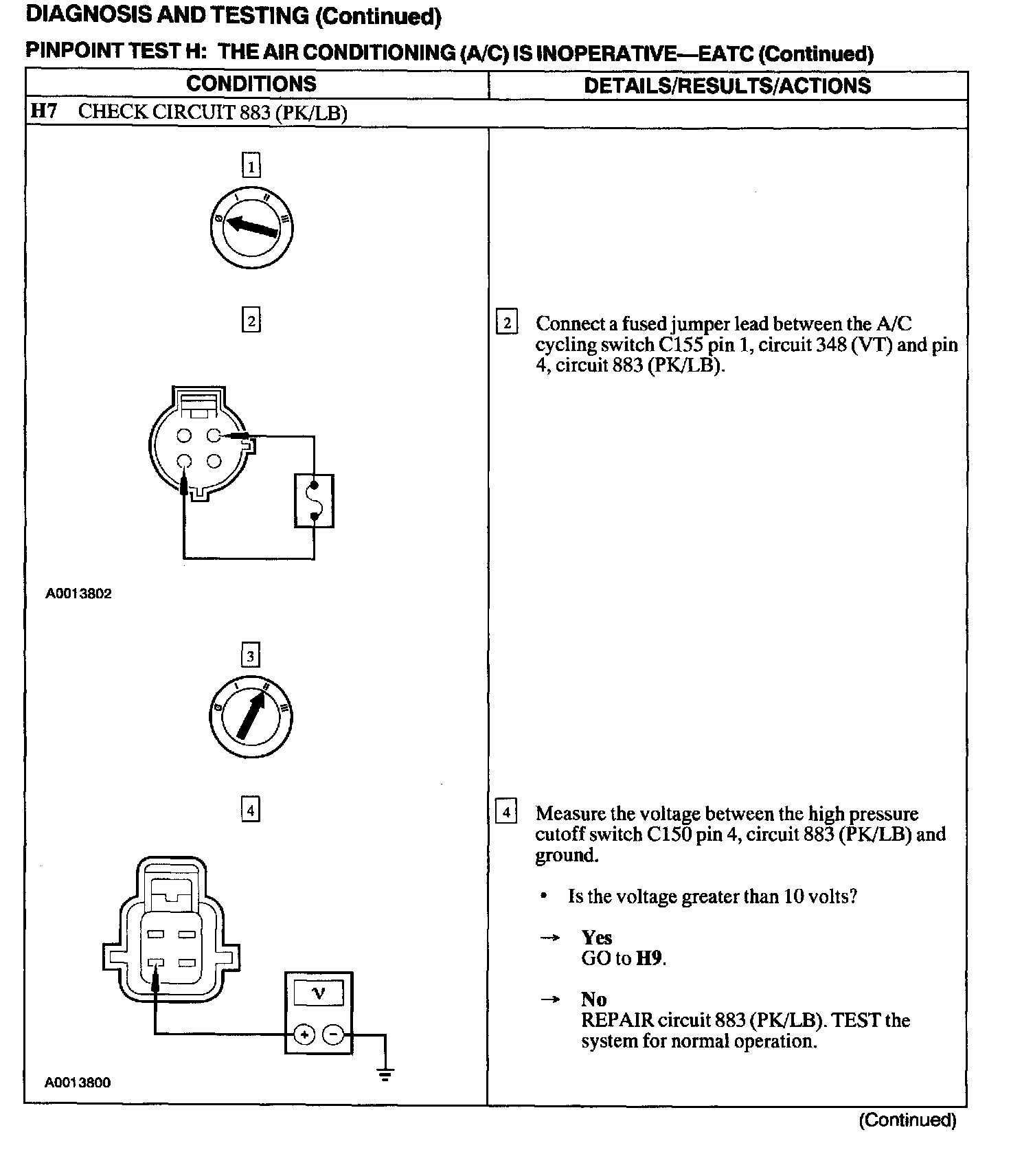

H7:

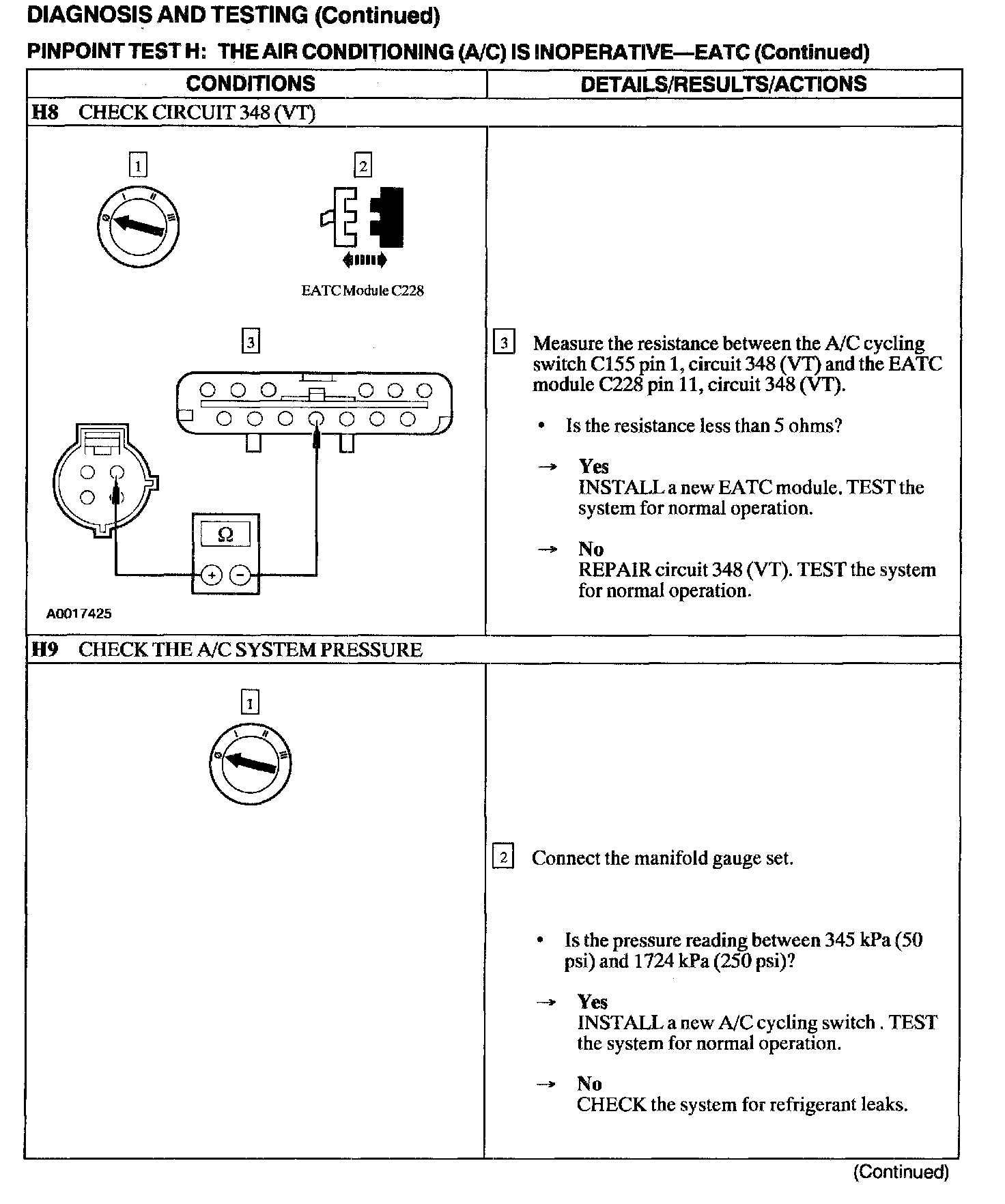

H8 - H9:

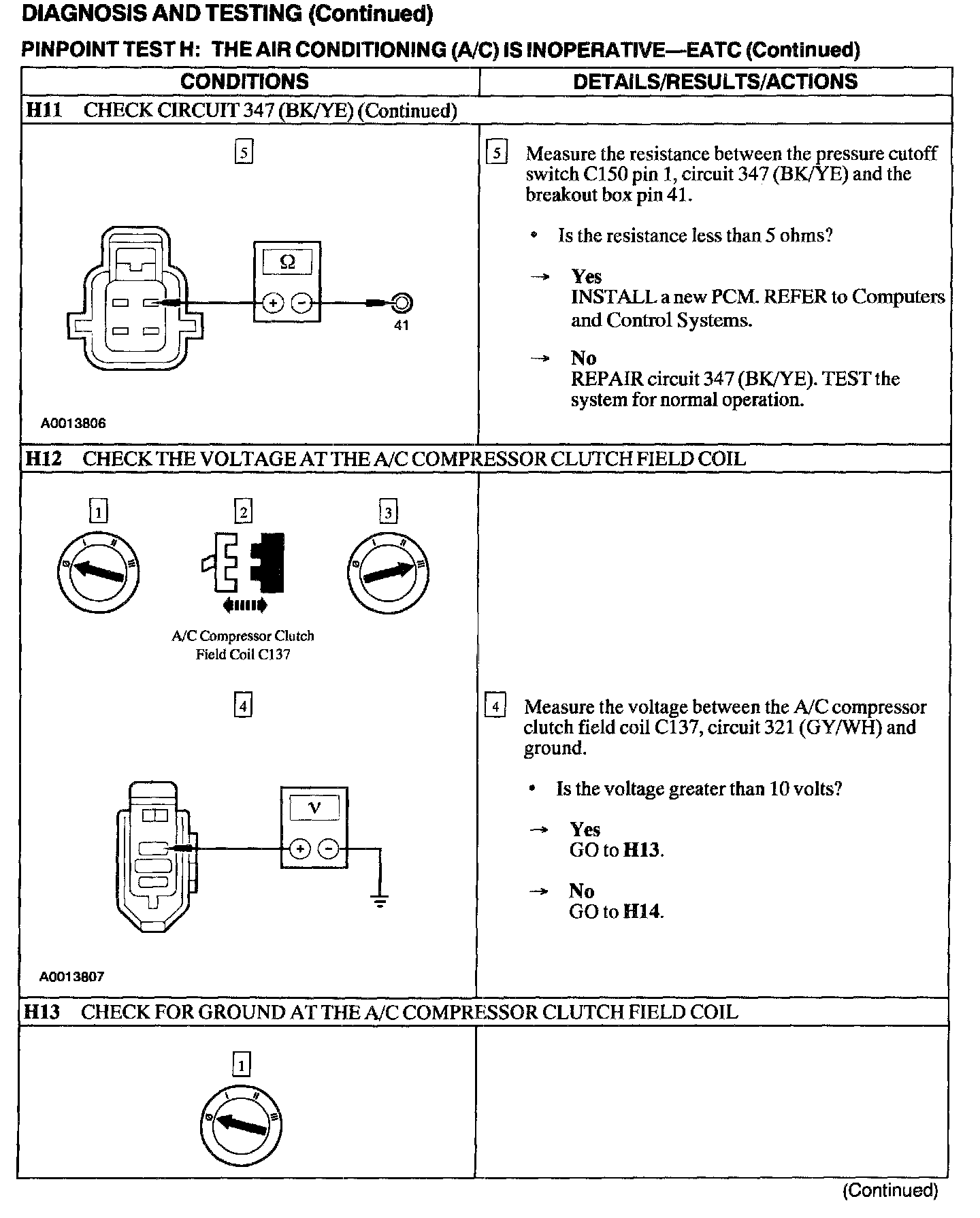

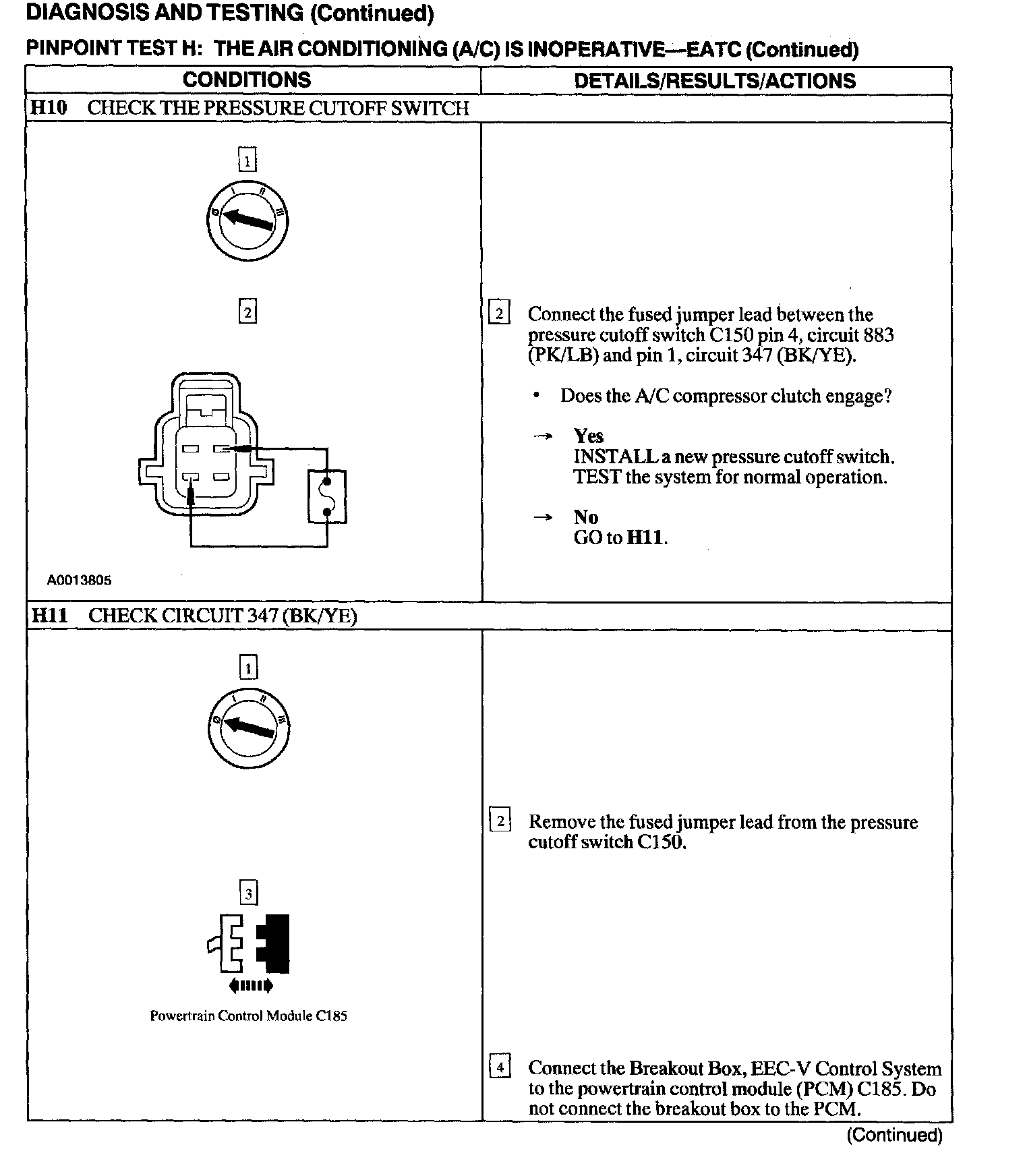

H10 - H11:
H11 - H13:

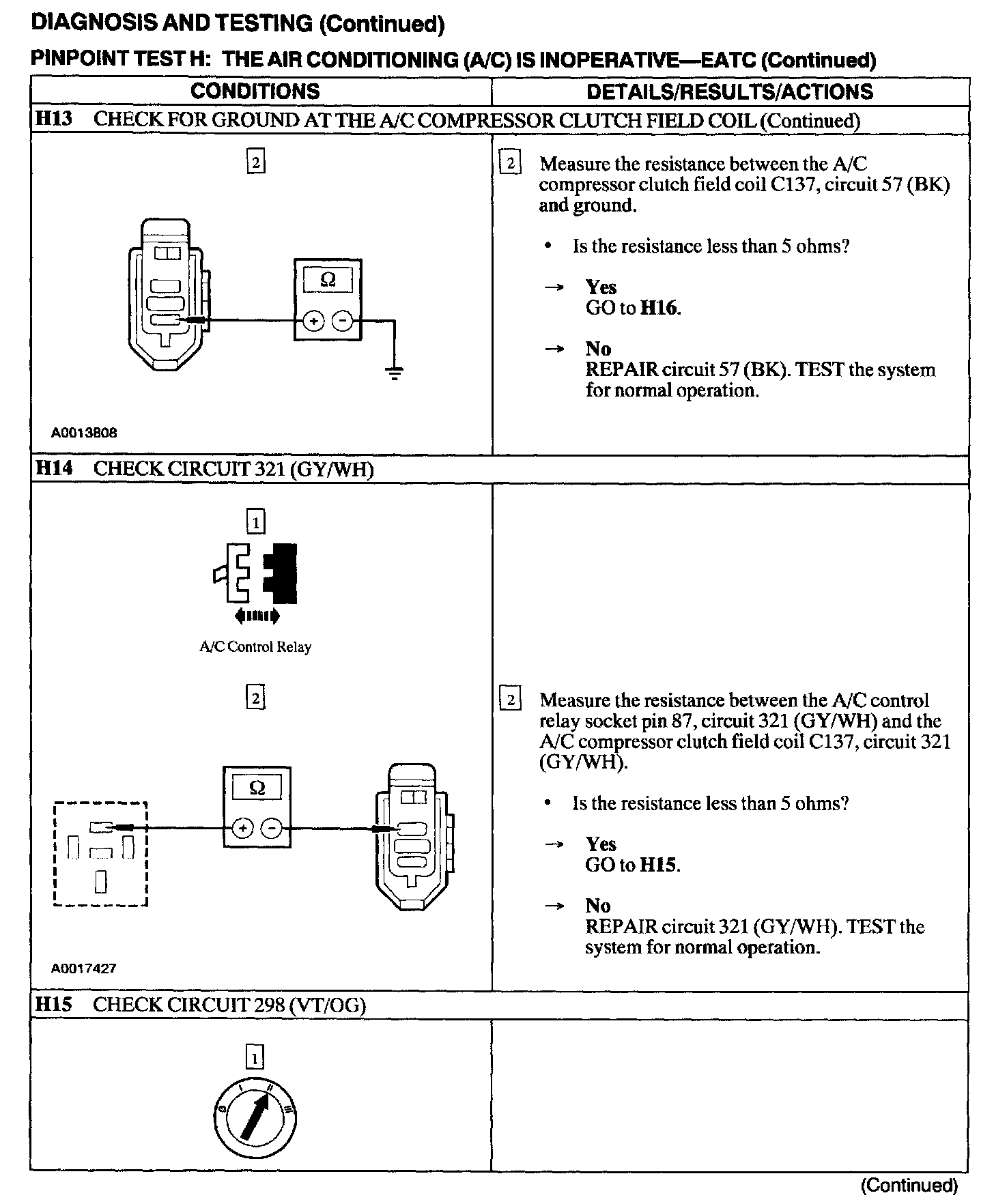

H13 - H15:

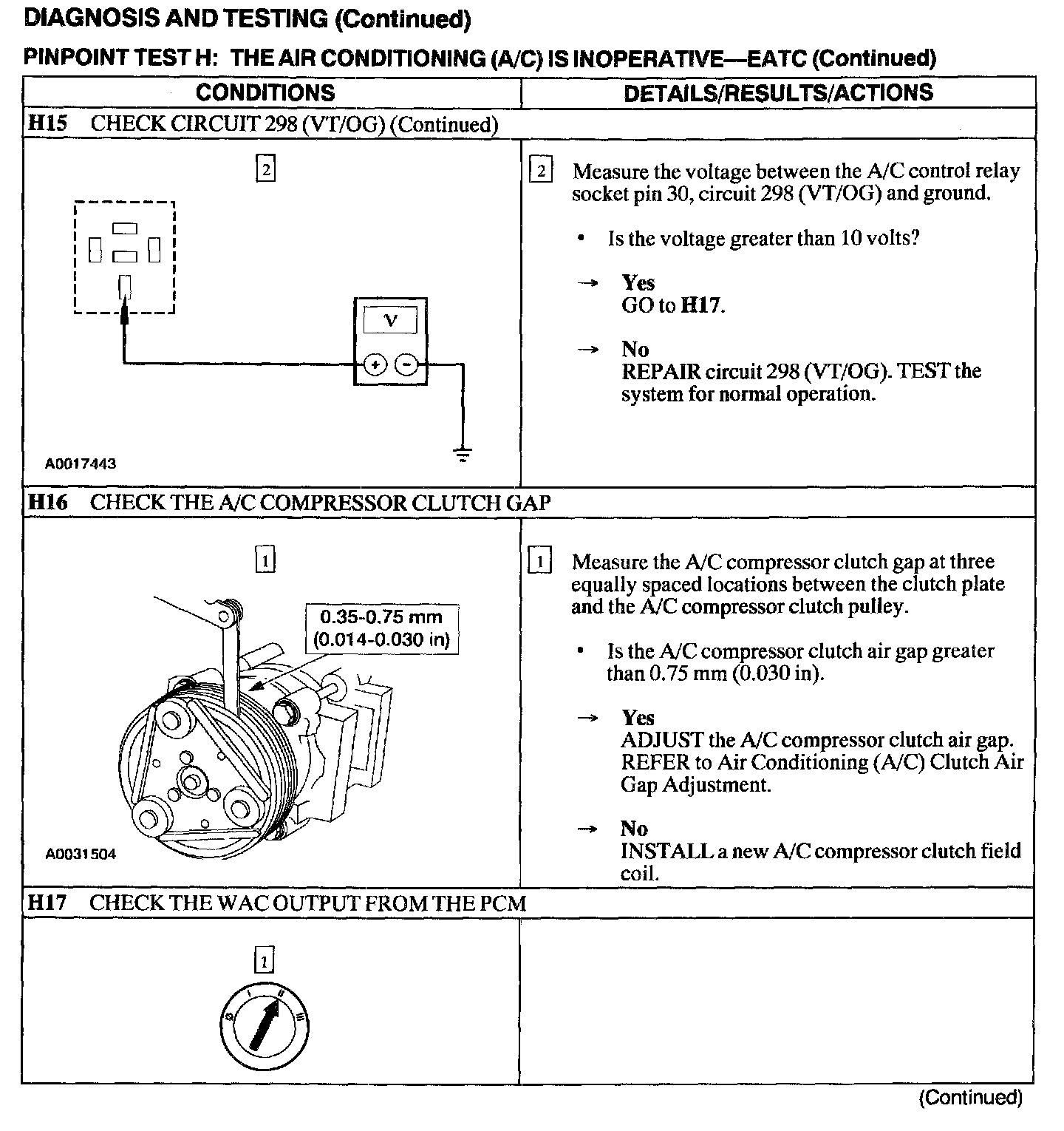

H15 - H17:

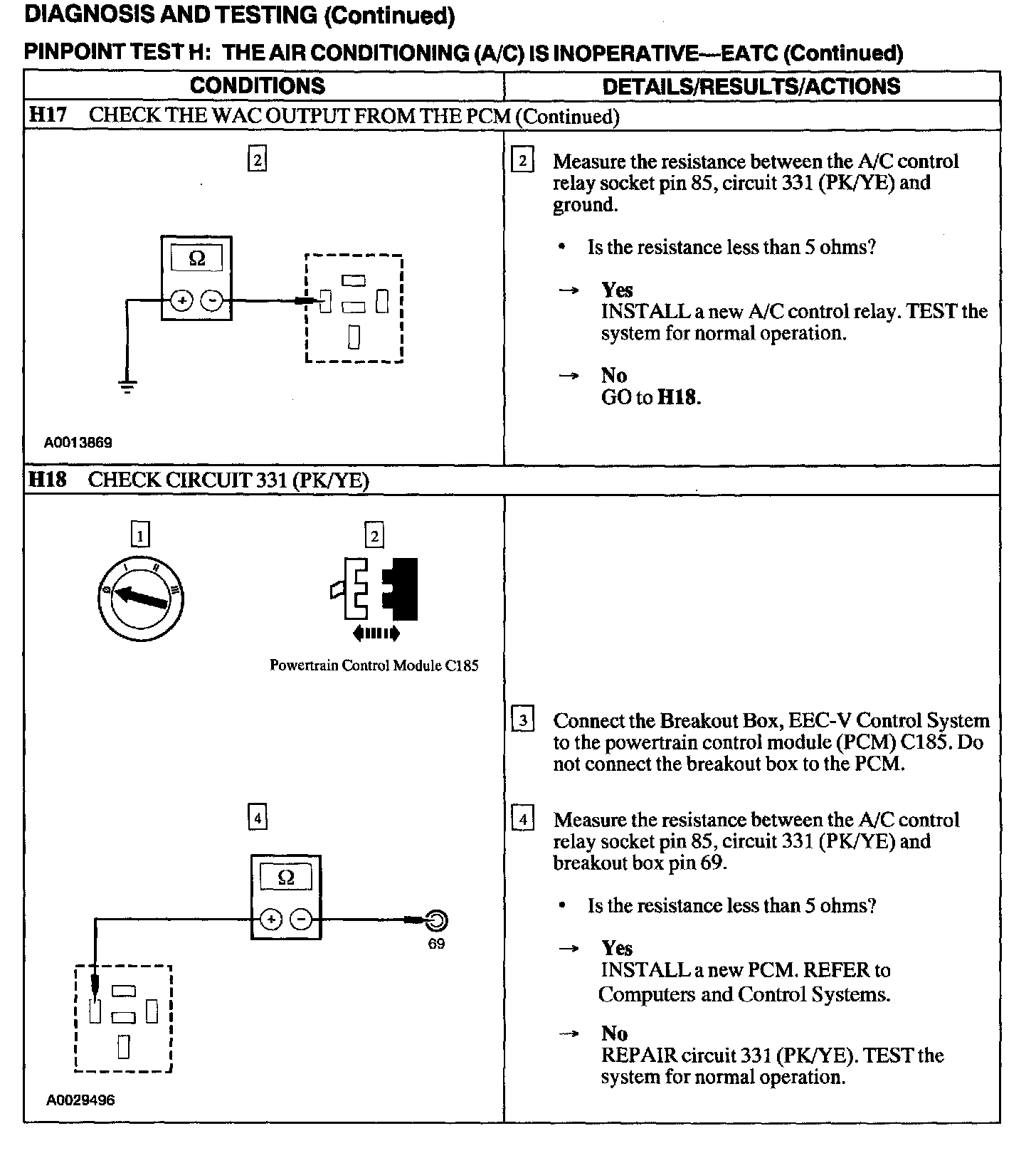

H17 - H18:
