Test G: Incorrect/Erratic Direction Of Airflow From Outlet(s) - EATC
Test G: Incorrect/Erratic Direction Of Airflow From Outlet(s) - EATC

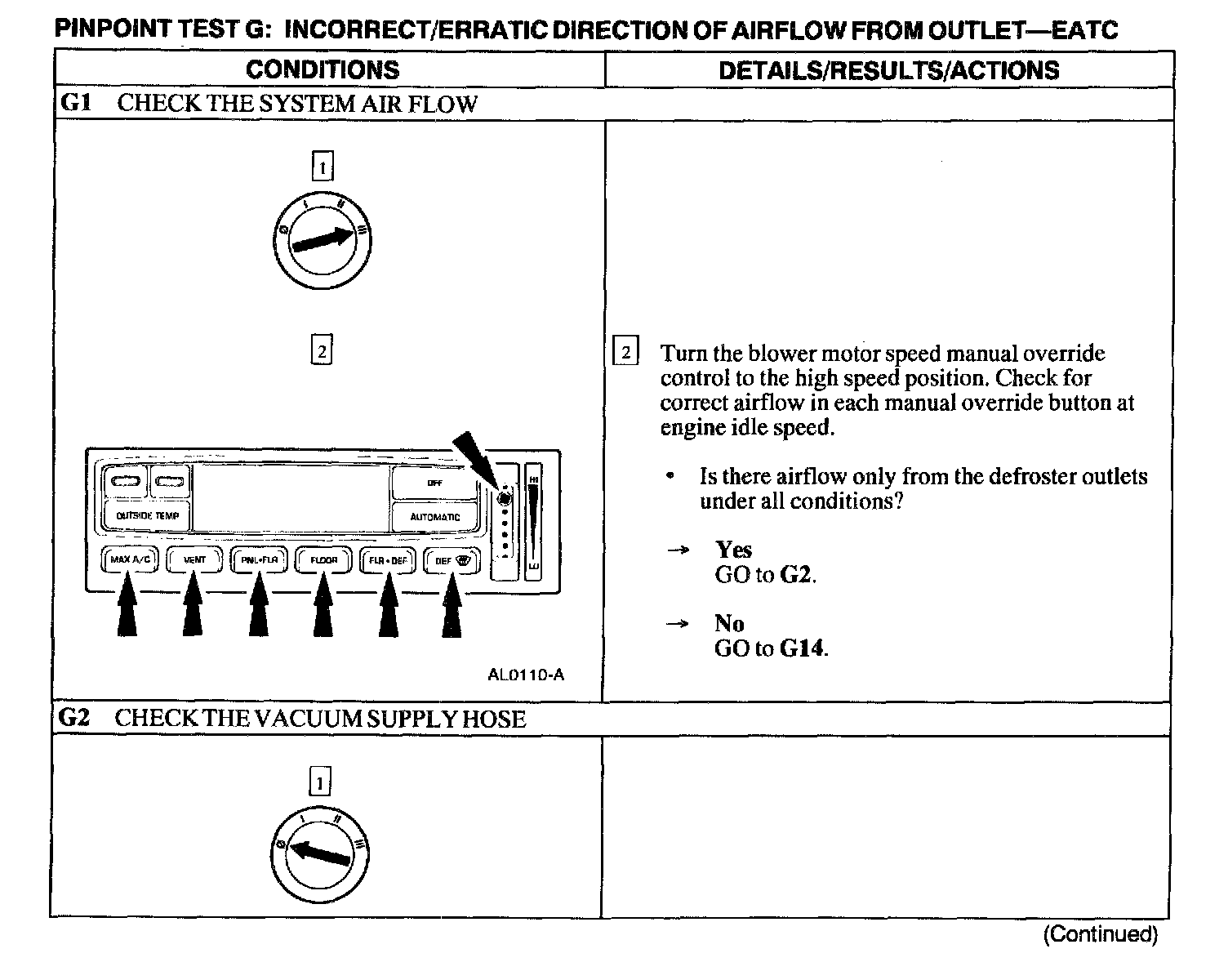

G1 - G2:

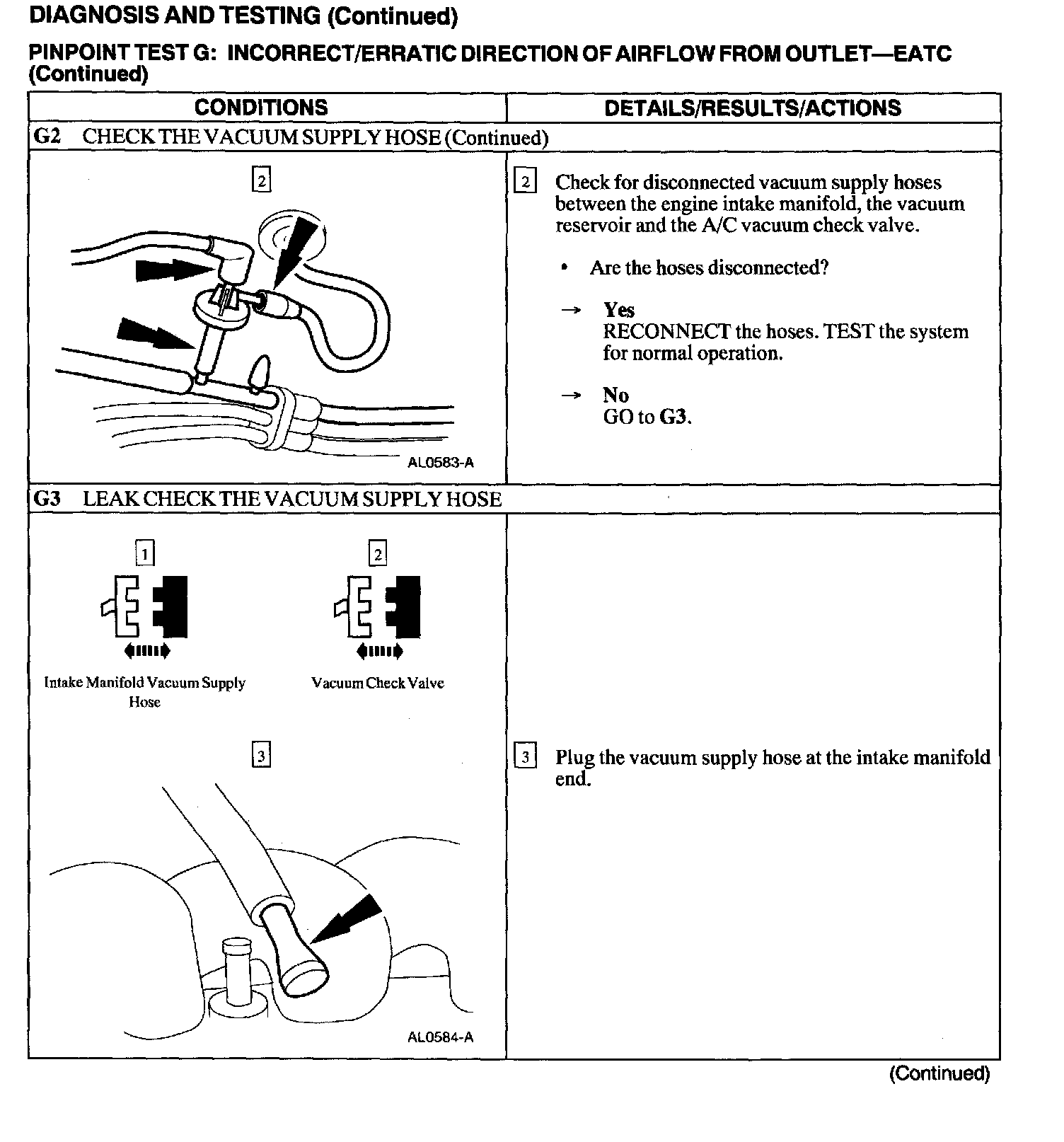

G2 - G3:

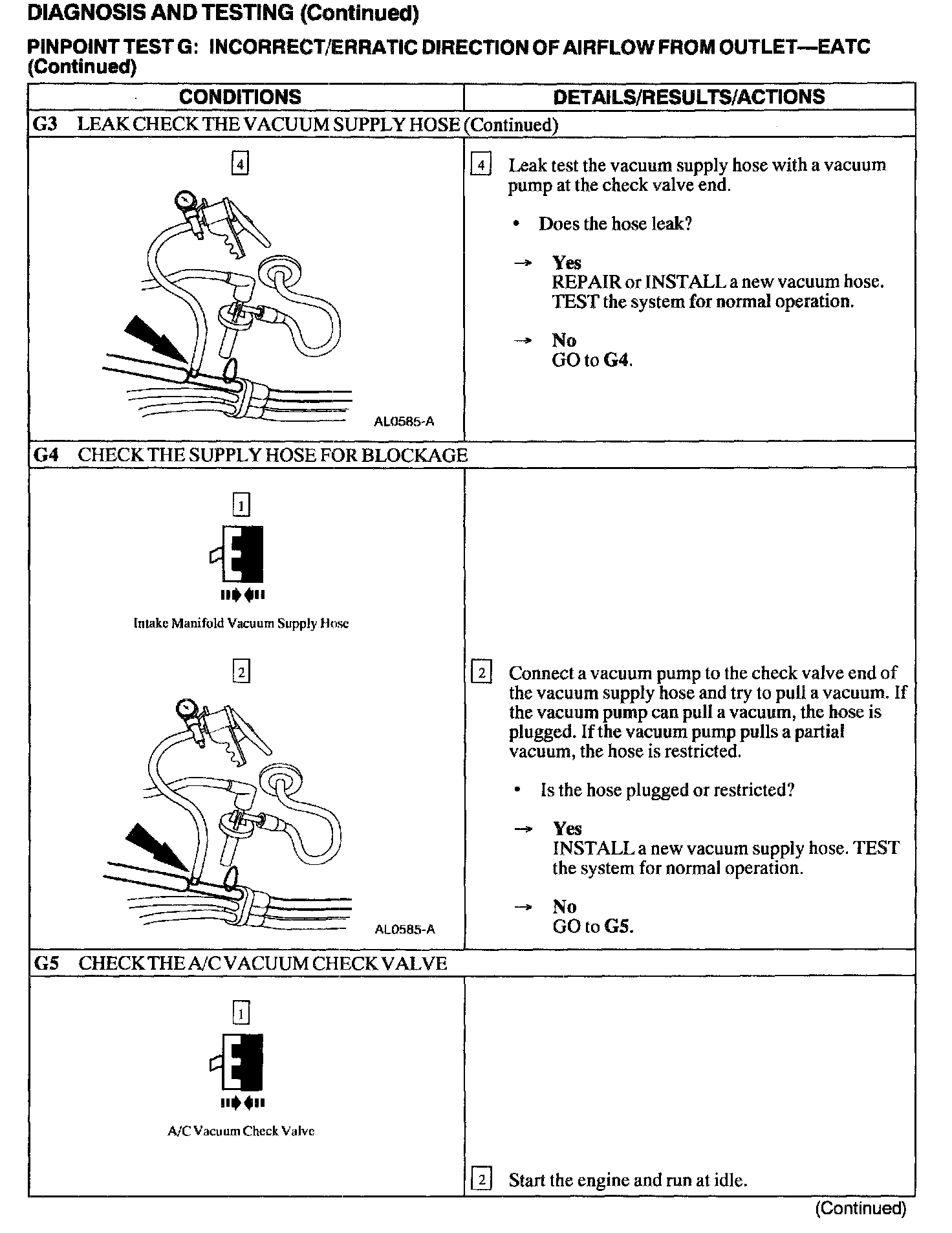

G3 - G5:

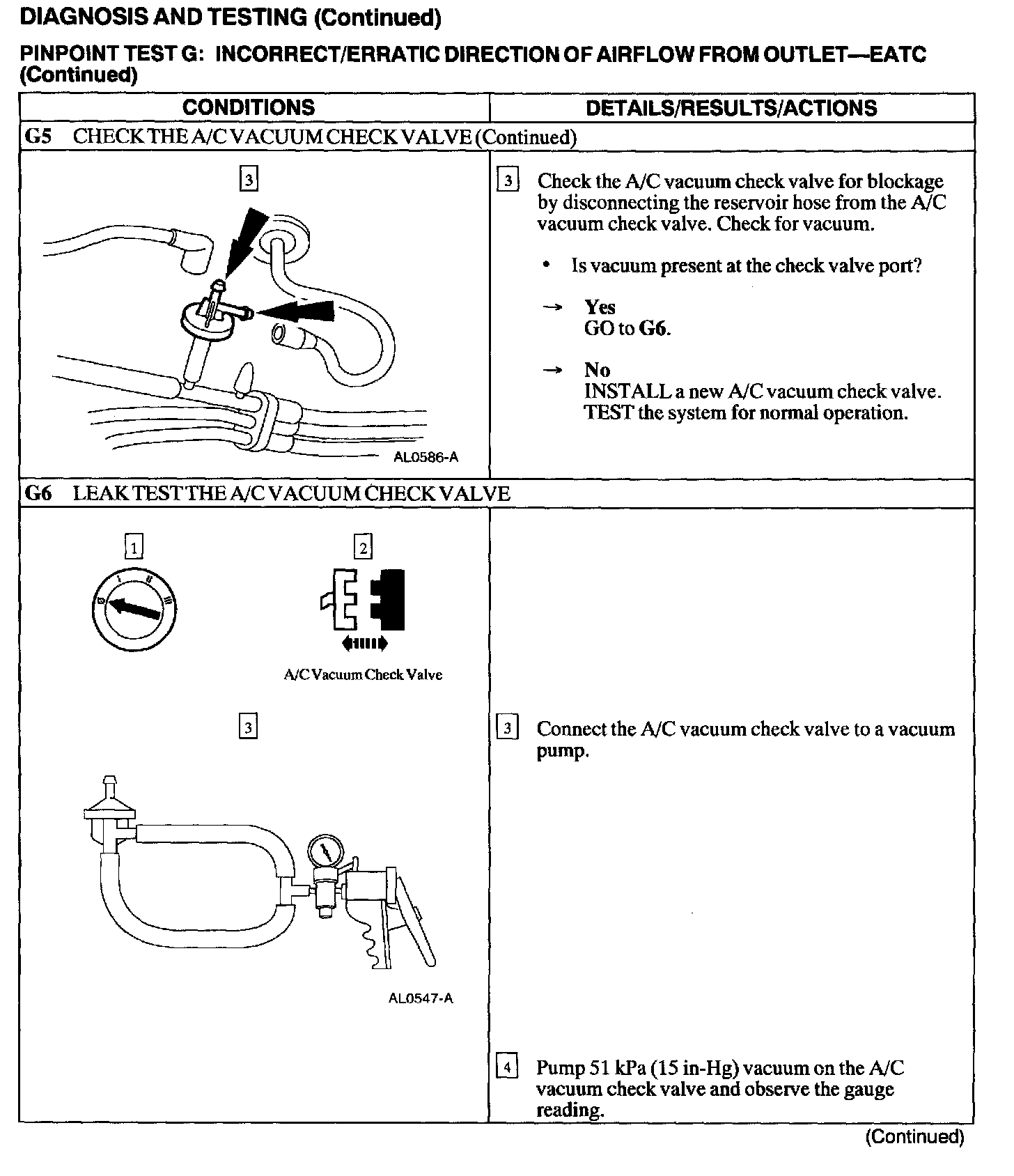

G5 - G6:

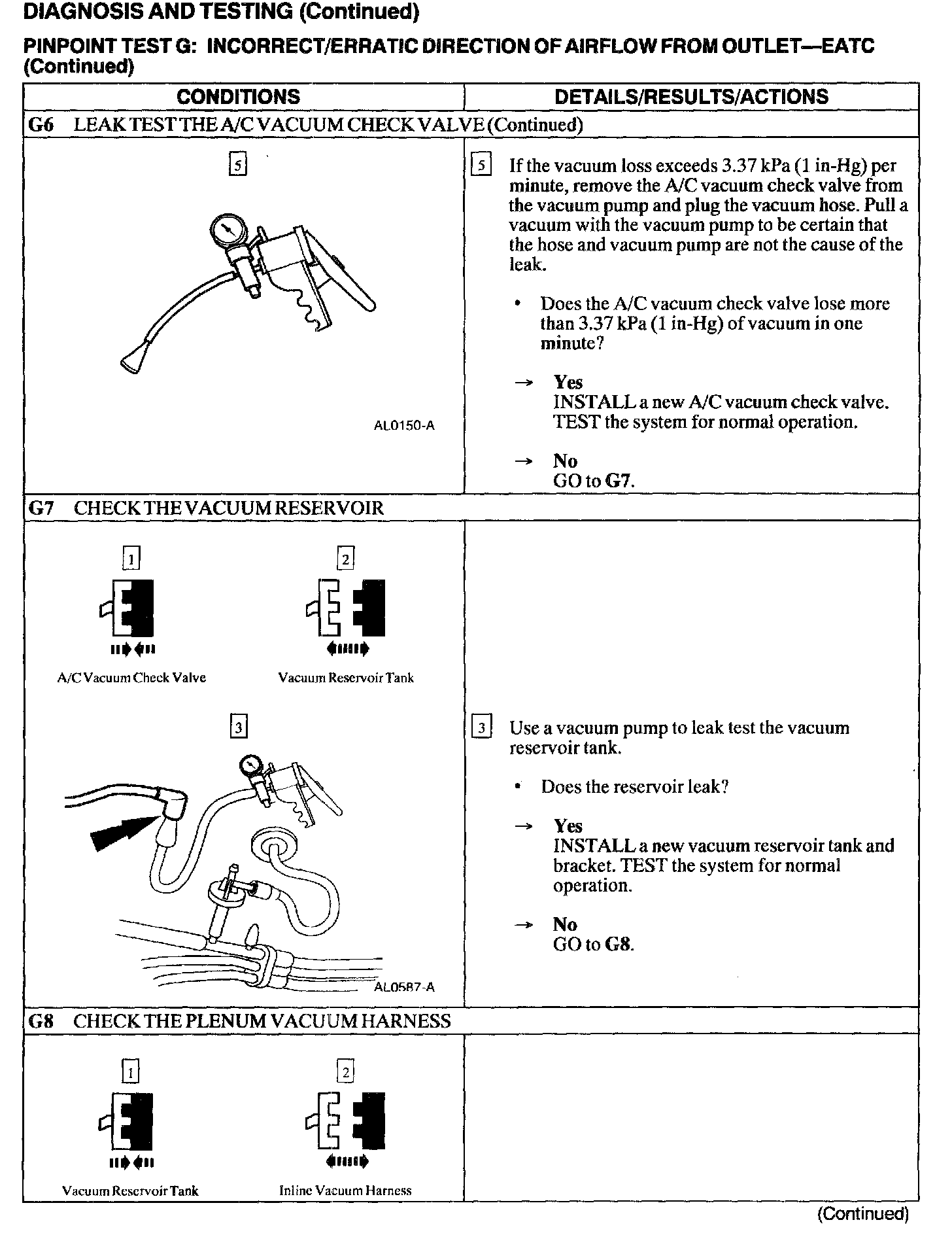

G6 - G8:

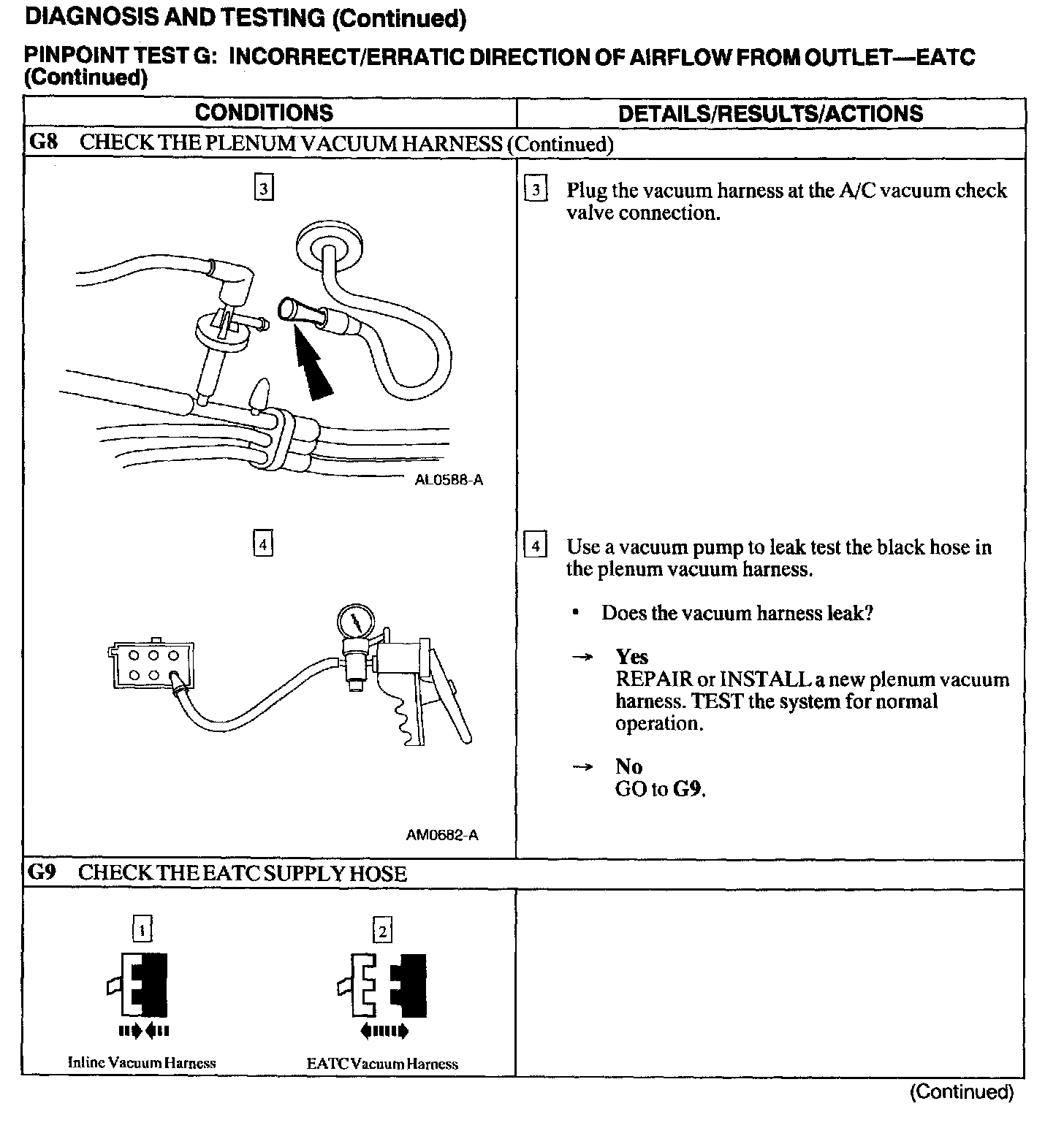

G8 - G9:

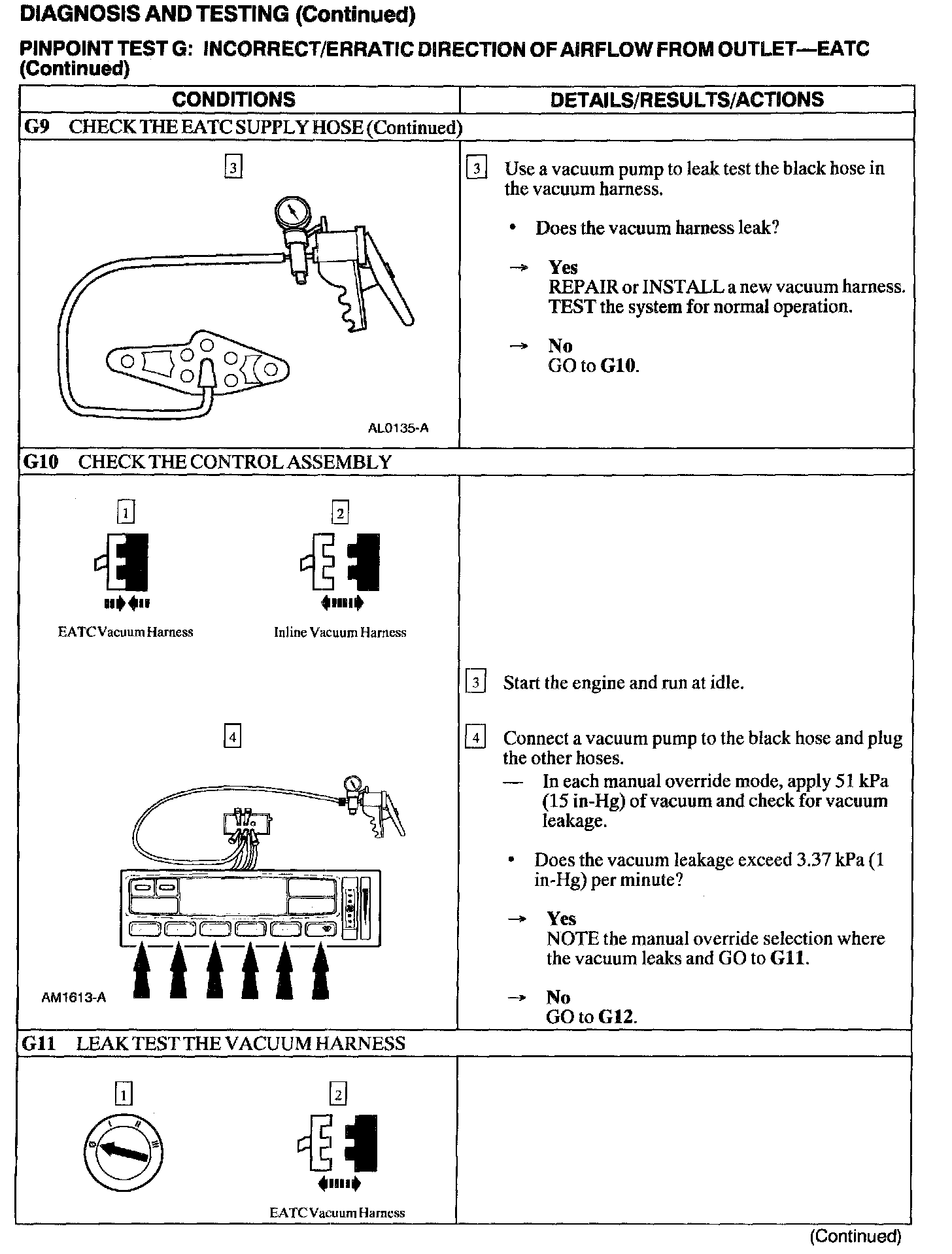

G9 - G11:

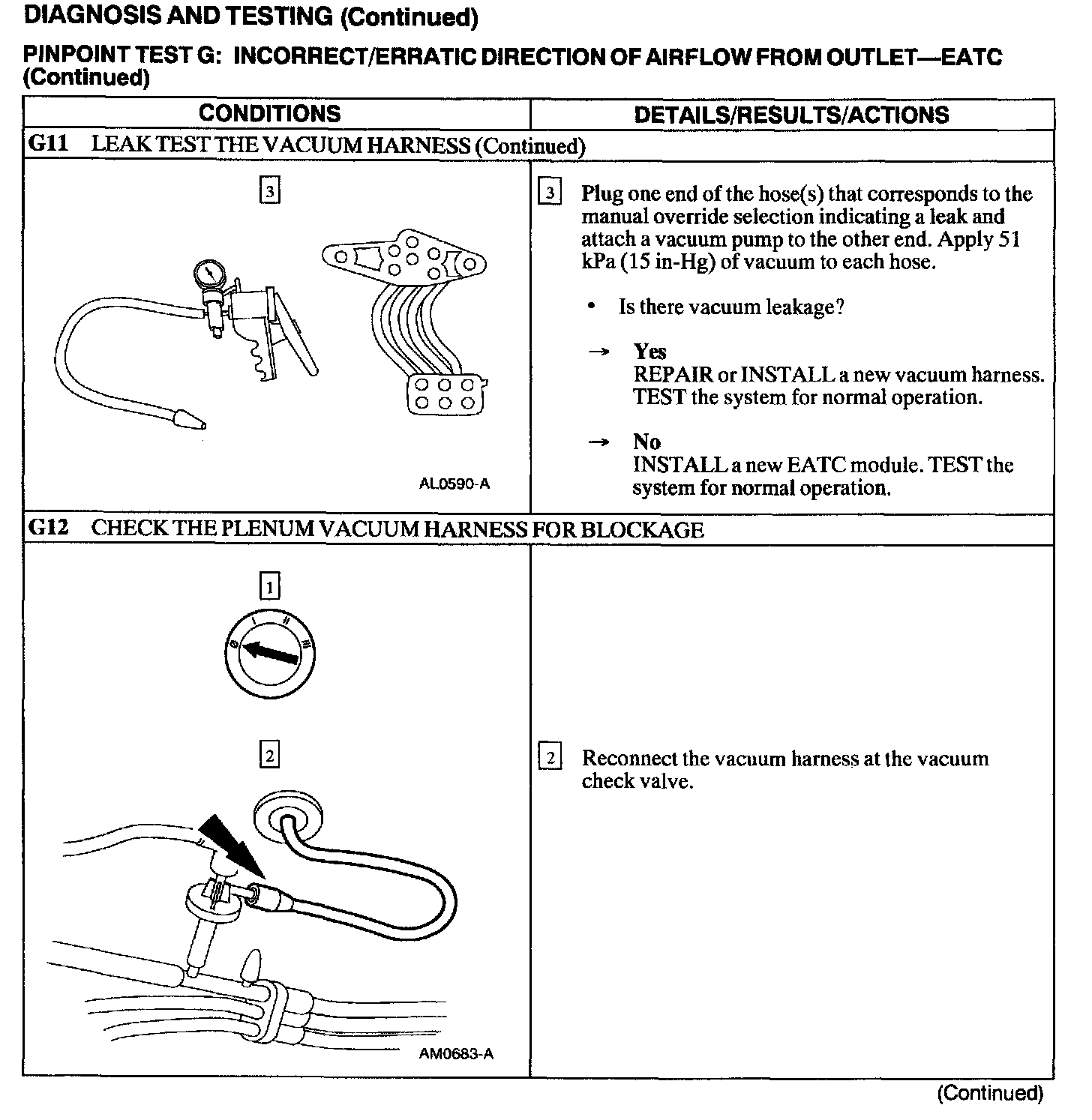

G11 - G12:

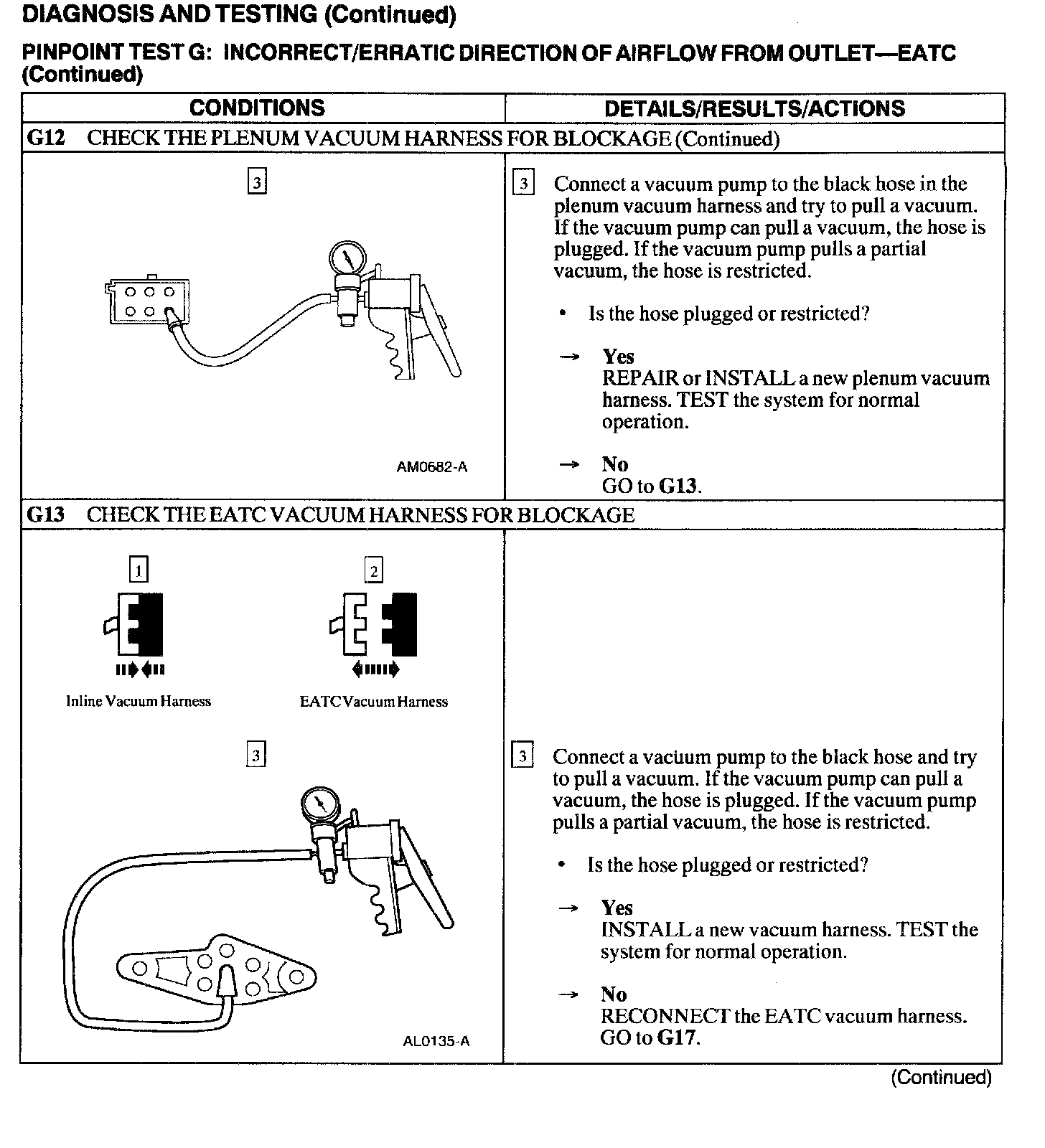

G12 - G13:

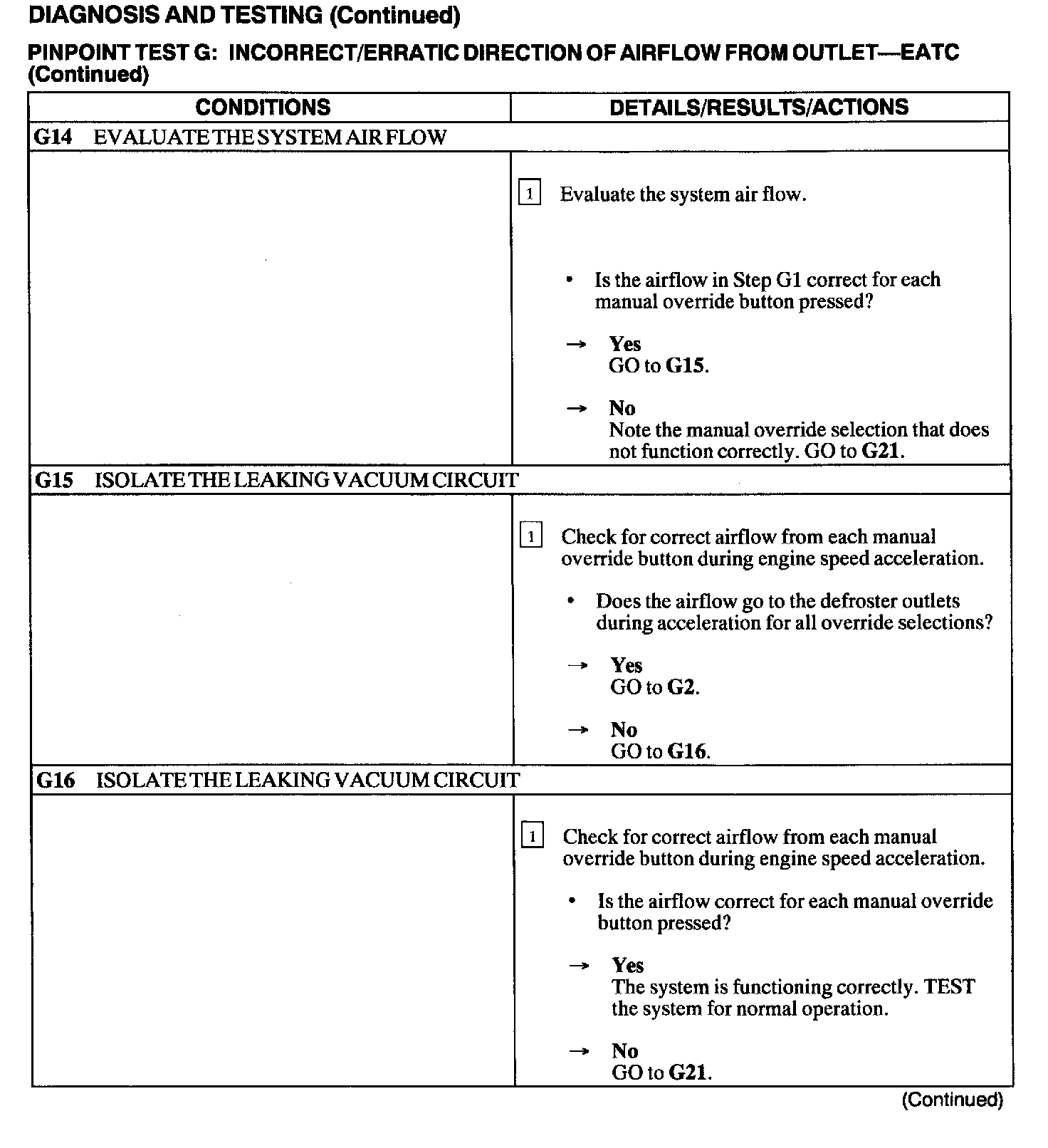

G14 - G16:

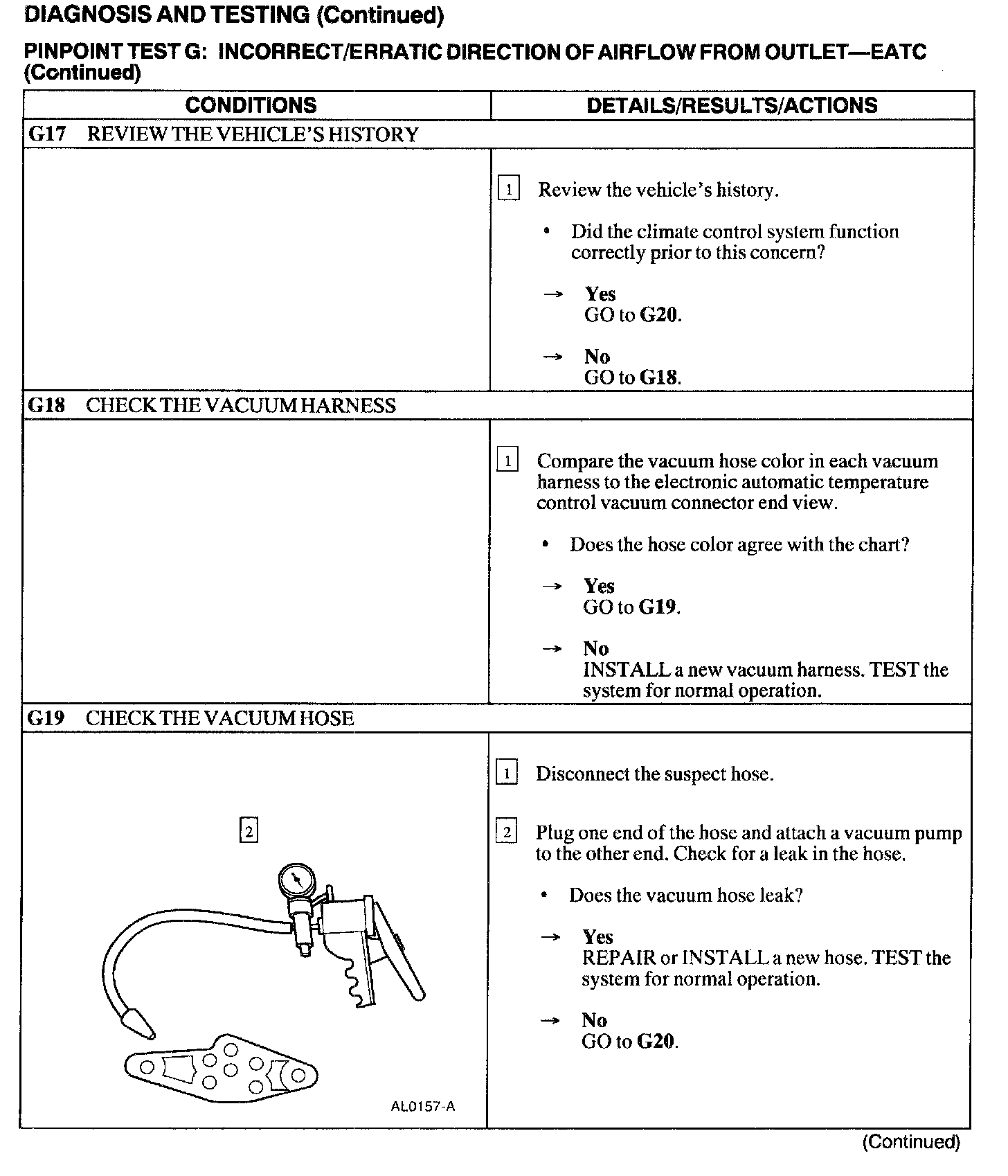

G17 - G19:

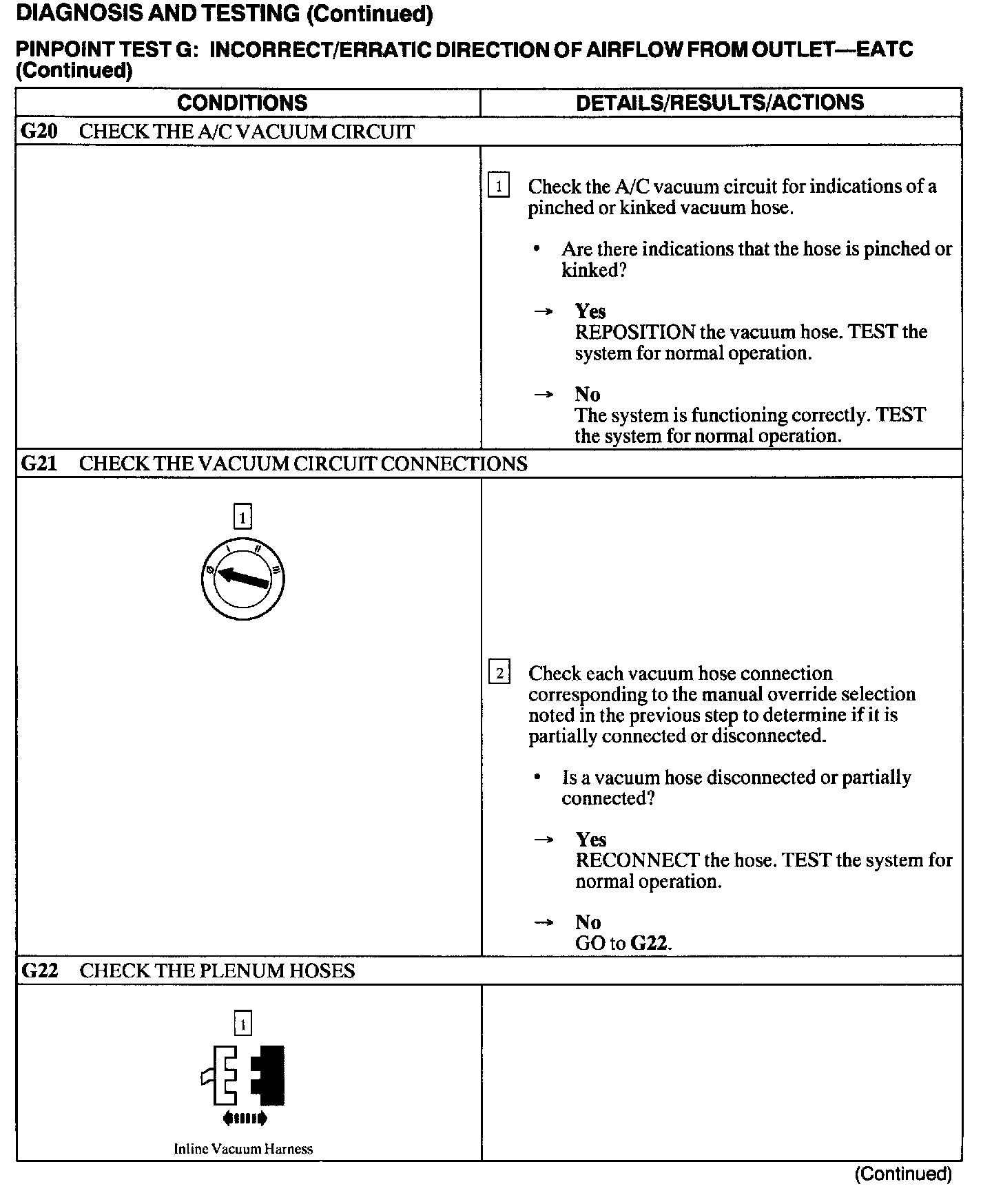

G20 - G22:

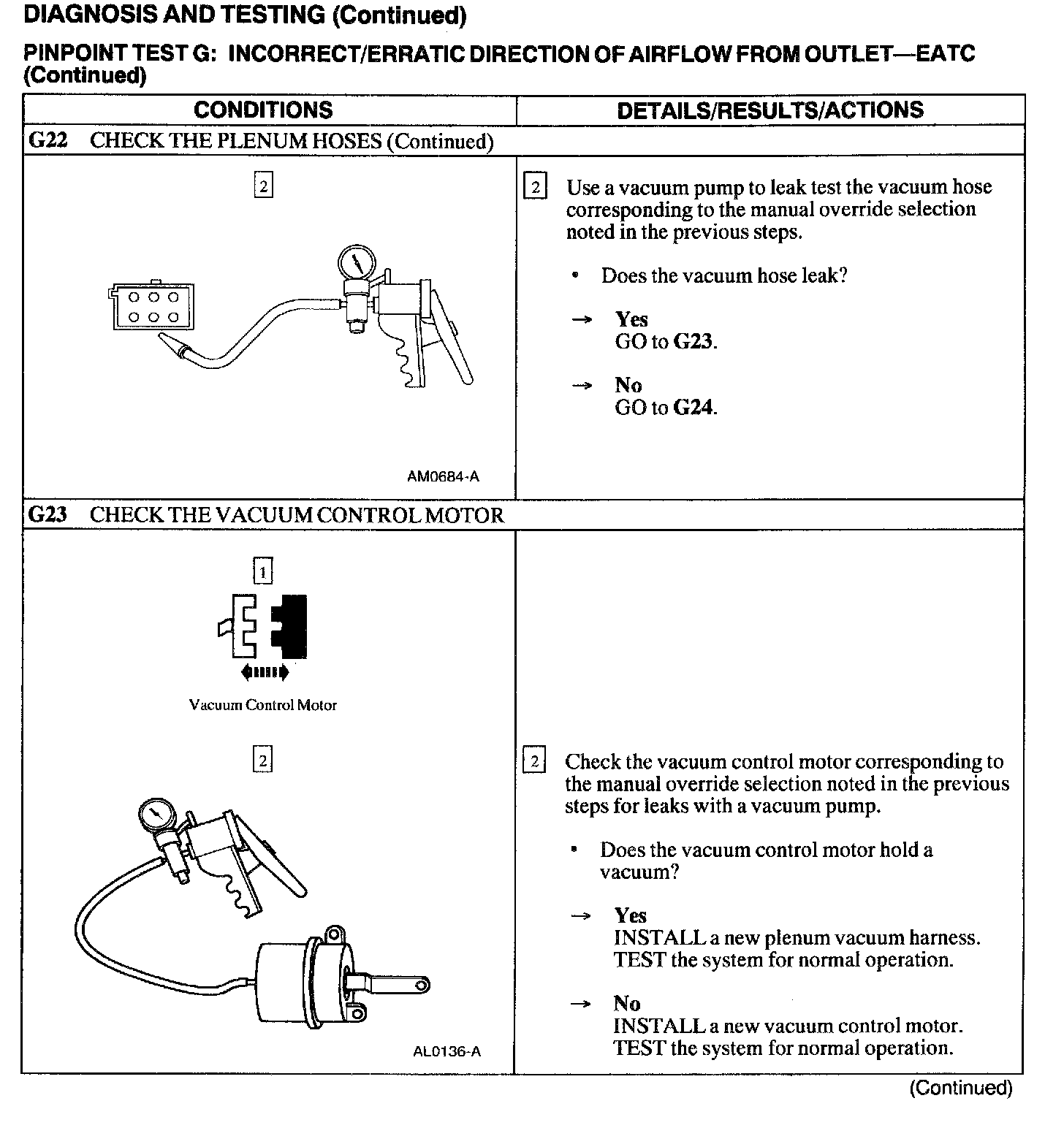

G22 - G23:
G24 - G25:
G26 - G27:

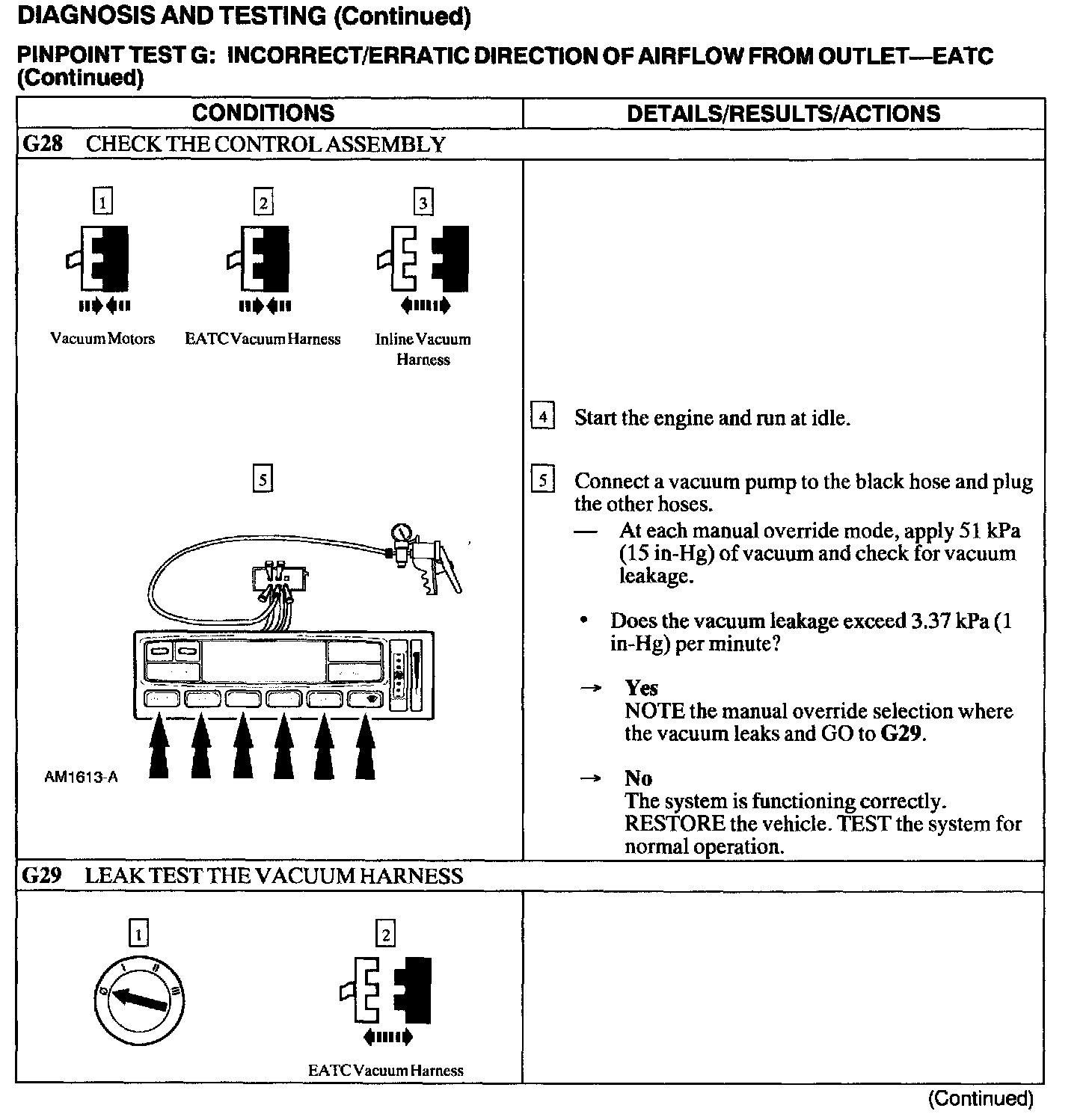

G28 - G29:

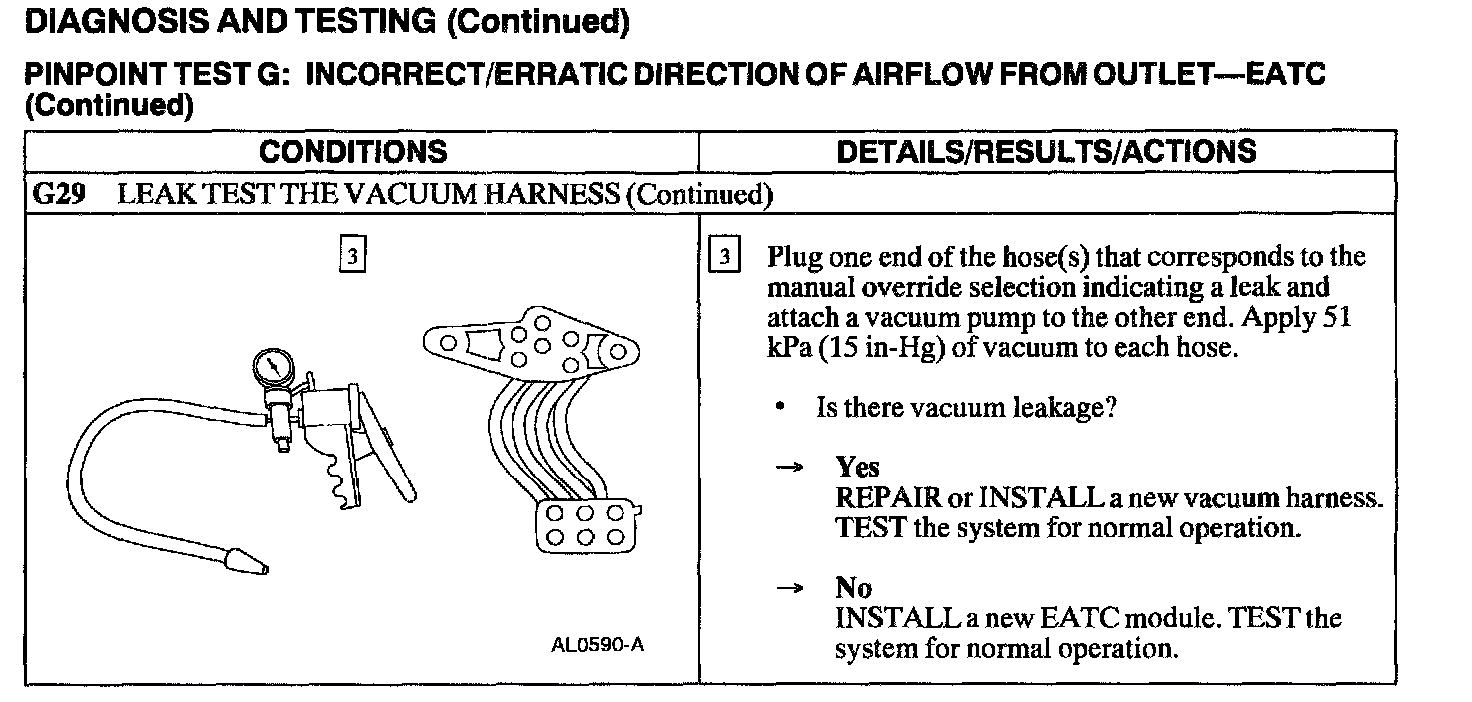

G29:
