Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test E: No Communication With the Electronic Automatic Temperature Control Module

Test E: No Communication With the Electronic Automatic Temperature Control Module

E1:

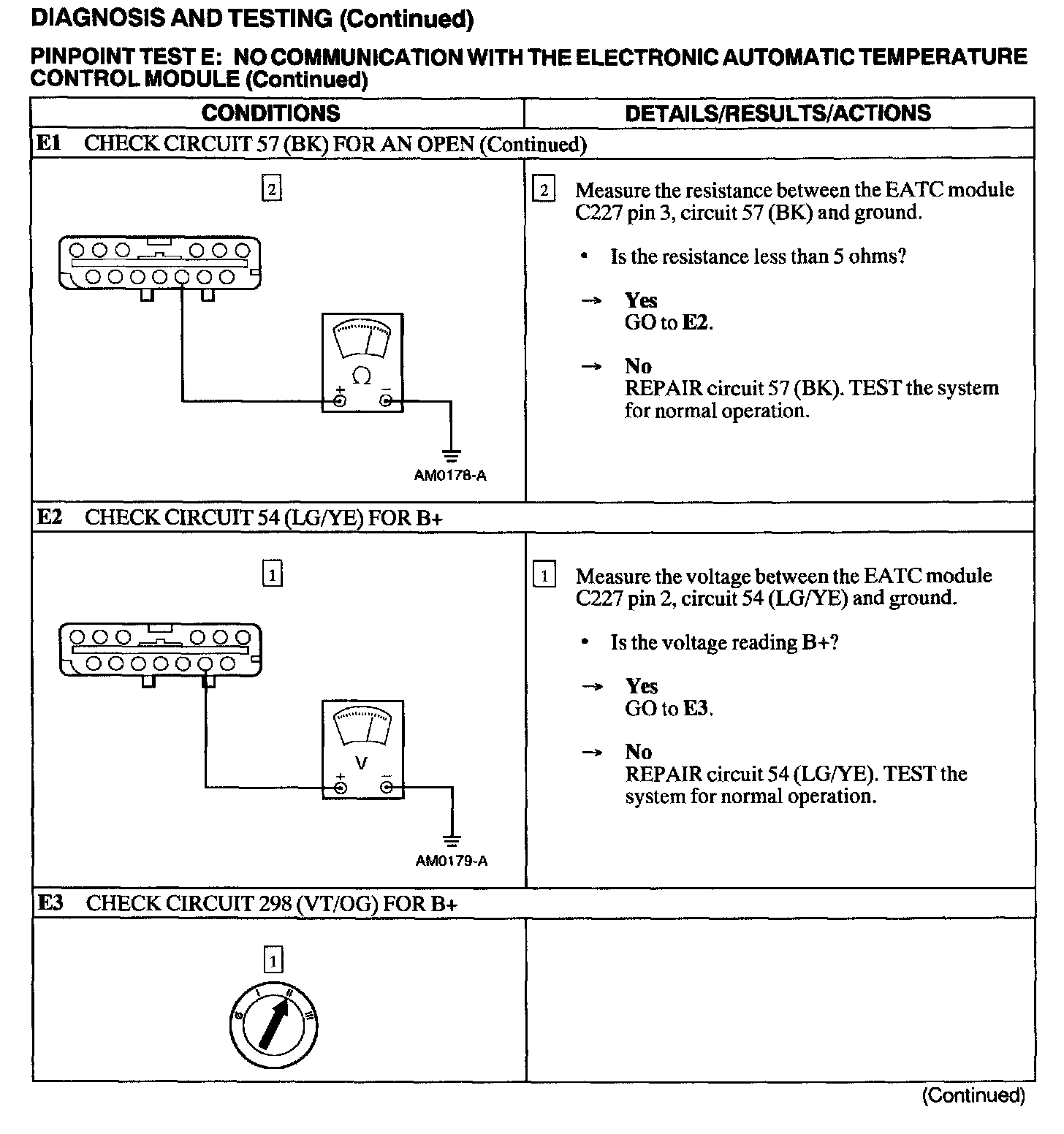

E1 - E3:

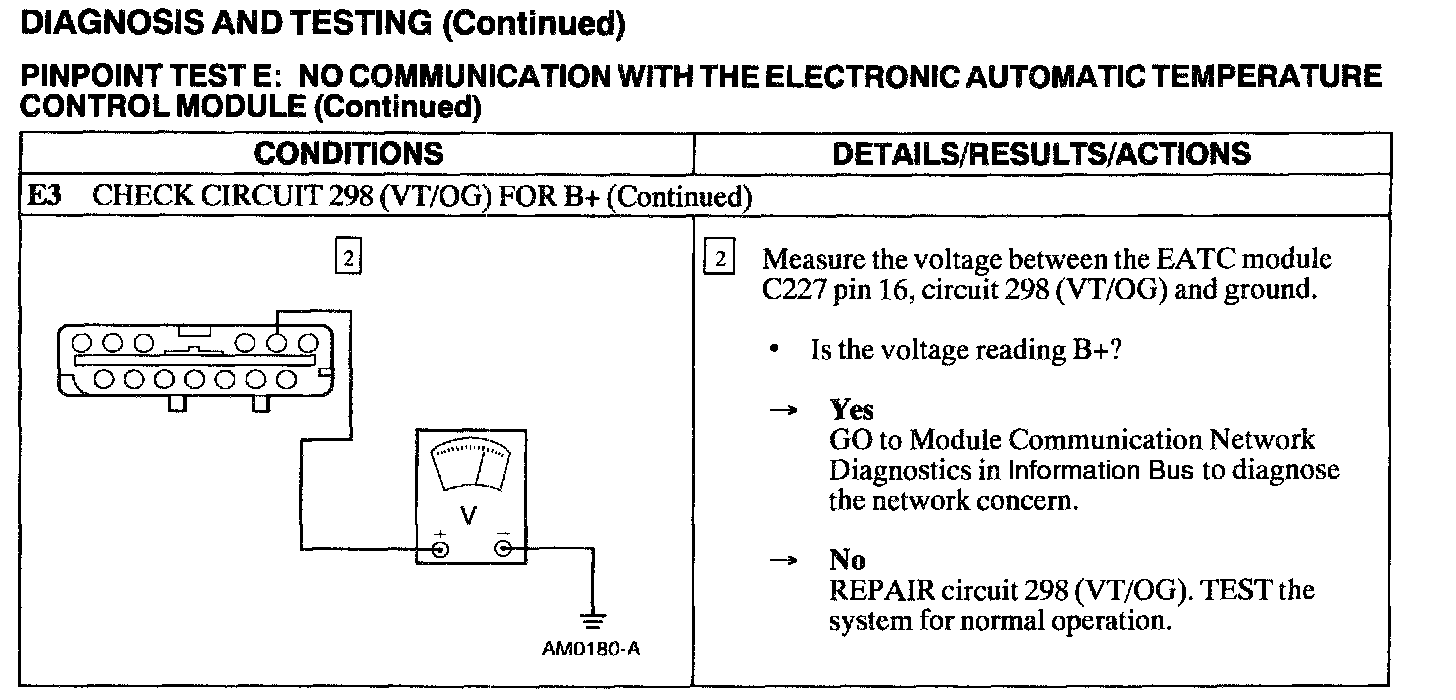

E3:
