Exhaust Manifold LH

Removal and Installation

1. Raise the vehicle.
2. Remove the left front wheel and tire.
3. Separate the exhaust at the exhaust manifold.

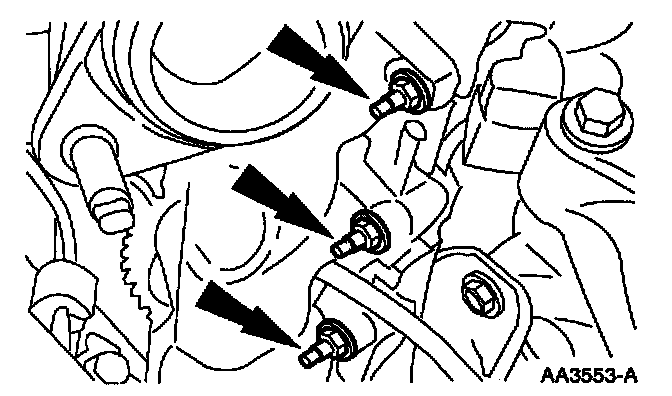

4. Remove the eight nuts.

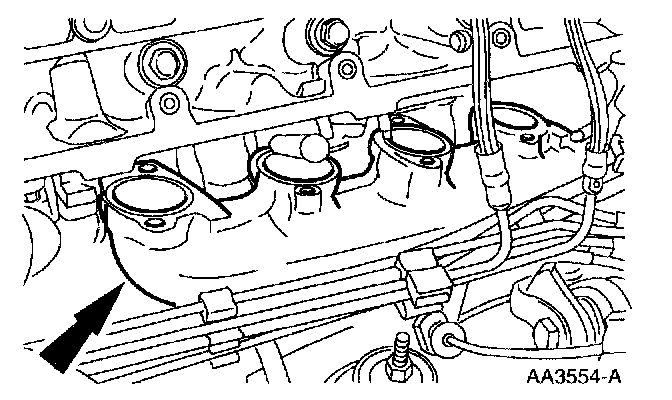

5. Remove the exhaust manifold and the gasket.
6. To install, reverse the removal procedure.
