RH

Engine Mount RH

Removal and Installation

1. Remove the starter.
2. Suitably support the engine.

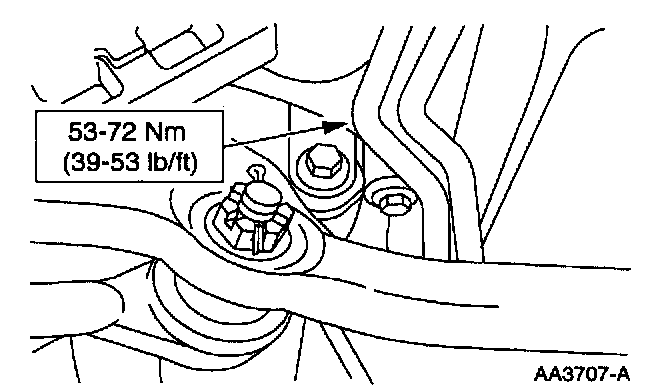

3. Remove the three bolts.

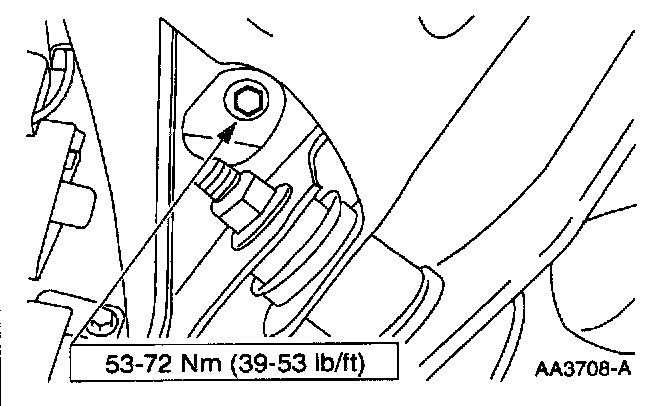

4. Remove the three bolts.








5. To install, reverse the removal procedure.
