Radiator: Service and Repair

Radiator

Removal and Installation

1. Raise and support the vehicle.
2. Drain the engine cooling system.





3. Remove the fan blade, fan motor and fan shroud assembly.

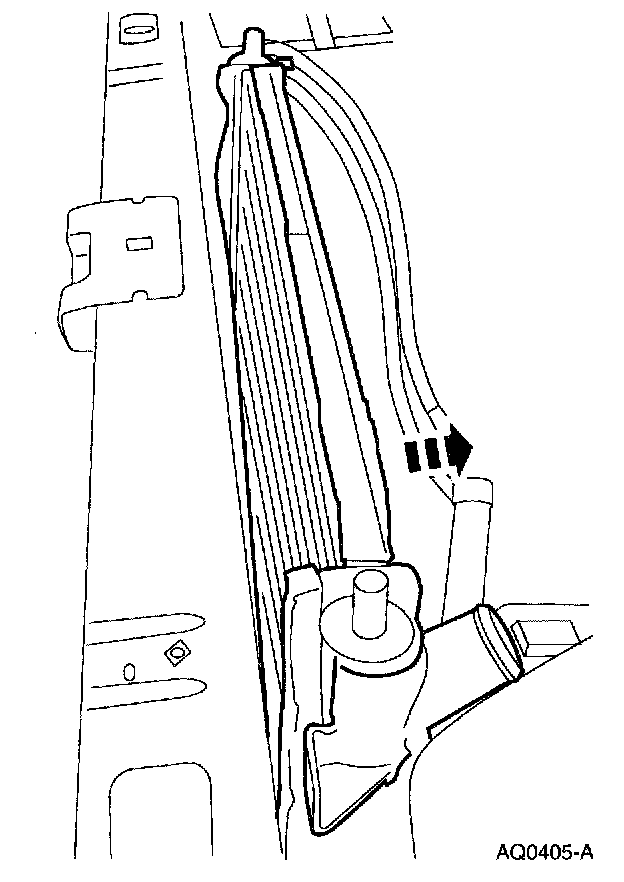

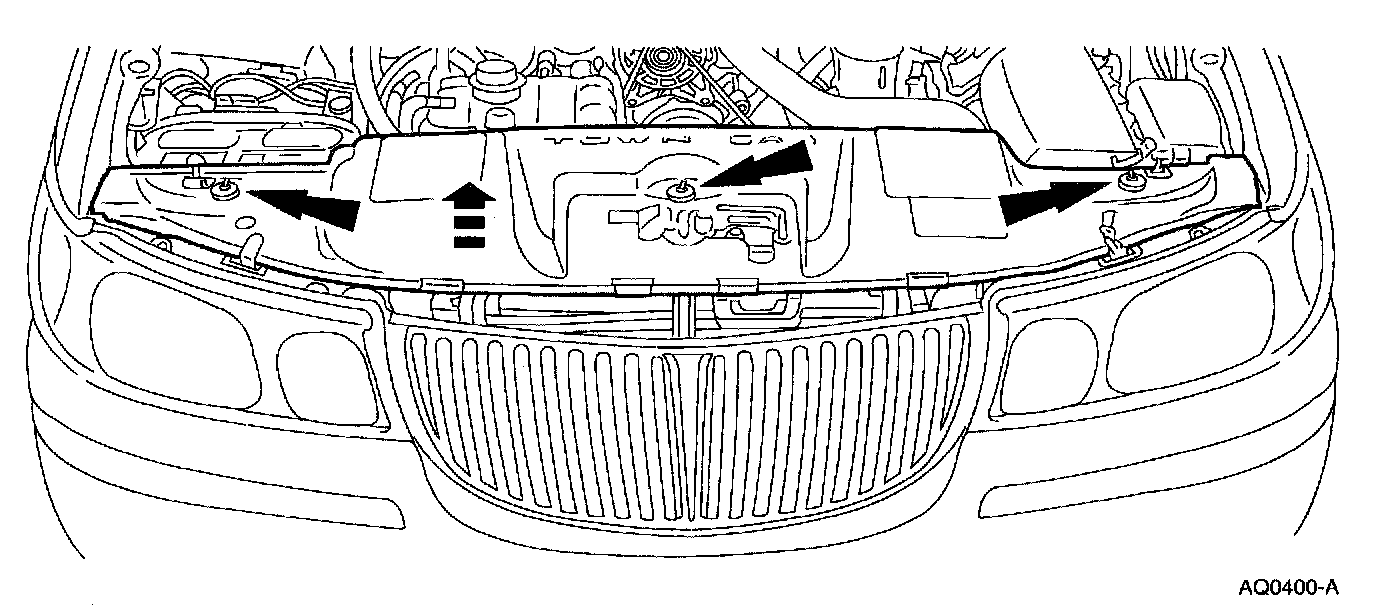

4. Release the hold-downs and remove the radiator sight shield.





5. Remove the upper radiator hose from the radiator.





6. Remove the lower radiator hose from the radiator.

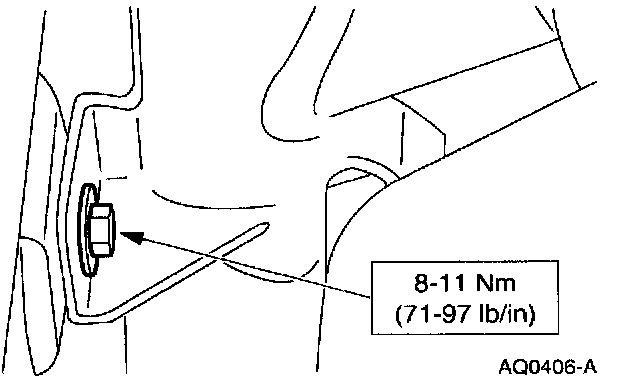

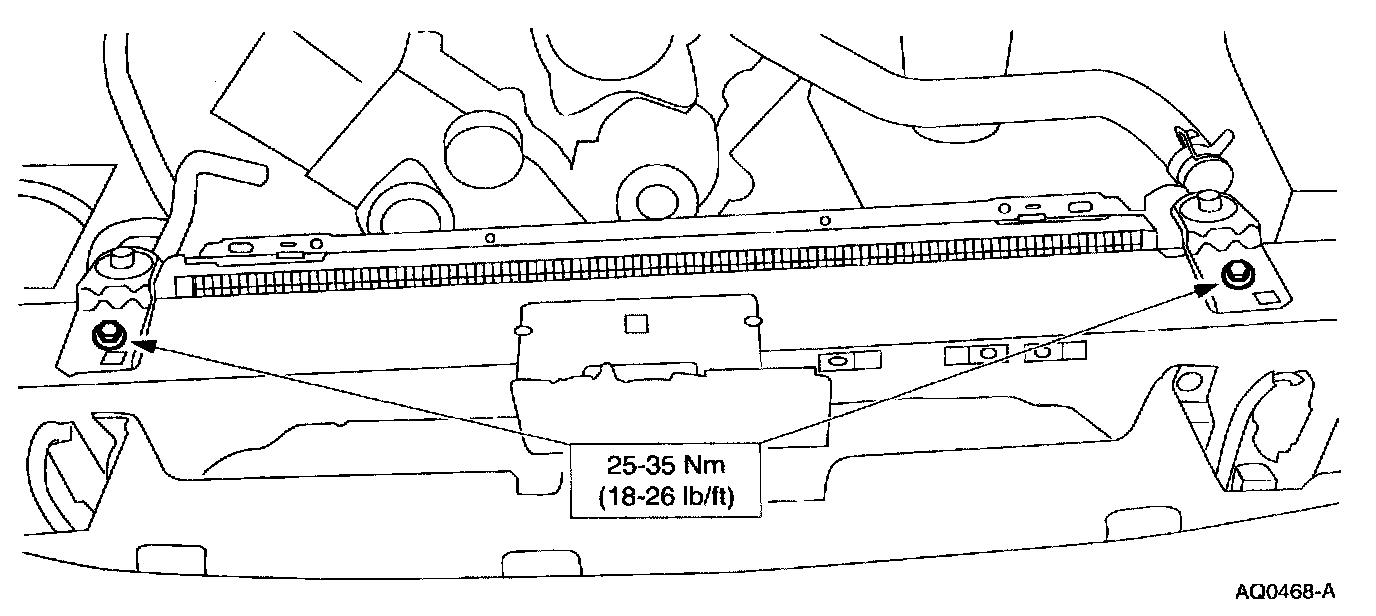

7. Remove the bolts and the radiator supports.





8. Remove the bolts and position the A/C condenser core and the transmission oil cooler away from the radiator.





9. Remove the radiator.
10. To install, reverse the removal procedure.
