Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> System Diagram

System Diagram

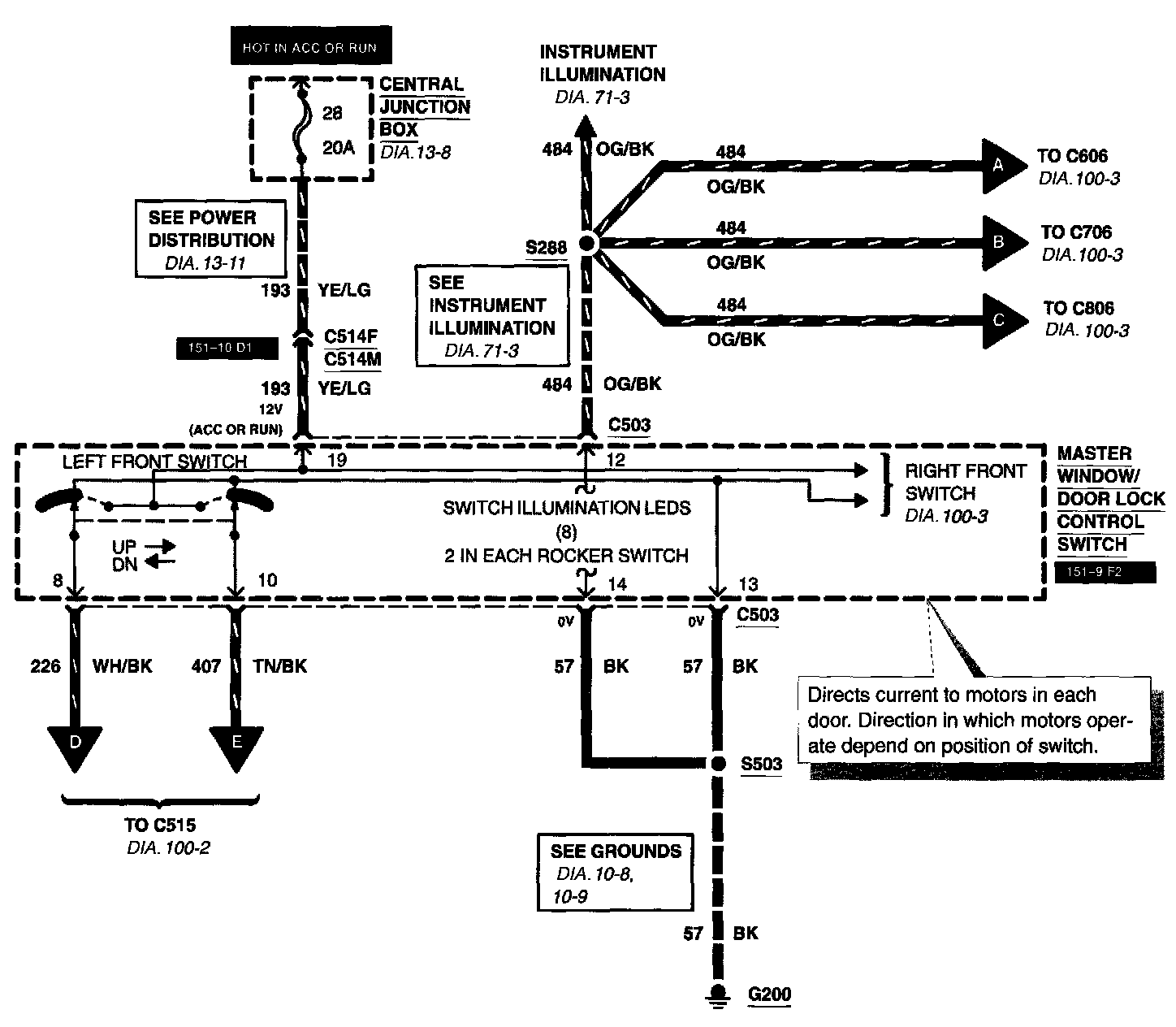

Diagram 100-1:

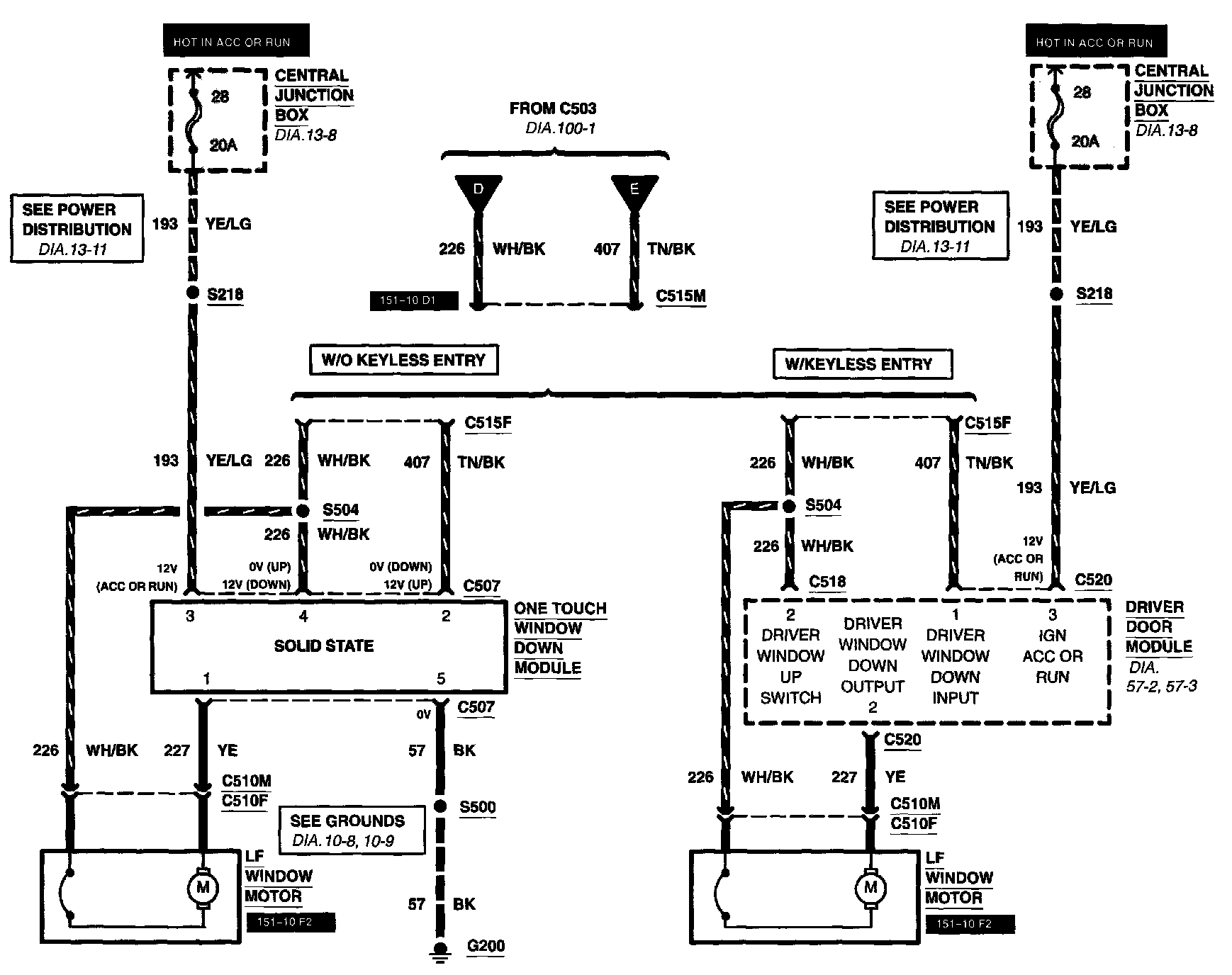

Diagram 100-2:

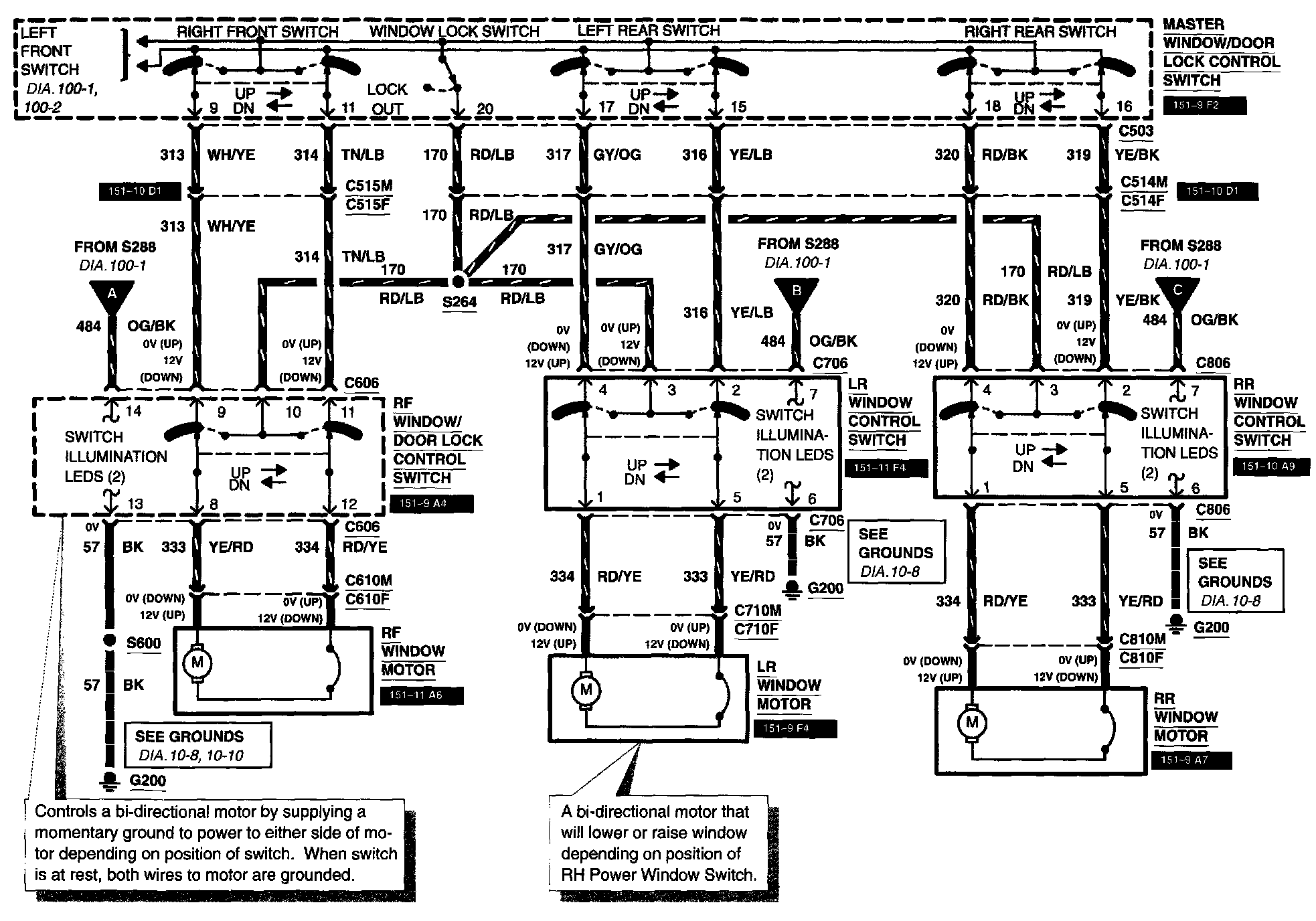

Diagram 100-3:
