Ground Diagrams (By Component Name)

Diagram 10-1:

A/C High Pressure Cutout Switch
Anti-Lock Brake System Module
Crankshaft Position Sensor Shield
Fuel Rail Cutoff Solenoid
Mass Air Flow Sensor
Natural Gas Vehicle Module
Powertrain Control Module
Powertrain Control Module Power Relay
Relay Center

Diagram 10-2:

Battery Junction Box
Cooling Fan
High Current Relay Center
Police Power Relay
Right Cornering Lamp
Right Front Park/Turn Lamp
Right Front Side Lamp
Right Headlamp
Starter Motor Relay

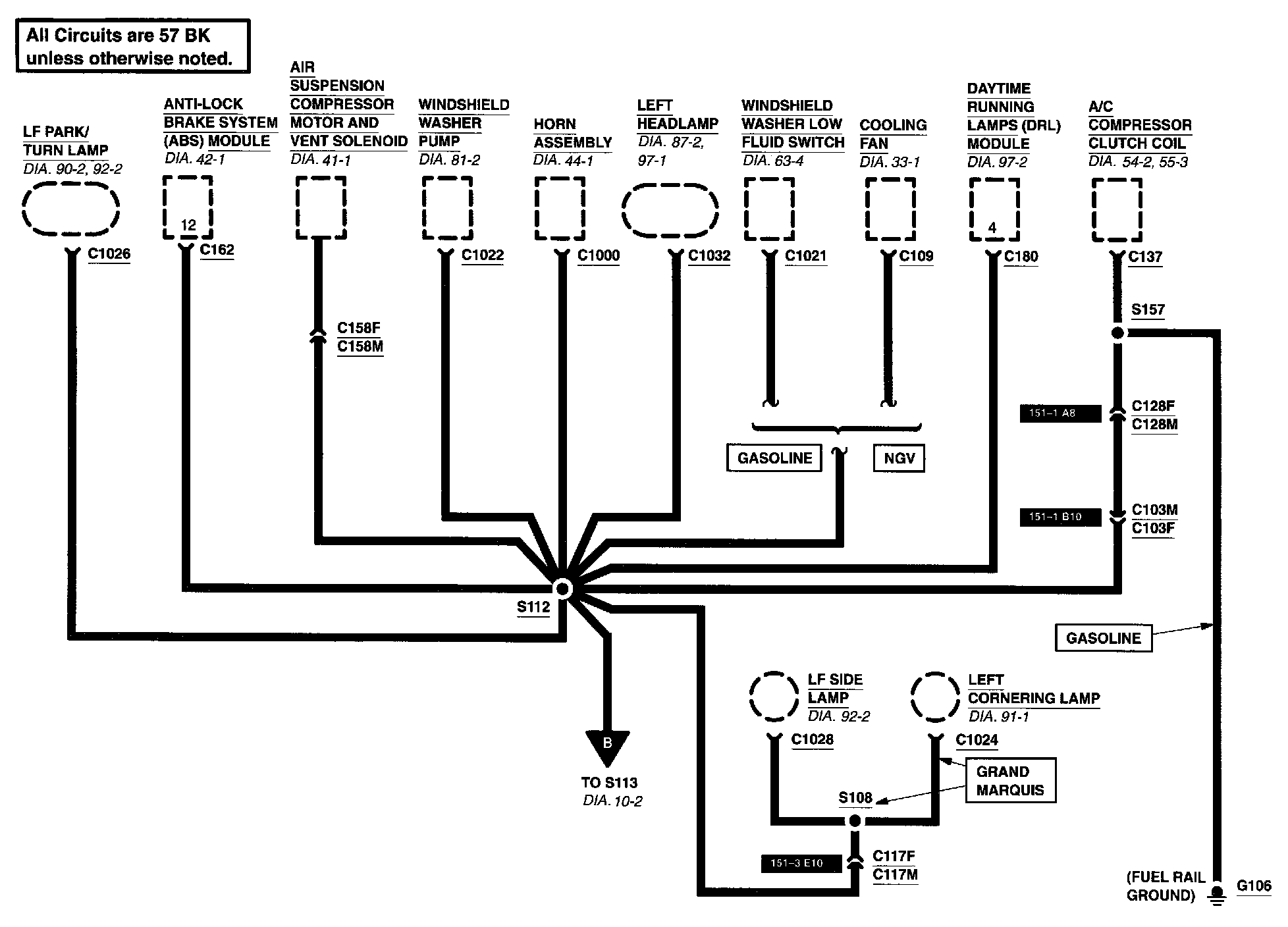

Diagram 10-3:

A/C Compressor Clutch Coil
Air Suspension Compressor Motor And Vent Solenoid
Anti-lock Brake System Module
Cooling Fan
Daytime Running Lamps Module
Fuel Rail
Horn Assembly
Left Cornering Lamp
Left Front Park/Turn Lamp
Left Front Side Lamp
Left Headlamp
Windshield Washer Low Fluid Switch
Windshield Washer Pump

Diagram 10-4:

Adjustable Pedal Switch
Data Link Connector
Ignition Switch
Instrument Cluster
Lighting Control Module
Mainlight Switch
Rear Window Defrost Control
Traction Control Switch
Warning Lamps Module
Wiper Control Module

Diagram 10-5:

Blend Door Actuator
Blower Motor Resistor Assembly
Blower Motor Speed Controller
Brake Fluid Level Switch
Engine Compartment Lamp
Function Selector Switch Assembly
Left Instrument Panel Courtesy Lamp
Message Center Switch Assembly
Shiftlock Actuator
Windshield Wiper Motor

Diagram 10-6:

Clock
Data Link Connector
Electronic Automatic Temperature Control Module
Front Control Unit
Function Selector Switch Assembly
Instrument Cluster
Instrument Panel Cigar Lighter
Lighting Control Module
Power Point
Right Instrument Panel Courtesy Lamp
Speed Chime Module

Diagram 10-7:

Air Suspension/Electronic Variable Orifice Steering Module
Day/night Sensor/Amplifier
Electronic Variable Orifice Steering Module
Engine Coolant Temperature Sender
Fuel Tank Assembly
Instrument Cluster
Message Center Switch Assembly
Passenger Seat Weight Module
Passive Anti-theft System Control Module
Powertrain Control Module
Speed Control Servo
Vehicle Speed Sensor

Diagram 10-8:

Air Suspension/Electronic Variable Orifice Steering Module
Electronic Variable Orifice Steering Module
Front/Interior Reading Lamp
Left Rear Window Control Switch
Passenger Power Lumbar Compressor
Right Rear Window Control Switch
Steering Wheel Rotation Sensor

Diagram 10-9:

Driver Door Module
Driver Seat Control Switch
Exterior Rear View Mirror Switch
Keypad Switch Assembly
Left Front Door Latch Switch
Left Rear Door Latch Switch
Luggage Compartment Lid Release Switch
Master Window/Door Lock Control Switch
One Touch Window Down Module

Diagram 10-10:

Driver Power Lumbar Compressor
Driver Safety Belt Buckle Switch
Driver Seat Control Switch
Electronic Day/Night Mirror
Front Interior/Reading Lamp
Interior Lamp
Left Vanity Lamp
Passenger Seat Control Switch
Police Map Lamp Assembly
Rear Front Door Latch Switch
Rear Front Window/Door Lock Control Switch
Rear Interior/Reading Lamp
Right Rear Door Latch Switch
Right Vanity Lamp

Diagram 10-11:

Fuel Tank Assembly
Fuel Tank Solenoid Valve #1
Fuel Tank Solenoid Valve #2
Left Rear Park Lamp
Left Rear Park/Stop/Turn Lamp #1
Left Rear Park/Stop/Turn Lamp #2
Left Rear Turn Signal Lamp #1
Left Rear Turn Signal Lamp #2

Diagram 10-12:

Emergency Flasher Relay #1
Emergency Flasher Relay #2
Emergency Flasher Relay Block
Fuel Tank Solenoid Valve #3
Fuel Tank Solenoid Valve #4
Left Reversing Lamp
License Lamp
Luggage Compartment Lid Release Solenoid/Ajar Switch
Right Rear Park Lamp
Right Rear Park/Stop/Turn Lamp #1
Right Rear Park/Stop/Turn Lamp #2
Right Rear Turn Signal Lamp #1
Right Rear Turn Signal Lamp #2
Right Reversing Lamp

Diagram 10-13:

Courtesy Lamps
High Mounted Stop Lamp
Luggage Compartment Lid Lamp
Stop/Luggage Compartment Lid Lamp Shield
Turn/Stop/Hazard Lamps
