Turn Signals

Crown Victoria And Grand Marquis
(Select approiate images below to accompany these diagrams.)

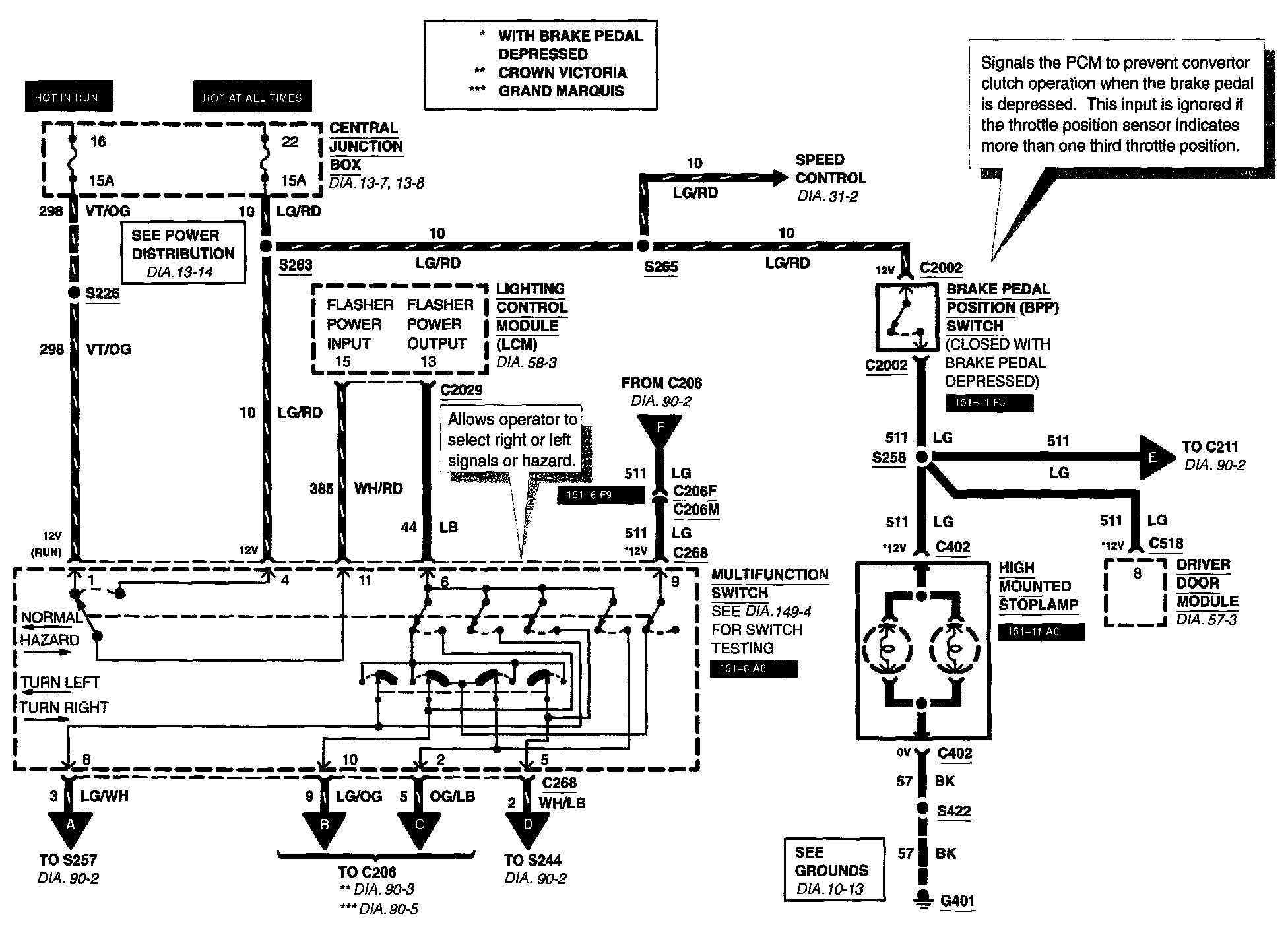

Diagram 90-1:

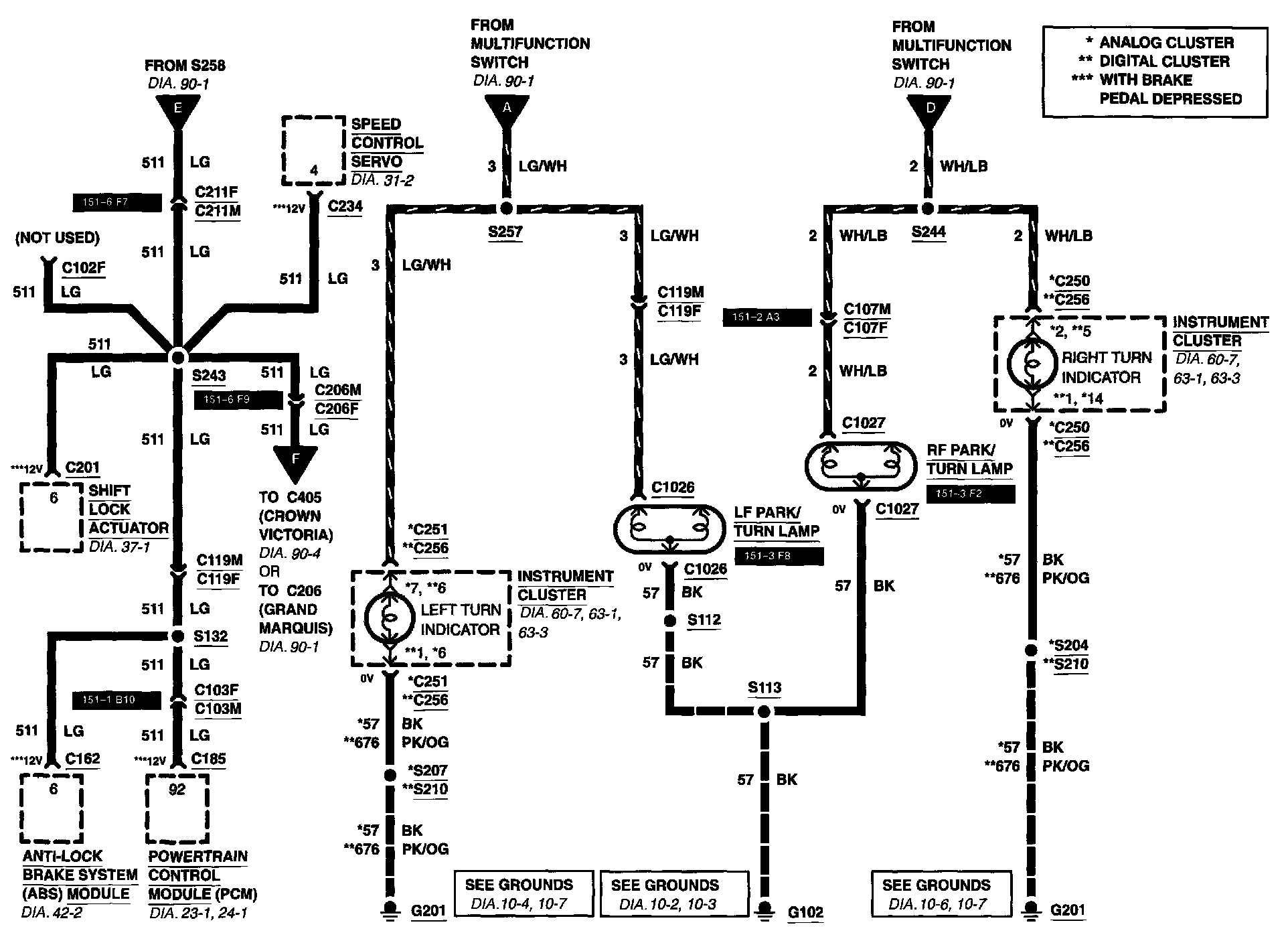

Diagram 90-2:






Crown Victoria Only

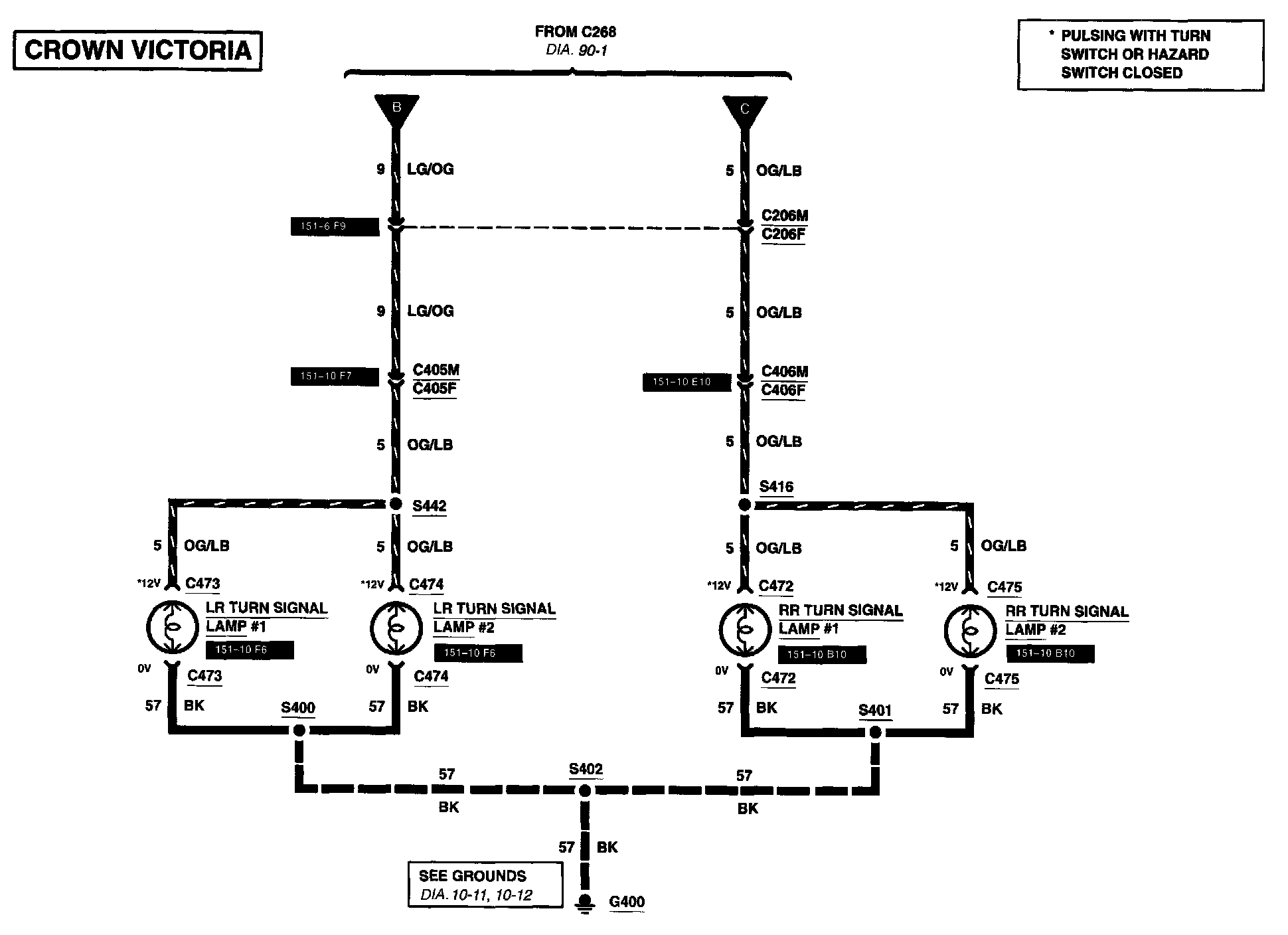

Diagram 90-3:

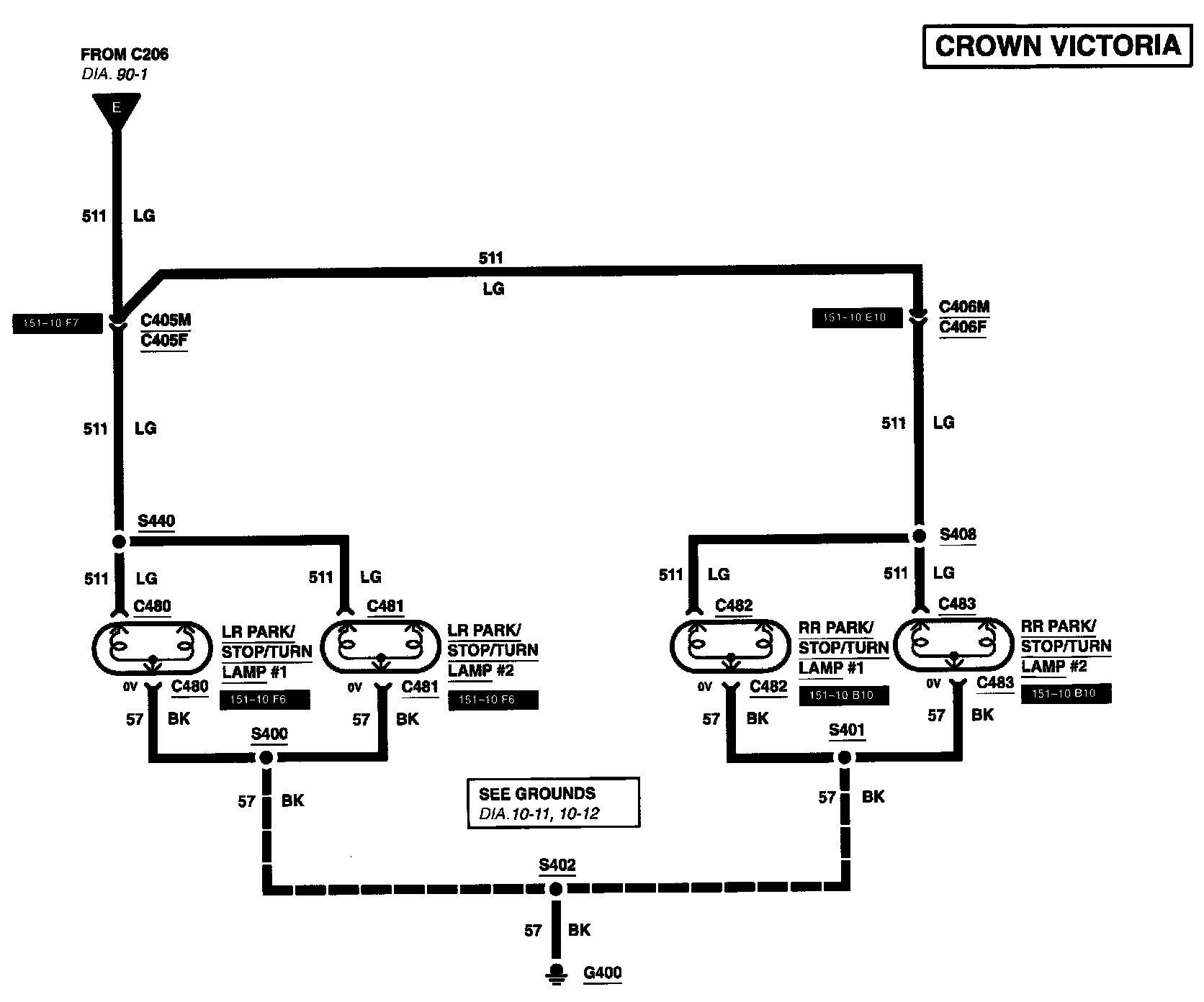

Diagram 90-4:






Grand Marquis, Police Fleet and, Low Series Crown Victoria

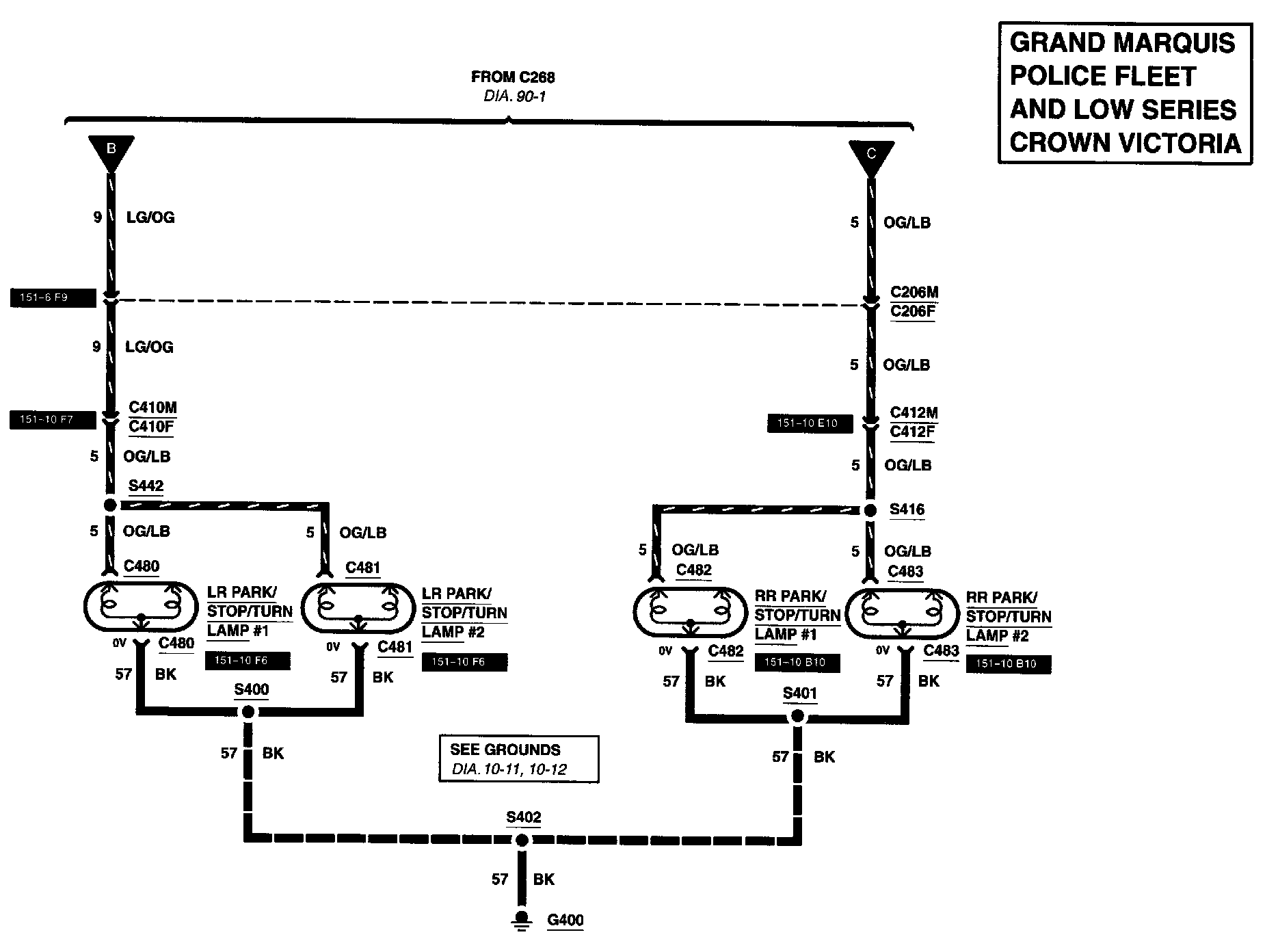

Diagram 90-5:
