Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Instrument Panel Illumination

Instrument Panel Illumination

Instrument Panel Illumination

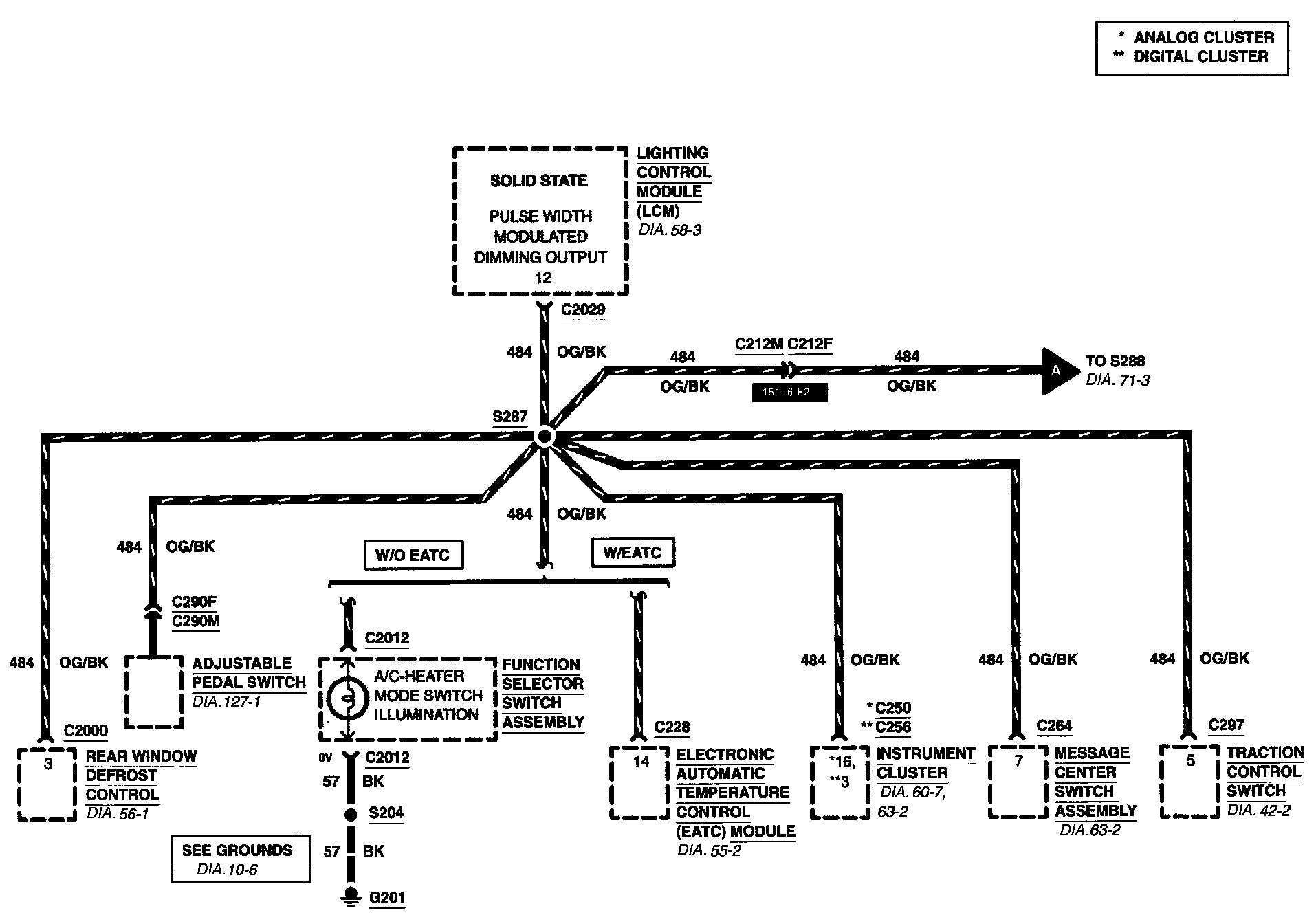

Diagram 71-1:






Diagram 71-2:






Diagram 71-3:
