Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster >> Digital

Digital

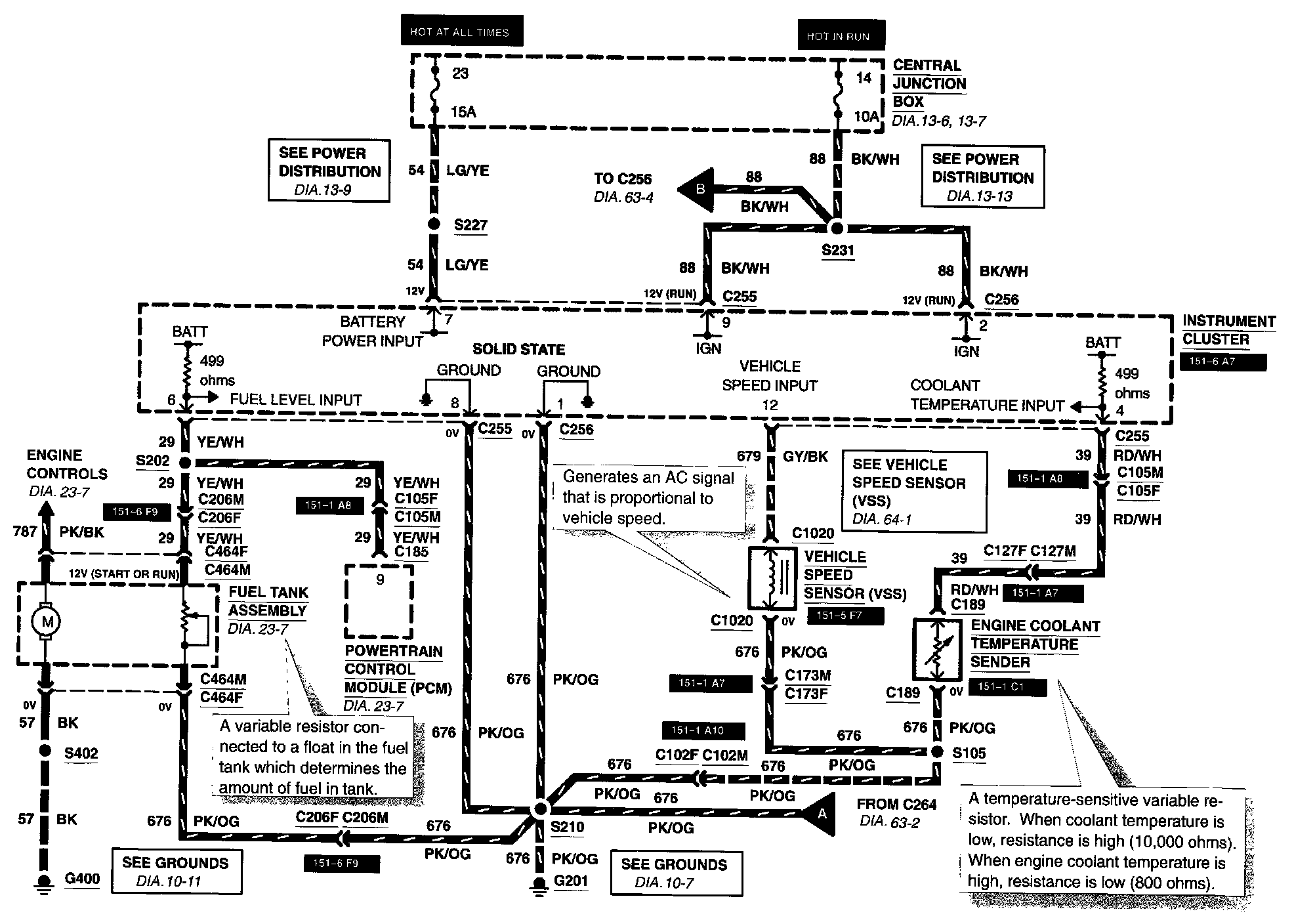

Diagram 63-1:

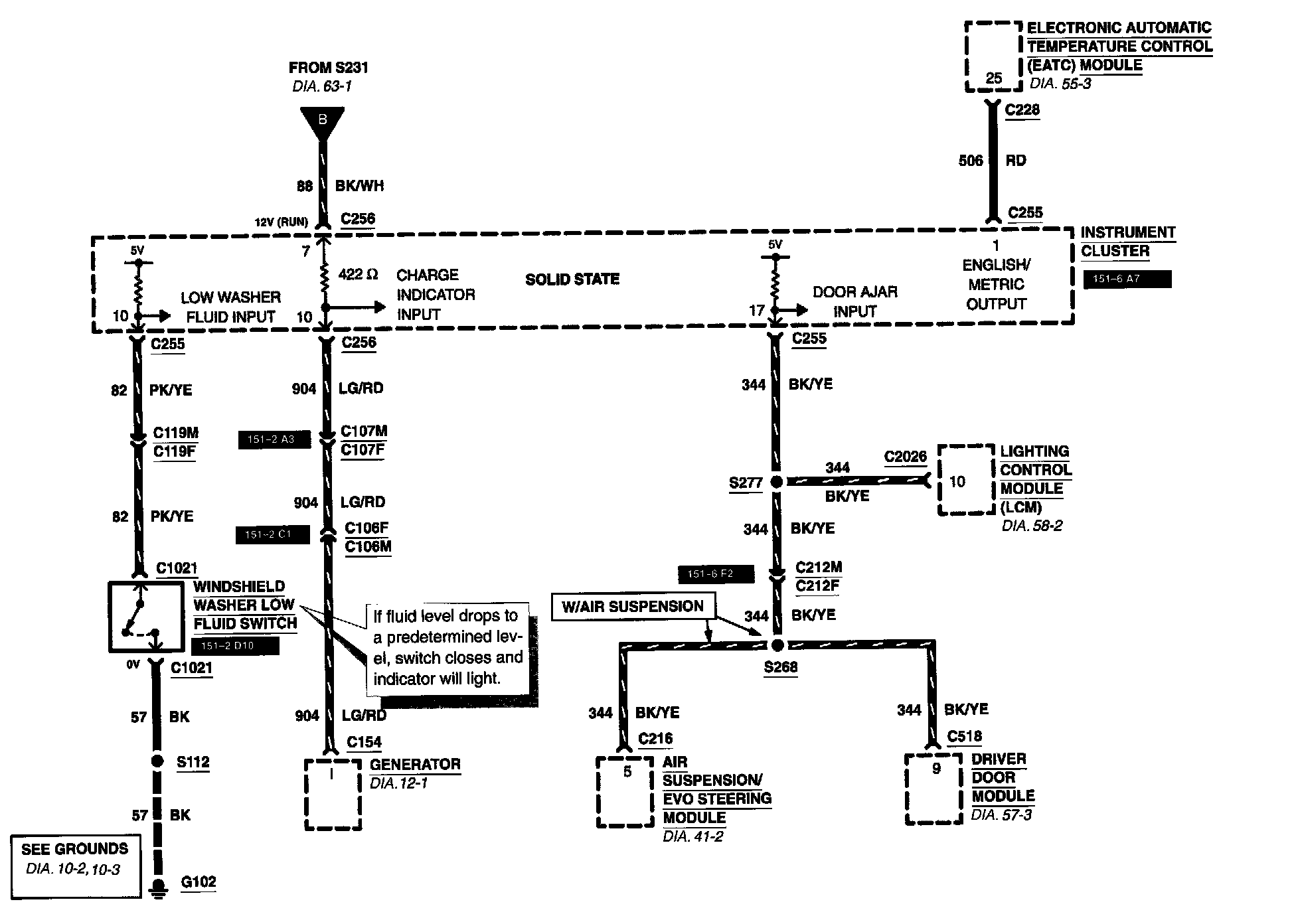

Diagram 63-2:

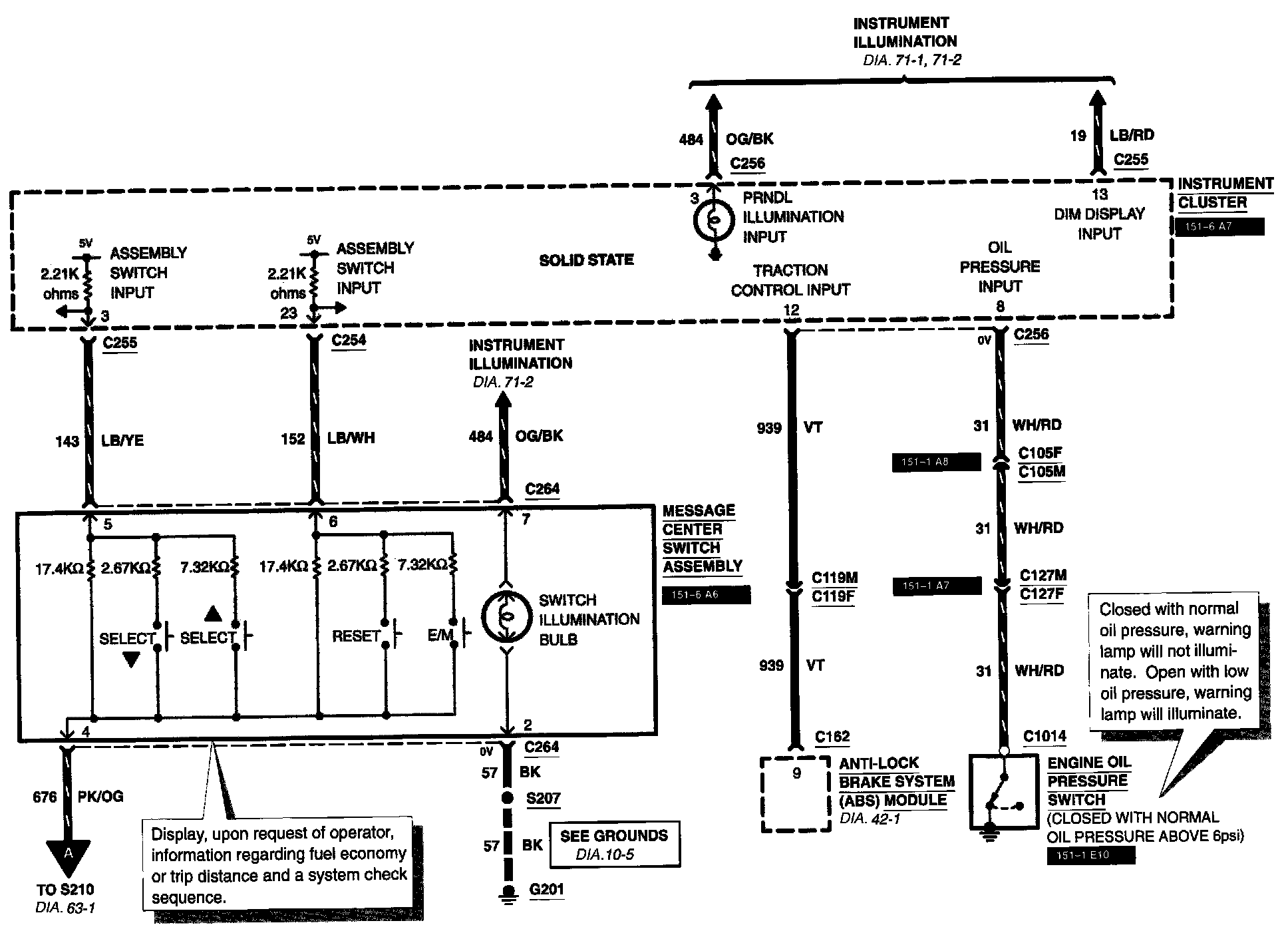

Diagram 63-3:

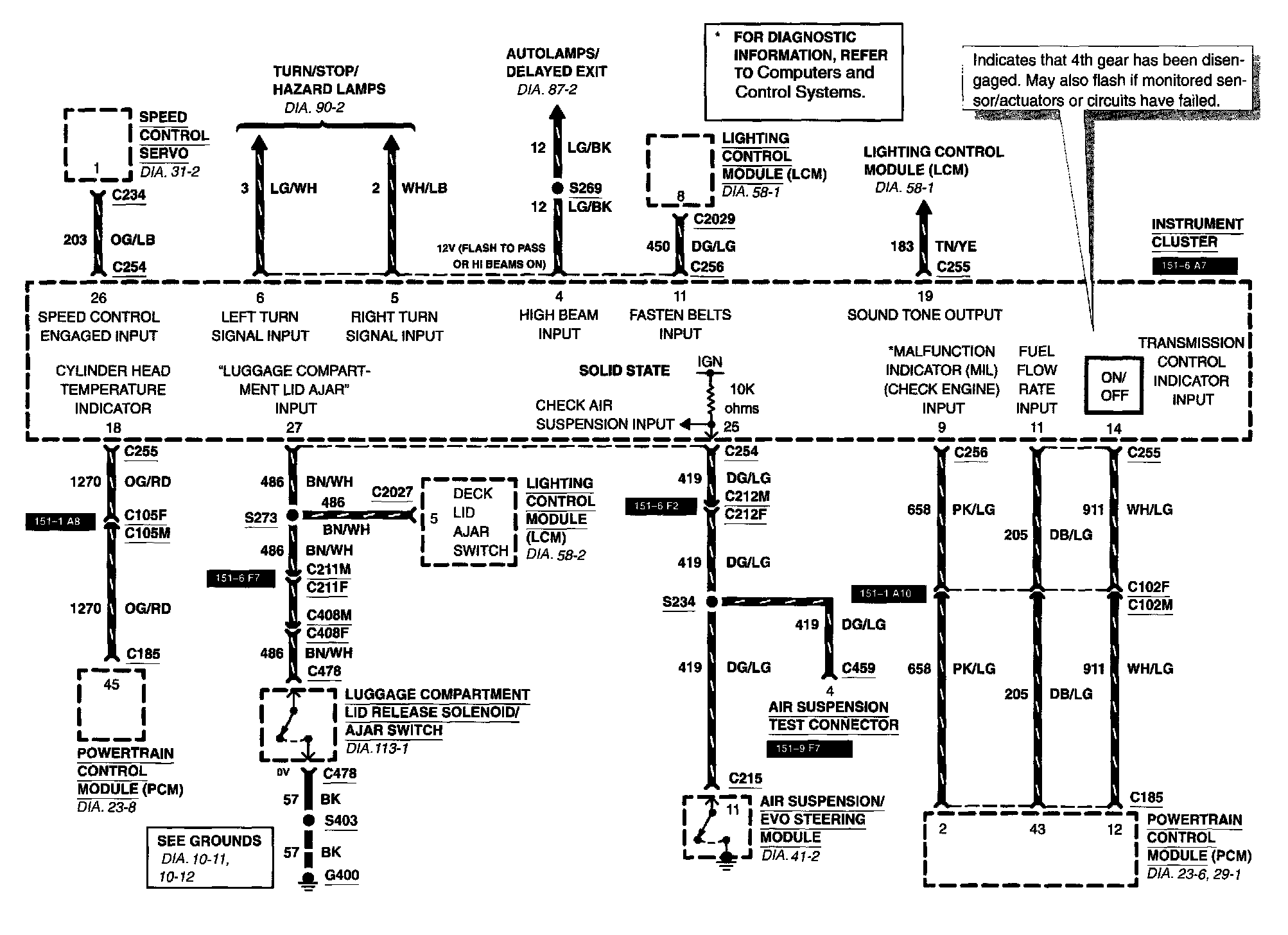

Diagram 63-4:
