Analog

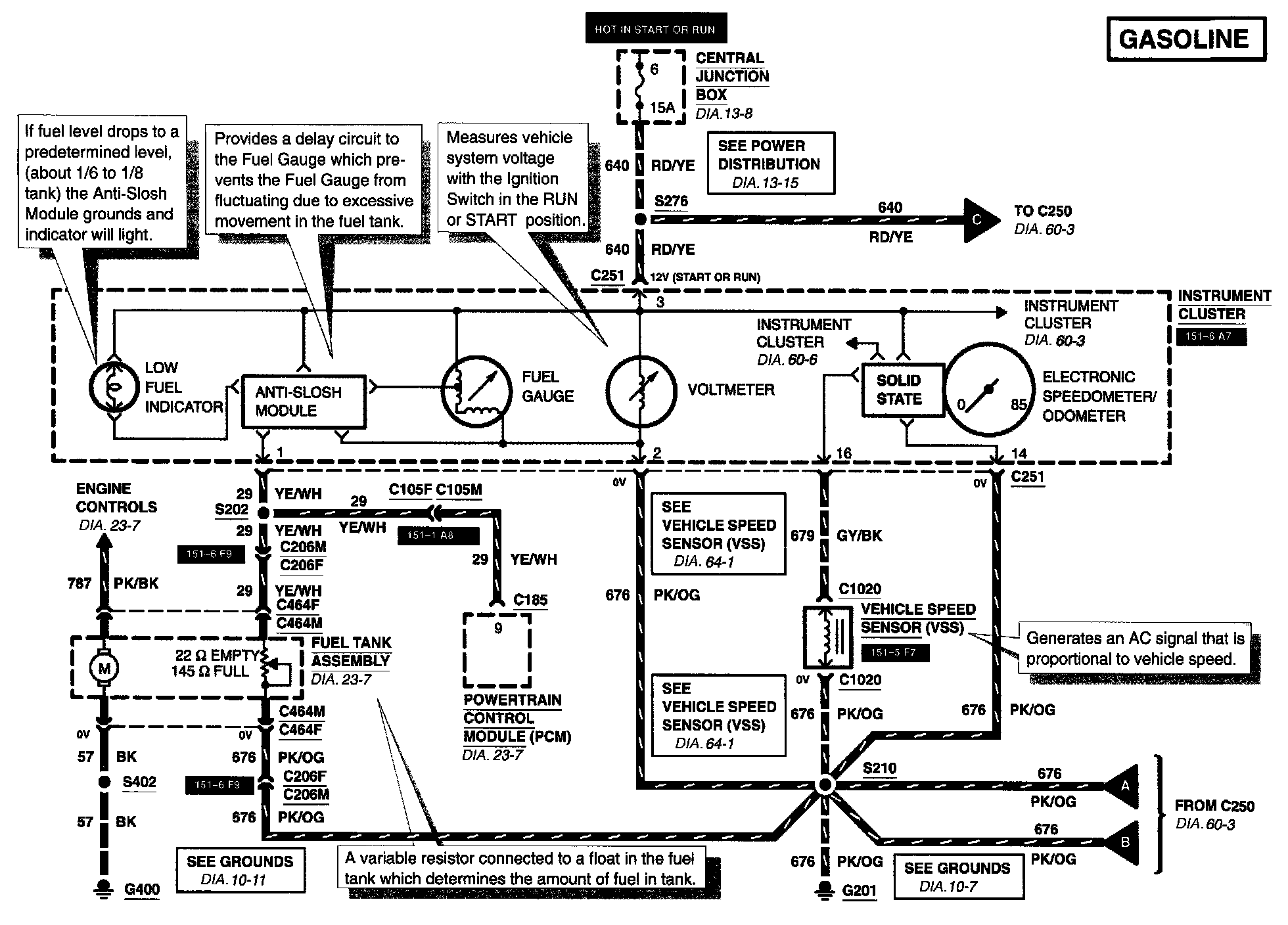

Instrument Cluster (Analog) Gasoline

Diagram 60-1:

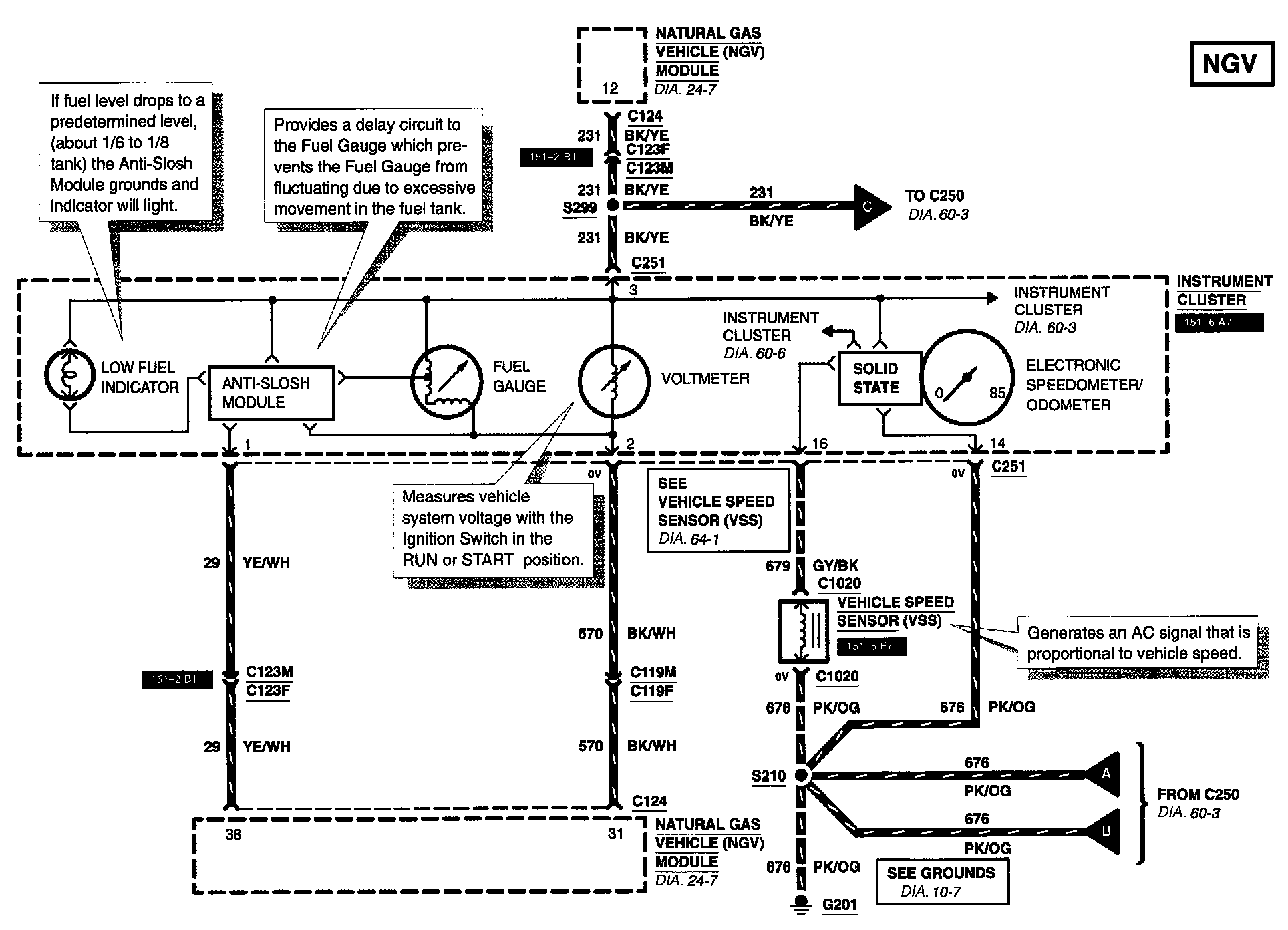

Instrument Cluster (Analog) NGV

Diagram 60-2:






Instrument Cluster (Analog Continued) Both

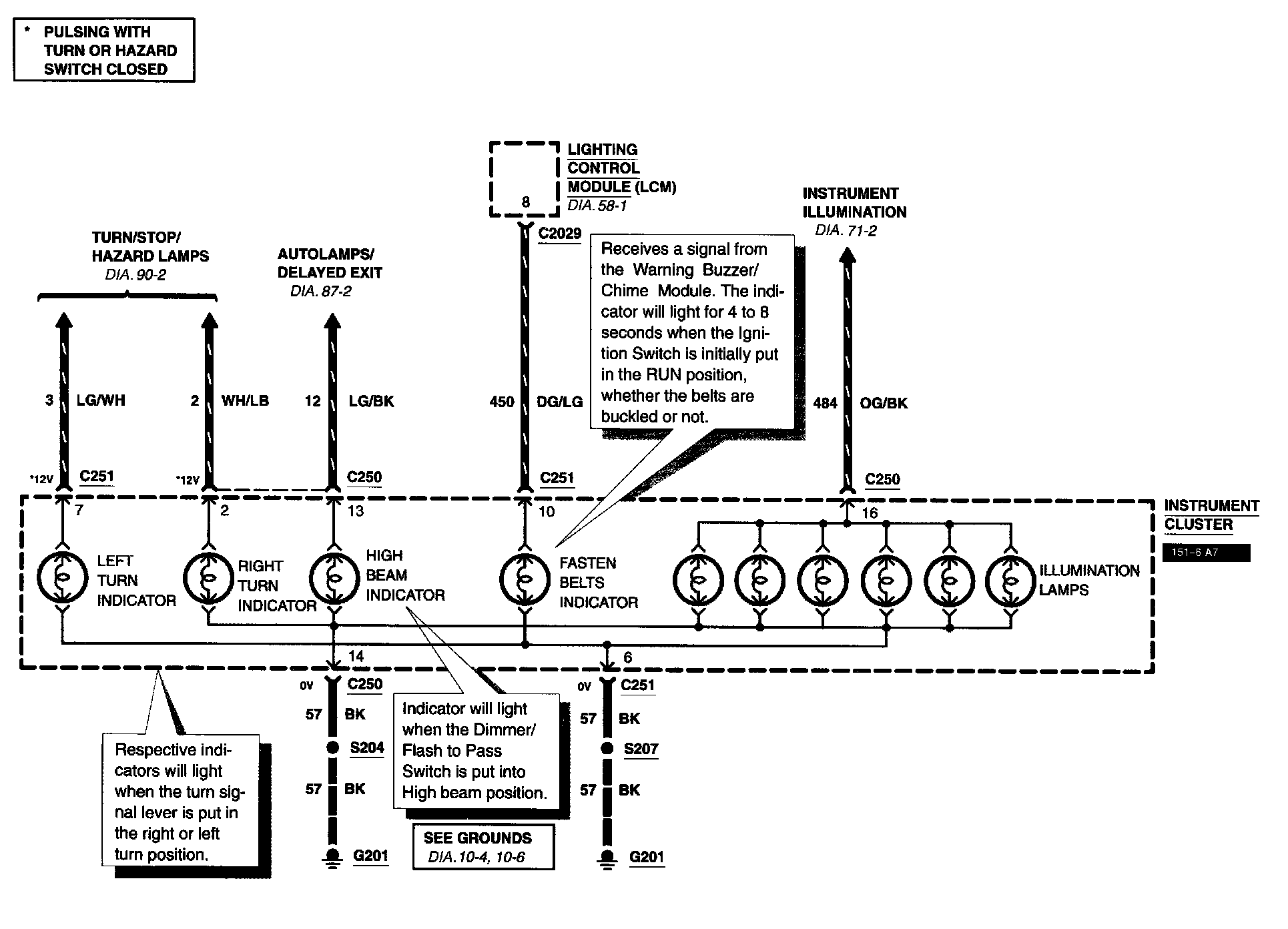

Diagram 60-3:

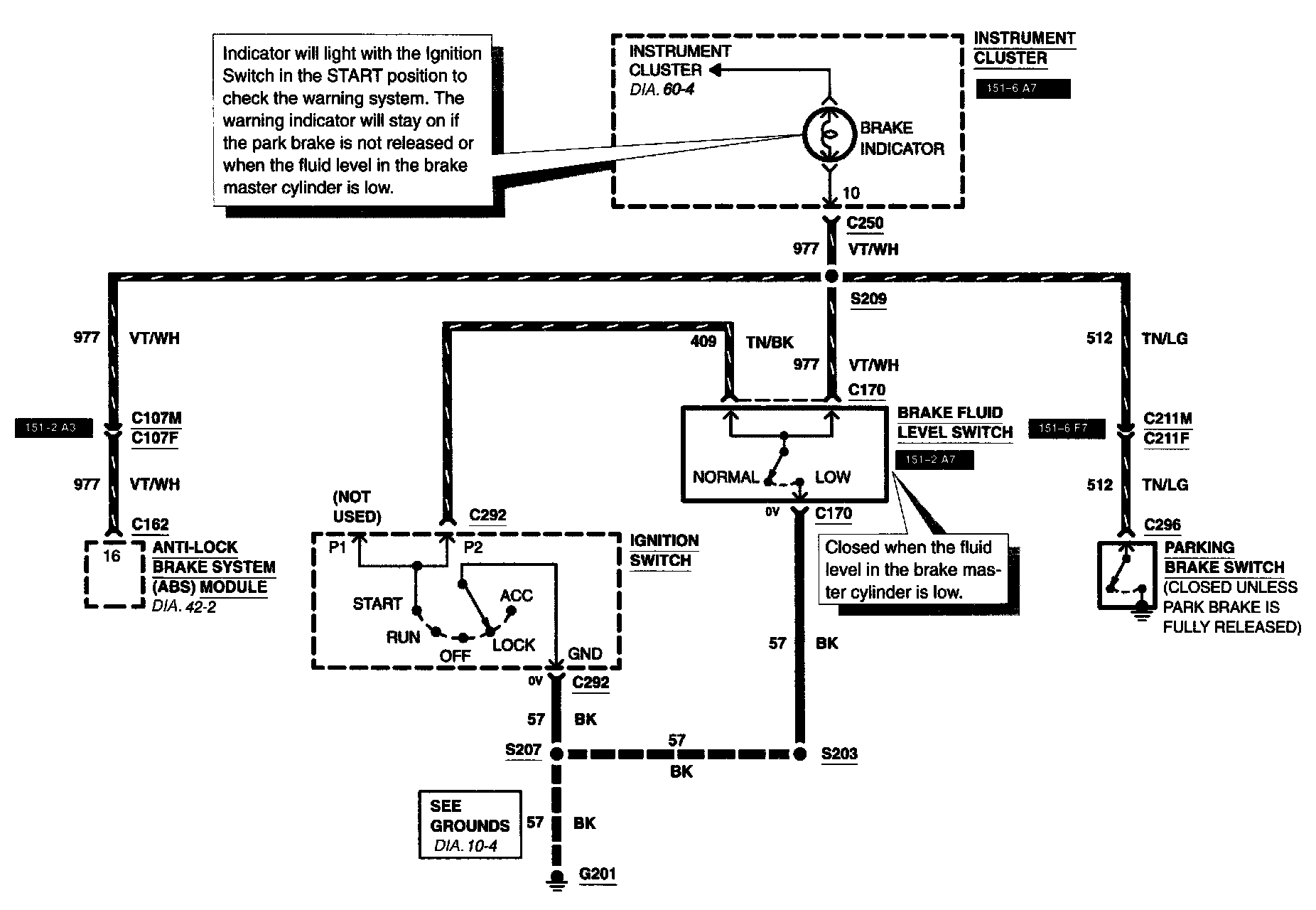

Diagram 60-4:

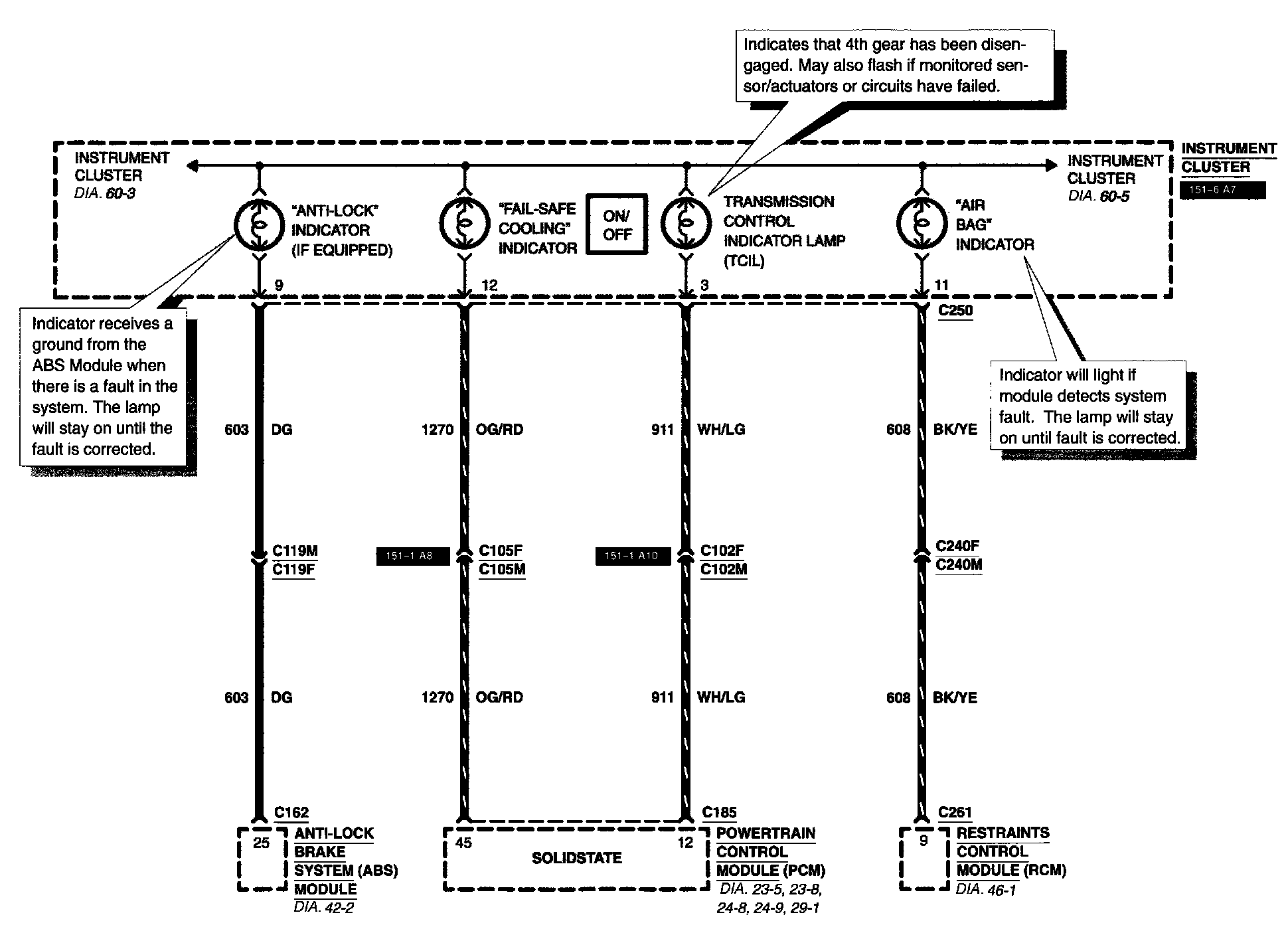

Diagram 60-5:

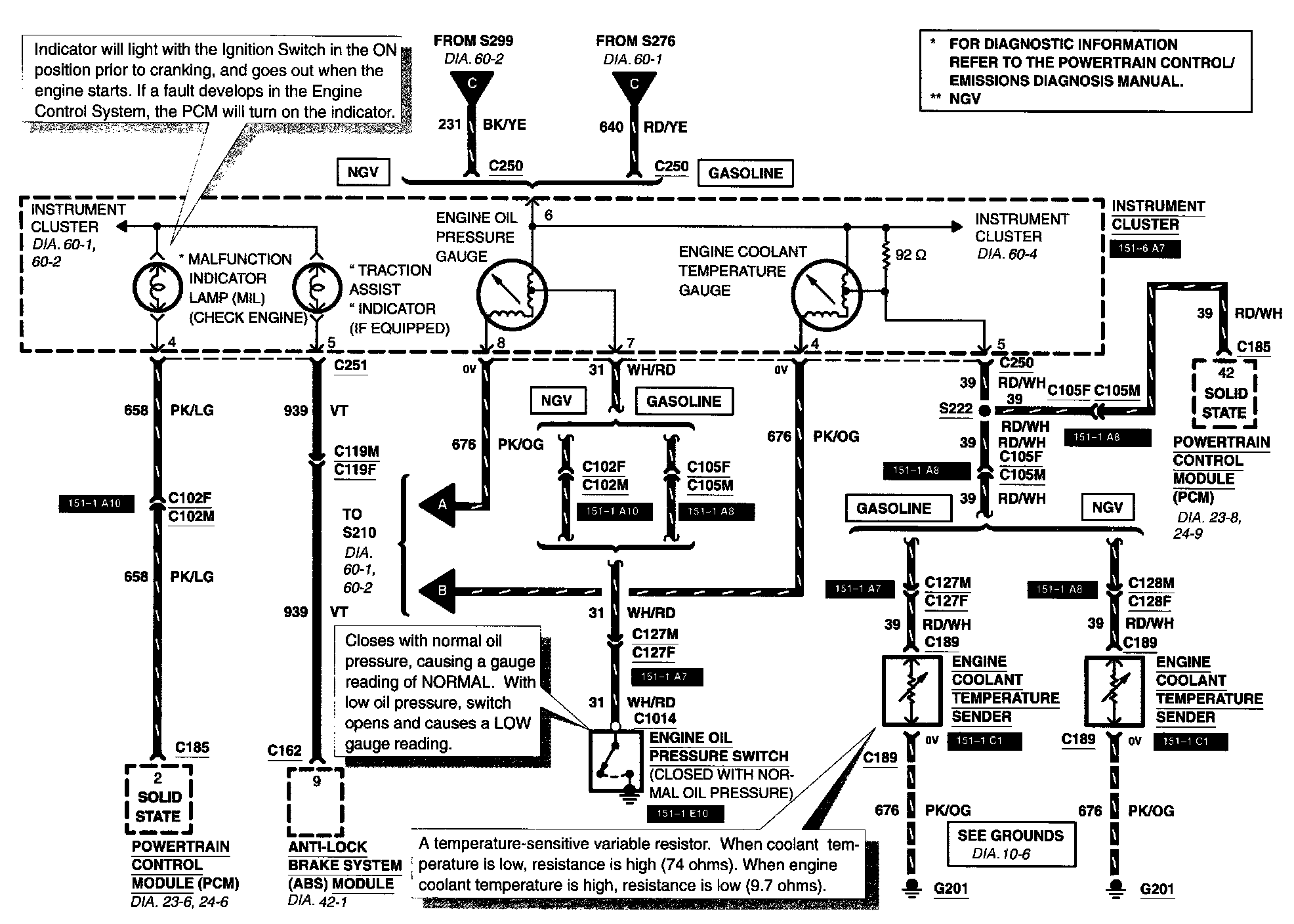

Diagram 60-6:

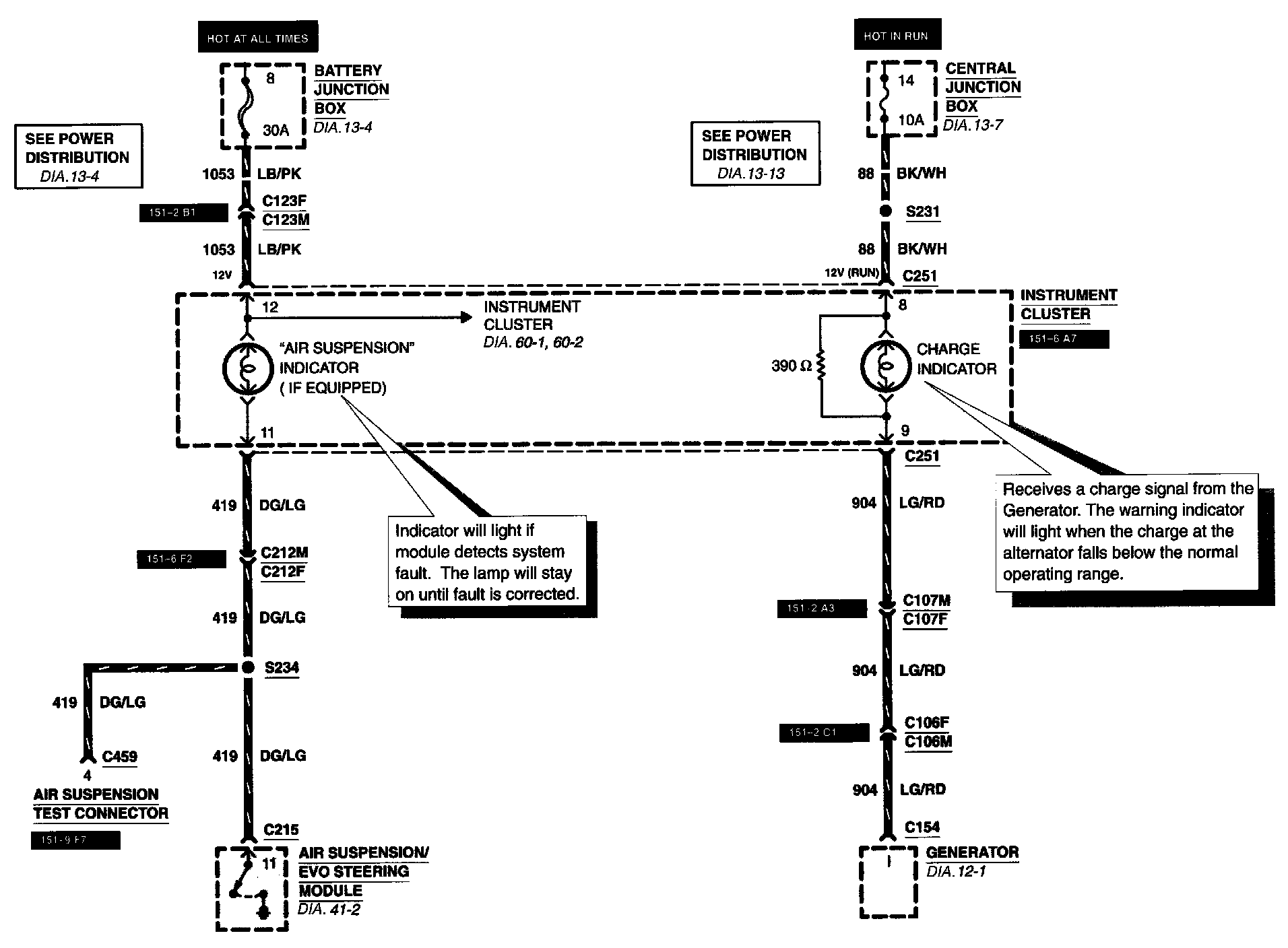

Diagram 60-7:
