Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Compressor HVAC >> System Diagram >> Electronic Automatic Temperature Control

Electronic Automatic Temperature Control

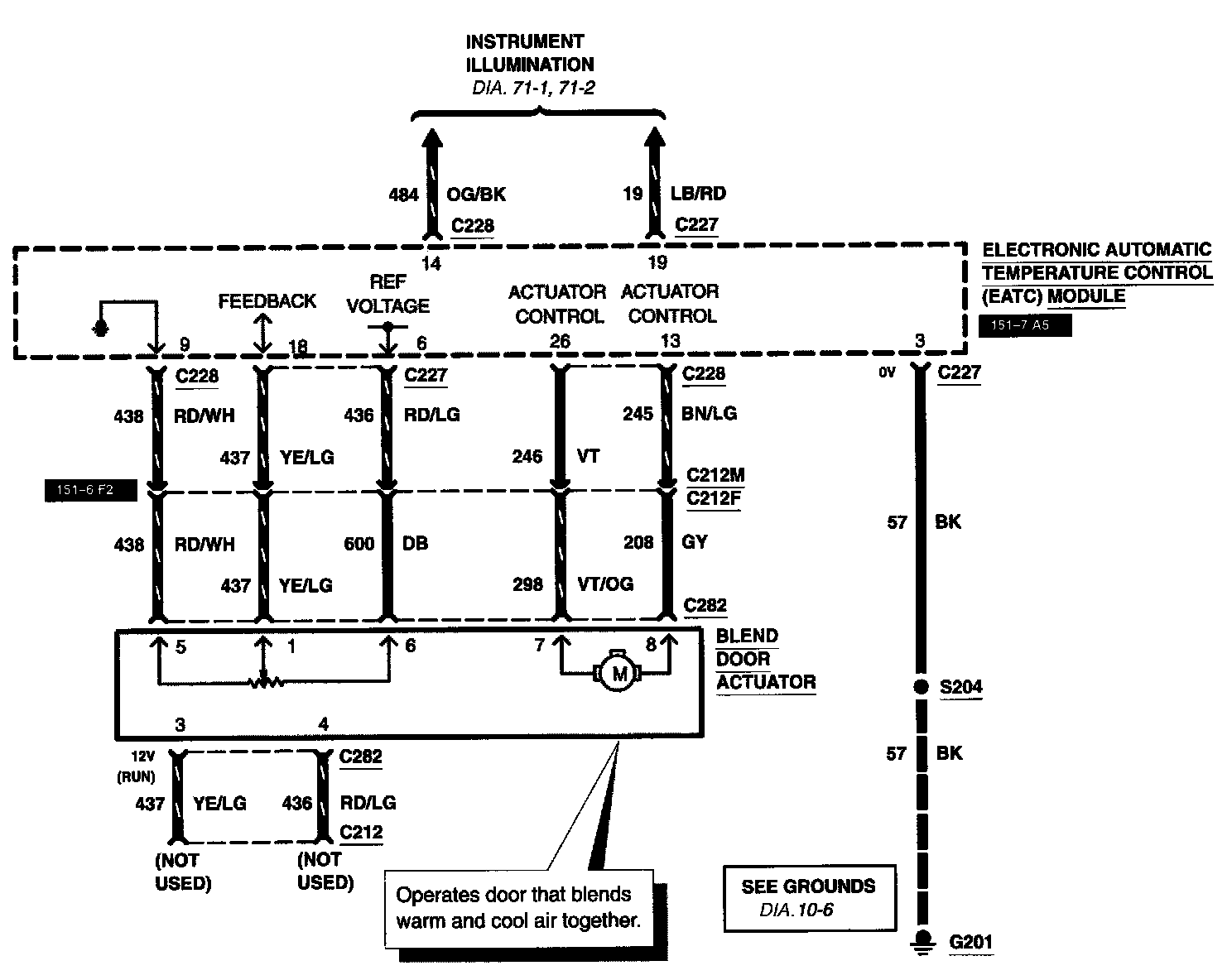

Diagram 55-1:

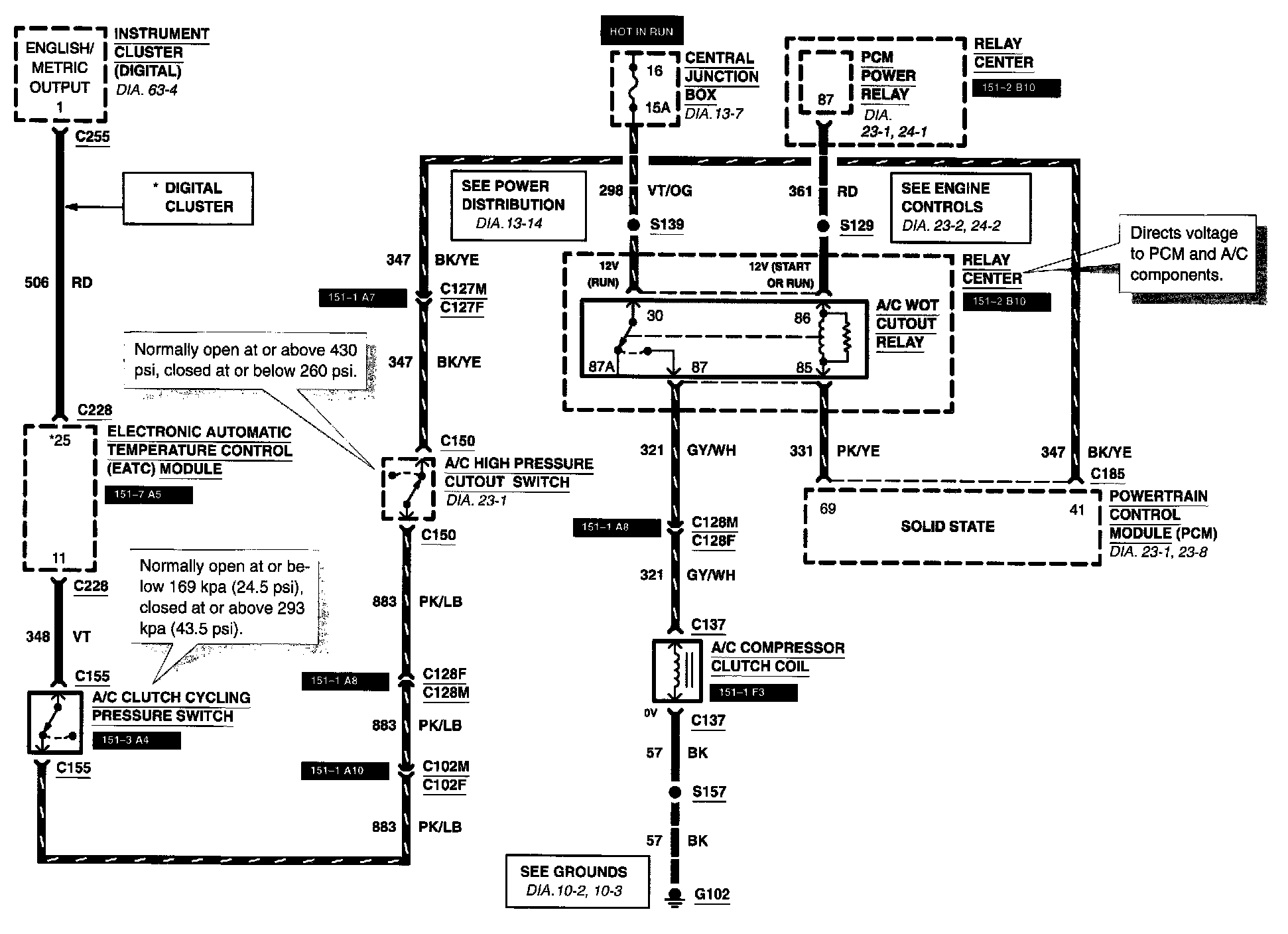

Diagram 55-2:

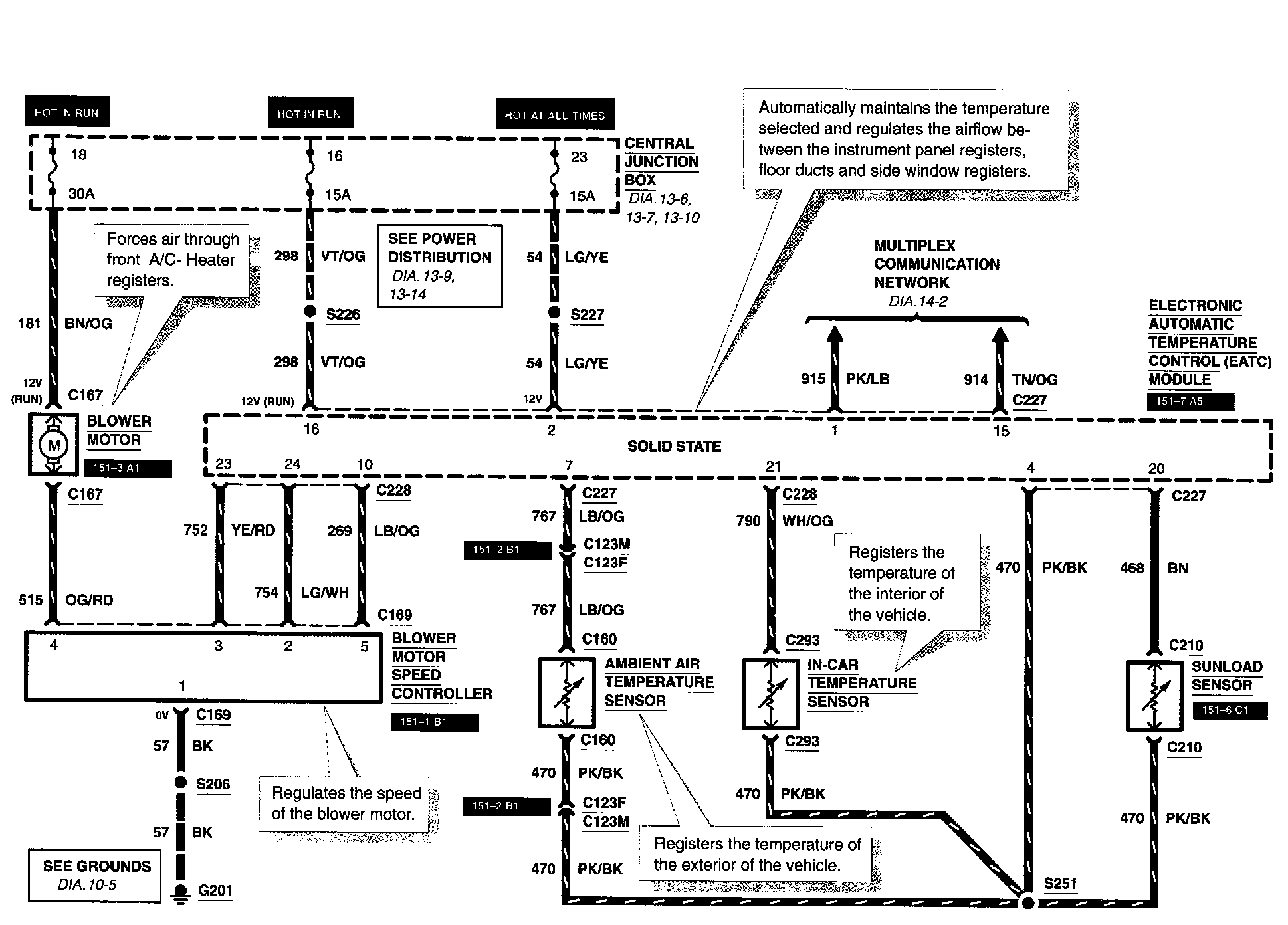

Diagram 55-3:
