Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> Test C: Speed Control Does Not Disengage When The Brakes Are Applied

Test C: Speed Control Does Not Disengage When The Brakes Are Applied

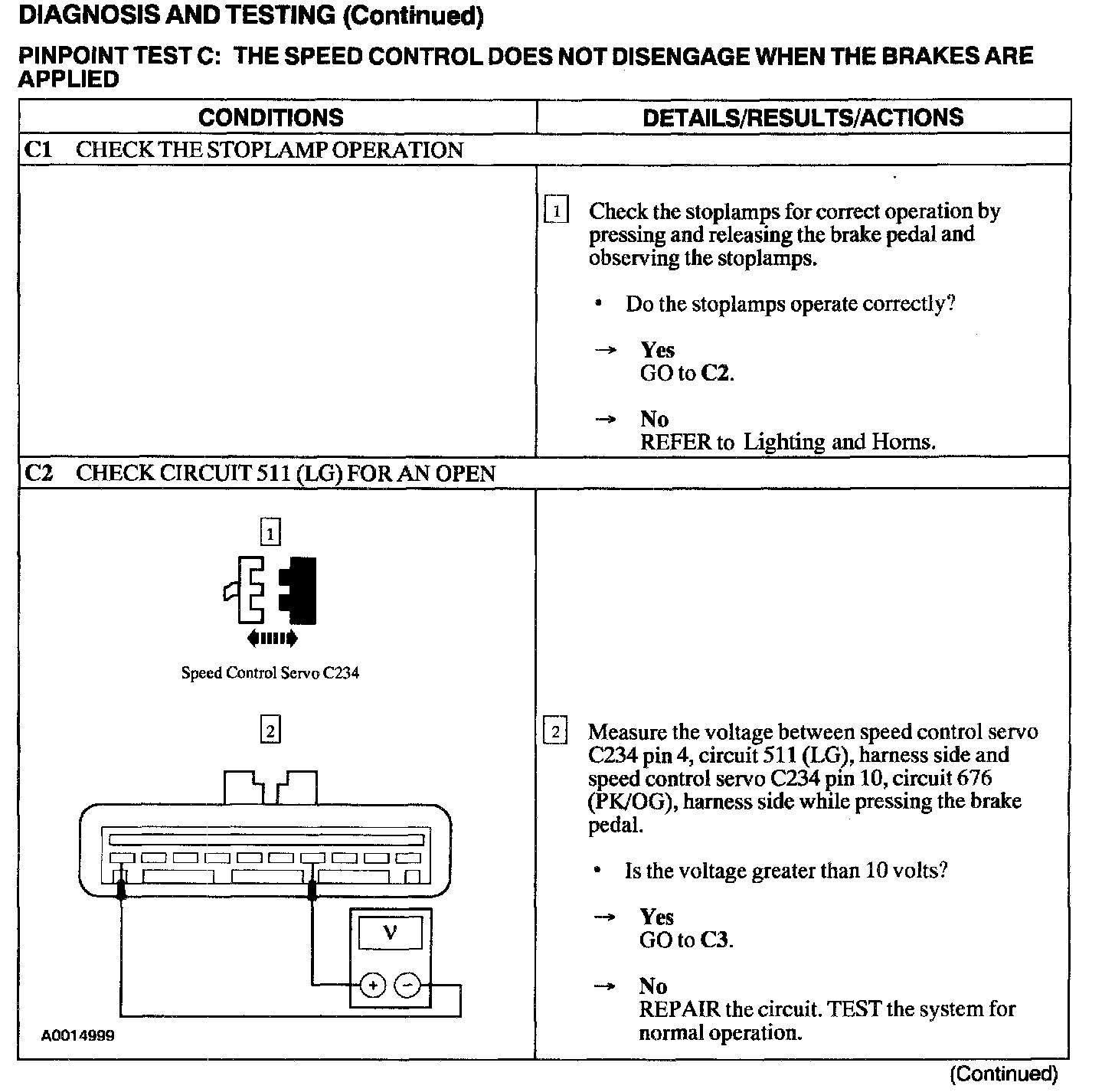

C1 - C2:

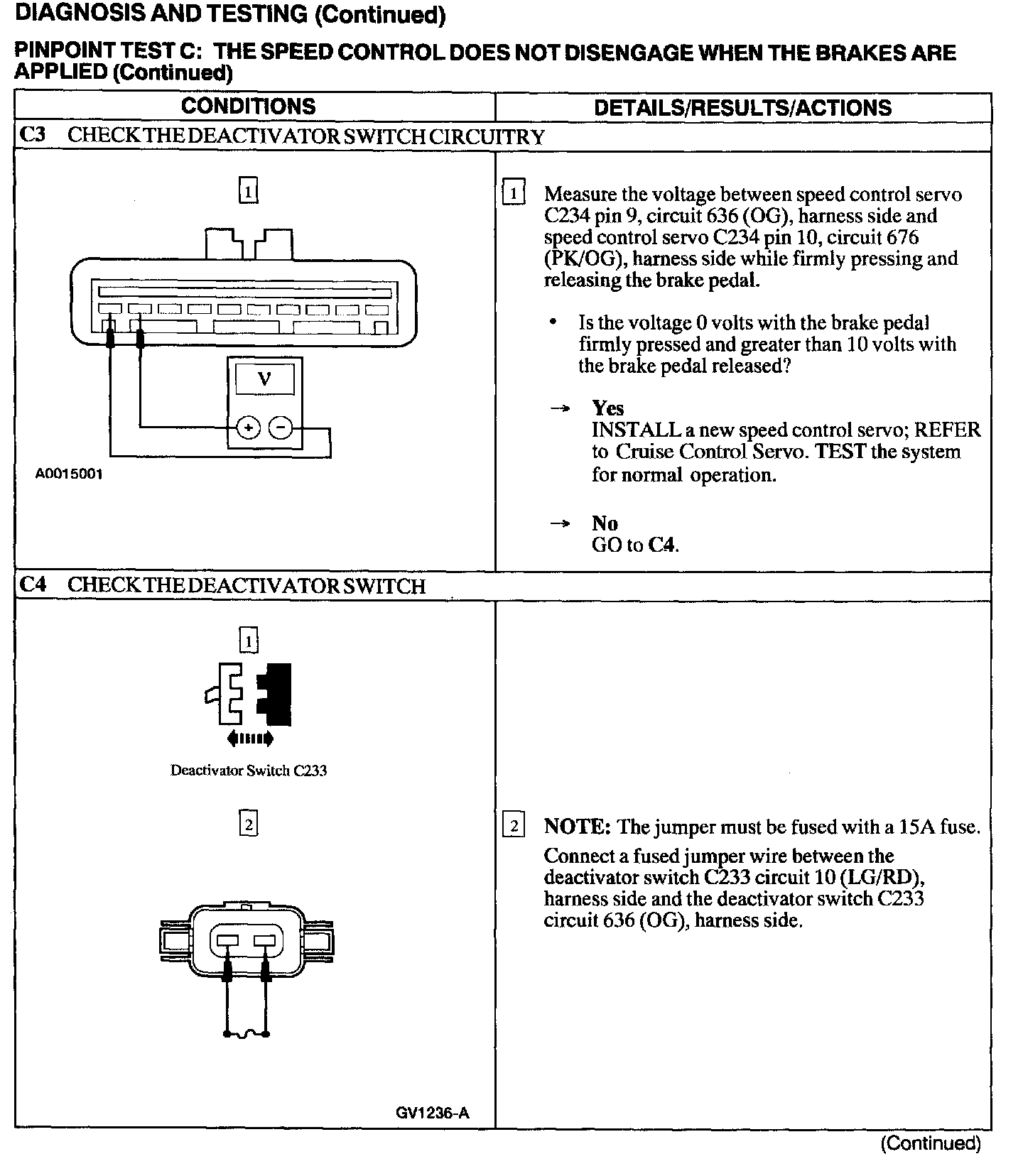

C3 - C4:

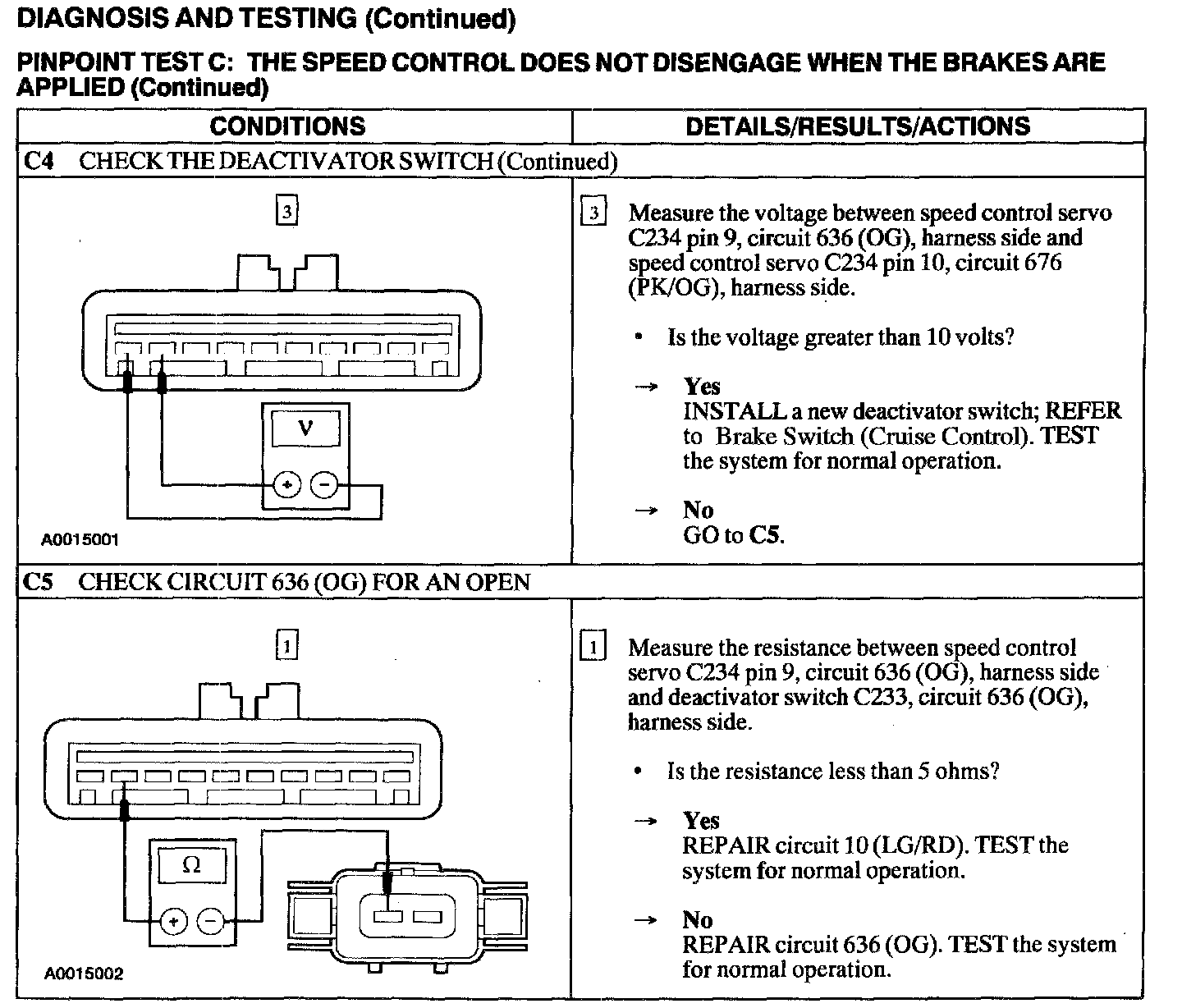

C4 - C5:
