Test D: Adjustable Brake Pedal Not Operate Correctly
Test D: Adjustable Brake Pedal Not Operate Correctly
PINPOINT TEST D: ADJUSTABLE BRAKE PEDAL INOPERATIVE

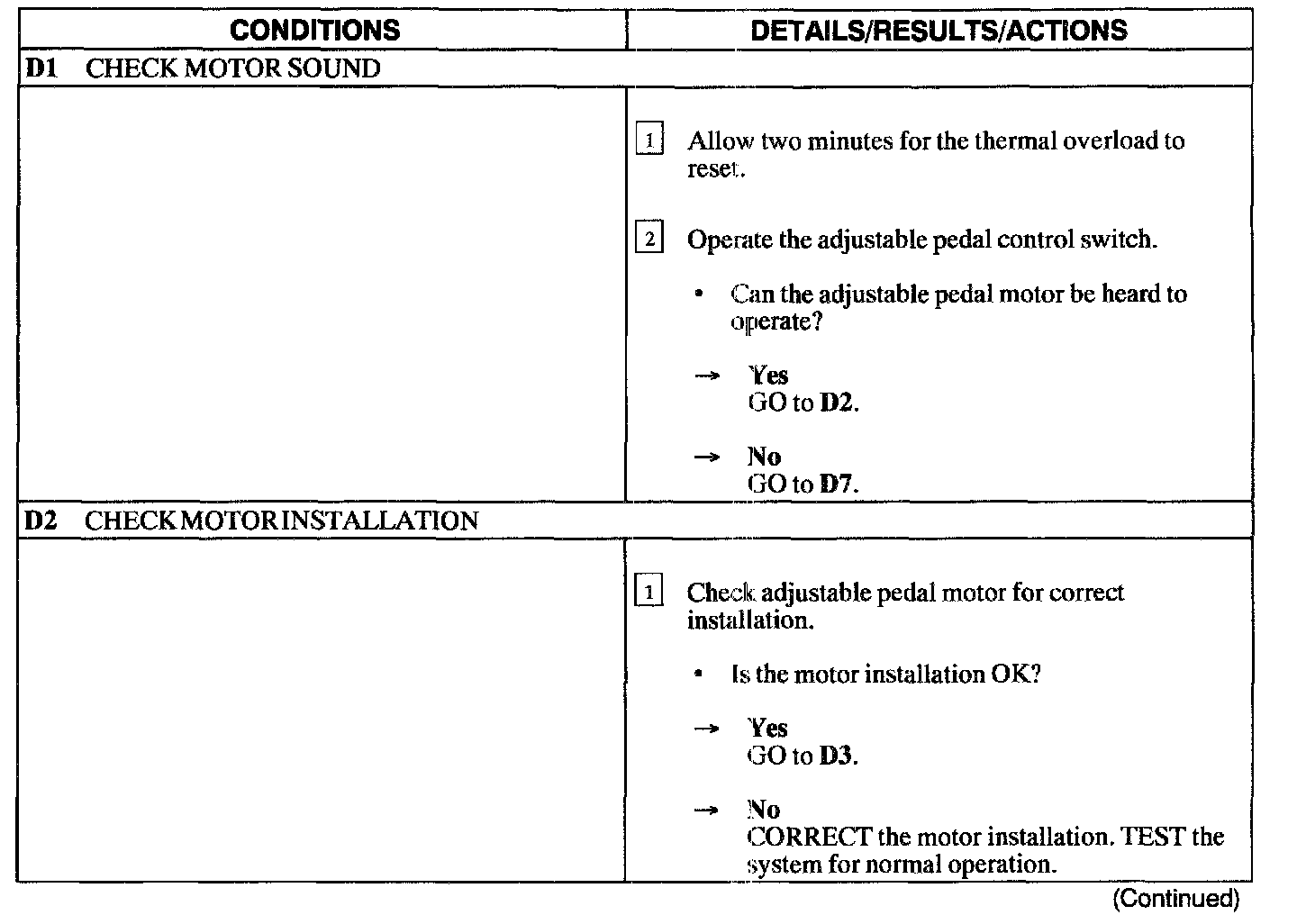

Test D1-D2:

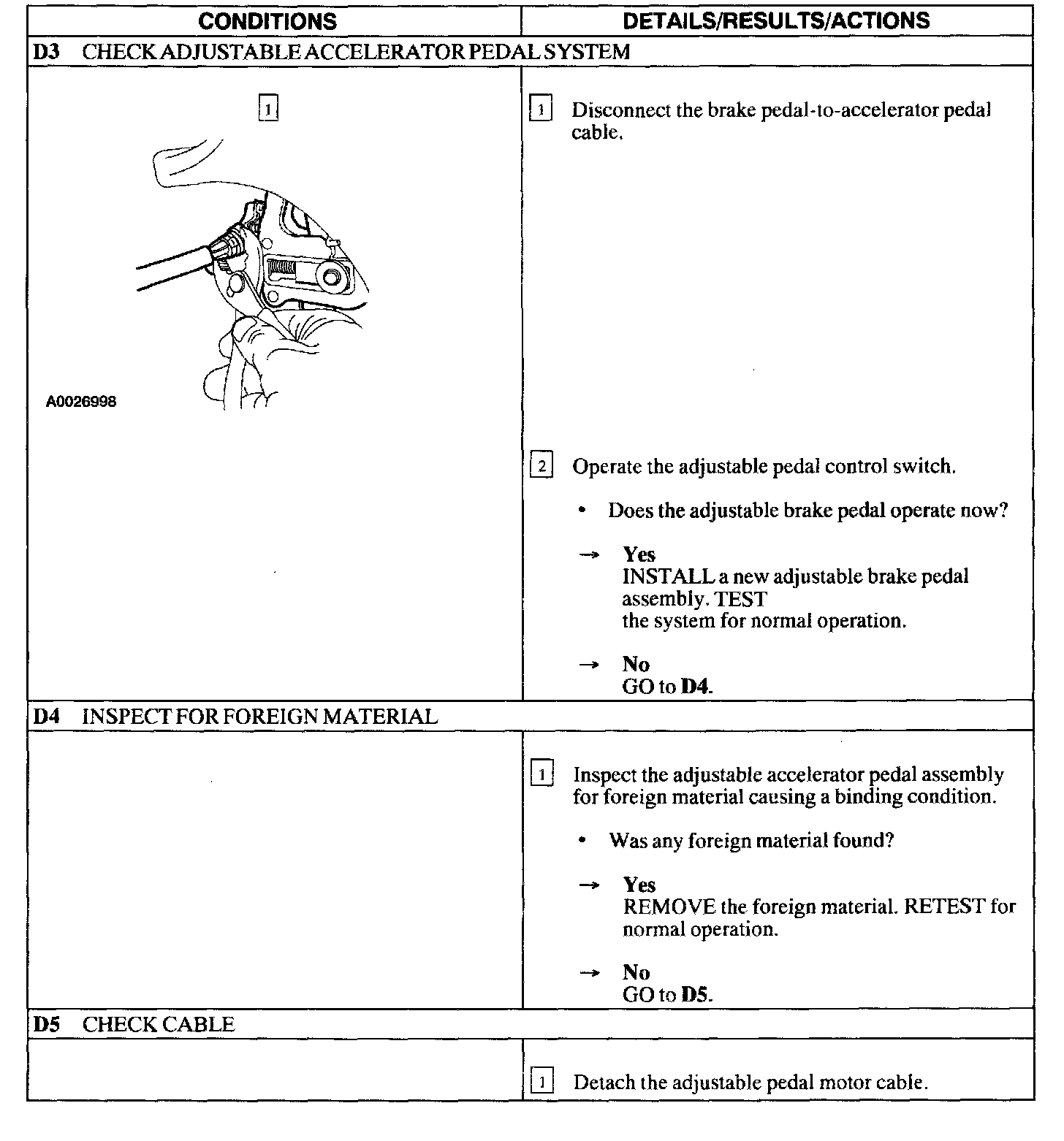

Test D3-D5:

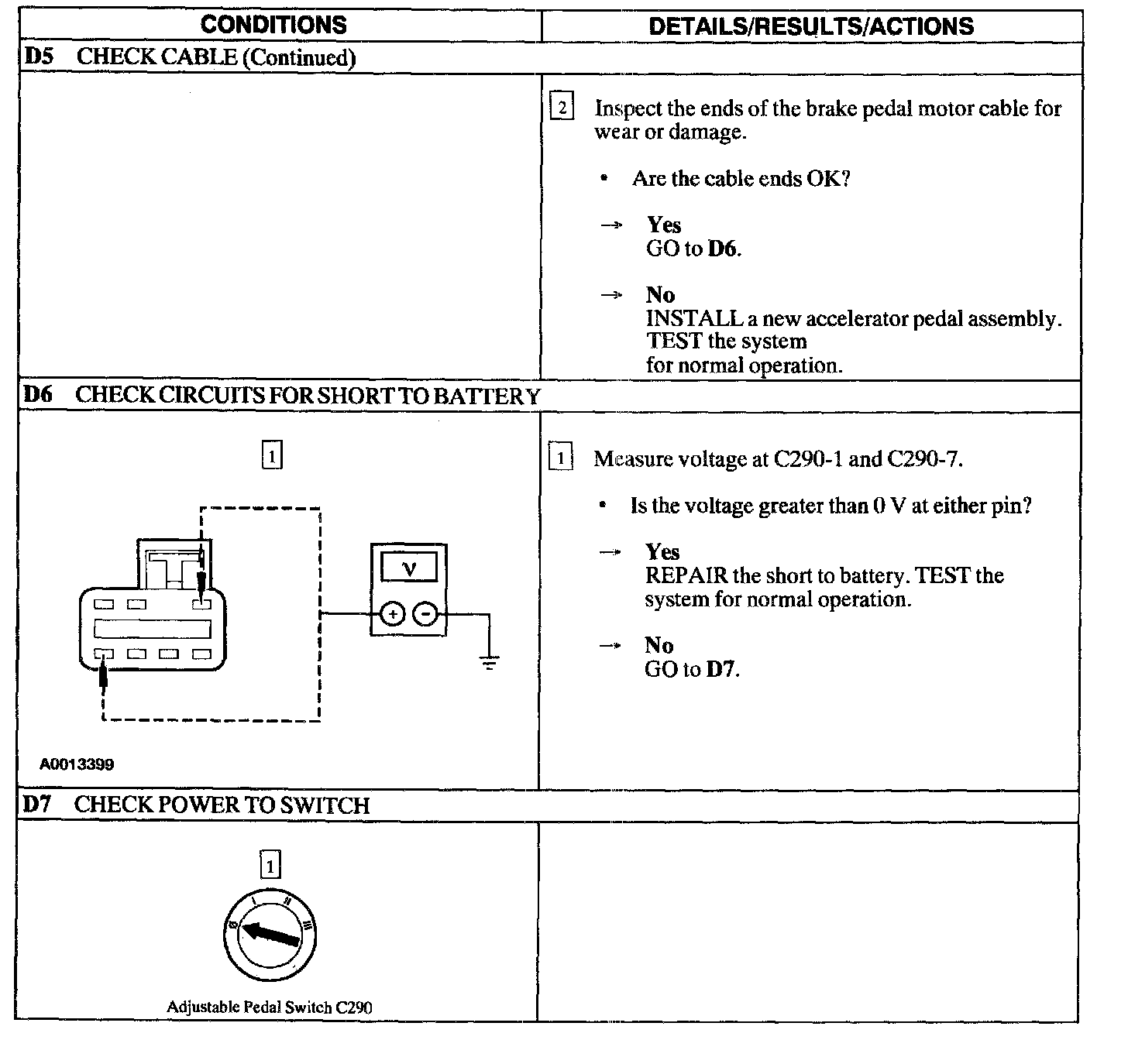

Test D5-D7:

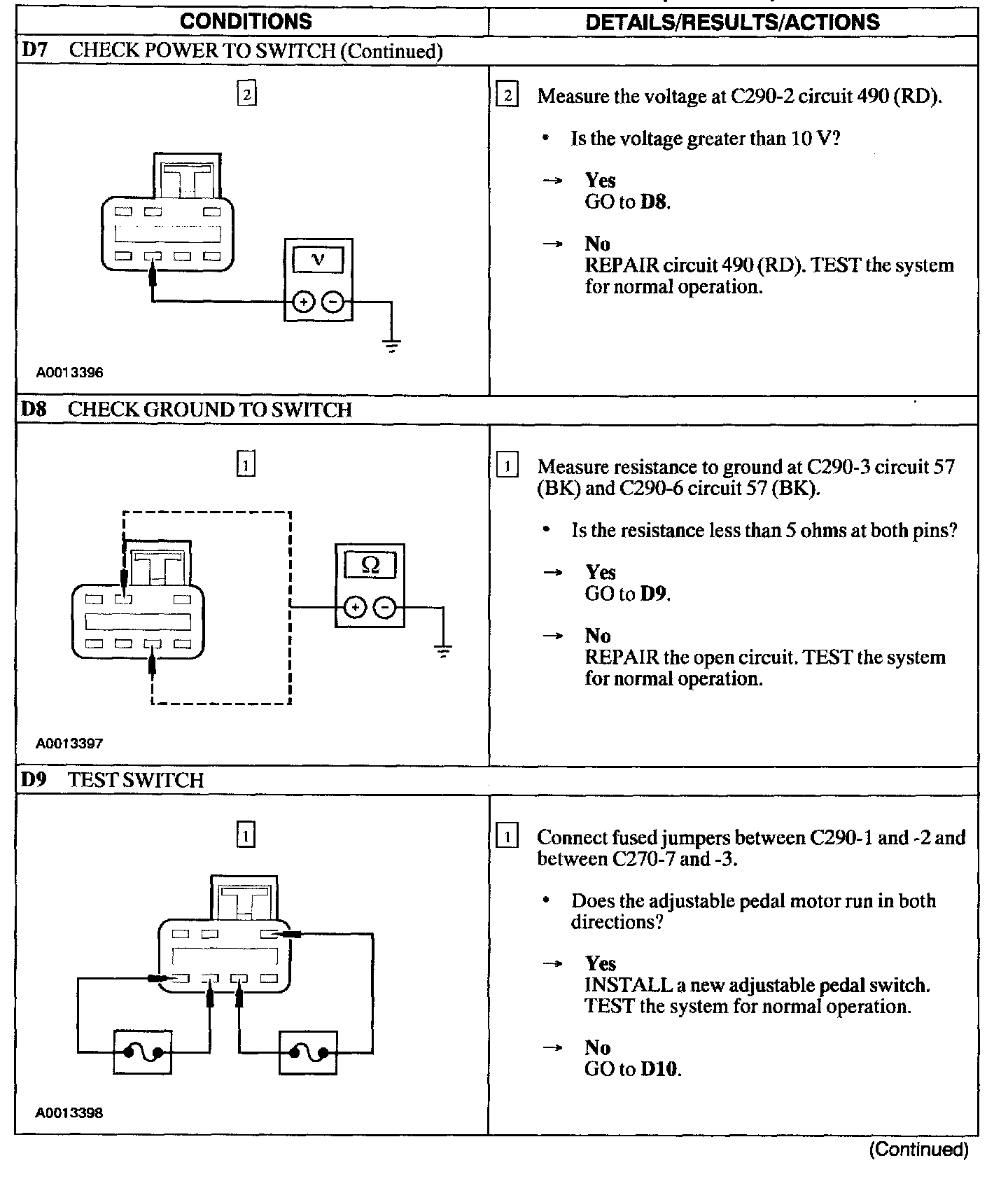

Test D7-D9:

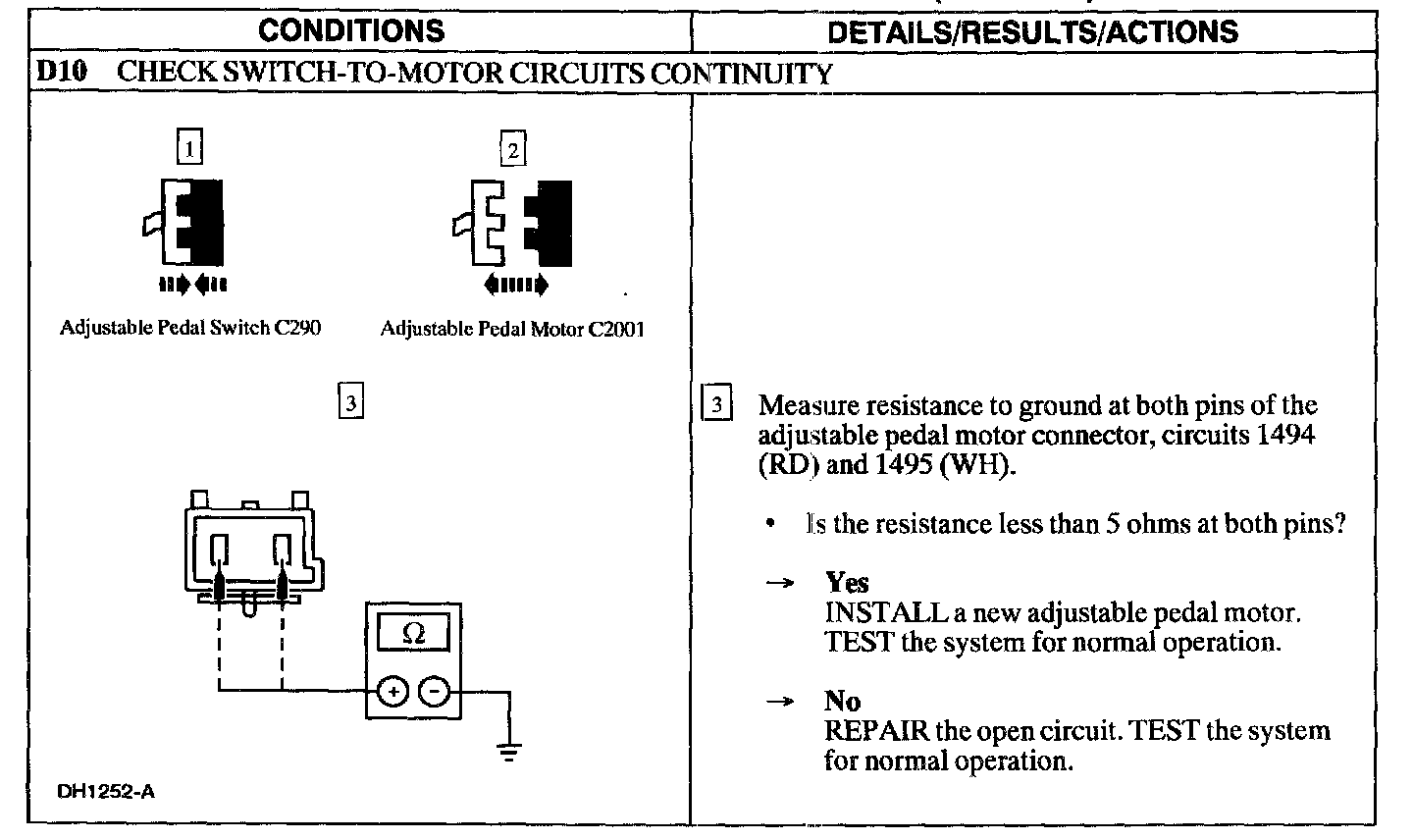

Test D10:
