Initial Inspection and Diagnostic Overview

Inspection and Verification
1. Verify the customer's concern by operating the parking brake system to duplicate the condition.
2. Inspect to determine if one of the following mechanical or electrical concerns applies:

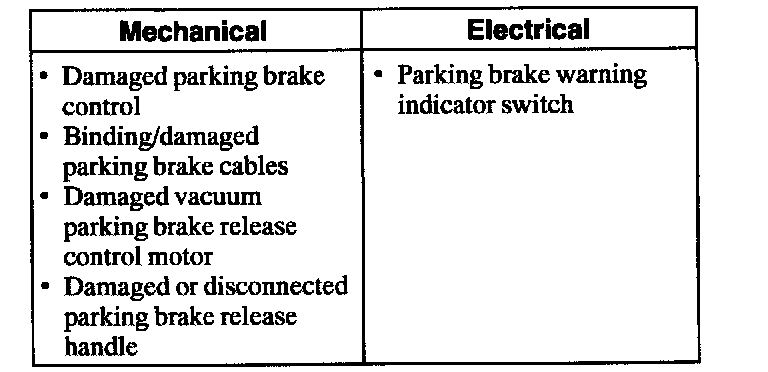

Visual Inspection Chart:

Visual Inspection Chart

3. If inspection reveals obvious concern(s) that can be readily identified, repair as required.
4. If the concerns remain after the inspection, determine the symptoms and go to the symptom Symptom Related Diagnostic Procedures
