Rear Disc Brake Adapter

Adapter
Removal
1. Disconnect the rear parking brake cable and conduit.
2. Remove the axle shaft.





3. WARNING: To avoid injury when using air tools, do not hold flag nuts with fingers.

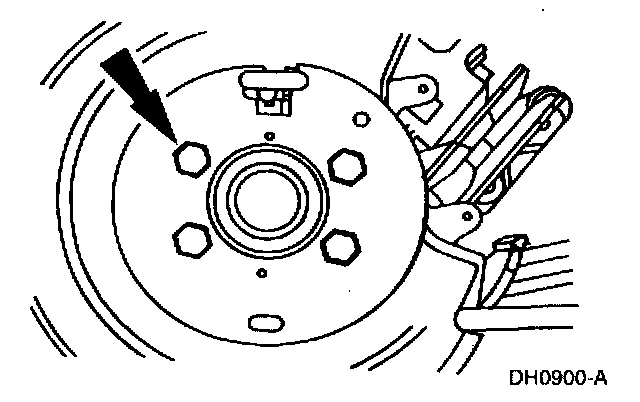

Remove the bolts and the rear wheel disc brake adapter.


Installation

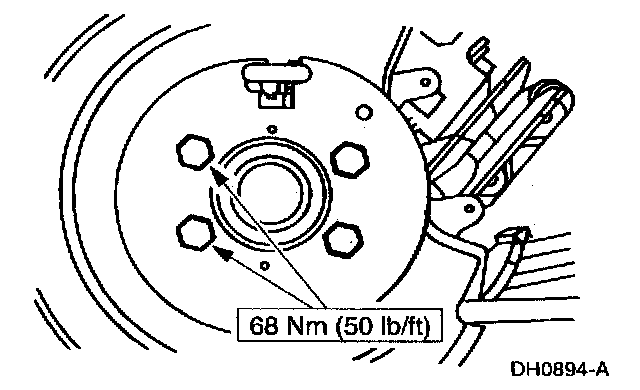

1. Follow the removal procedure in reverse order.
