Brake Caliper Anchor Plate

Break Caliper Anchor Plate
Removal
1. Remove the pads.

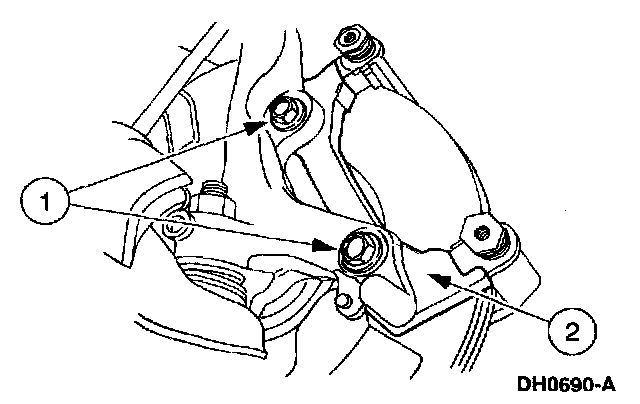

2. Remove the front disc brake caliper anchor plate.
1. Remove and discard the two front disc brake caliper anchor plate bolts.
2. Remove the front disc brake caliper anchor plate.

Installation





1. CAUTION: Use correct type and length bolts.

Follow the removal procedure in reverse order.

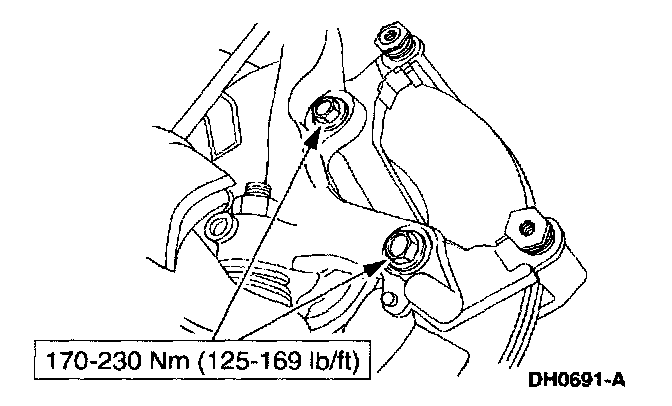

^ Install new front disc brake caliper anchor plate bolts.
