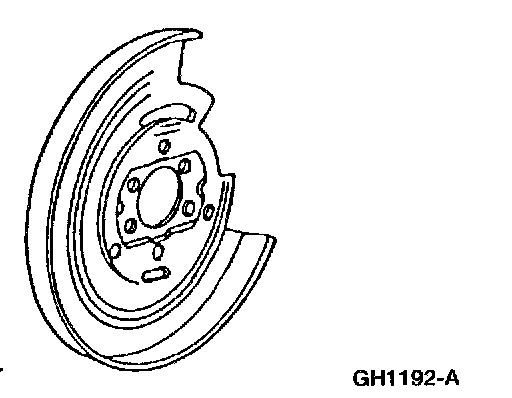

Brake Disc Shield

Shield
Removal
1. Remove the rear wheel disc brake adapter.





2. Remove the rear wheel brake disc shield.

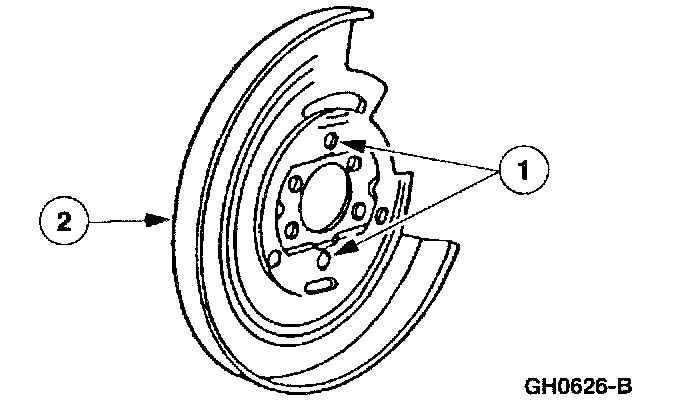

1. Drill out the rivets.
2. Remove the rear wheel brake disc shield.


Installation





1. NOTE: Because the rear wheel brake disc shield is held in position by the four rear wheel disc brake adapter bolts, new rivets are not required.

Seal the rivet holes with Clear Silicone Rubber D6AZ-19562-AA or equivalent meeting Ford specification ESB-M4G92-A, and install the rear wheel disc brake shield.
2. Install the rear wheel disc brake adapter.
