Brake Disc Shield

Shield
Removal
1. Remove the front disc brake rotor.
2. Unclip the anti-lock harness from the front disc brake shield.





3. Remove the front disc brake shield.

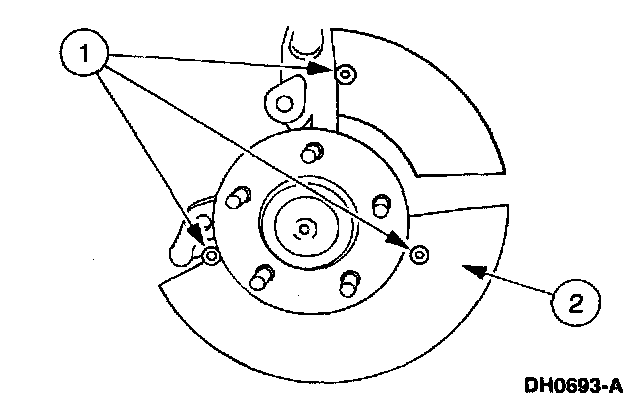

1. Drill out three front disc brake shield rivets.
2. Remove the front disc brake shield.


Installation





1. Install the front disc brake shield.

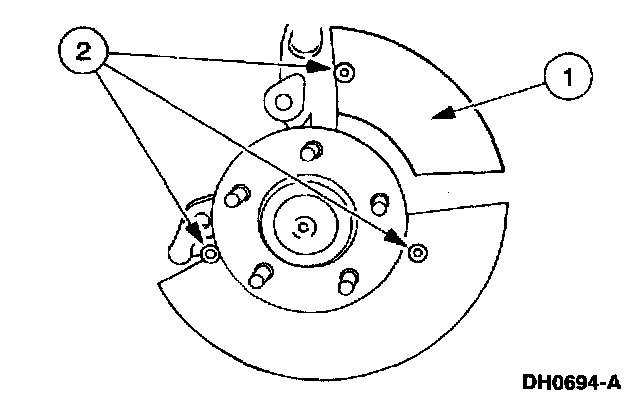

1. Position the front brake shield.
2. Secure with three rivets.
2. Clip the anti-lock harness to the front disc brake shield.
3. Install the front disc brake rotor.
