Rear

Removal

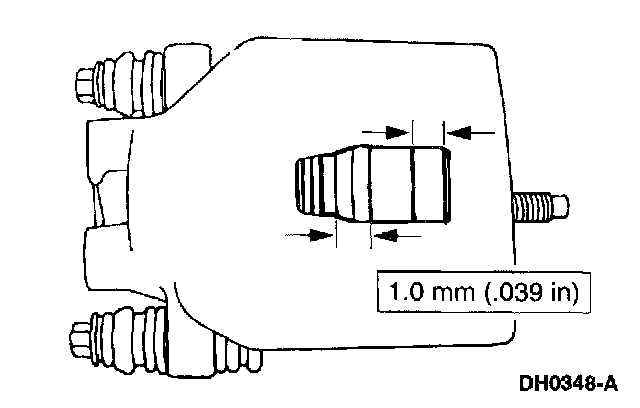

1. Inspect the brake pads for wear or contamination. Install new if worn to or past specification.

2. NOTE: It is not necessary to remove the rear wheel brake hose when performing this procedure.

Remove the rear disc brake caliper.





3. CAUTION: Do not allow grease, oil, brake fluid or other contaminants to contact the brake pads.

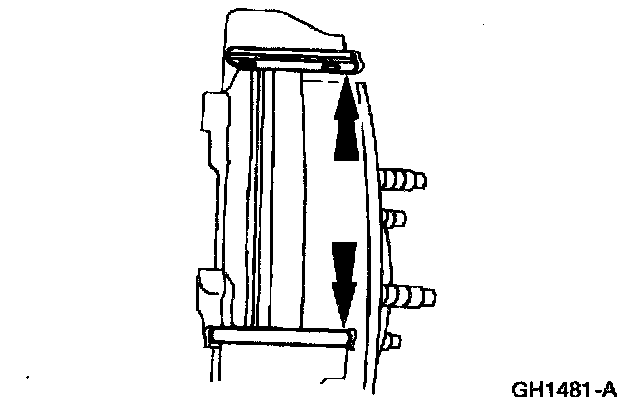

Remove the brake pads by pushing inward and rotating the pad up.





4. NOTE: Use a block of wood or used pad to protect the piston and boots.

Retract the caliper piston into the rear disc brake caliper.





5. Make sure the slippers are clean and in good condition.


Installation





1. CAUTION: Install the brake pads in full axle sets. Do not install new brake pads on only one side of vehicle.

Install the brake pads.
2. Install the rear disc brake caliper.
3. Verify correct brake operation.
