N: No Communication With Hybrid Electronic Cluster (HEC)

PINPOINT TEST N: NO COMMUNICATION WITH THE MODULE - HYBRID ELECTRONIC CLUSTER (HEC)

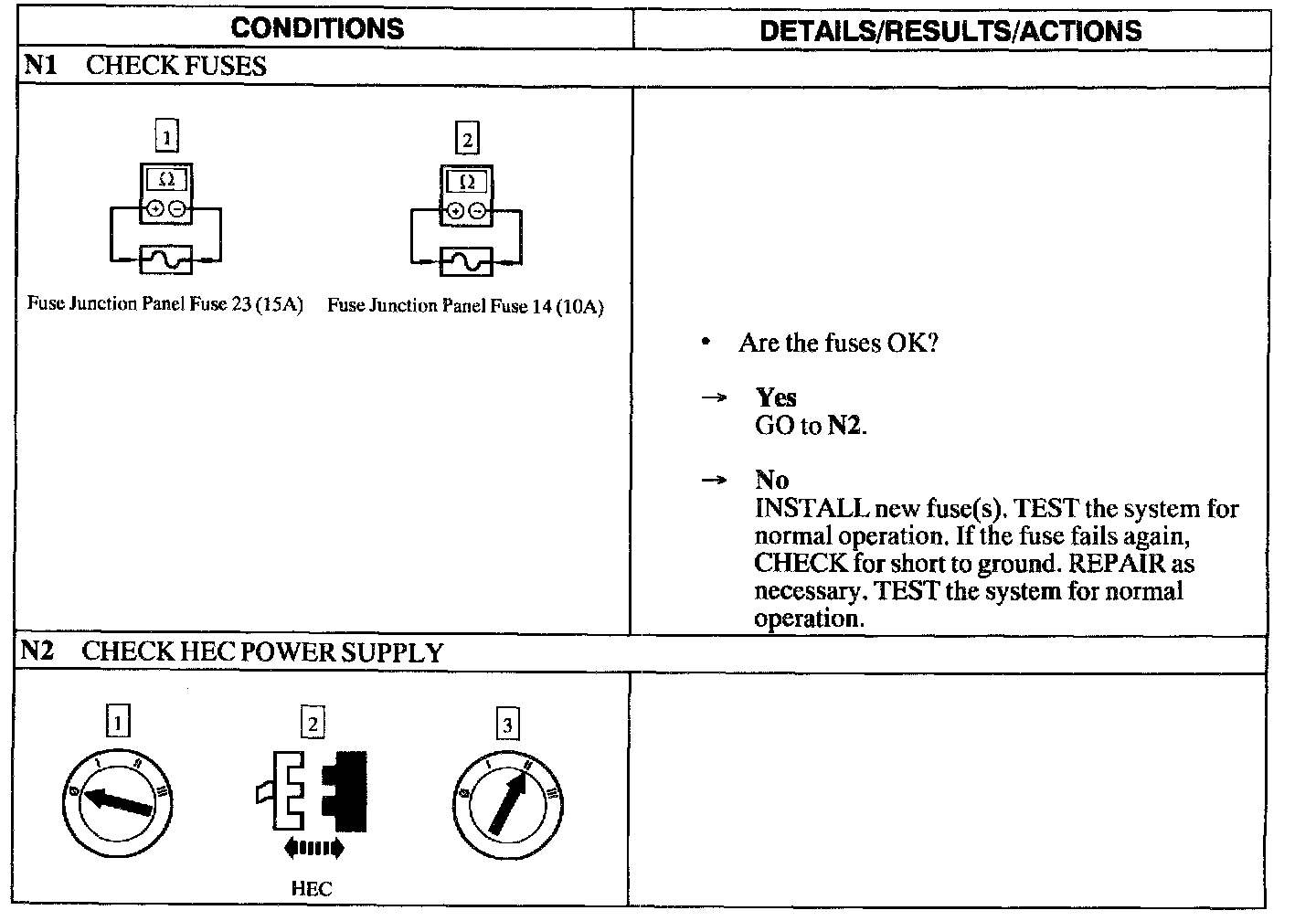

Test N1-N2:

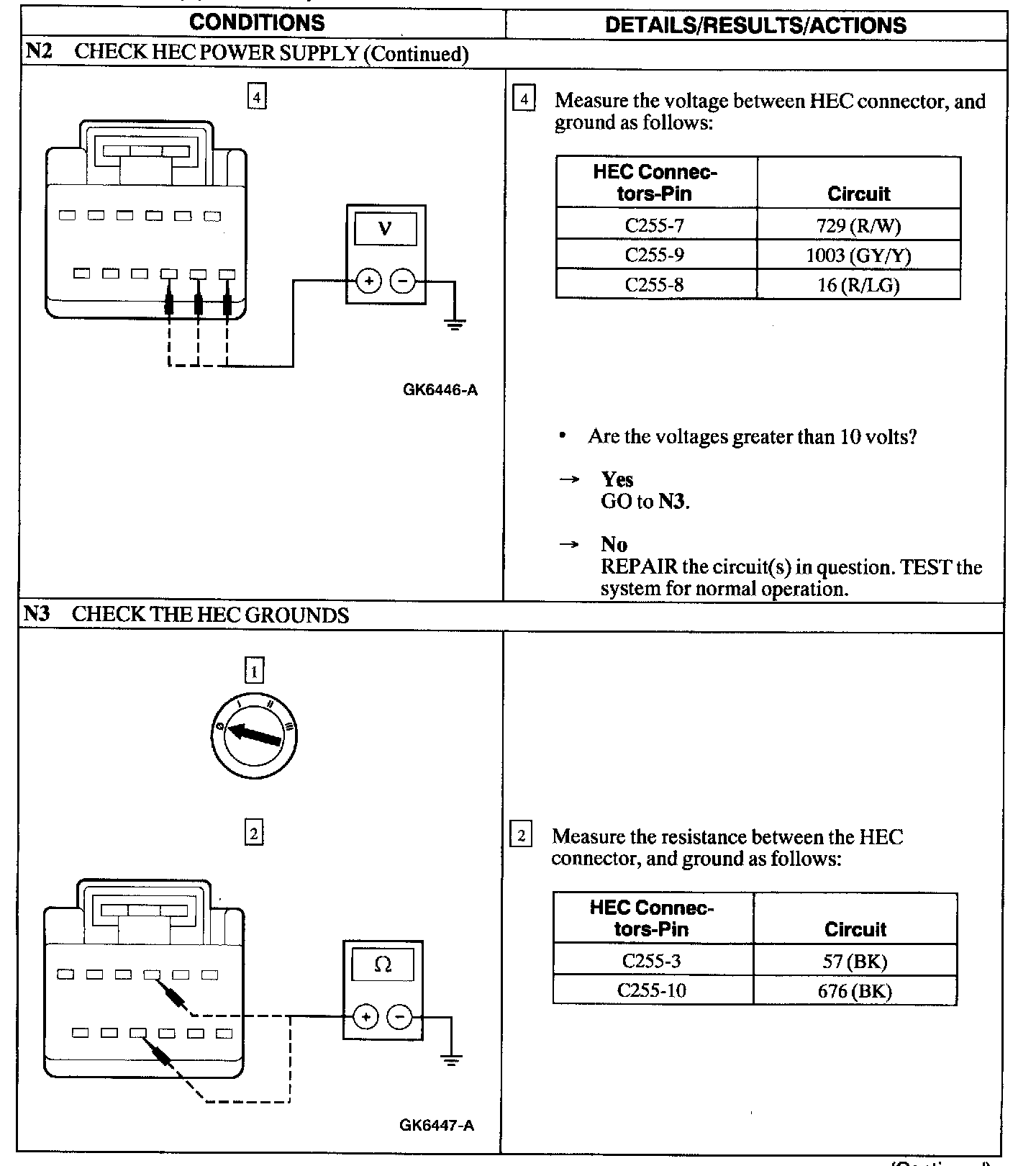

Test N2-N3:

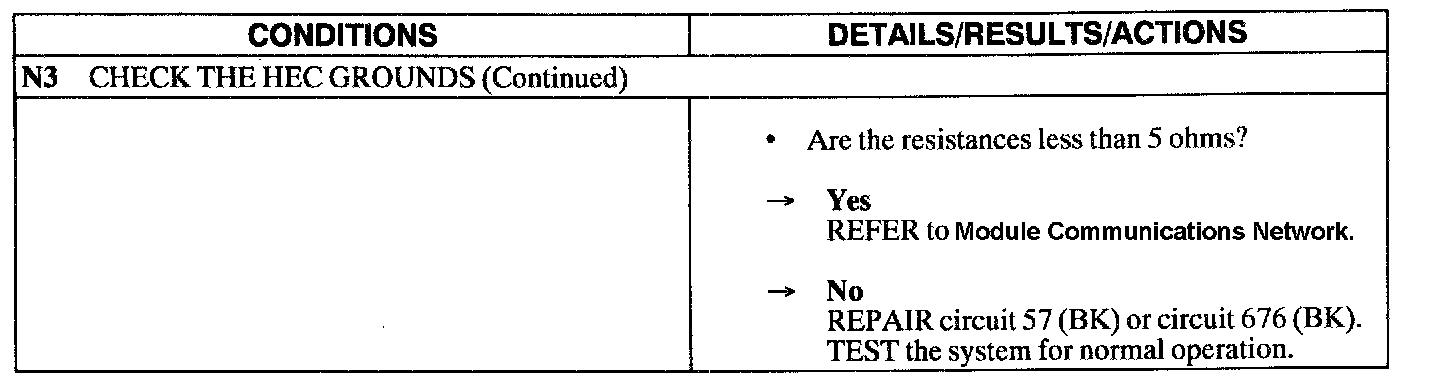

Test N3 Continued:
