Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Test H: Power Lumbar Is Inoperative-Passenger Seat

Test H: Power Lumbar Is Inoperative-Passenger Seat

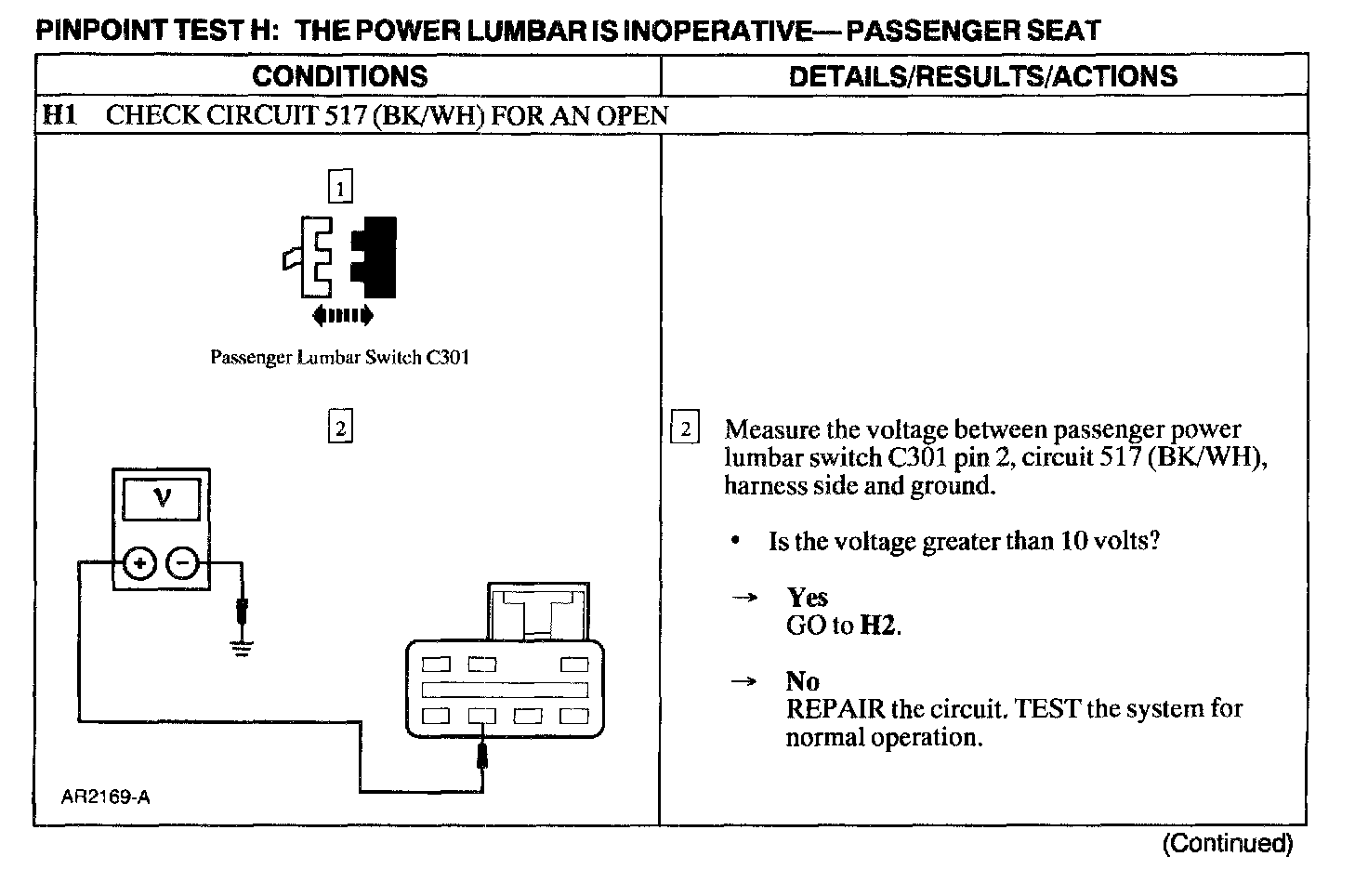

H1:

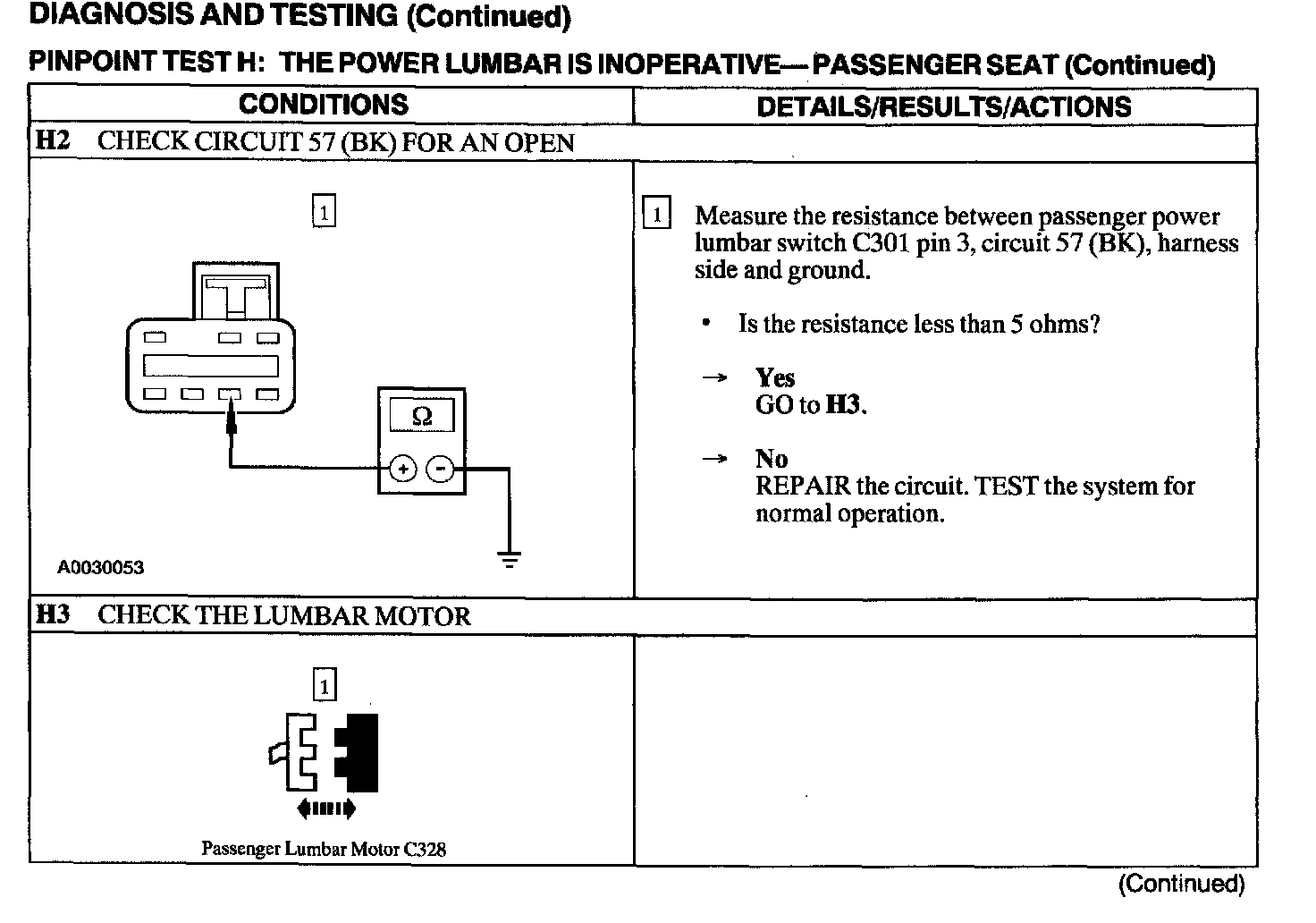

H2 - H3:

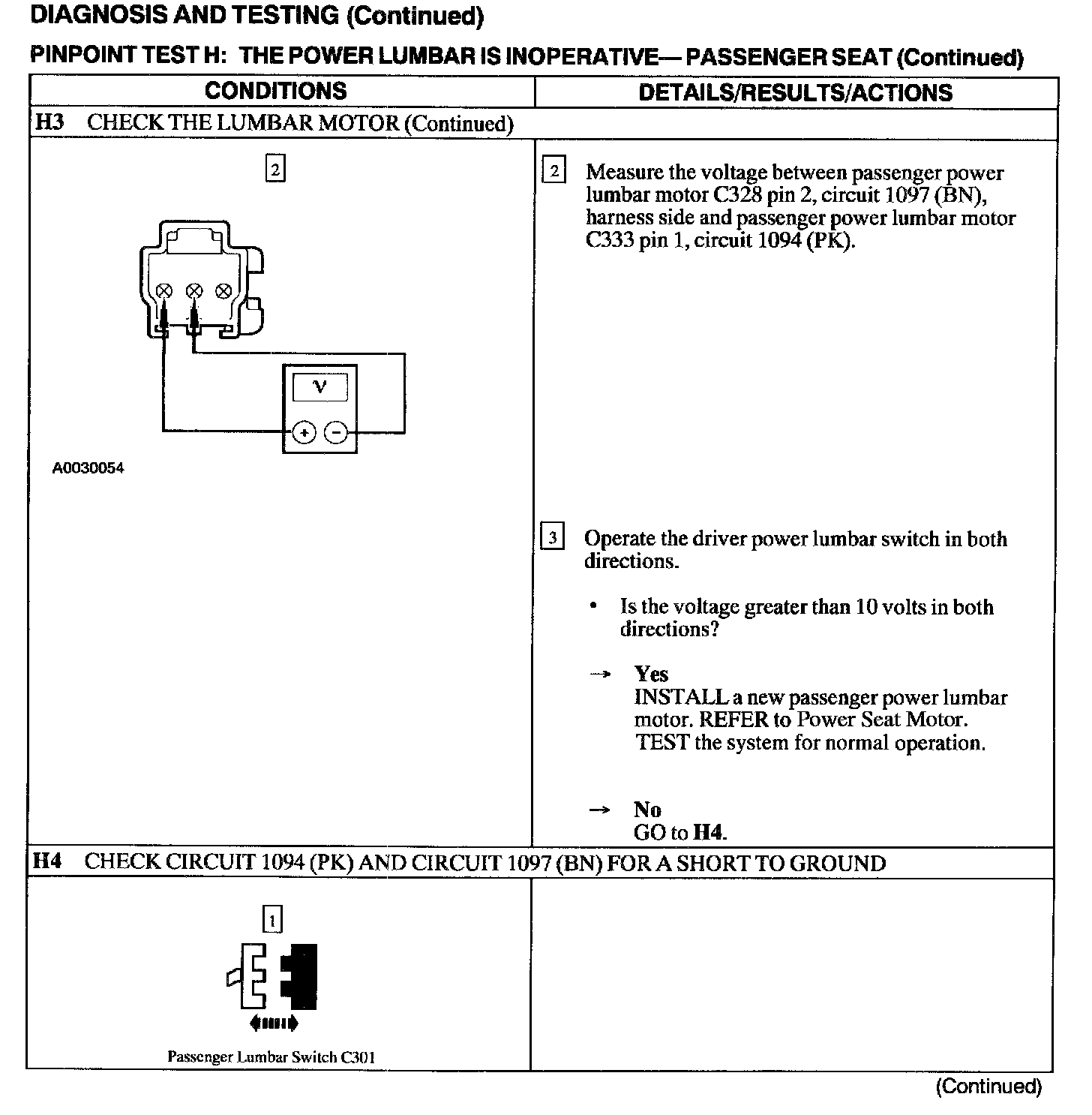

H3 - H4:

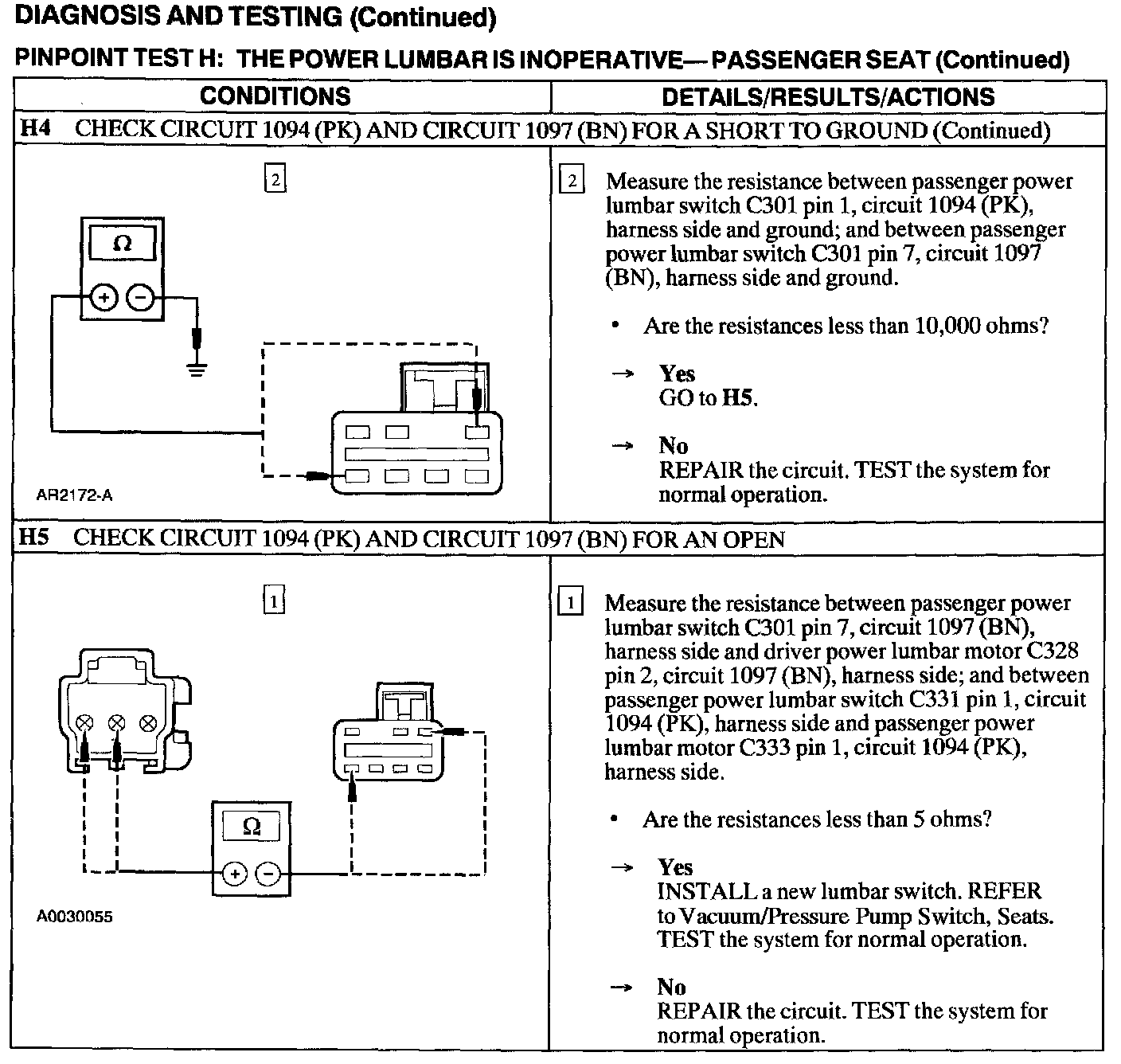

H4 - H5:
