Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Test D: Power Seat Does Not Move Horizontally/Vertically-Passenger Seat

Test D: Power Seat Does Not Move Horizontally/Vertically-Passenger Seat

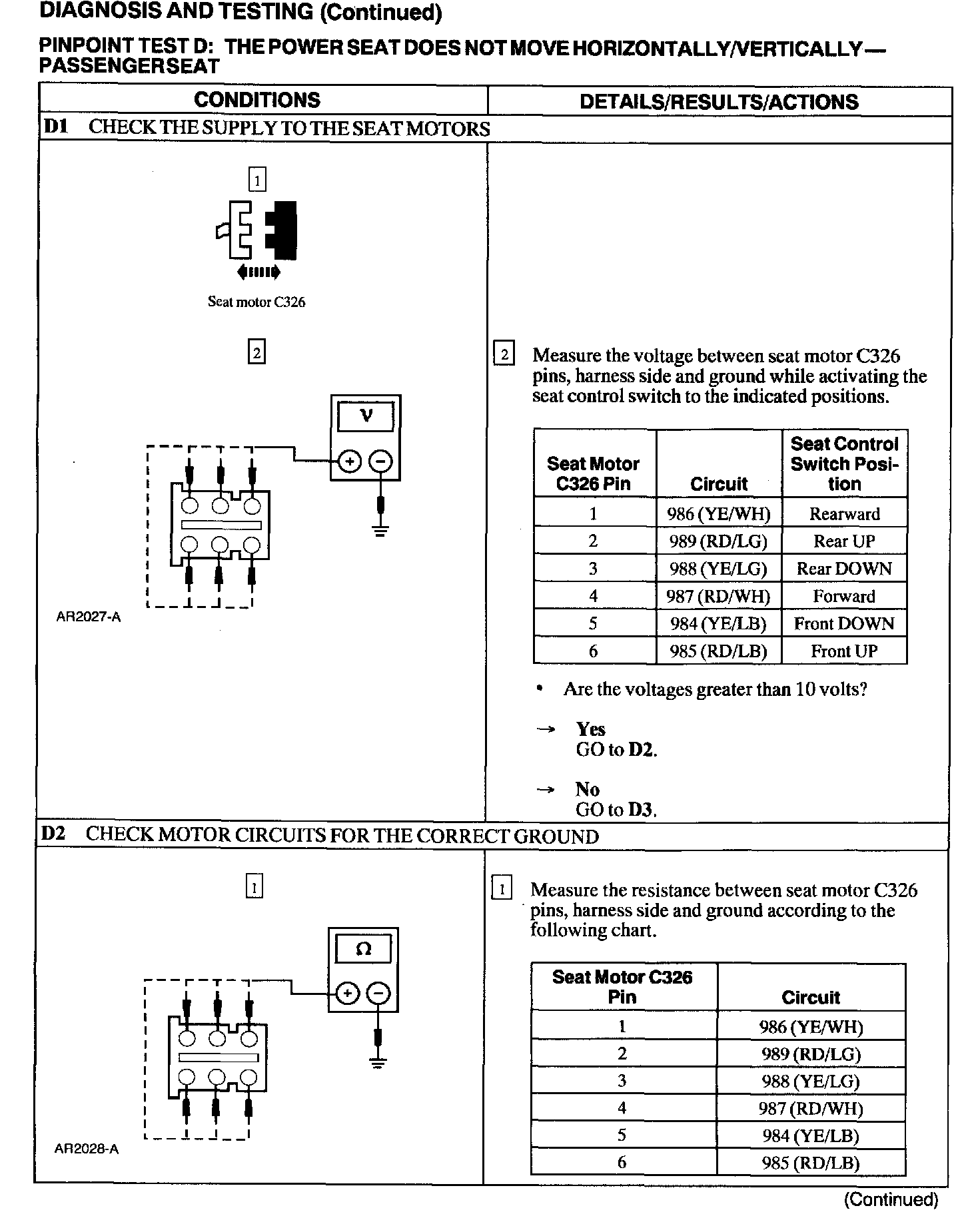

D1 - D2:

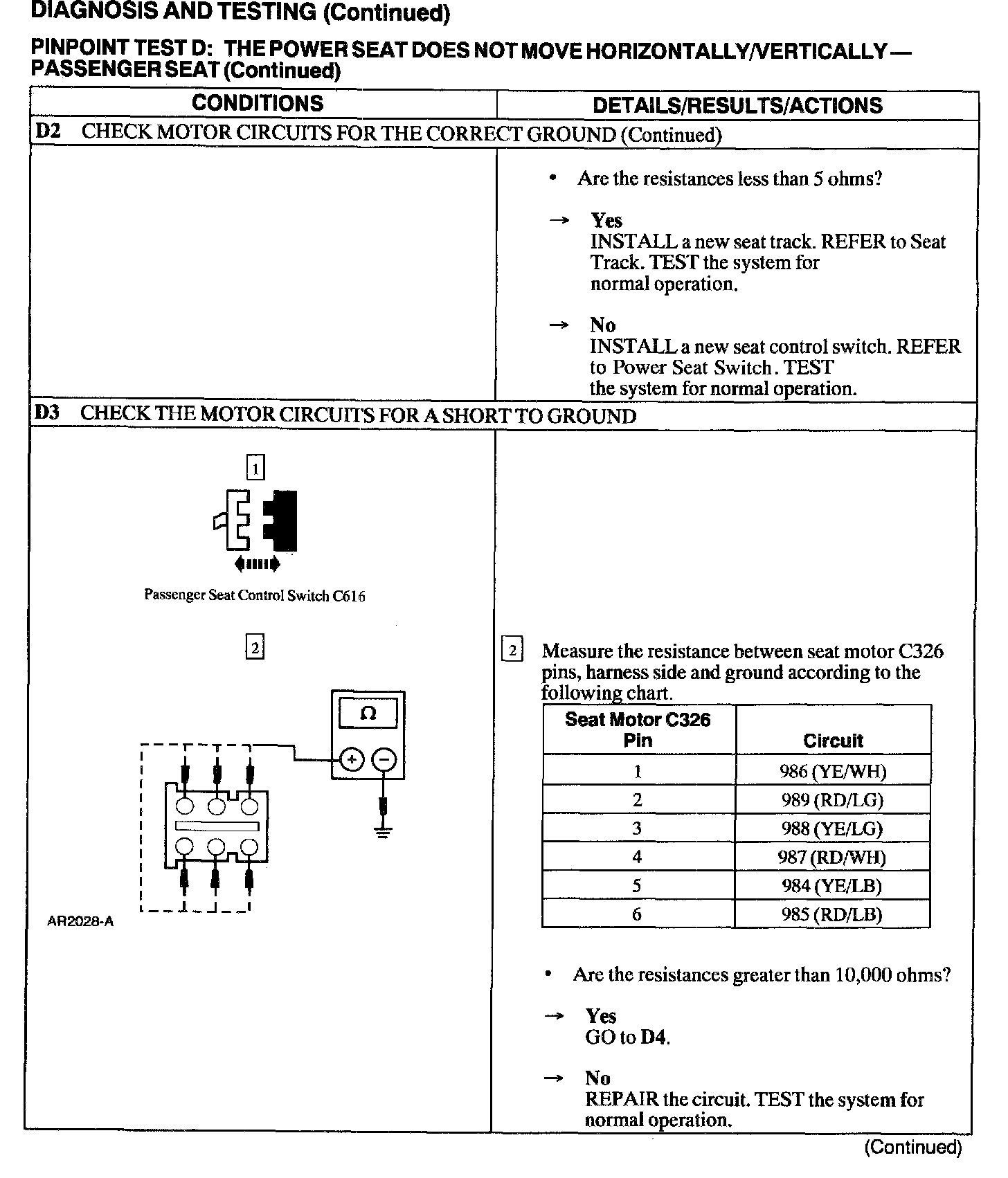

D2 - D3:

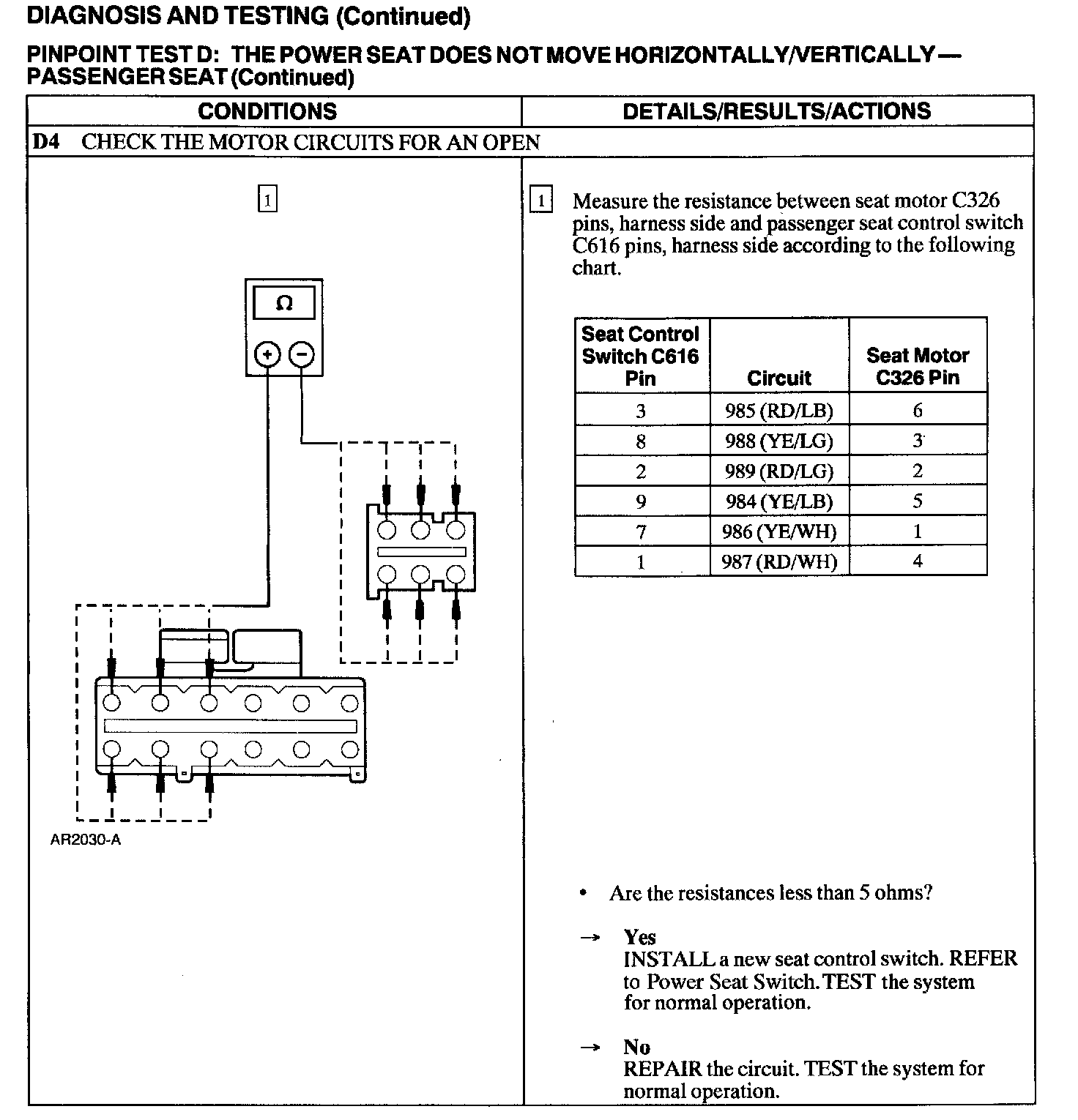

D4:
