Test C: Power Seat Does Not Move Horizontally/Vertically- Driver Seat With Power Recline
Test C: Power Seat Does Not Move Horizontally/Vertically- Driver Seat With Power Recline

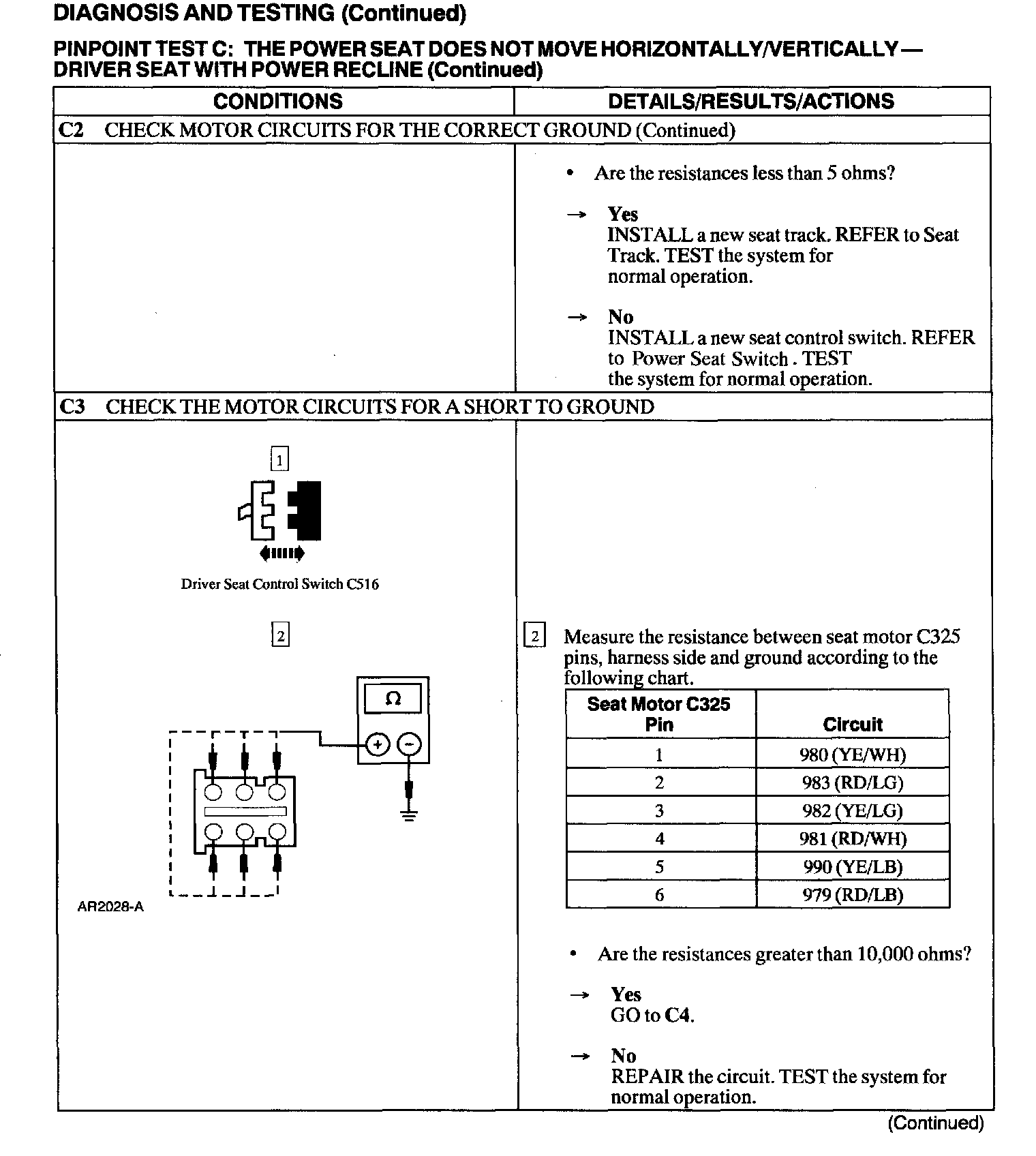

C1 - C2:
C2 - C3:

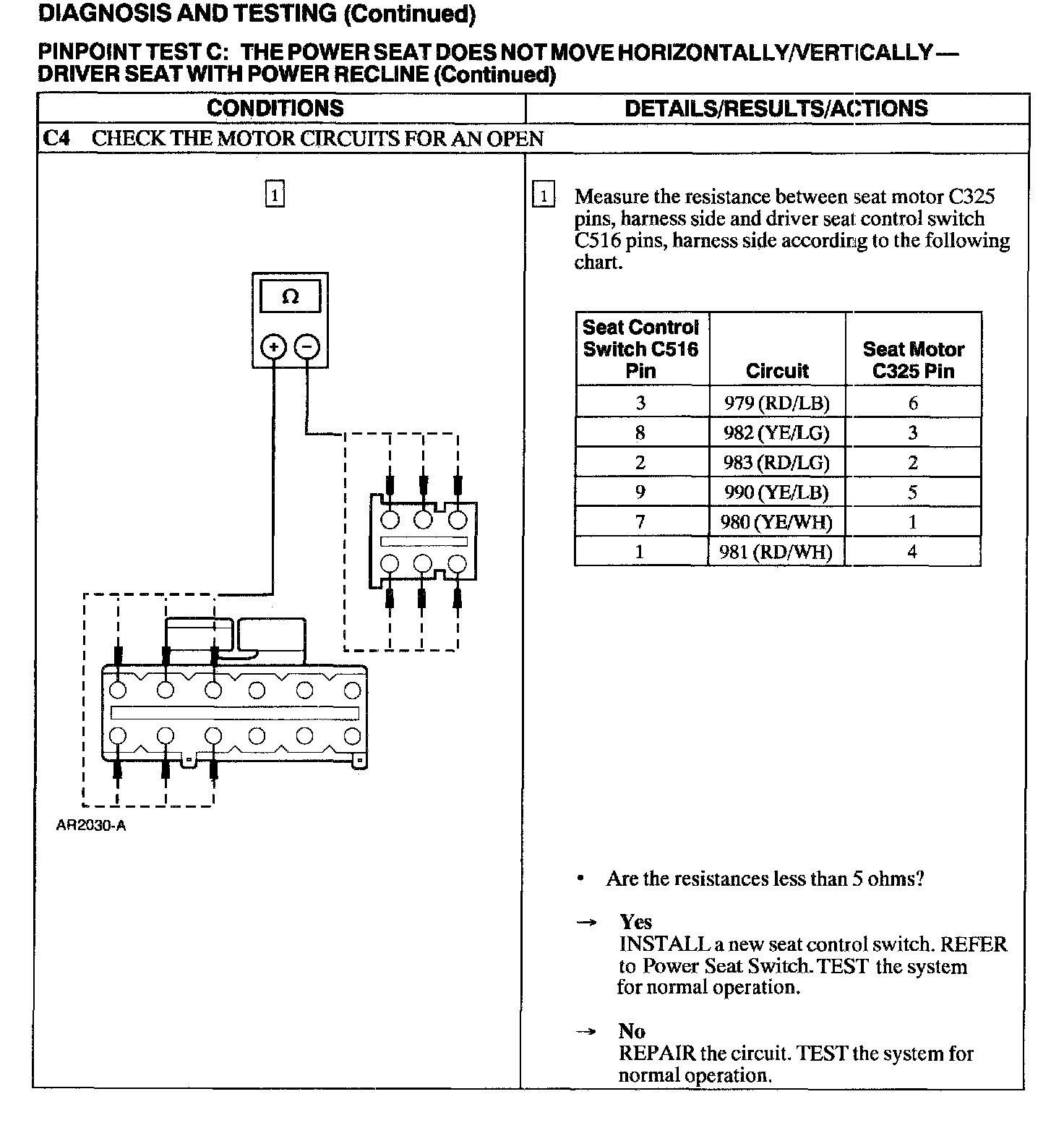

C4:
