Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Test B: Power Seat Does Not Move Horizontally/Vertically- Driver Seat Without Power Recline

Test B: Power Seat Does Not Move Horizontally/Vertically- Driver Seat Without Power Recline

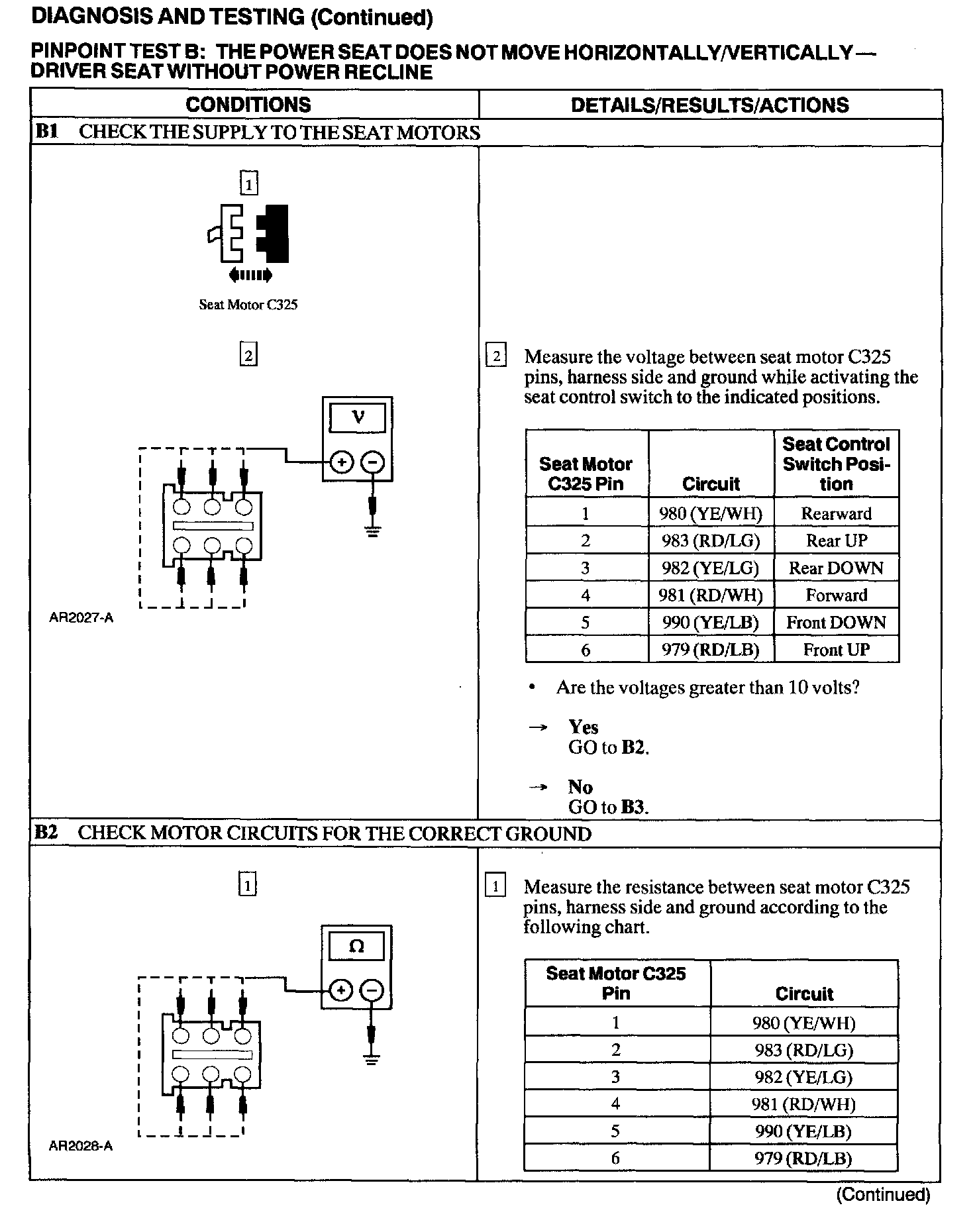

B1 - B2:

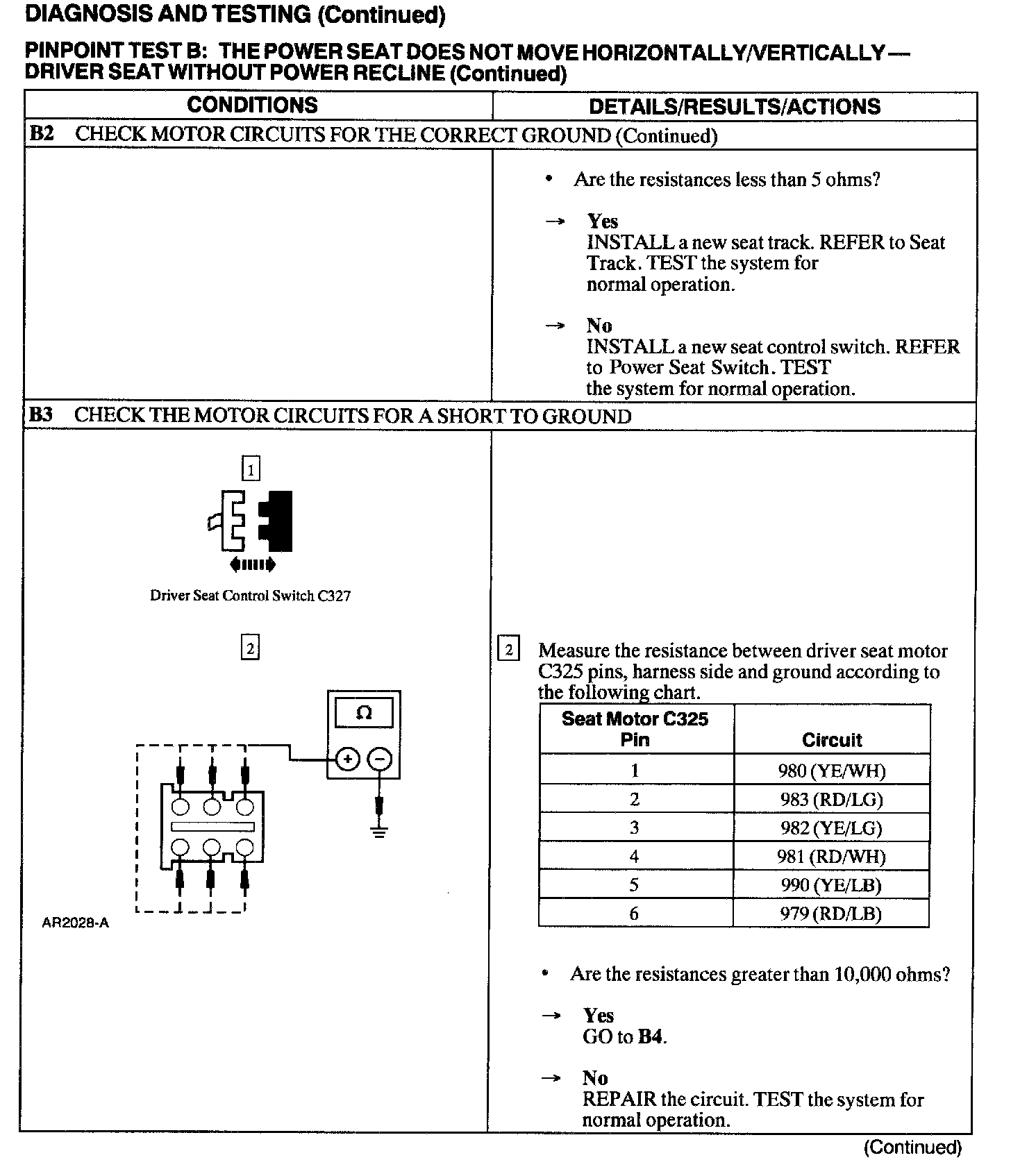

B2 - B3:

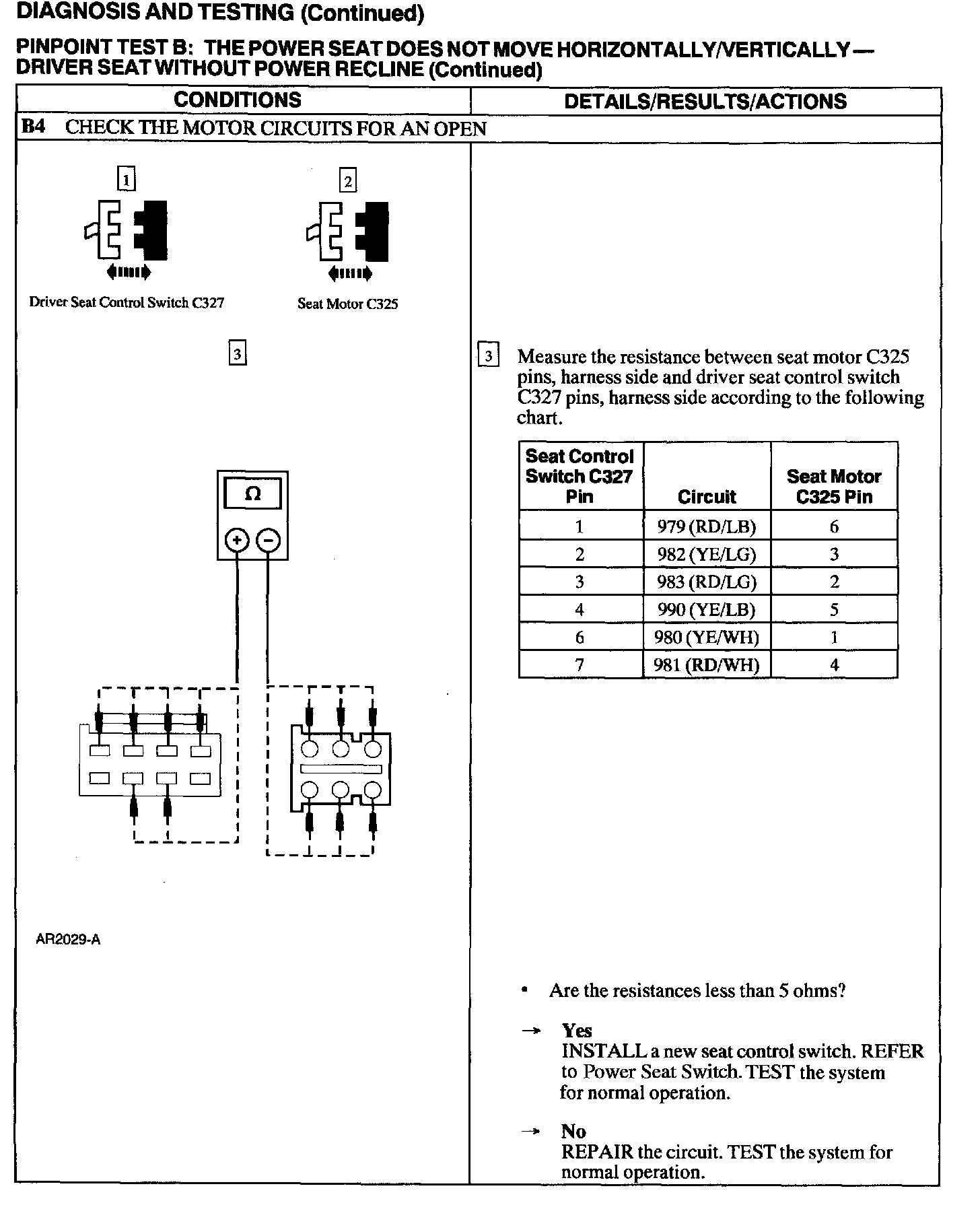

B4:
